Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Contactor
Description

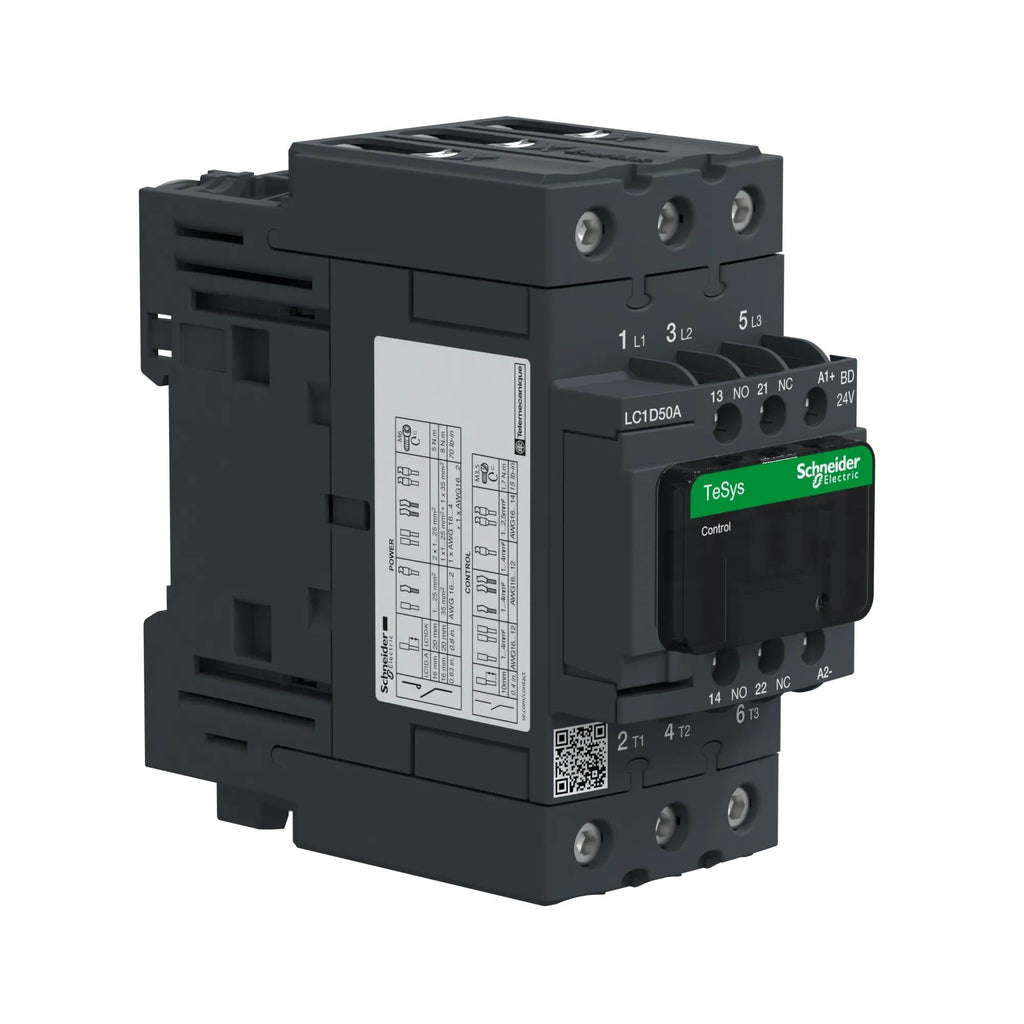

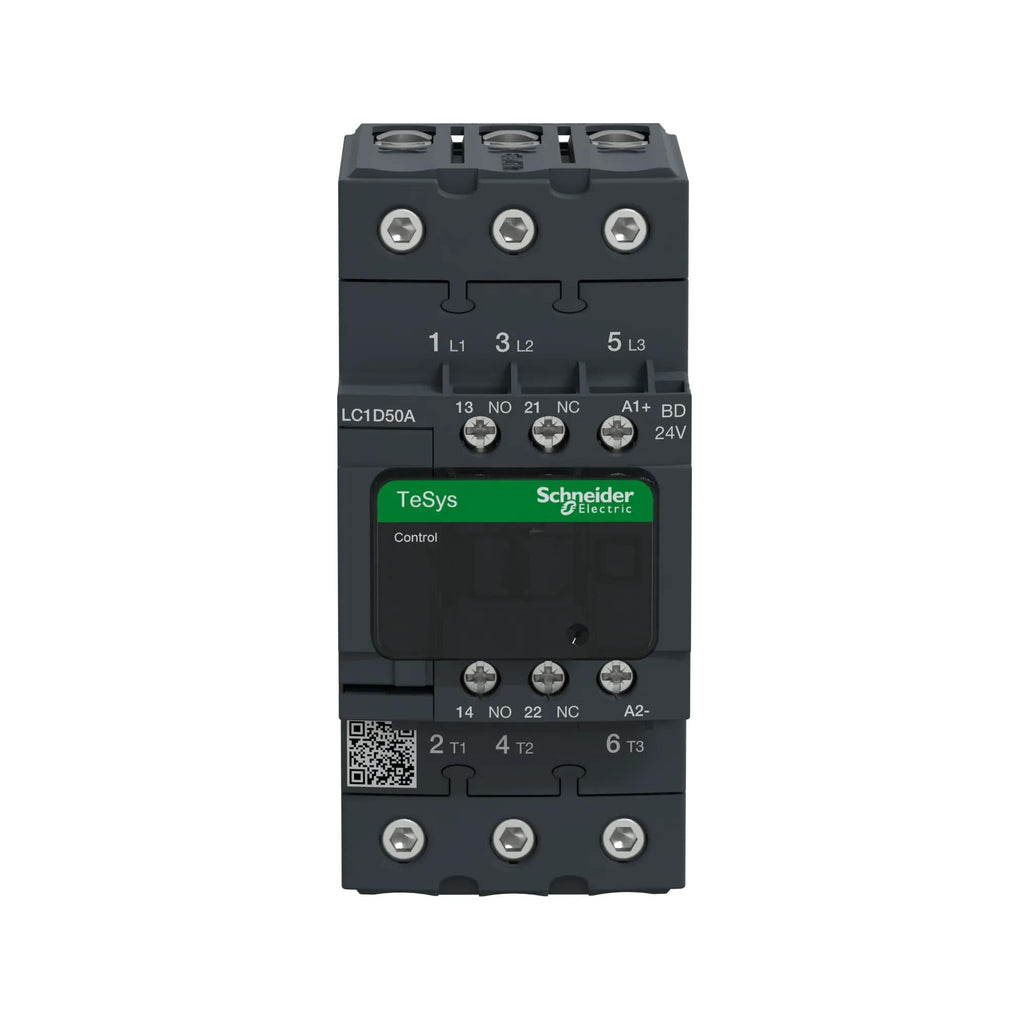

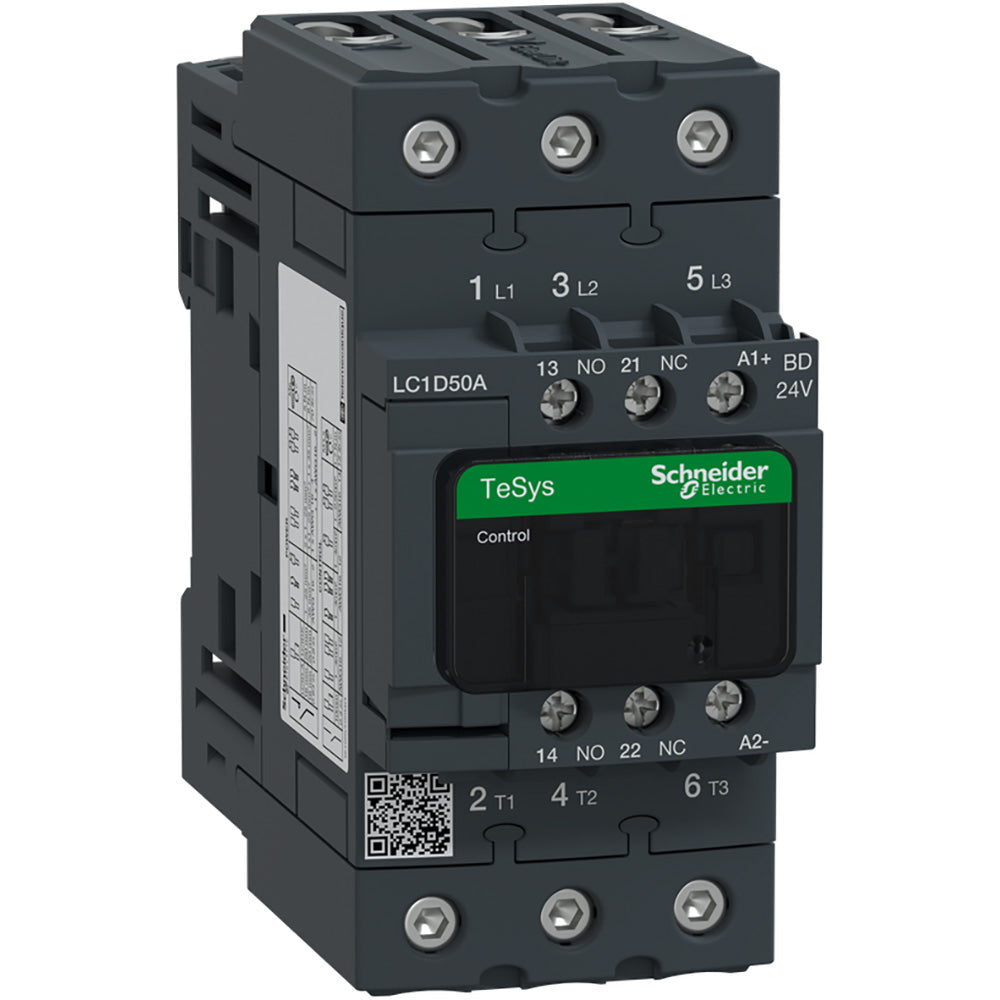

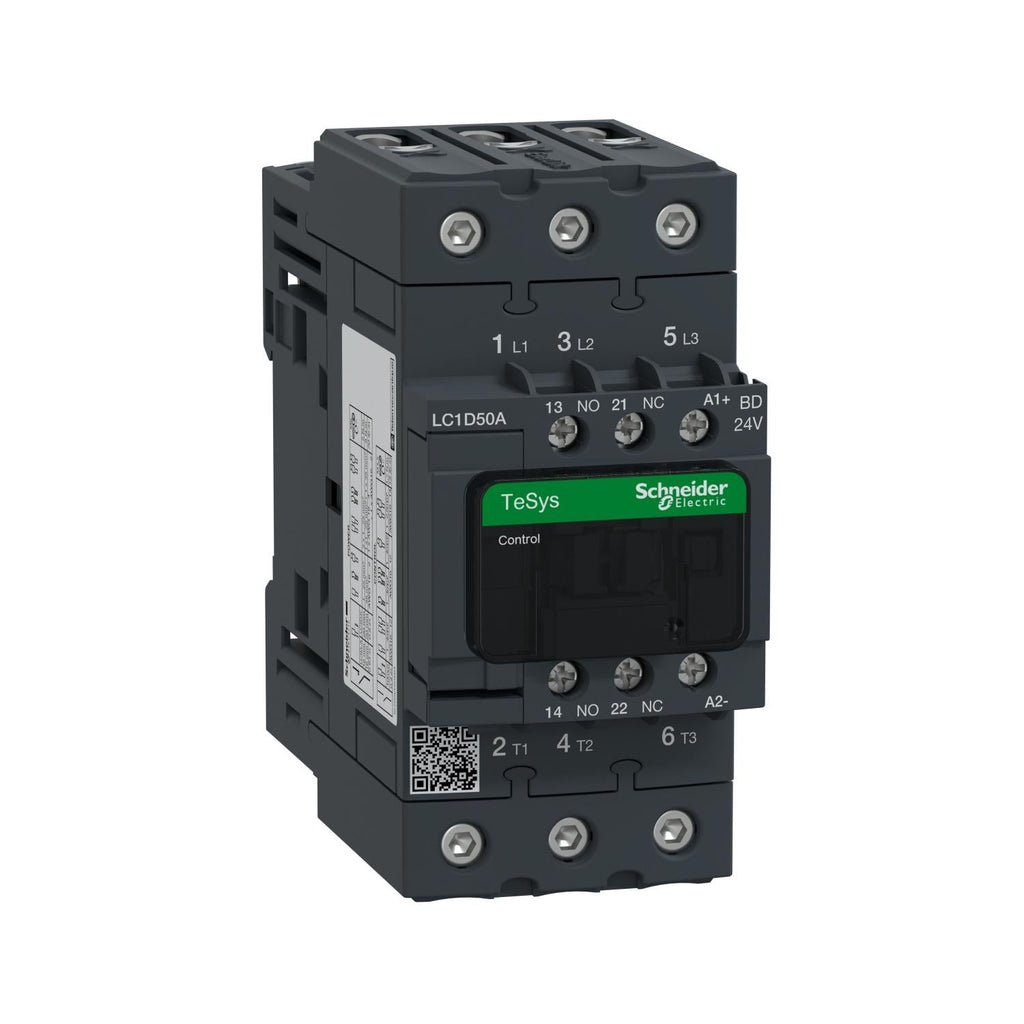

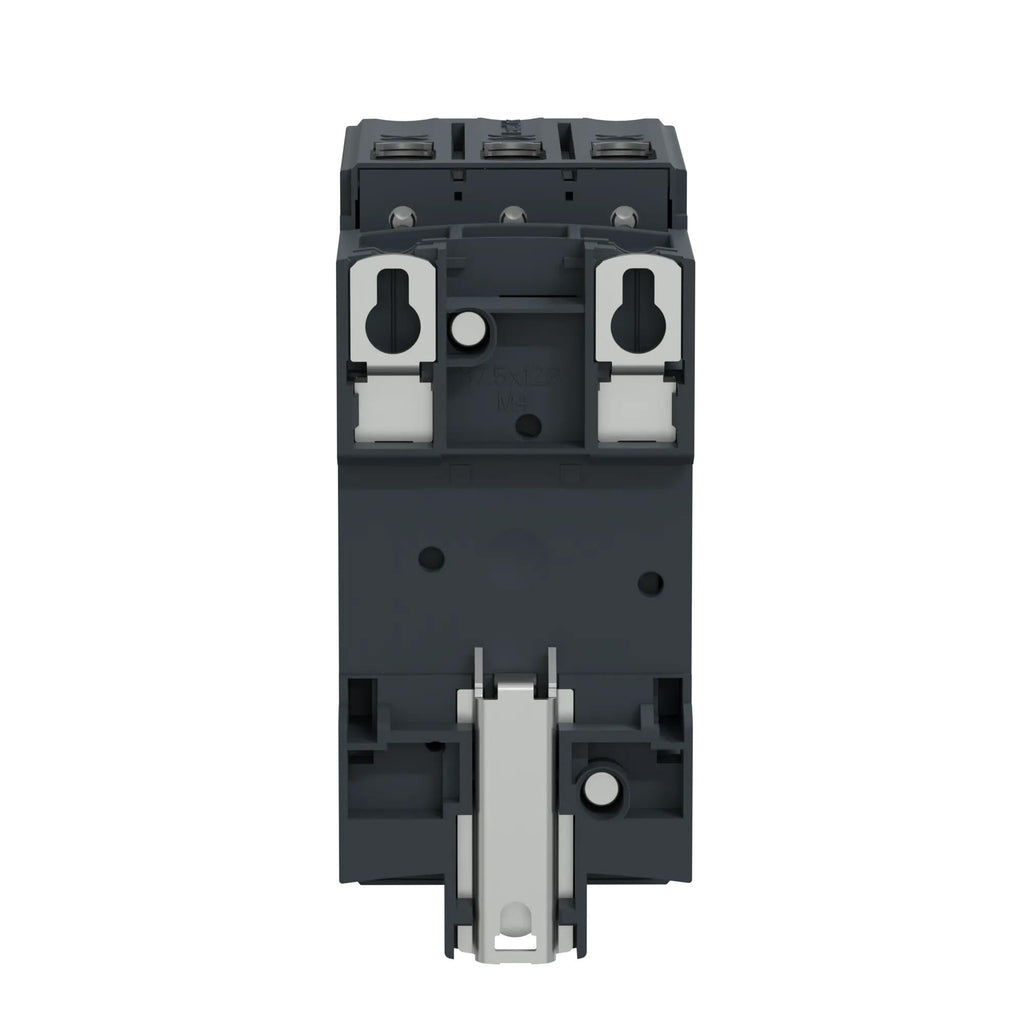

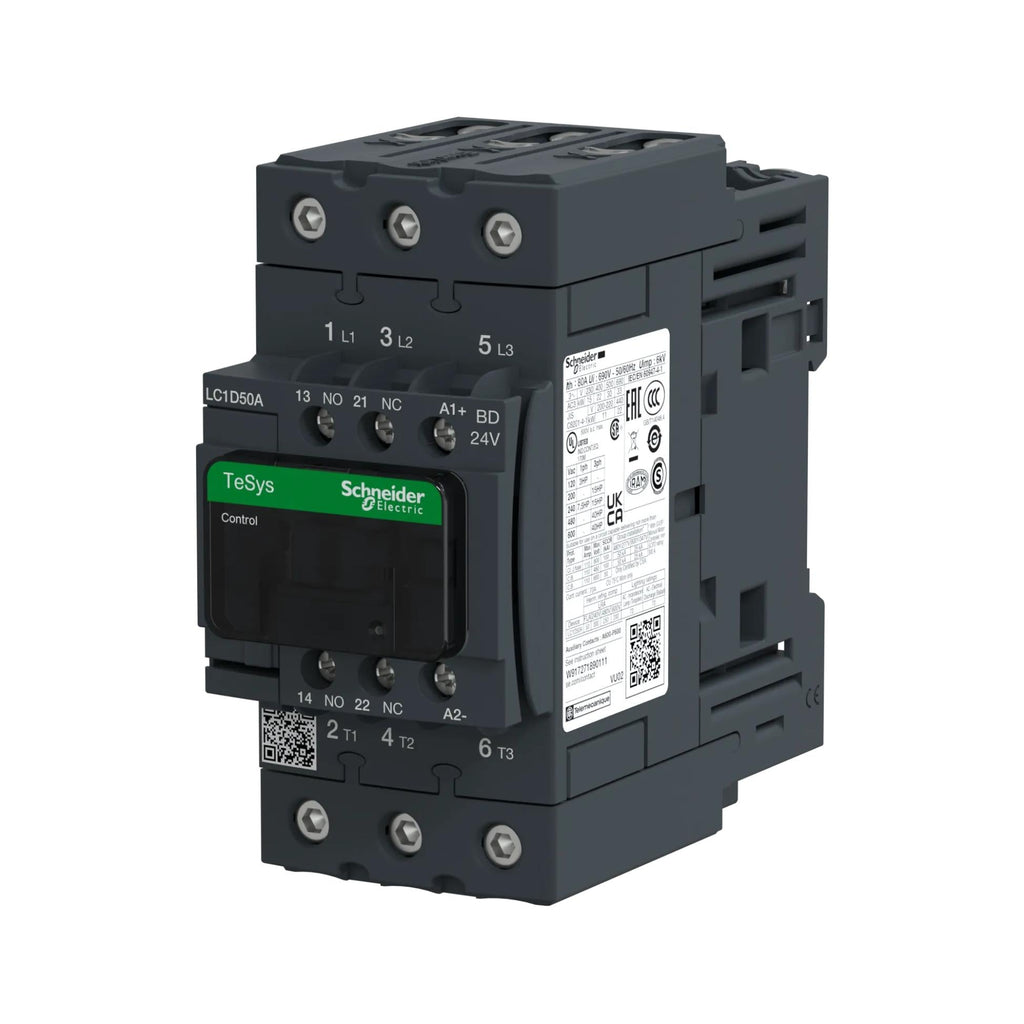

LC1D50ABD
LC1D50ABD is a Schneider Electric TeSys D 3-pole motor contactor designed for reliable motor control and resistive load applications.This contactor features a 50A rated operational current at up to 690V AC, suitable for AC-1, AC-3, and AC-4 utilization categories. It has a 3 NO (normally open) contact configuration and operates with a 24V DC standard coil. The device supports motor power ratings up to 22 kW at 400V AC and has a high interrupt rating up to 100kA SCCR. It is designed for industrial and HVAC applications with screw clamp terminals and an open style mounting.
- Key Specifications
- Rated operational current: 50A at 690V AC
- Poles: 3 (3 NO contacts)
- Coil voltage: 24V DC standard coil
- Utilization categories: AC-1, AC-3, AC-4
- Motor power: up to 22 kW at 400V AC
- Interrupt rating: up to 100kA SCCR
- Mounting type: open style with screw clamp terminals
- Frequency: 50/60 Hz
- Operating temperature range: -5 to 60 ¡C
- Certifications: IEC compliant, IEC 60335-1 Clause 30.2 certified
- Contact configuration: Non-reversing
- Part Number: LC1D50ABD
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Family : TeSys D
- Type : LC1D
- Voltage : 600
- Amperage : 50
- Phase : 3
- Poles : 3
- Horse Power : 3 hp at 115 V AC 50/60 Hz for 1 phase motors-7.5 hp at 230/240 V AC 50/60 Hz for 1 phase motors-15 hp at 200/208 V AC 50/60 Hz for 3 phases motors-15 hp at 230/240 V AC 50/60 Hz for 3 phases motors-40 hp at 460/480 V AC 50/60 Hz for 3 phases motors-40 hp at 575/600 V AC 50/60 Hz for 3 phases motors
- Aux Contacts : 3 NO
- Coil Voltage Maximum : 24
- Full Load Amps : Full Load Amps-Inductive 50A Full Load Amps-Resistive 80A
- Coil Voltage Minimum : 24
- UPC : 785901562542
- GTIN : 03389119408783
- Country of Origin : France
- Dimensions : 2.17 in x 2.17 in
- Weight : 2.202
- Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
Additional Information
This TeSys D IEC Contactor includes a 24 VDC coil.
