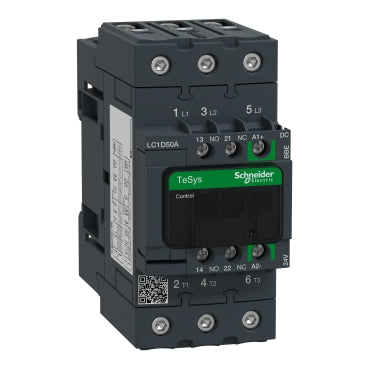

LC1D50AB7C - Schneider Electric 50A 3-Pole IEC Motor Contactor 24VAC Coil TeSys Deca Series

LC1D50AB7C

This IEC contactor from the TeSys Deca series supports motor control for up to 40 HP at 480 VAC, featuring 3 normally open (NO) poles and compliance with IEC60335-1 standards. It is suitable for industrial and HVAC applications, offering improved fire resistance and dustproof auxiliaries. The contactor operates with a rated operational voltage up to 690 V AC and supports AC-1, AC-3, and AC-4 utilization categories. It provides a short-circuit current rating (SCCR) of up to 100 kA, ensuring robust performance in demanding environments.

• Amperage: 50 A
• Poles: 3
• Coil Voltage: 24 VAC, 50/60 Hz
• Series: TeSys Deca
• Rated Operational Voltage: Up to 690 V AC
• Horsepower Rating: 40 HP at 480 VAC
• Contact Configuration: 3 Normally Open (NO)
• Short-Circuit Current Rating (SCCR): Up to 100 kA
• Standards Compliance: IEC60335-1
• Application: Motor Control for Industrial and HVAC
