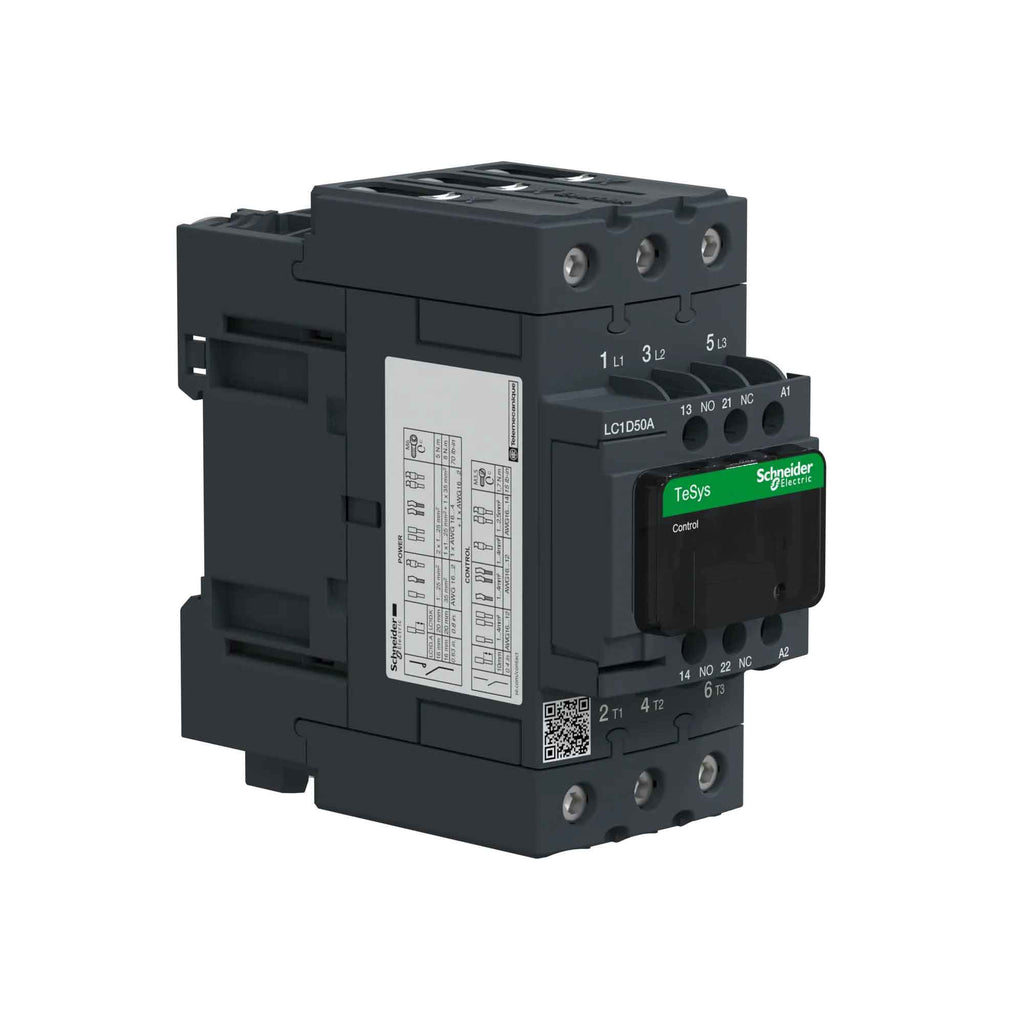

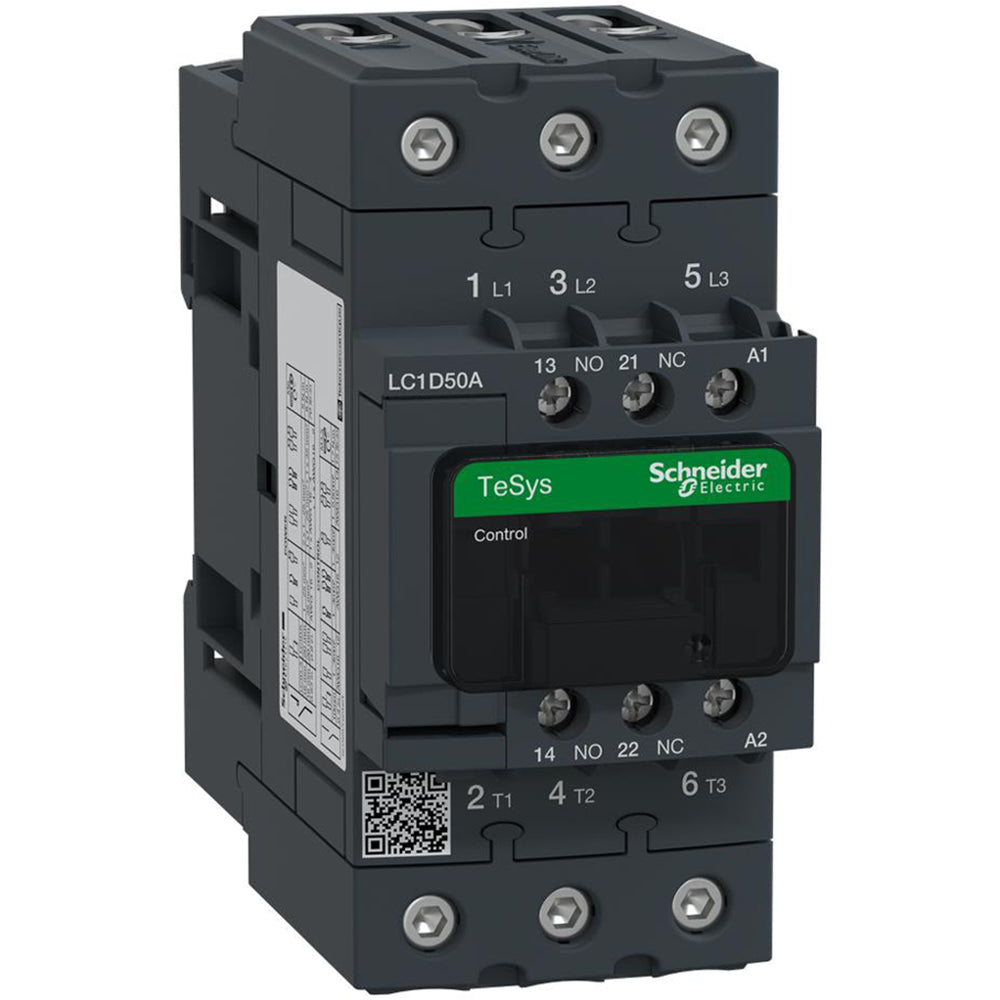

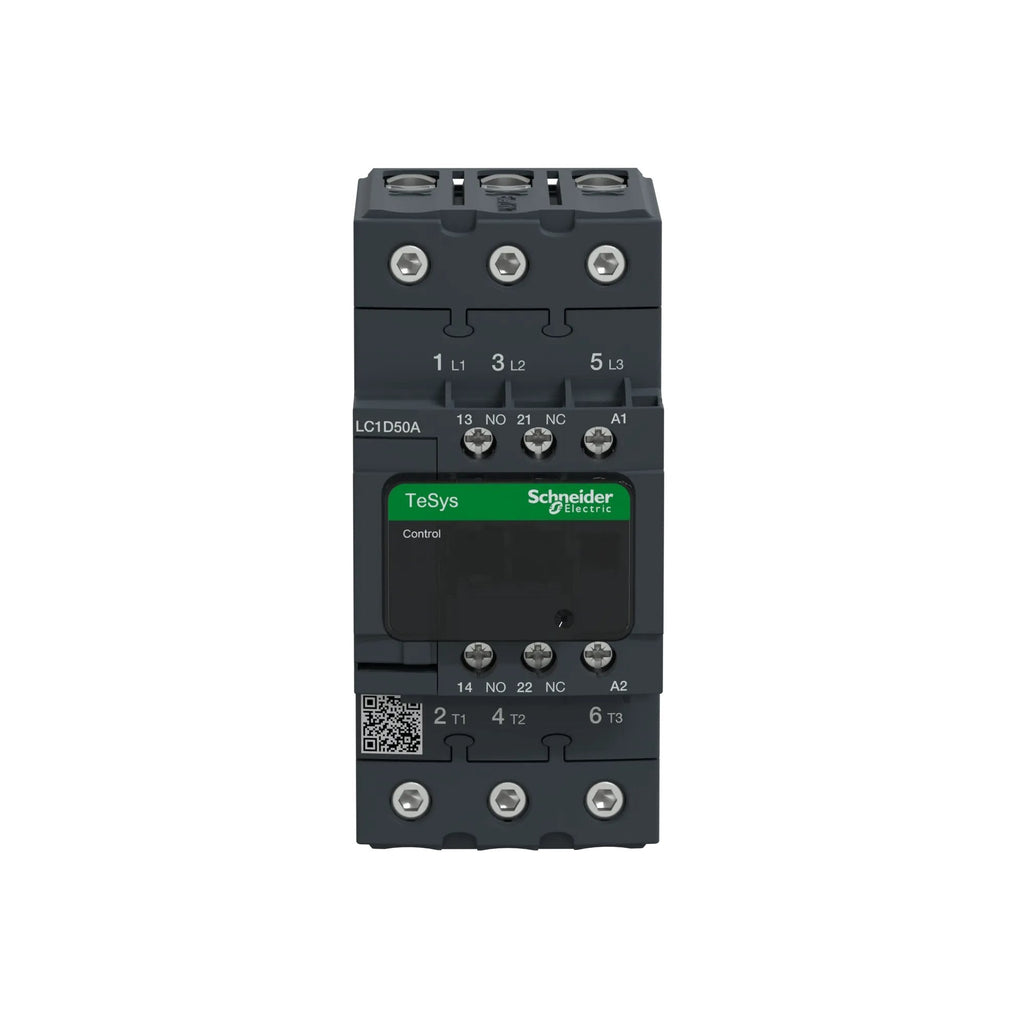

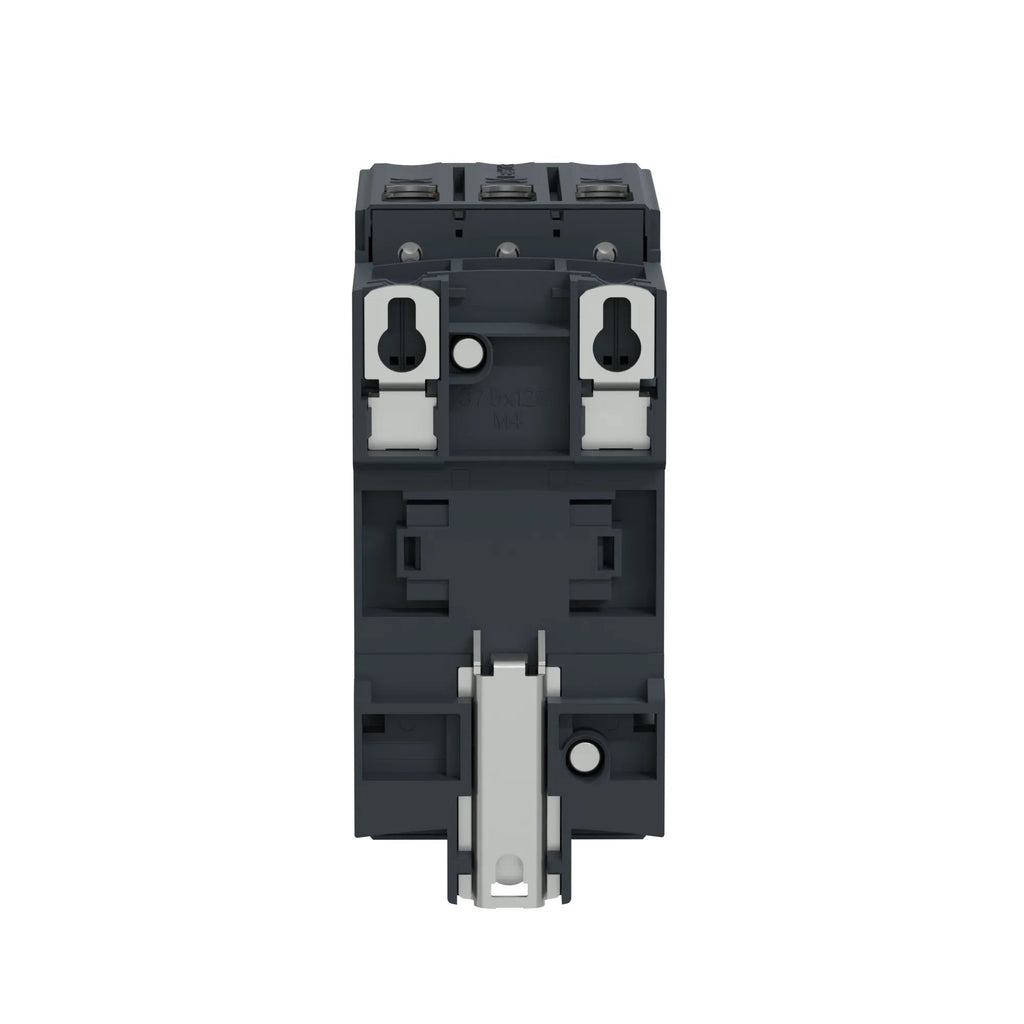

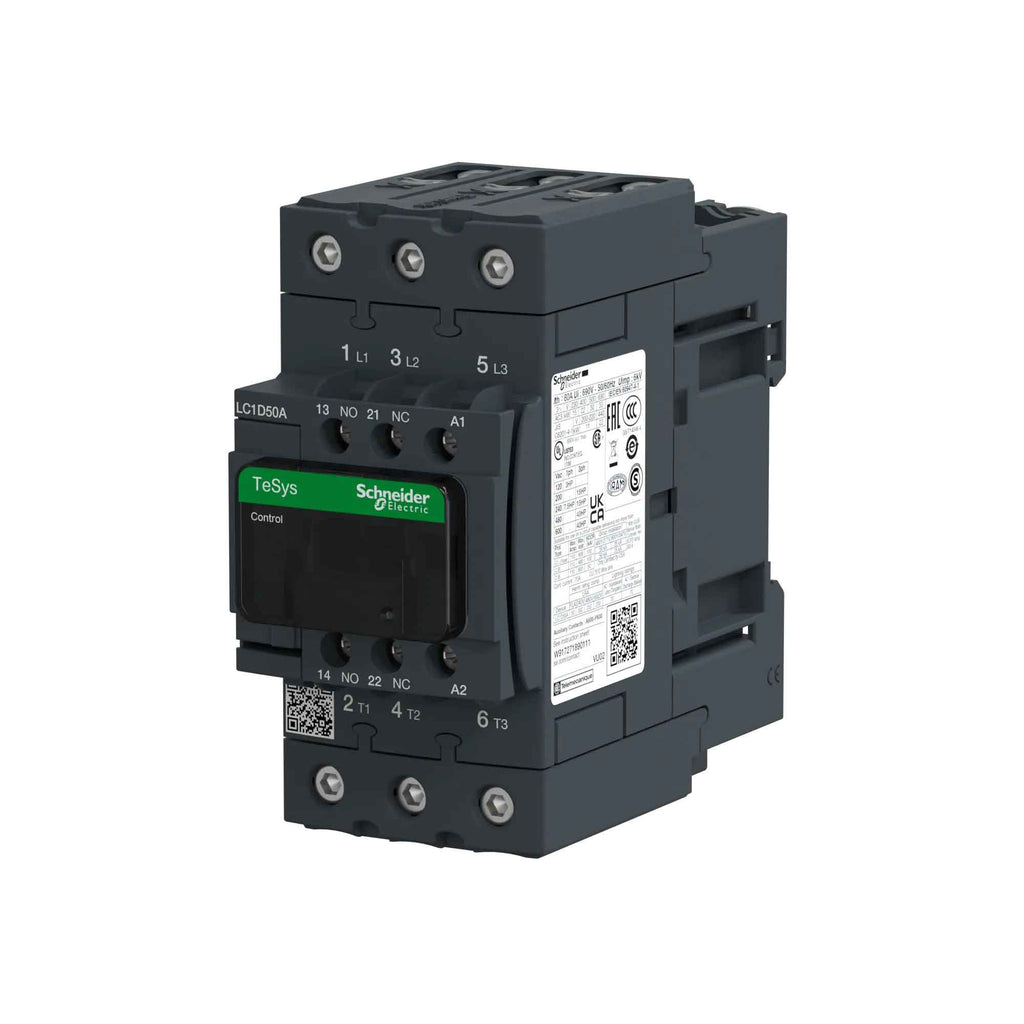

LC1D50AB7 - Schneider Electric 50A 600V 3-Pole TeSys D Motor Contactor

LC1D50AB7

LC1D50AB7 is a Schneider Electric TeSys D series 3-pole motor contactor rated for 50 amps and 600 volts AC.This magnetic contactor features a 3-pole configuration with 1 normally open and 1 normally closed auxiliary contact, designed for industrial and HVAC motor control applications. It supports up to 40 HP at 480 VAC and includes a 24 VAC 50/60 Hz coil. The device complies with IEC and UL standards and offers a high interrupt rating suitable for demanding motor control circuits.

• Manufacturer: Schneider Electric
• Series: TeSys D
• Amperage: 50 A
• Voltage Rating: 600 V AC
• Poles: 3
• Auxiliary Contacts: 1 NO / 1 NC
• Coil Voltage: 24 VAC, 50/60 Hz
• Horsepower Rating: 40 HP at 480 VAC
• Mounting Type: DIN Rail / Panel Mount
• Interrupt Rating: Up to 100 kA SCCR
• Certifications: IEC 60947-4-1, UL, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This TeSys D IEC Contactor includes a 24 VAC coil.

Specifications

• Part Number: LC1D50AB7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Family : TeSys D
• Type : LC1D
• Voltage : 600
• Amperage : 50
• Phase : 3
• Poles : 3
• Aux Contacts : 3 NO
• Coil Voltage Maximum : 24
• Coil Voltage Minimum : 24
• Frequency : 50/60 Hz

Product Data

• UPC : 3389119408622
• GTIN : 03389119408622
• Country of Origin : Indonesia
• Dimensions : 2.17 in (55 mm) x 4.80 in (122 mm)
• Weight : 2.117
• Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
