LC1D40U7 - Schneider Electric 40A 3 Pole Motor Contactor 240V Coil D-Line Series

LC1D40U7

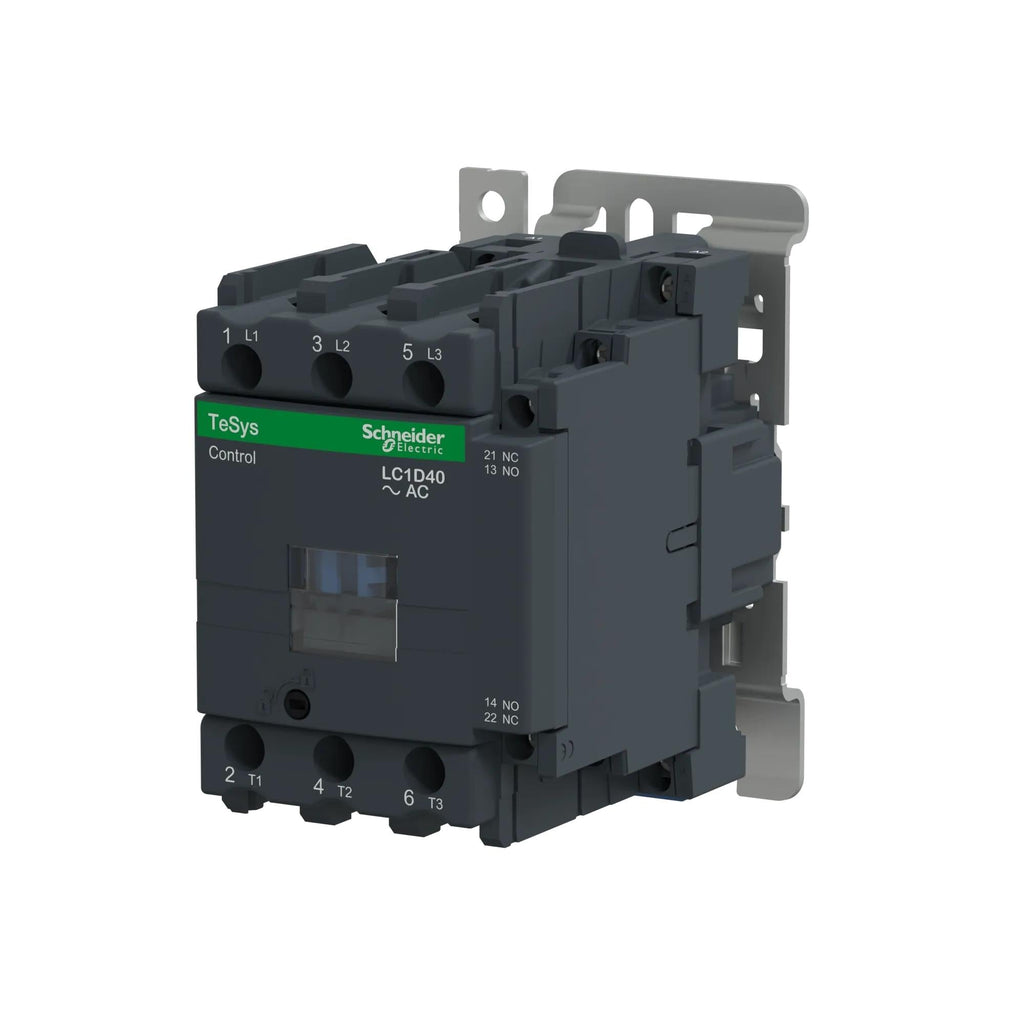

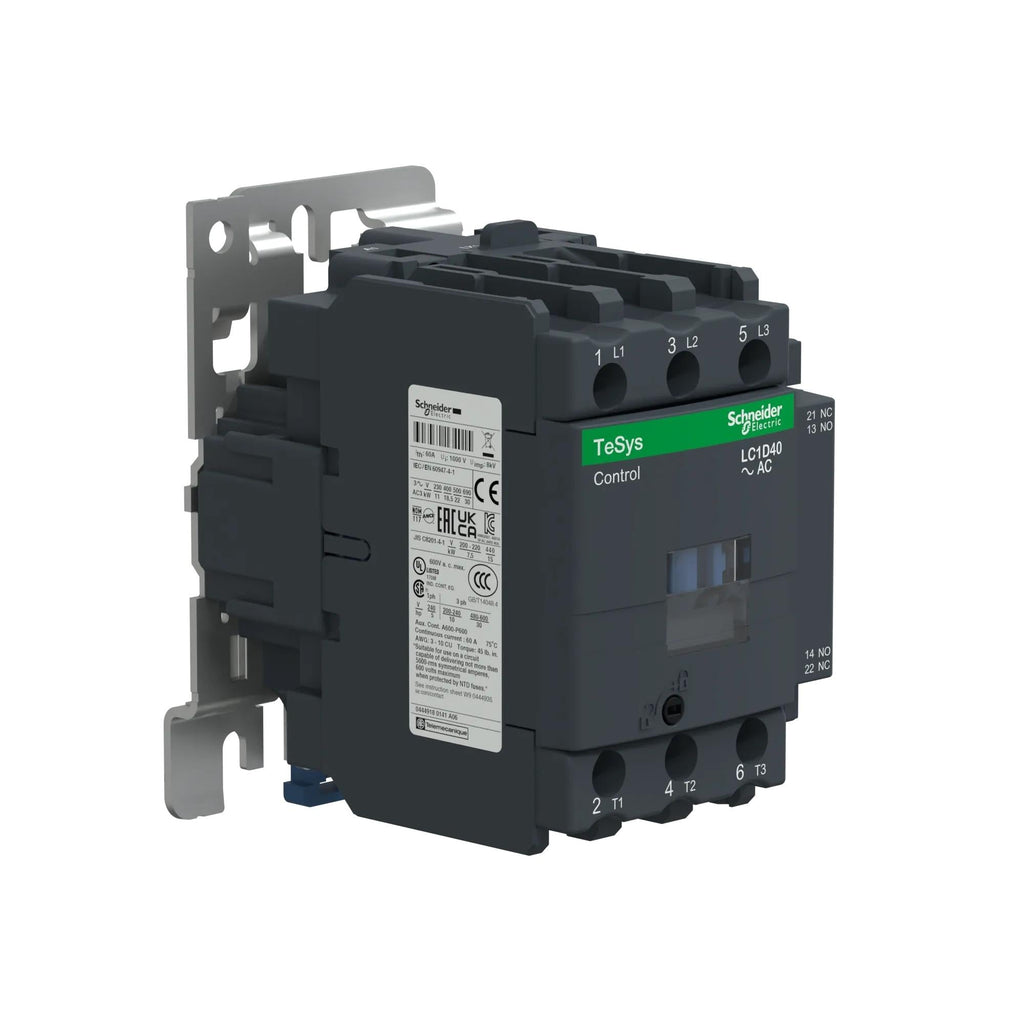

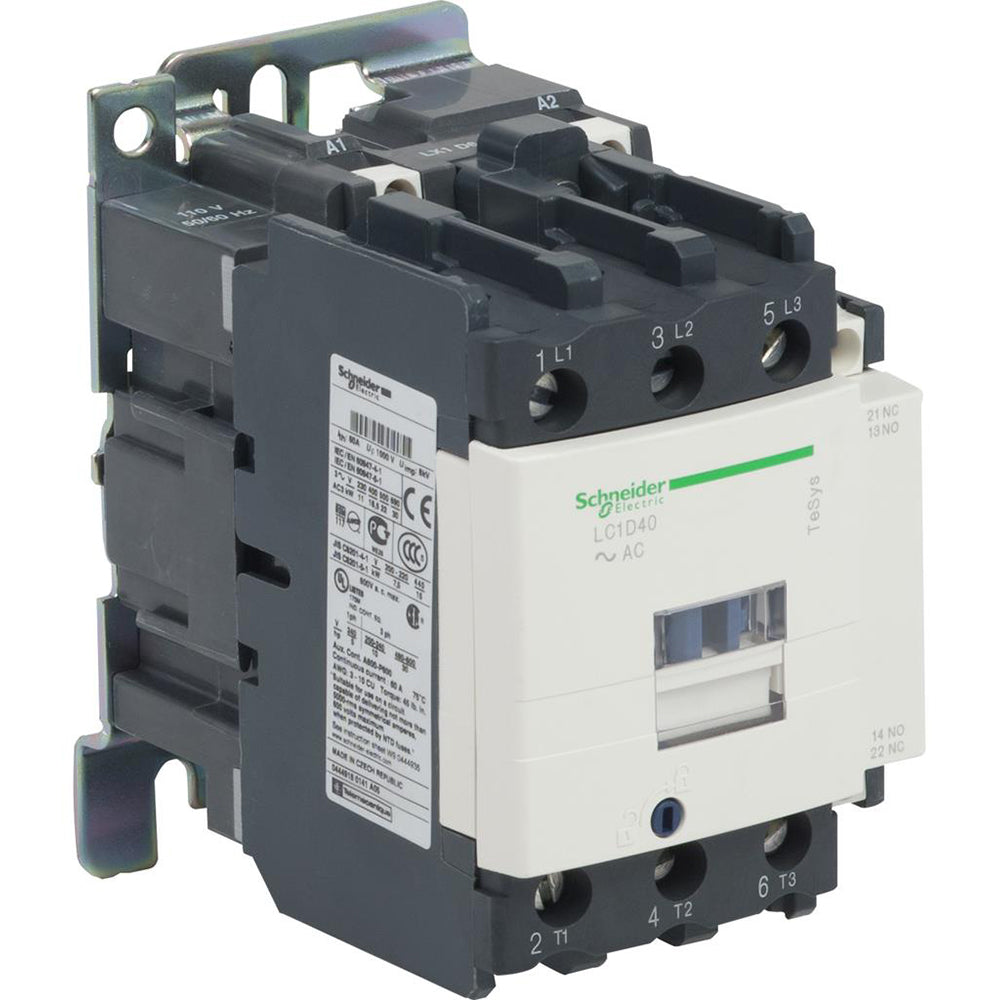

LC1D40U7 is a Schneider Electric 3 pole motor contactor with a 40 amp rating and 240V AC coil, designed for reliable motor control applications.This D-Line series contactor supports motor loads up to 30 HP at 460V AC and 40A continuous current. It features screw clamp terminals for secure connections, built-in auxiliary contacts, and is suitable for panel or DIN rail mounting. The contactor meets IEC standards with a high interrupt rating up to 100kA SCCR and is designed for demanding industrial environments.

• Amperage: 40 A continuous current
• Voltage: 240 VAC coil, up to 600 VAC operational voltage
• Poles: 3 pole (3 NO contacts)

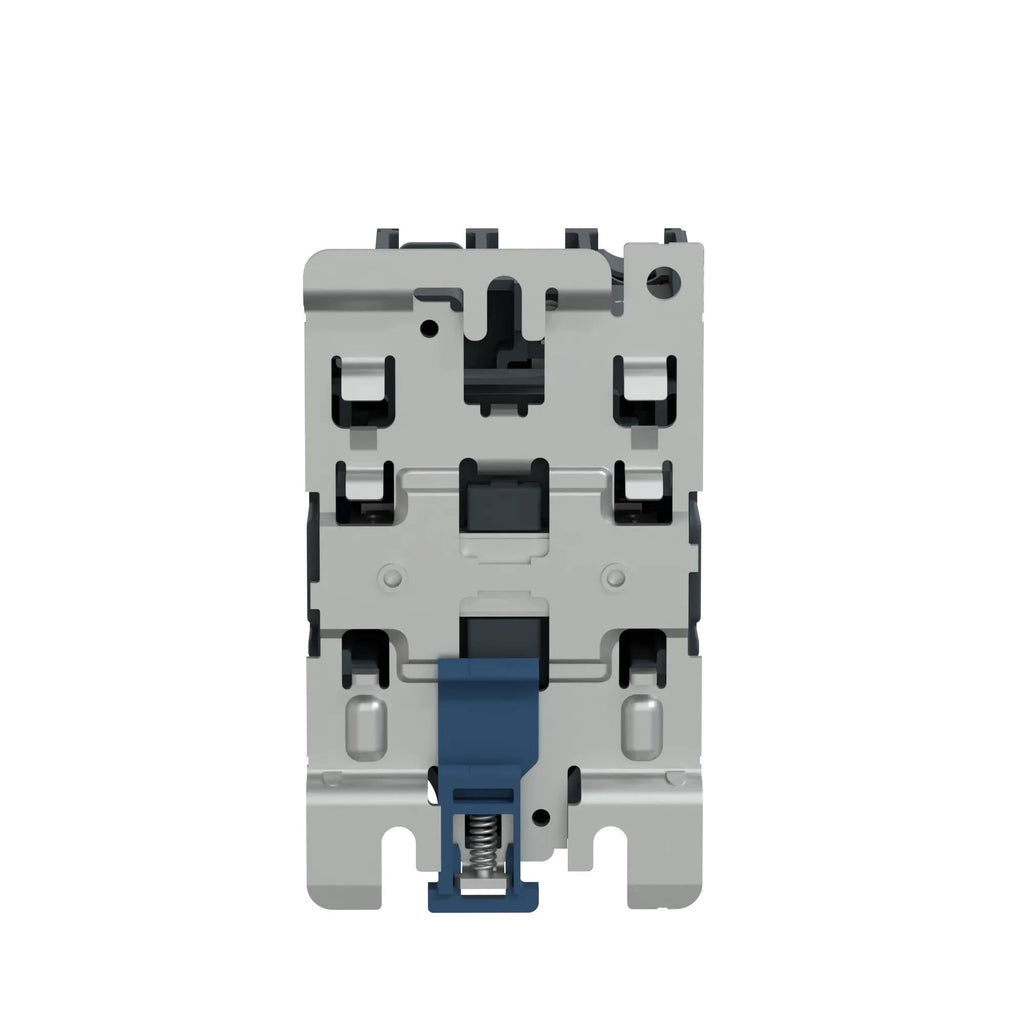

• Mounting: Panel mount or DIN rail compatible
• Interrupt Rating: Up to 100 kA SCCR
• Series/Frame: D-Line (TeSys D)
• Trip Unit: Non-reversing contactor
• Control Circuit: AC 50/60 Hz, screw clamp terminals
• Certifications: IEC 60947 compliant
• Horsepower Ratings: 30 HP at 460 VAC, 100 HP at 480 VAC (motor control)
• Auxiliary Contacts: Built-in 1 NO + 1 NC mirror contacts
• Operating Temperature: Rated for 60¡C ambi(more...)


  Additional Information

  This includes a 240 VAC coil.




  Specifications

  • Part Number: LC1D40U7
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Section : Contactors
  • Family : TeSys D
  • Type : LC1D
  • Voltage : 600
  • Amperage : 40
  • Phase : 3
  • Poles : 3
  • Aux Contacts : 1 NO + 1 NC
  • Coil Voltage Maximum : 240
  • Coil Voltage Minimum : 220



  Product Data

  • UPC : 785901417828
  • Country of Origin : Czechia
  • Dimensions : 127 mm H x 75 mm W x 119 mm D
  • Weight : 3.172
  • Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
