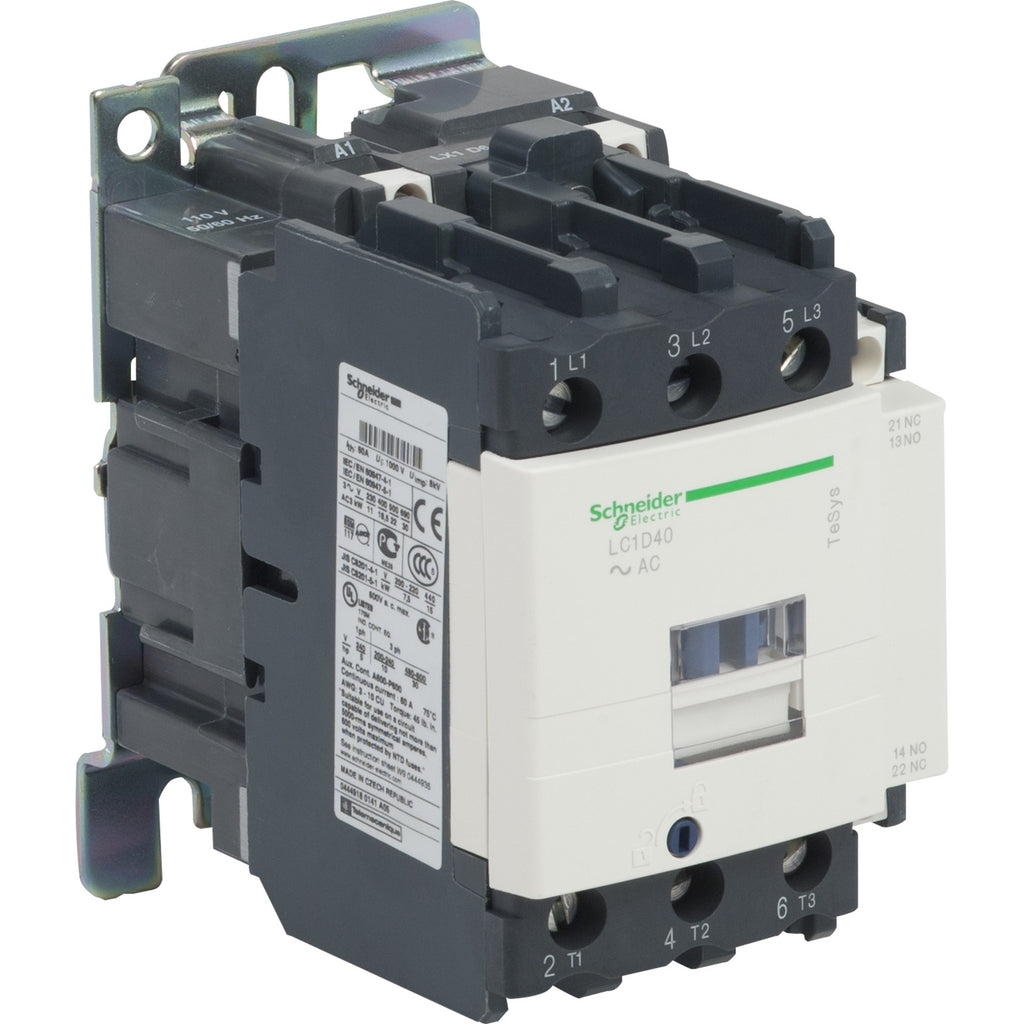

LC1D40FE7 - Schneider Electric TeSys Deca 3-Pole 40A 600VAC IEC Contactor, DIN Rail Mount, 1 NO + 1 NC Auxiliary Contacts, AC-3 440V, 115V Coil, 50/60Hz

LC1D40FE7

This contactor is rated for 40A AC-3 at up to 440V AC and 600V AC maximum, with a 115V AC 50/60Hz coil. It features 1 normally open (NO) and 1 normally closed (NC) mechanically linked auxiliary contact, DIN rail or panel mounting, and screw clamp terminals for secure connections. The LC1D40FE7 is part of the TeSys Deca series, known for robust construction and long electrical life, and is suitable for controlling motors up to 30 HP at higher voltages.

• Amperage: 40A AC-3, 60A AC-1
• Voltage: Up to 600V AC, 50/60Hz
• Poles: 3
• Mounting Type: DIN rail or panel (screw)
• Interrupt Rating: Up to 100kA SCCR (per similar models)
• Series/Frame: TeSys Deca
• Trip Unit: Not applicable (contactor only)
• Certifications: IEC 60947-4-1, mirror contact standard
• Coil Voltage: 115V AC 50/60Hz

• Specifications

  • Part Number: LC1D40FE7
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : TeSys D
  • Type : LC1D
  • Voltage : 600
  • Amperage : 40
  • Phase : 3
  • Poles : 3
  • Coil Voltage Maximum : 120
  • Coil Voltage Minimum : 110



  Product Data

  • Country of Origin : Czechia
  • Weight : 5.19
  • Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
