Description

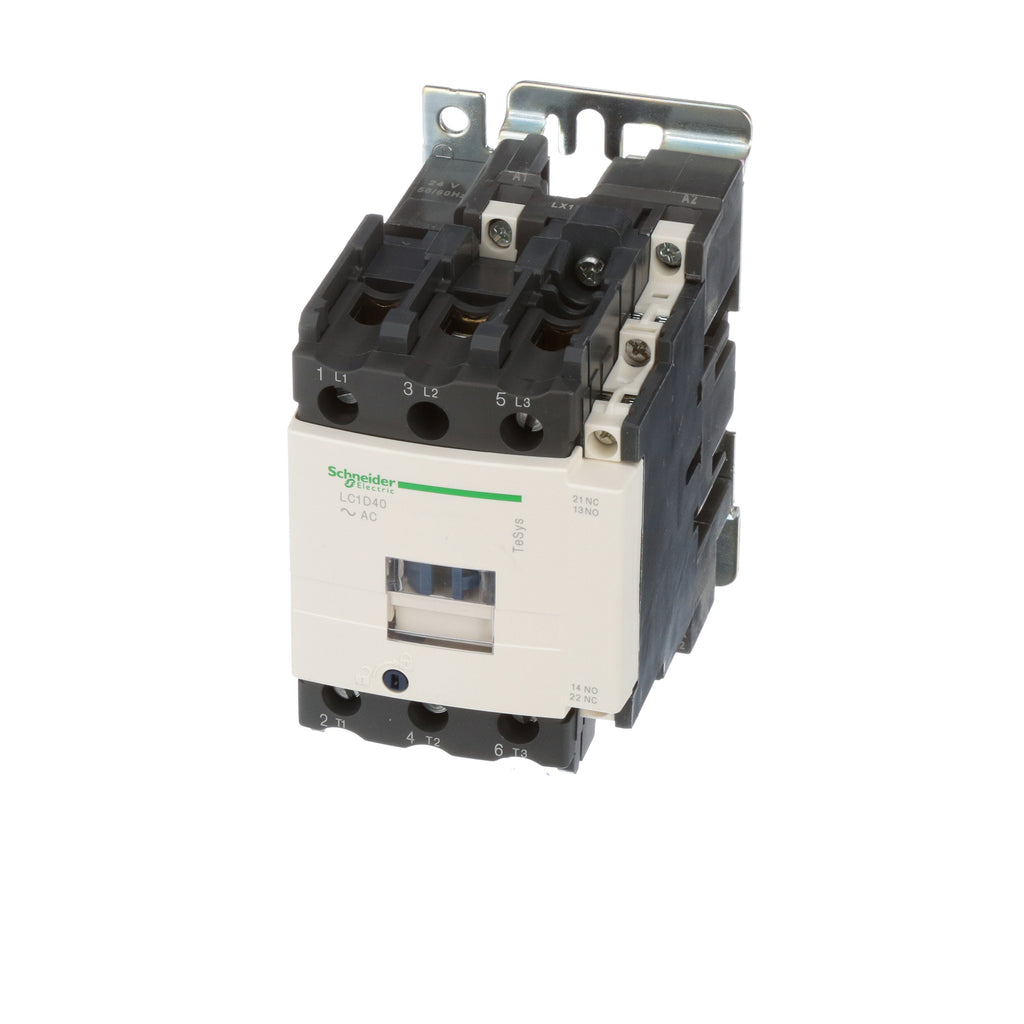

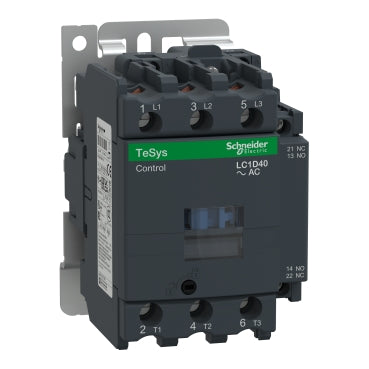

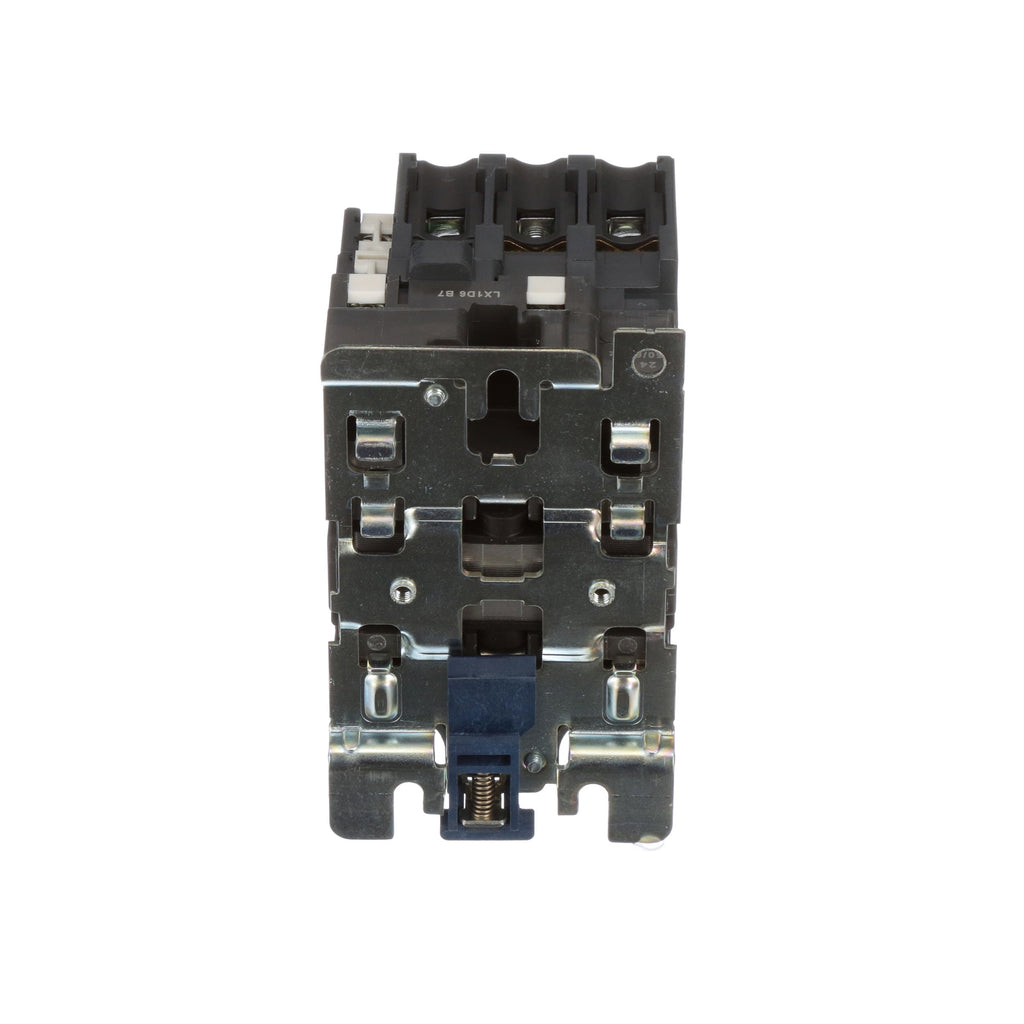

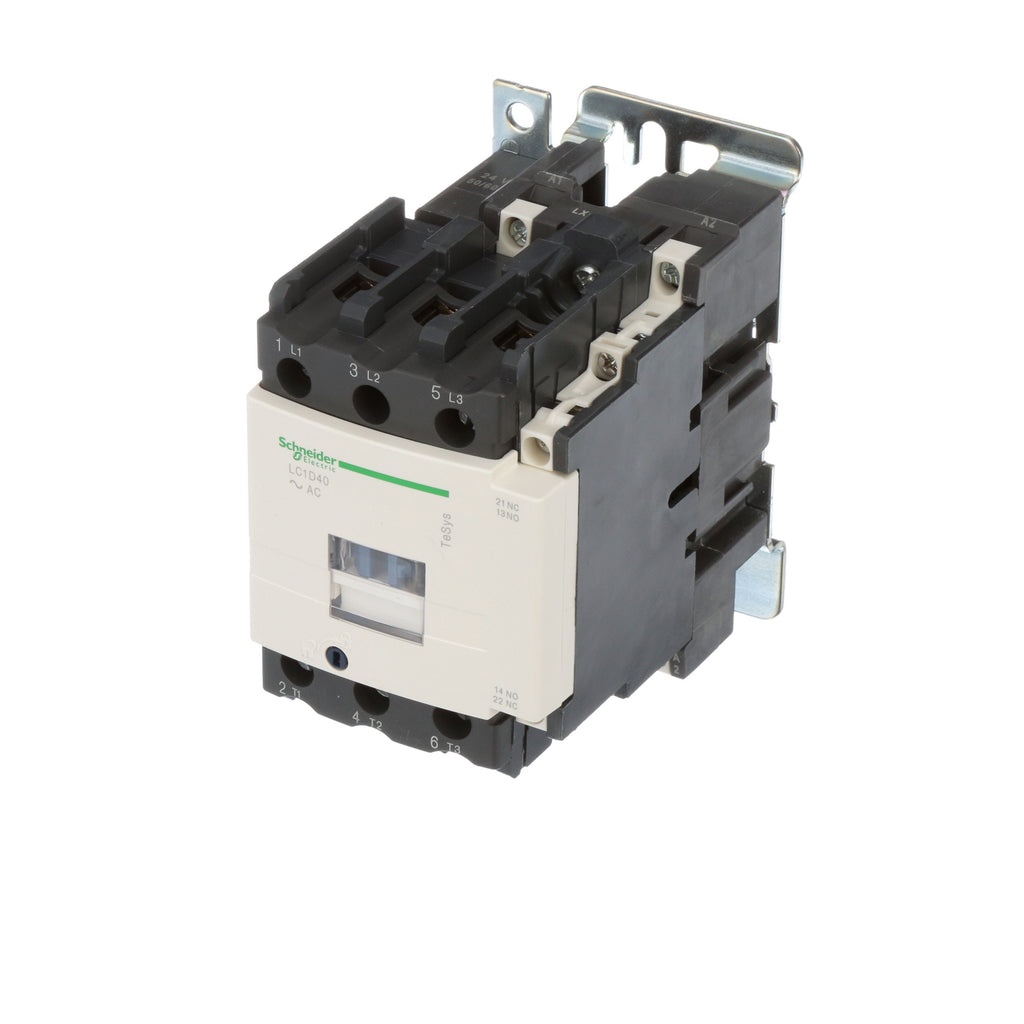

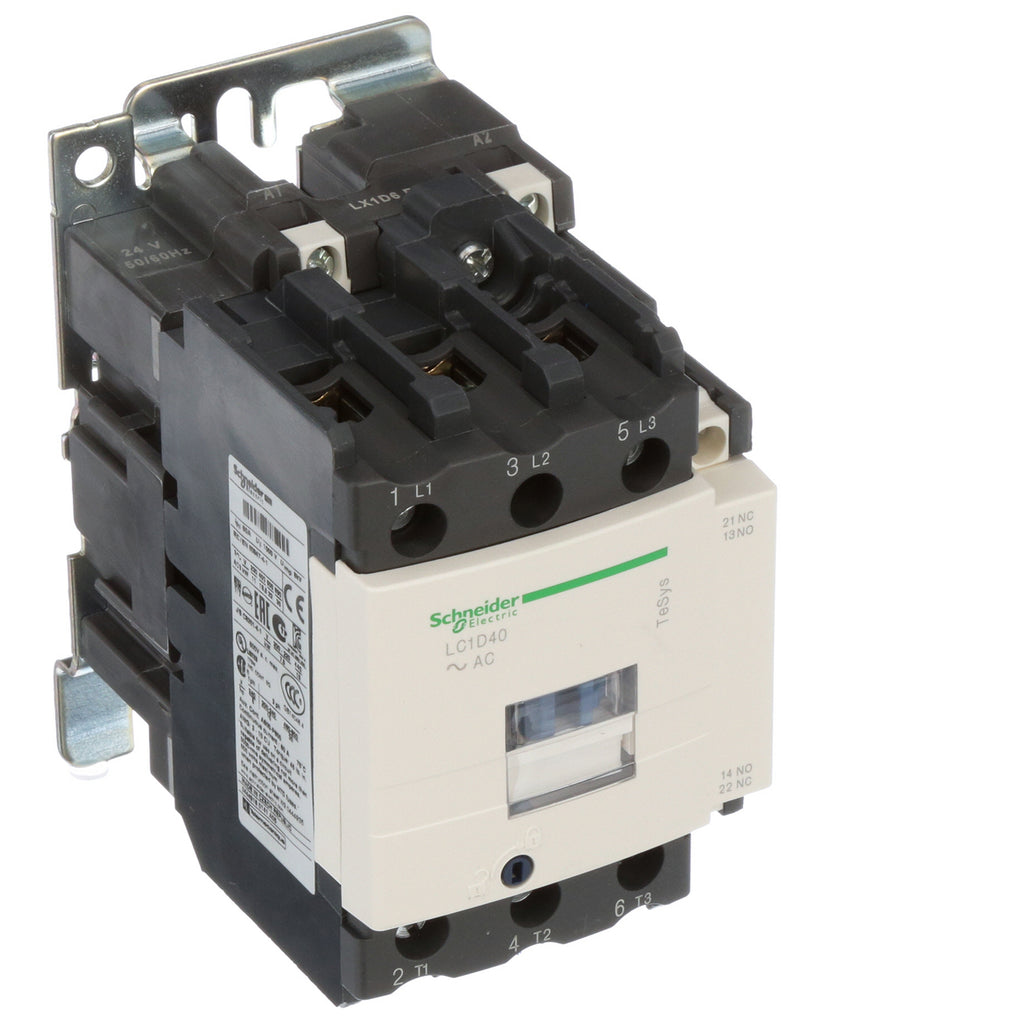

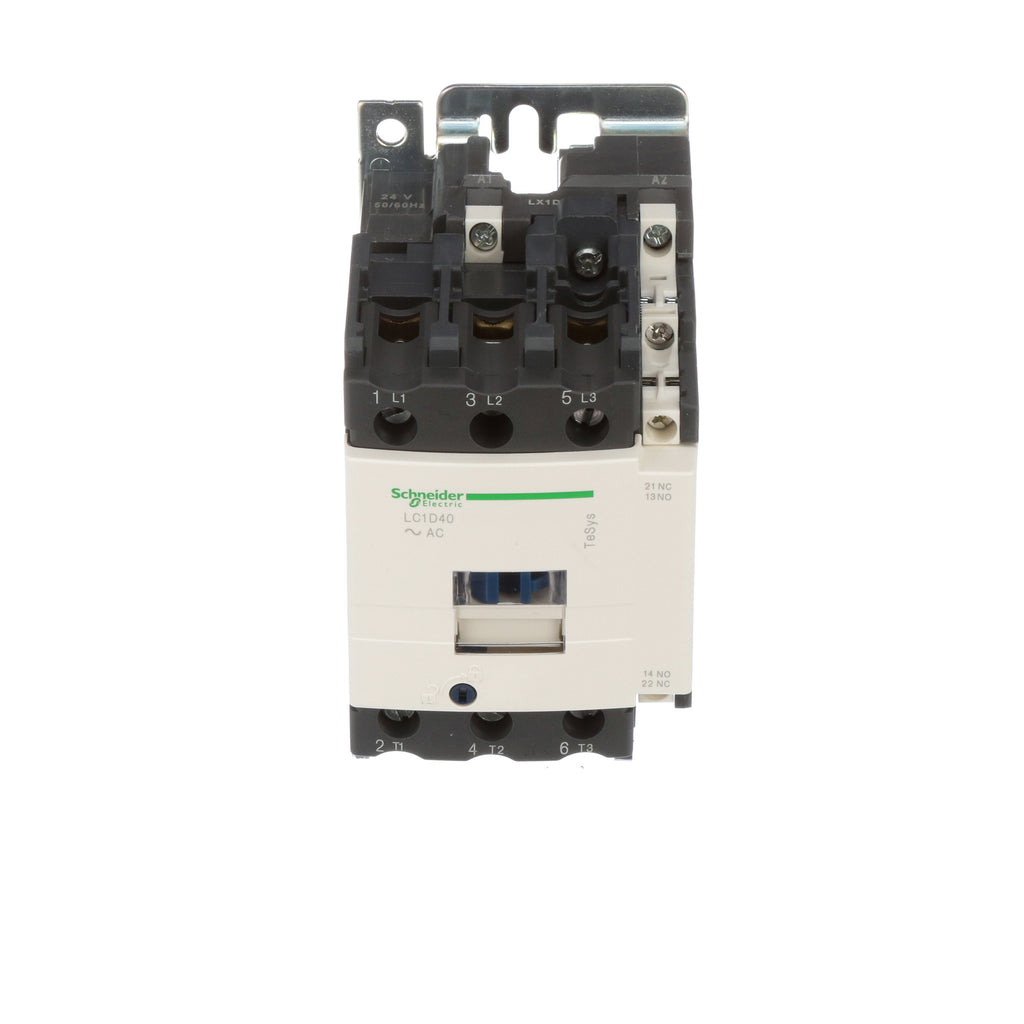

LC1D40B7
LC1D40B7 is a Schneider Electric 3-pole motor contactor designed for controlling motors up to 100 HP at 480 VAC or 125 HP at 600 VAC with a 24V AC coil.This TeSys D series contactor features a 40 ampere rating at 600 VAC, 3 normally open power poles (3NO), and 1NO-1NC auxiliary contacts. It supports surface mounting with screw clamp terminals and complies with IEC standards including IEC60335-1. The contactor offers a coil power rating of 140/160 VA inrush and 13/15 VA hold-in, operating temperature range from -5 to 60¡C, and an IP2X enclosure rating. It is suitable for industrial motor control and overload protection applications.
- Amperage: 40 A at 600 VAC
- Voltage: 24 V AC coil, 600 VAC power circuit
- Poles: 3 (3NO)
- Mounting Type: Surface mount
- Interrupt Rating: Up to 100 HP at 480 VAC, 125 HP at 600 VAC
- Series/Frame: TeSys D, D-Line LC1D
- Trip Unit: None (contactor only)
- Auxiliary Contacts: 1NO-1NC
- Terminal Type: Screw clamp
- Certifications: UL, CSA, IEC compliant
- Operating Temperature: -5 to 60 ¡C
- Enclosure Rating: IP2X
- Part Number: LC1D40B7
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Family : TeSys D
- Type : LC1D
- Voltage : 600
- Amperage : 40
- Phase : 3
- Poles : 3
- Horse Power : 3 hp at 115 V AC 60 Hz for 1 phase motors-5 hp at 230/240 V AC 60 Hz for 1 phase motors-10 hp at 200/208 V AC 60 Hz for 3 phases motors-10 hp at 230/240 V AC 60 Hz for 3 phases motors-30 hp at 460/480 V AC 60 Hz for 3 phases motors-30 hp at 575/600 V AC 60 Hz for 3 phases motors
- Aux Contacts : 1 NO + 1 NC
- Coil Voltage Maximum : 24
- Full Load Amps : Full Load Amps-Inductive 40A Full Load Amps-Resistive 60A
- Coil Voltage Minimum : 24
- Mounting : Rail
- UPC : 038911041650
- GTIN : 03389110416503
- Country of Origin : Czechia
- Dimensions : 75 mm x 127 mm
- Weight : 3.186
- Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
Additional Information
This includes a 24 VAC coil.
