LC1D40AT7 - Schneider Electric TeSys D 40 Amp 3 Pole 480V Contactor

LC1D40AT7

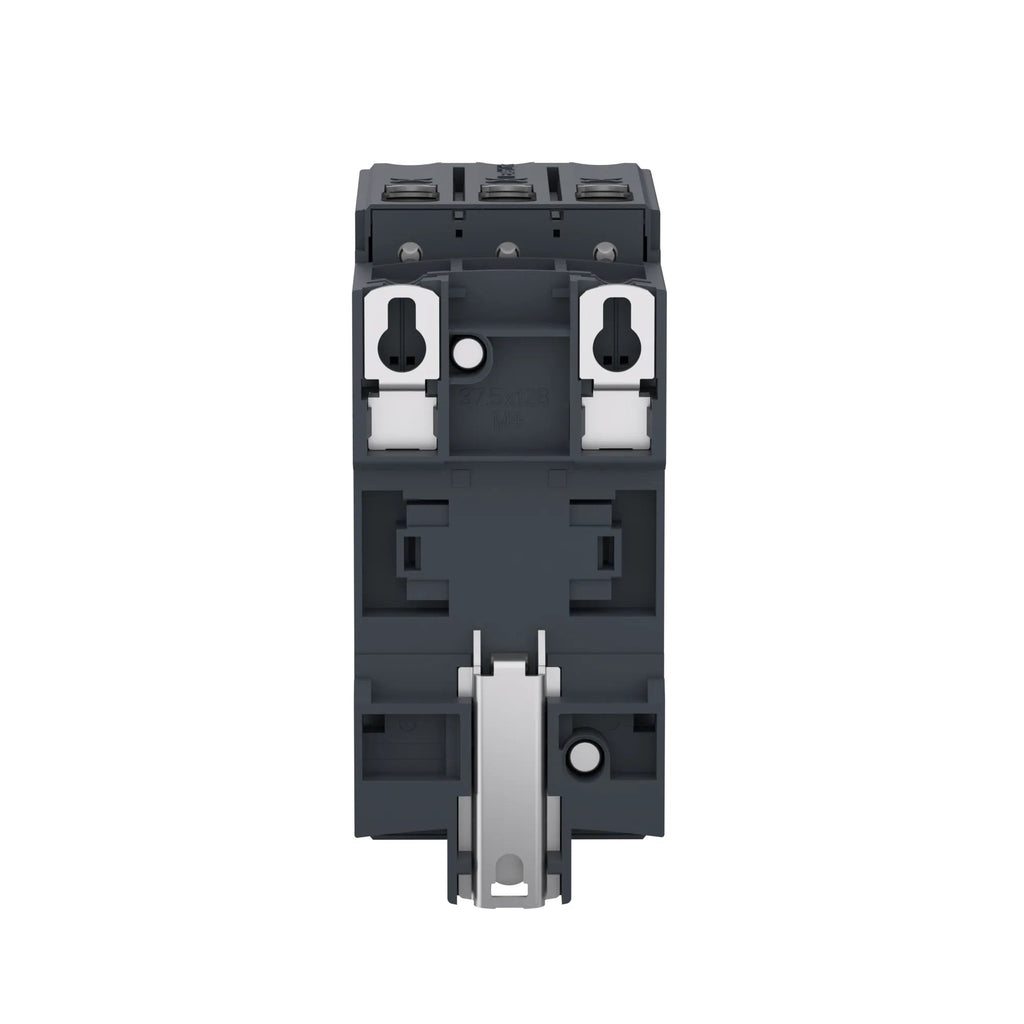

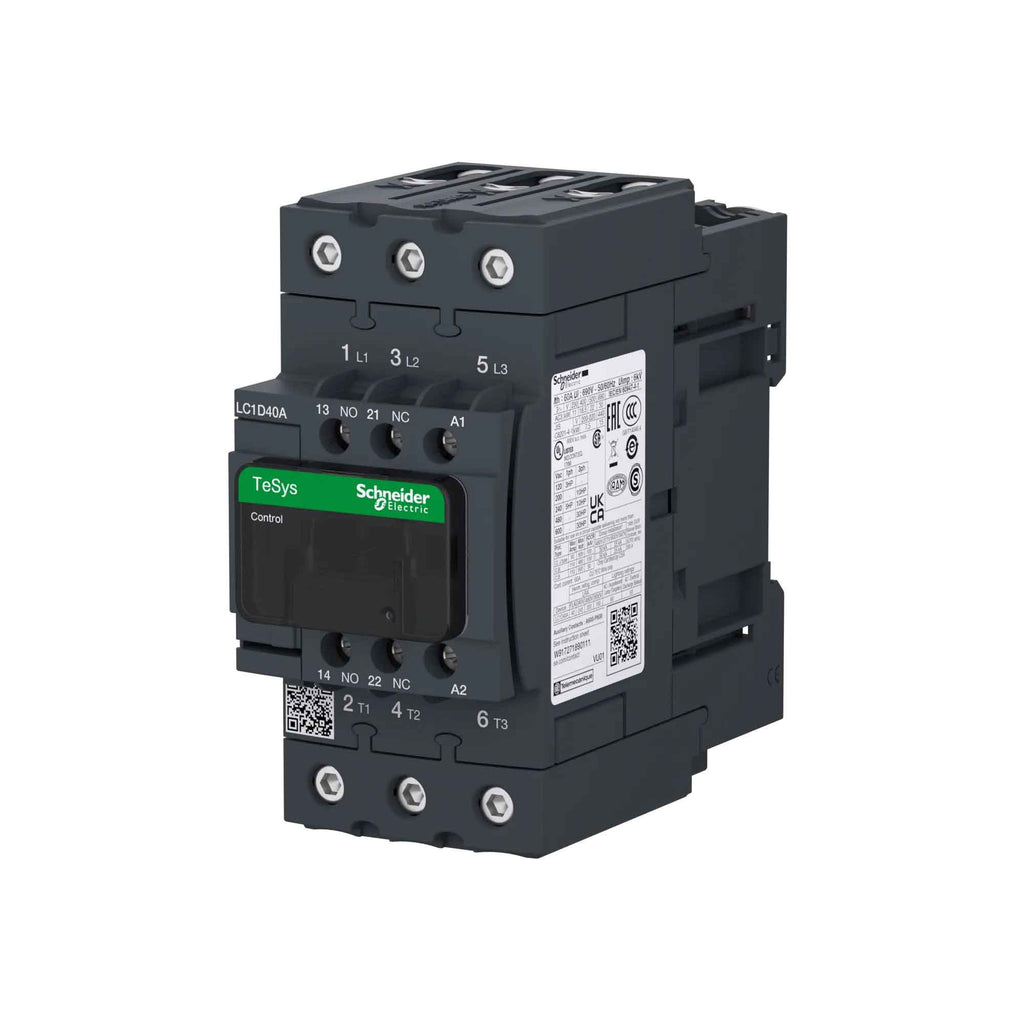

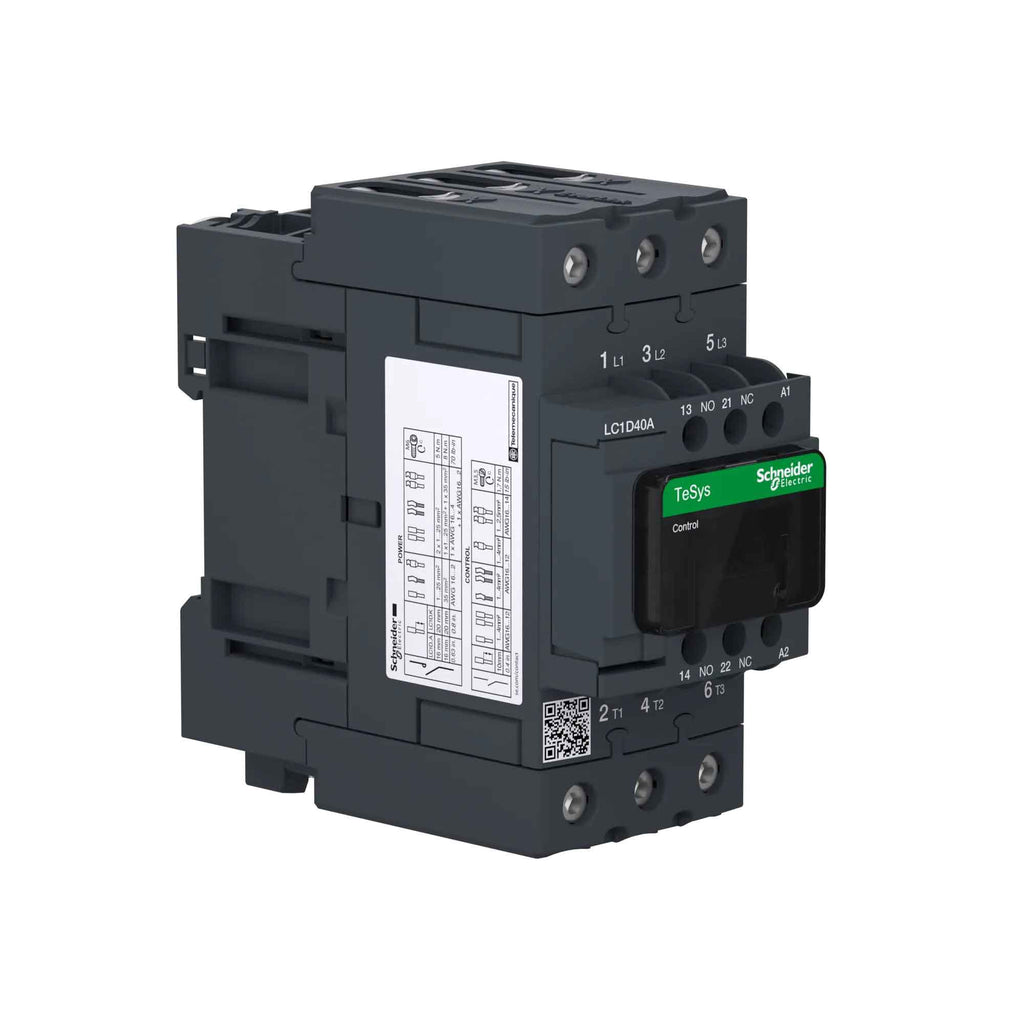

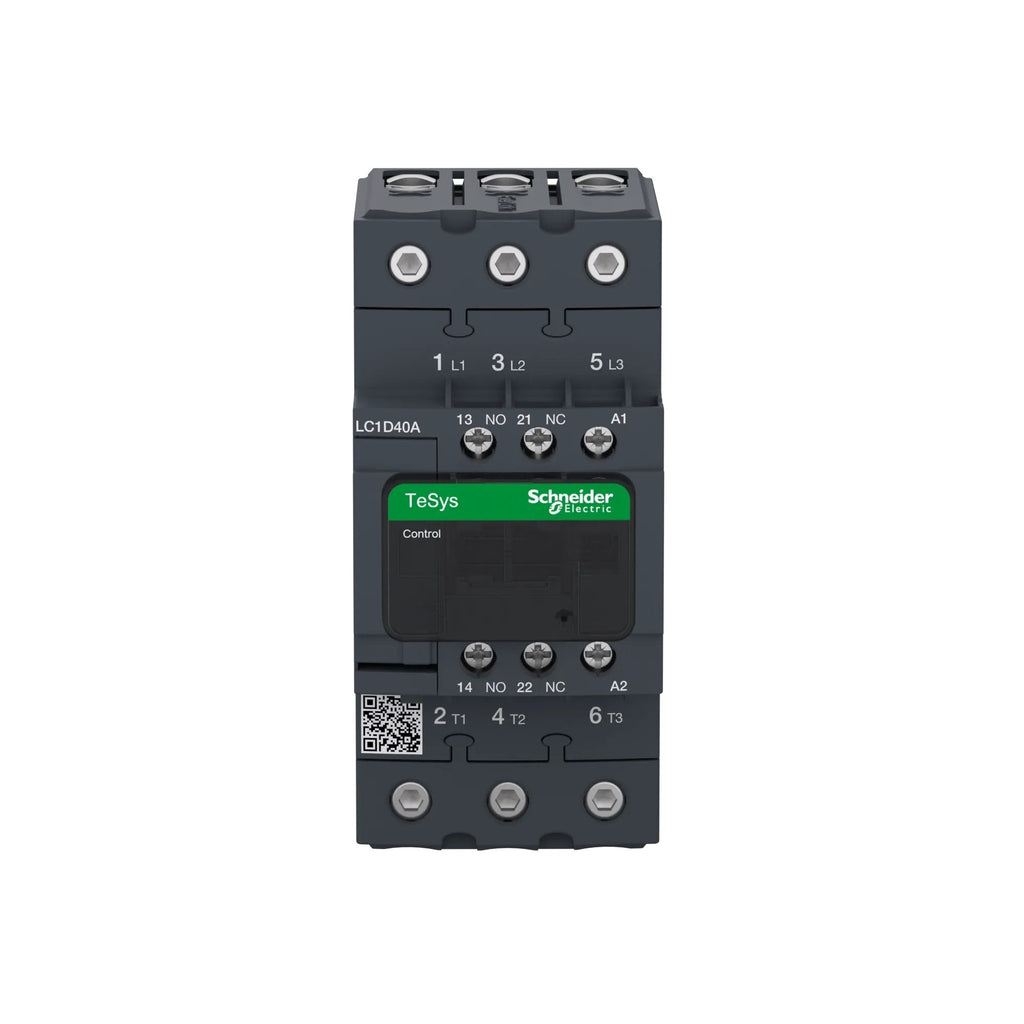

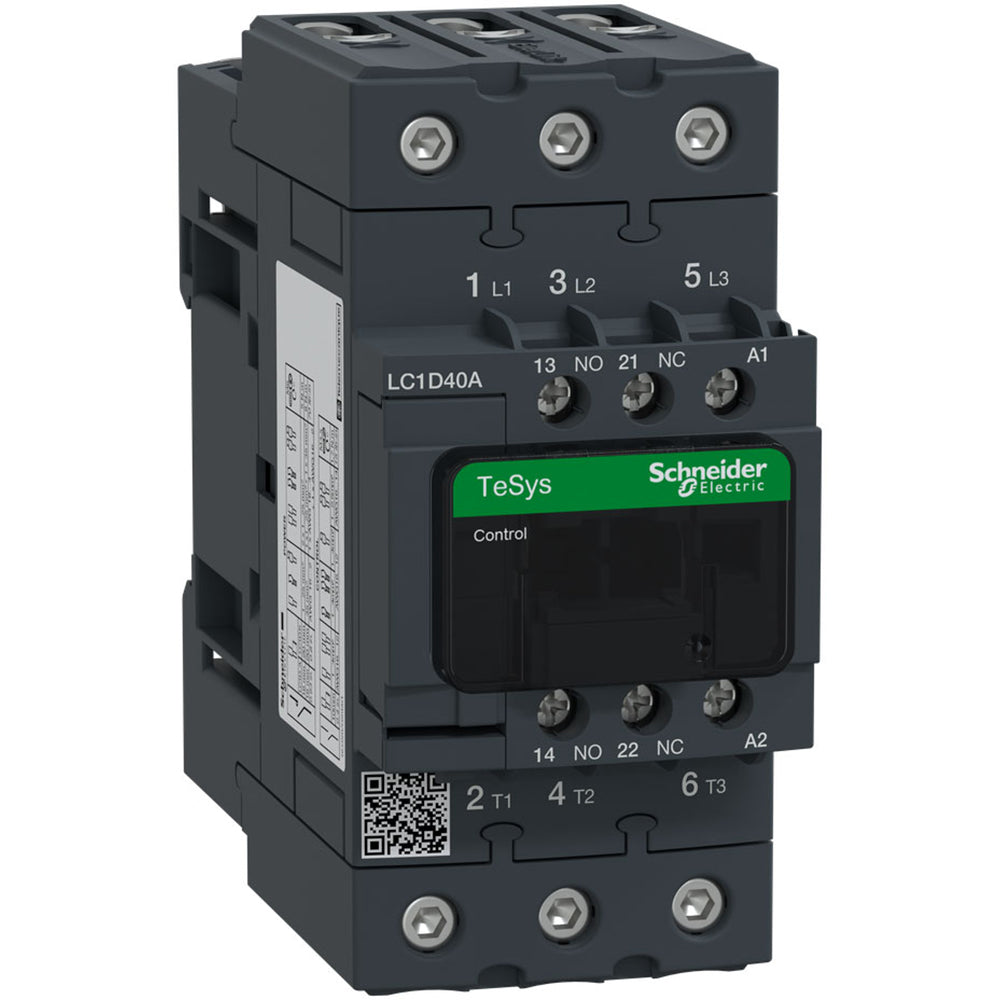

LC1D40AT7 is a 40 amp, 3 pole TeSys D non-reversing contactor designed for motor control and industrial applications up to 100 hp at 480 Vac. This IEC/UL rated contactor features a 480 VAC 50/60 Hz coil and is suitable for inductive motor loads and resistive applications. The contactor integrates seamlessly into control systems and motor starters with flexible mounting options on DIN rail or direct panel installation. Key Specifications

• Amperage: 40 Amp
• Voltage: 480 VAC coil, 50/60 Hz
• Poles: 3 Pole (3 NO)
• Motor Rating: 10 HP at 200-208 VAC 3 Phase, 10 HP at 240 VAC 3 Phase, 30 HP at 480 VAC 3 Phase, 30 HP at 600 VAC 3 Phase
• Single Phase Rating: 3 HP at 115 VAC, 5 HP at 240 VAC
• Auxiliary Contacts: 1 Normally Open and 1 Normally Closed (mirror certified)
• Terminal Type: Screw clamp terminals
• Operating Temperature: -5 to +55 degrees Celsius
• Mechanical Life: 30,000,000 cycles at rated voltage
• Rated Insulation Voltage: 690V
• Short Circuit Current Rating (SCCR): Up to 100 kA

At Essential Parts, w(more...)

Additional Information

This TeSys D IEC Contactor includes a 480 VAC coil.

Specifications

• Part Number: LC1D40AT7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Family : TeSys D
• Type : LC1D
• Voltage : 600
• Amperage : 40
• Phase : 3
• Poles : 3
• Aux Contacts : 3 NO
• Coil Voltage Maximum : 480
• Coil Voltage Minimum : 480
• Frequency : 60 Hz

Product Data

• UPC : 3389119408462
• GTIN : 03389119408462
• Country of Origin : Indonesia
• Dimensions : 2.17 in x 2.17 in
• Weight : 2.088
• Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
