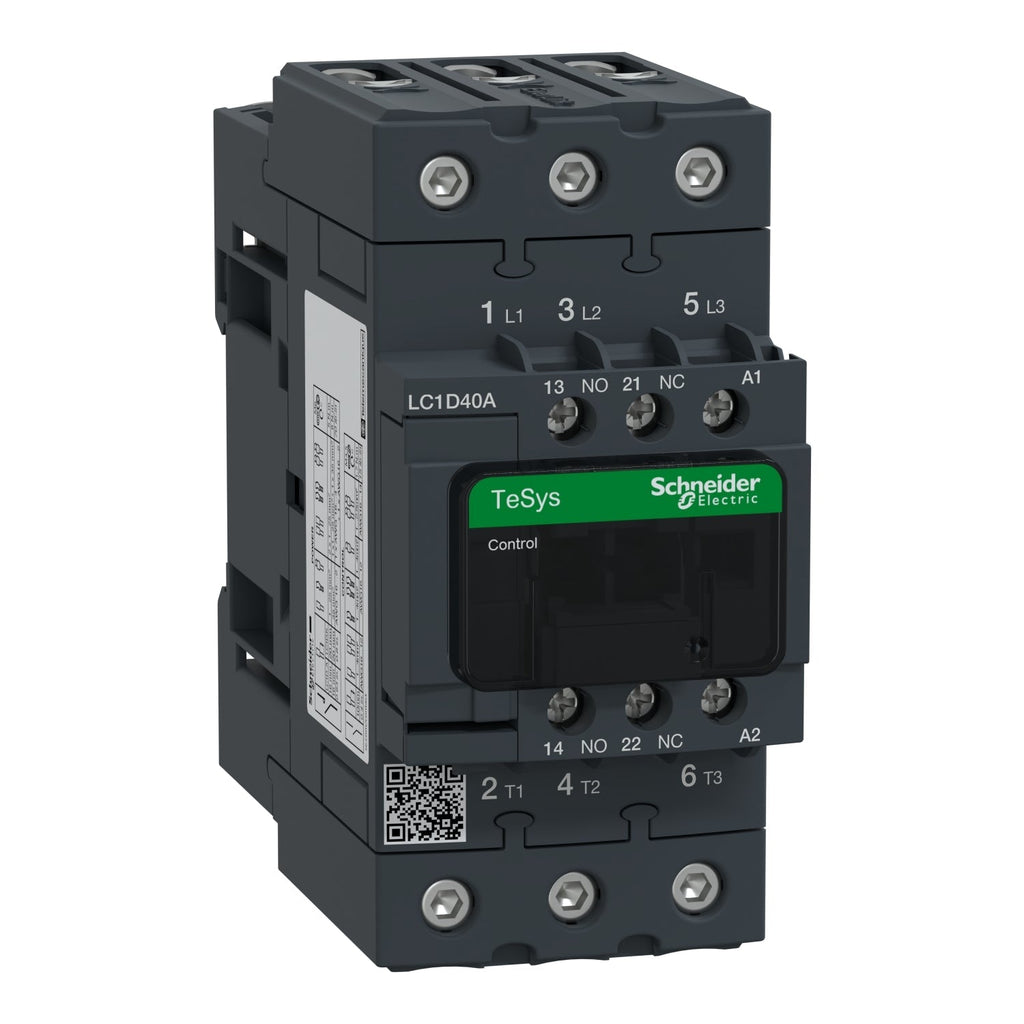

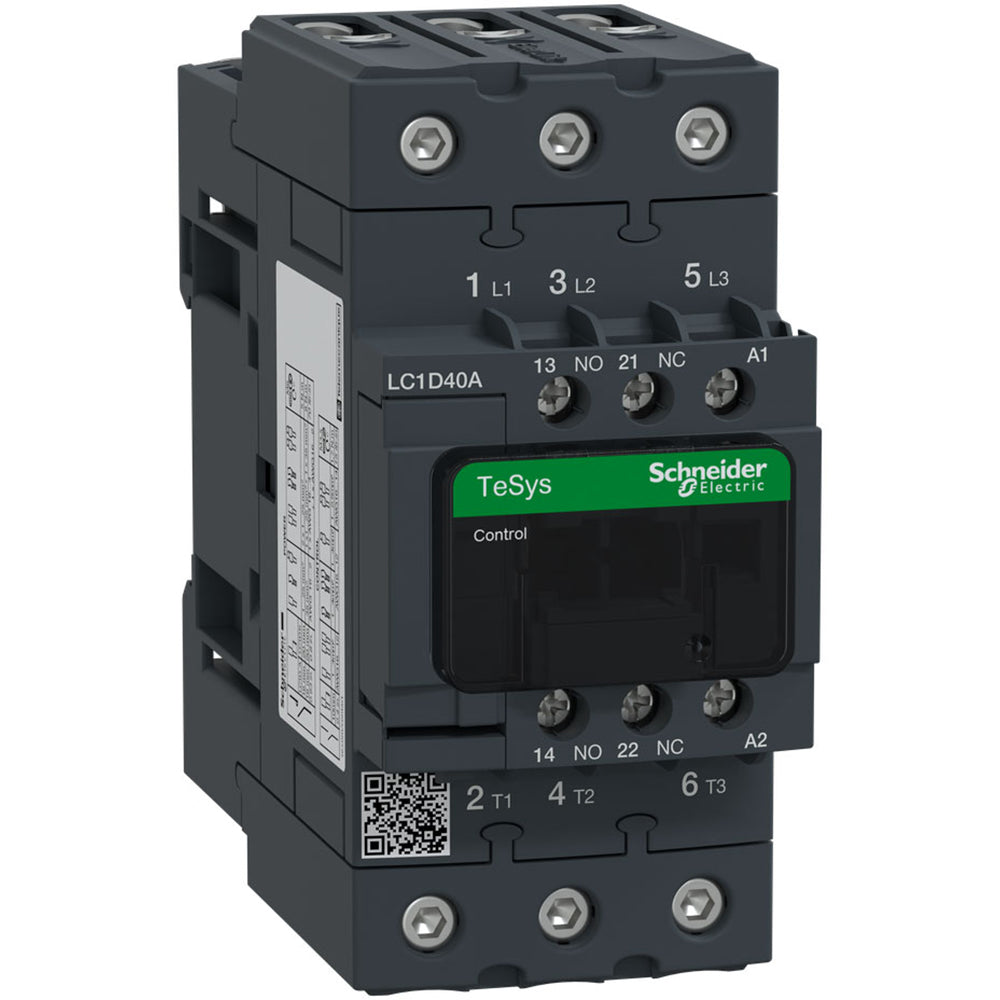

LC1D40AP7 - Schneider Electric TeSys D 40A 3-Pole Motor Contactor 230V AC Coil 600V AC Rated

LC1D40AP7

LC1D40AP7 is a Schneider Electric TeSys D motor contactor designed for reliable motor control applications.This 3-pole contactor features a 40 amp rated operational current at up to 440V AC (AC-3 utilization category) and supports voltages up to 690V AC for power circuits. It includes a 230V AC 50/60 Hz coil and 3 normally open (NO) contacts. The device is suitable for industrial and HVAC applications, with a high interrupt rating of up to 100kA SCCR and compliance with IEC standards. It offers screw clamp terminals for easy installation and operation.

• Rated operational current: 40A (AC-3, <=440V AC)
• Rated operational voltage: up to 690V AC (power circuit)
• Poles: 3 (3 NO contacts)
• Coil voltage: 230V AC, 50/60 Hz
• Utilization categories: AC-1, AC-3, AC-4
• Interrupt rating: up to 100kA SCCR
• Motor power rating: 18.5 kW at 400V AC, 22 kW at 500V AC, 30 kW at 690V AC
• Mounting type: Open contactor with screw clamp terminals
• Standards and certifications: IEC 60947-1, IEC 60947-4-1, UL, CSA
• Series/Frame: TeSys D

At Essential Parts, w(more...)

Additional Information

This TeSys D IEC Contactor includes a 230 VAC coil.

Specifications

• Part Number: LC1D40AP7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Family : TeSys D
• Type : LC1D
• Voltage : 600
• Amperage : 40
• Phase : 3
• Poles : 3
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Aux Contacts : 3 NO
• Coil Voltage Maximum : 230
• Coil Voltage Minimum : 230
• Frequency : 50/60 Hz

Product Data

• UPC : 38911940840
• GTIN : 03389119408400
• Country of Origin : Indonesia
• Weight : 2.088
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
