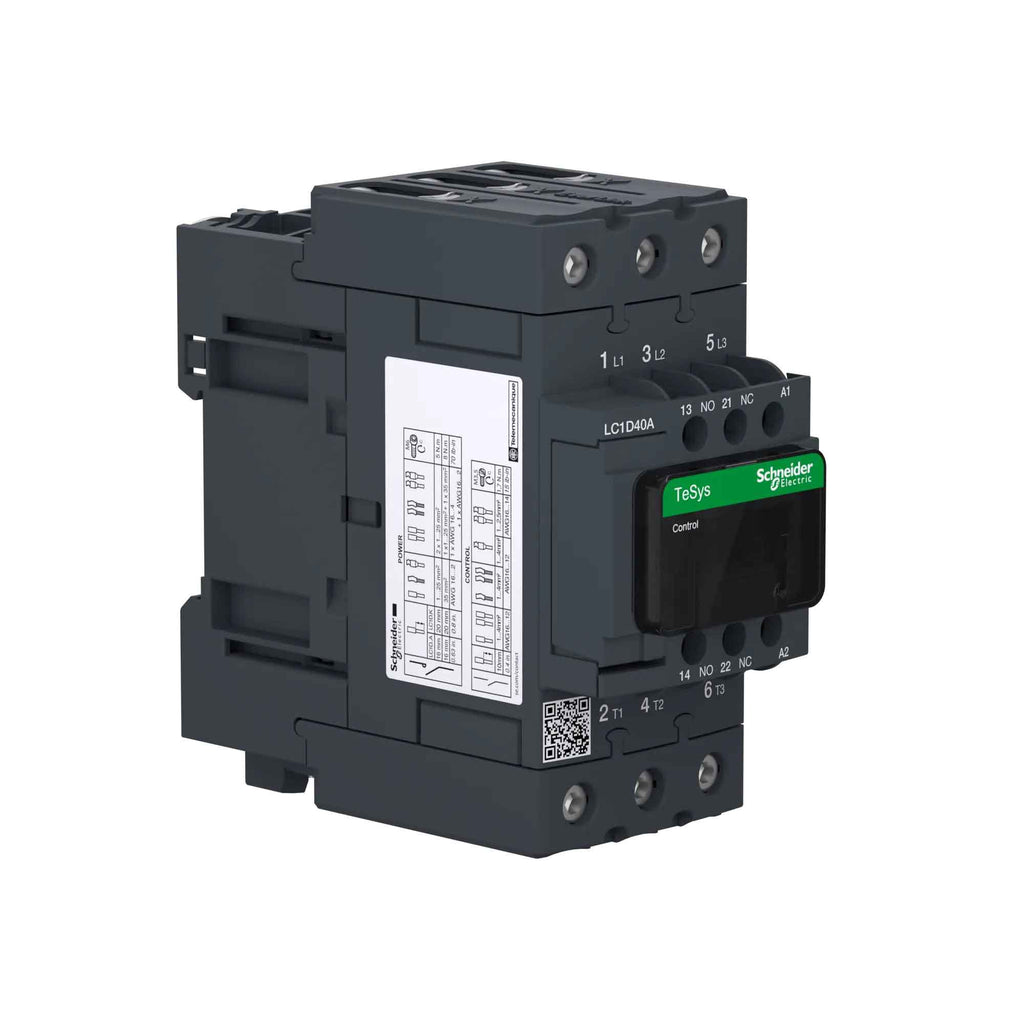

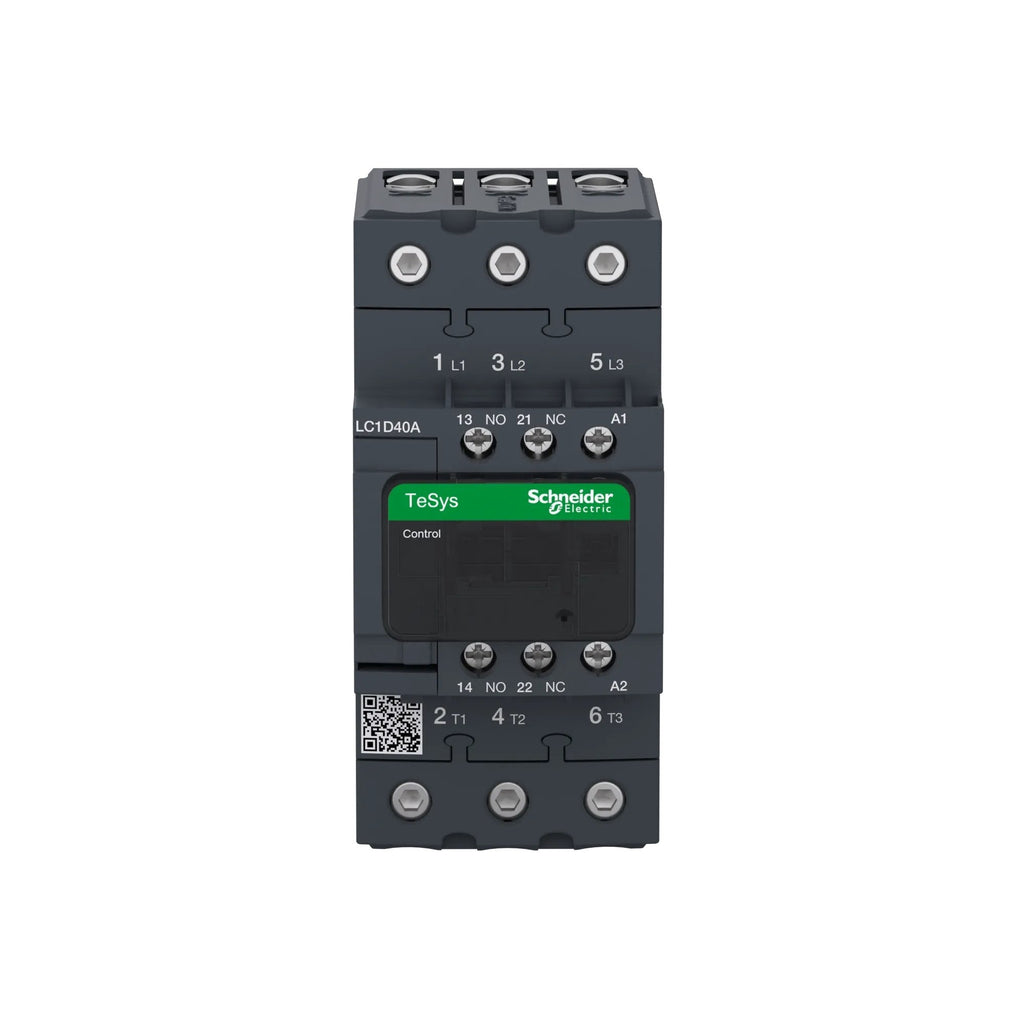

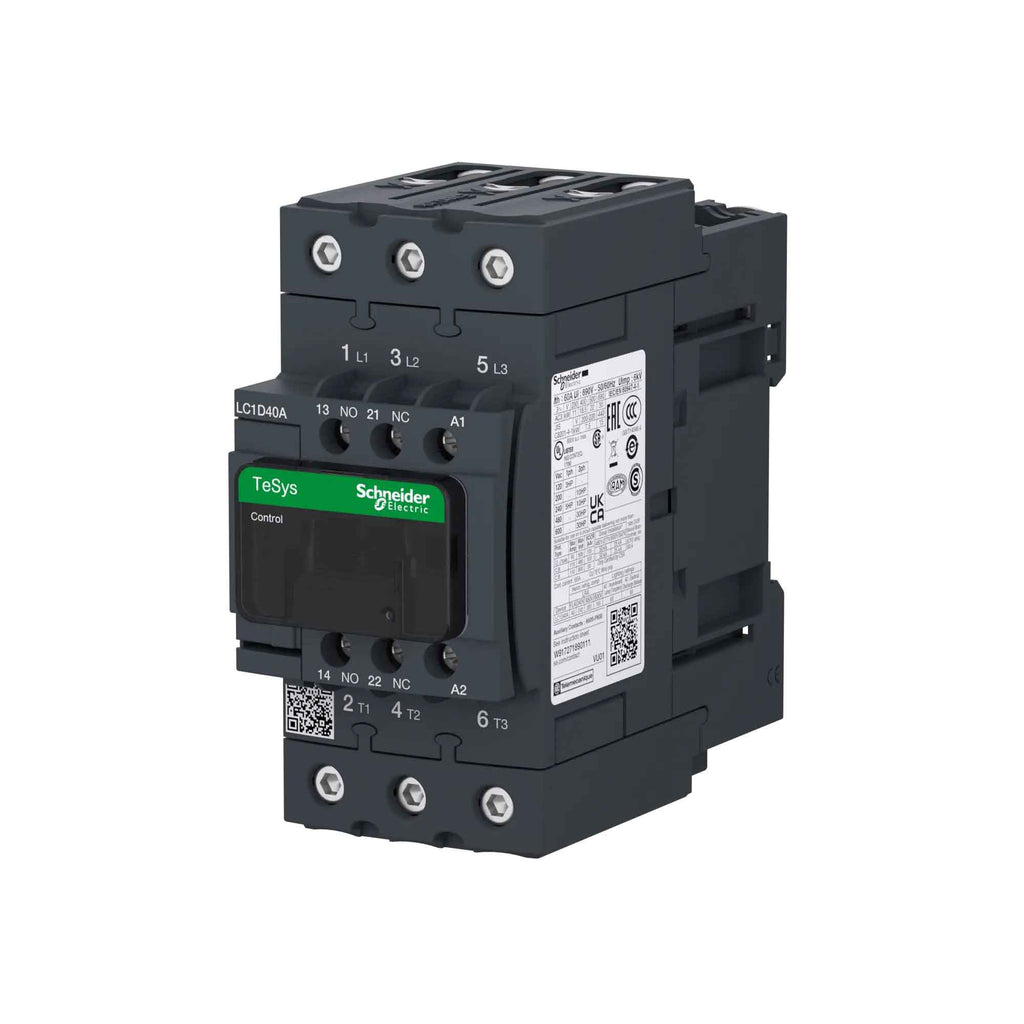

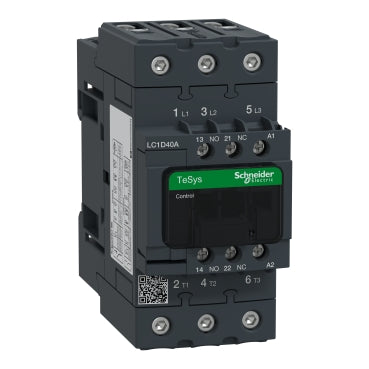

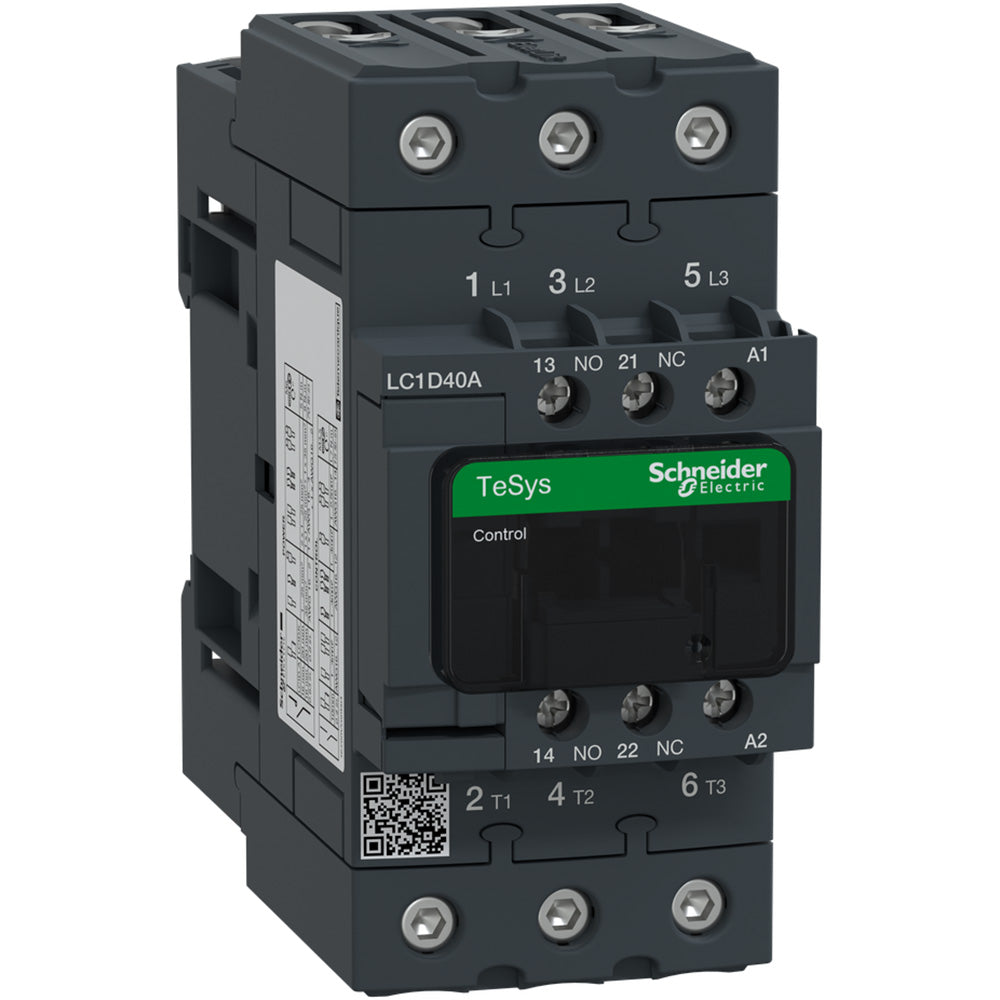

LC1D40AG7 - Schneider Electric TeSys D 3-Pole 40A 440V AC Motor Contactor, 120V AC Coil, Screw Clamp Terminals, IEC 60947-4-1, UL 508, CSA

LC1D40AG7

This contactor features a 40A current rating at up to 440V AC, 3 normally open (NO) power poles, and a 120V AC 50/60Hz coil with screw clamp terminals for secure connections. It is engineered for motor control (utilization category AC-3), supports resistive and inductive loads, and is compliant with major international standards for safety and performance. The unit is suitable for panel or rail mounting and includes a safety cover for added protection.

Key Specifications
• Amperage: 40A AC-3 (up to 440V AC), 60A AC-1
• Voltage: Up to 440V AC (power circuit), 120V AC (control circuit)
• Poles: 3 NO (normally open)
• Mounting Type: Rail or plate
• Interrupt Rating: Not specified in available data
• Series/Frame: TeSys D
• Trip Unit: Not applicable (contactor only)
• Certifications: CSA, UL 508, IEC 60947-4-1, EN 60947-4-1, GOST, CCC
• Control Circuit: 120V AC 50/60Hz, screw clamp terminals
• Moto(more...)


  Specifications

  • Part Number: LC1D40AG7
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : TeSys D
  • Type : LC1D
  • Voltage : 600
  • Amperage : 40
  • Phase : 3
  • Poles : 3
  • Horse Power : 5 hp at 230/240 V AC 50/60 Hz for 1 phase motors-10 hp at 230/240 V AC 50/60 Hz for 3 phases motors-30 hp at 575/600 V AC 50/60 Hz for 3 phases motors-10 hp at 200/208 V AC 50/60 Hz for 3 phases motors-3 hp at 115 V AC 50/60 Hz for 1 phase motors-30 hp at 460/480 V AC 50/60 Hz for 3 phases motors
  • Aux Contacts : 1NO/1NC
  • Coil Voltage Maximum : 120
  • Full Load Amps : Full Load Amps-Inductive 40A Full Load Amps-Resistive 60A
  • Coil Voltage Minimum : 120



  Product Data

  • UPC : 785901732112
  • GTIN : 03389119408370
  • Country of Origin : Indonesia
  • Dimensions : 2.17 in x 2.17 in
  • Weight : 2.07
  • Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
