Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Contactor
Description

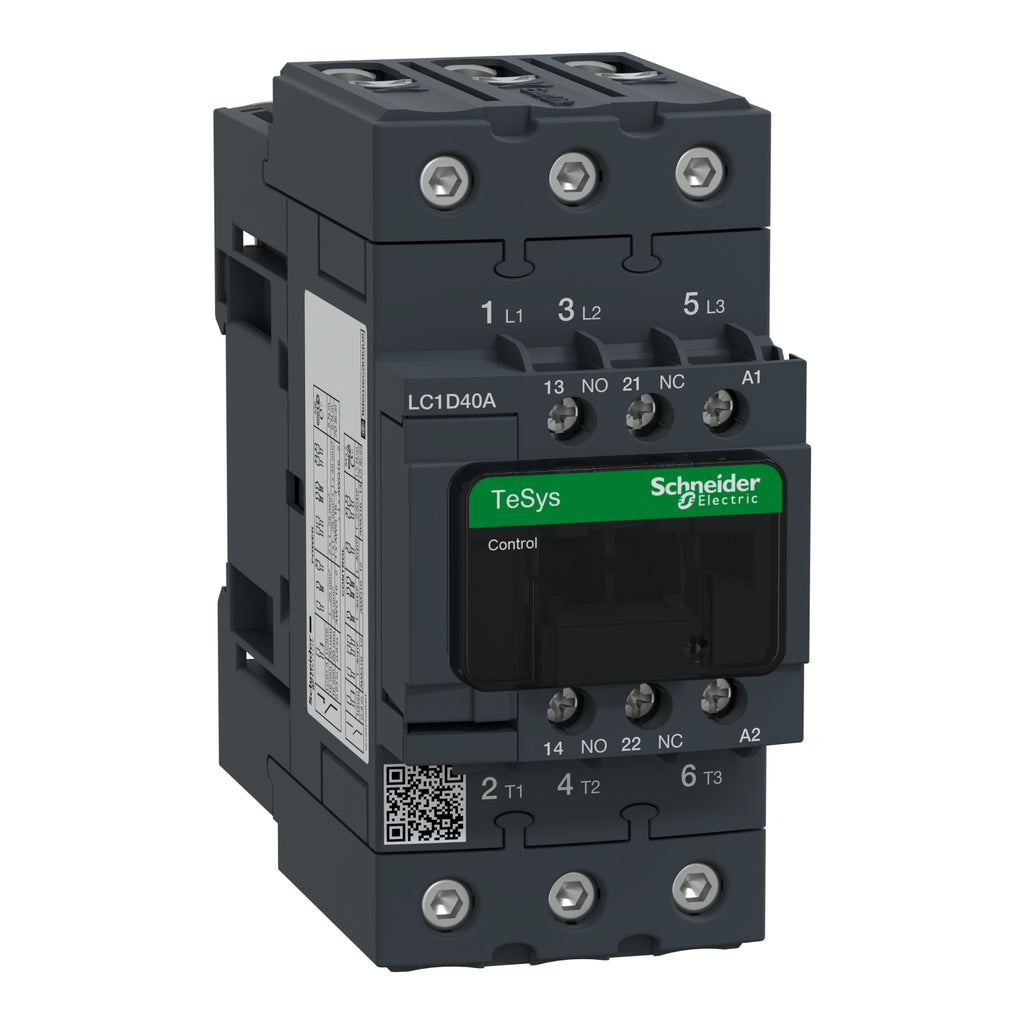

LC1D40AF7C
LC1D40AF7C is a 3-pole IEC contactor from Schneider Electric designed for motor control and load switching applications. This TeSys Deca series contactor provides reliable direct on-line motor starting with a 110V AC 50/60 Hz control circuit coil and rated for up to 40A at 440V AC-3 utilization category, supporting motor power up to 18.5 kW at 400V. The contactor features 3 normally open (NO) main contacts with 1 NO + 1 NC auxiliary contact composition, delivering consistent performance in industrial and HVAC environments.
- Manufacturer: Schneider Electric
- Poles: 3P (3 NO)
- Rated Current: 40A
- Control Coil Voltage: 110V AC 50/60 Hz
- Motor Power Rating: 18.5 kW at 400V
- Utilization Category: AC-3
- Auxiliary Contacts: 1 NO + 1 NC
- Operating Rate: 3600 cycles per hour at 60 degrees C
- Non-overlap Time: 1.5 ms on energization and de-energization
- Insulation Resistance: Greater than 10 MOhm for signalling circuit
- Minimum Switching Current: 5 mA signalling circuit
- Minimum Switching Voltage: 17V signalling circuit
Specifications
- Part Number: LC1D40AF7C
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Family : TeSys D
- Type : LC1D
- Voltage : 600
- Amperage : 40
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 120
- Coil Voltage Minimum : 110
Product Data
- Weight : 2.094
- Certification : CE, UKCA, CCC
