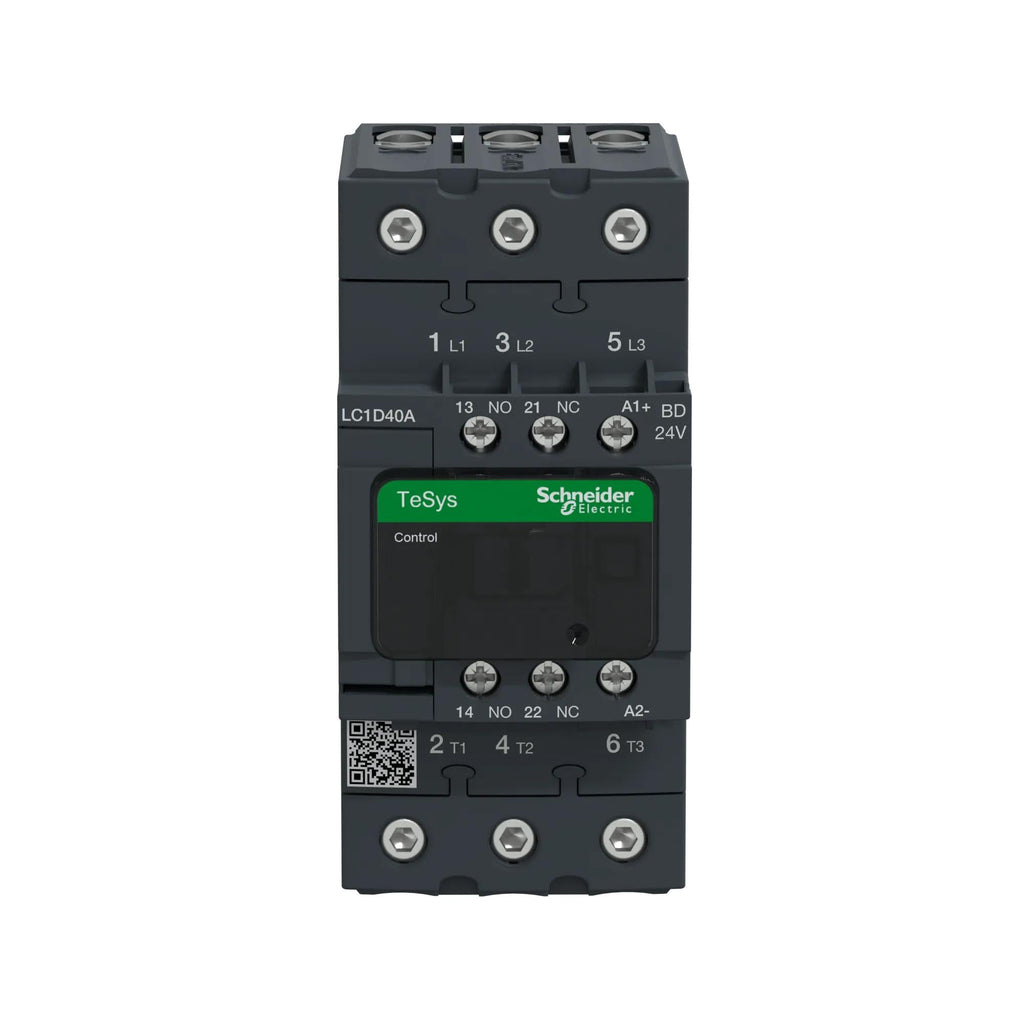

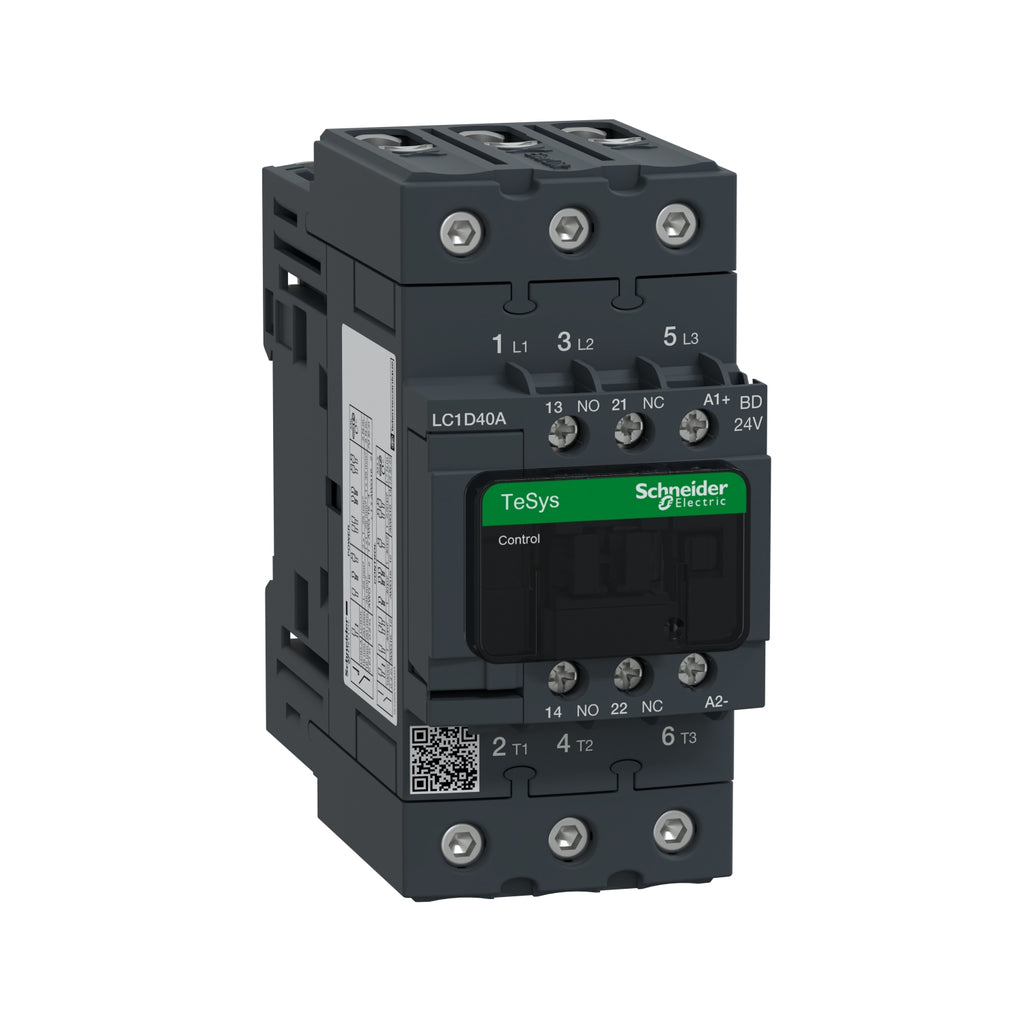

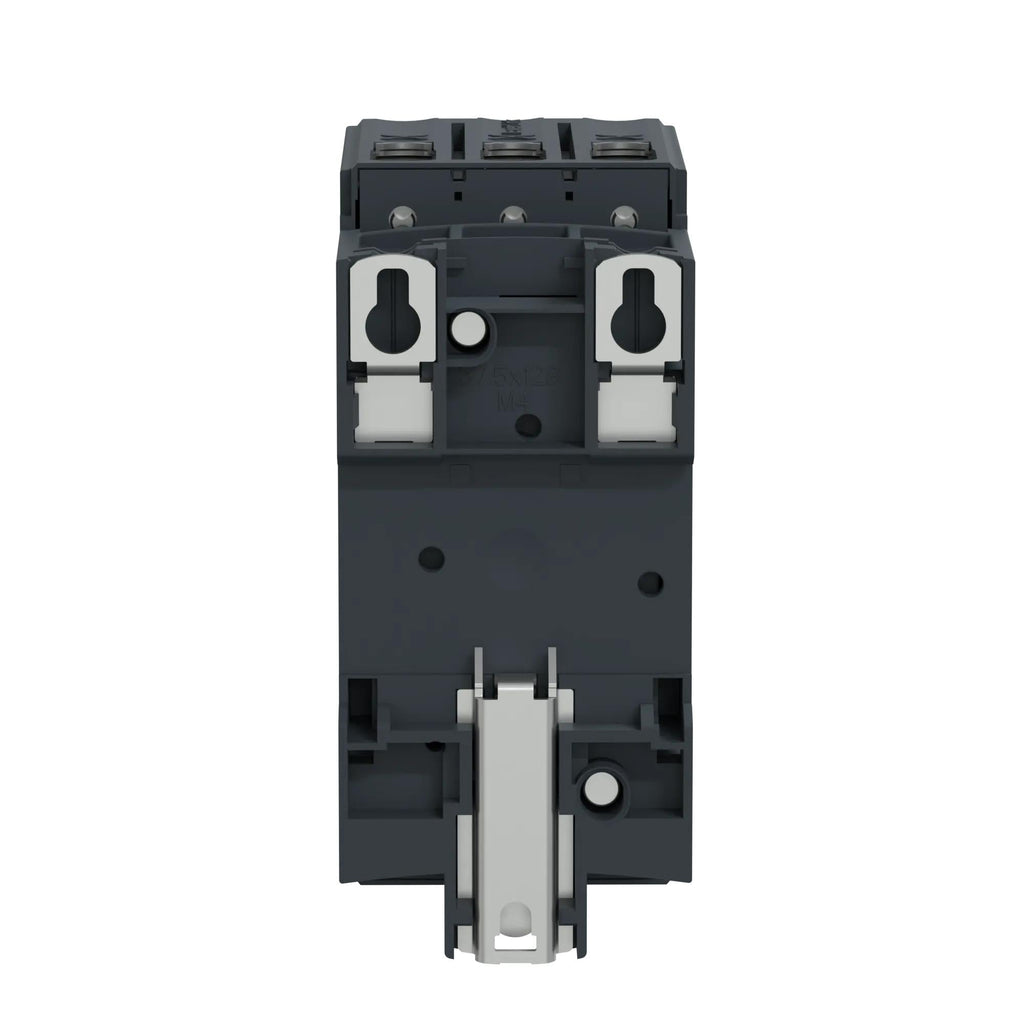

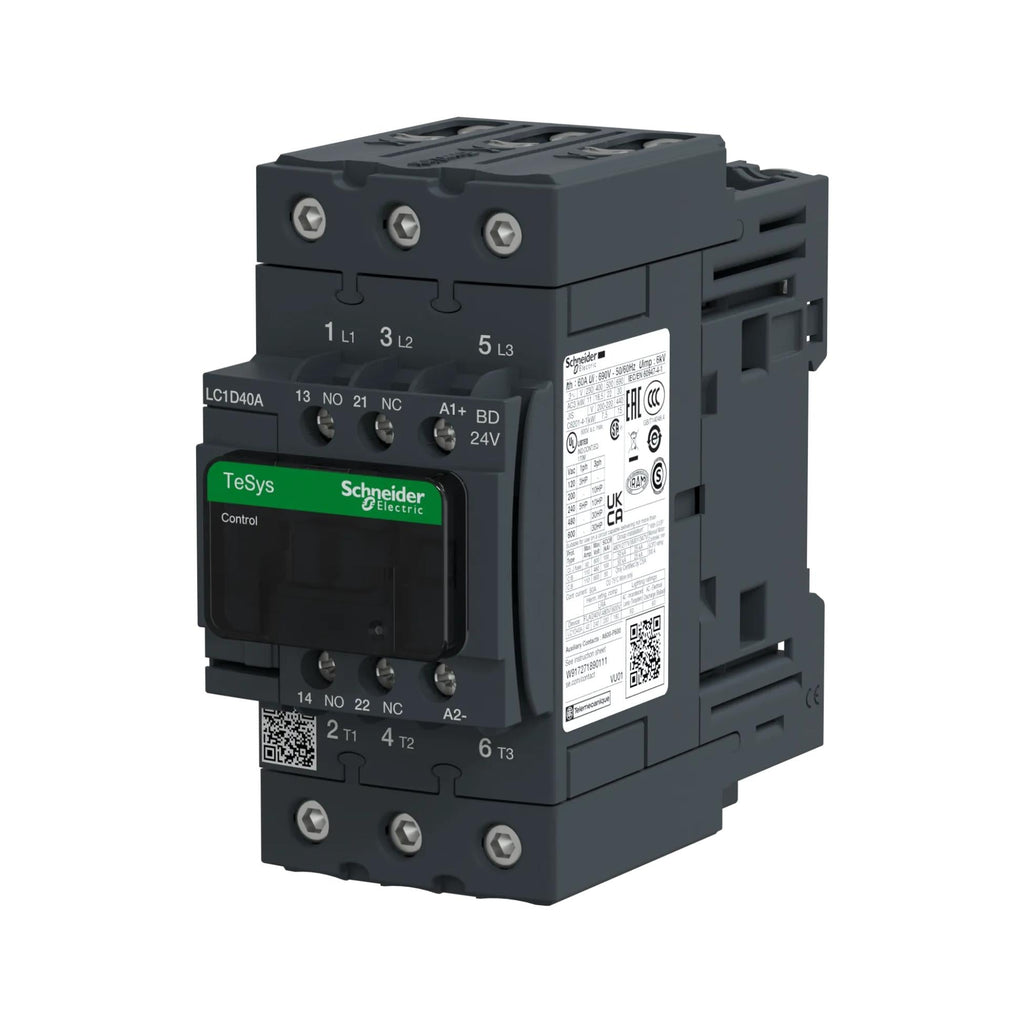

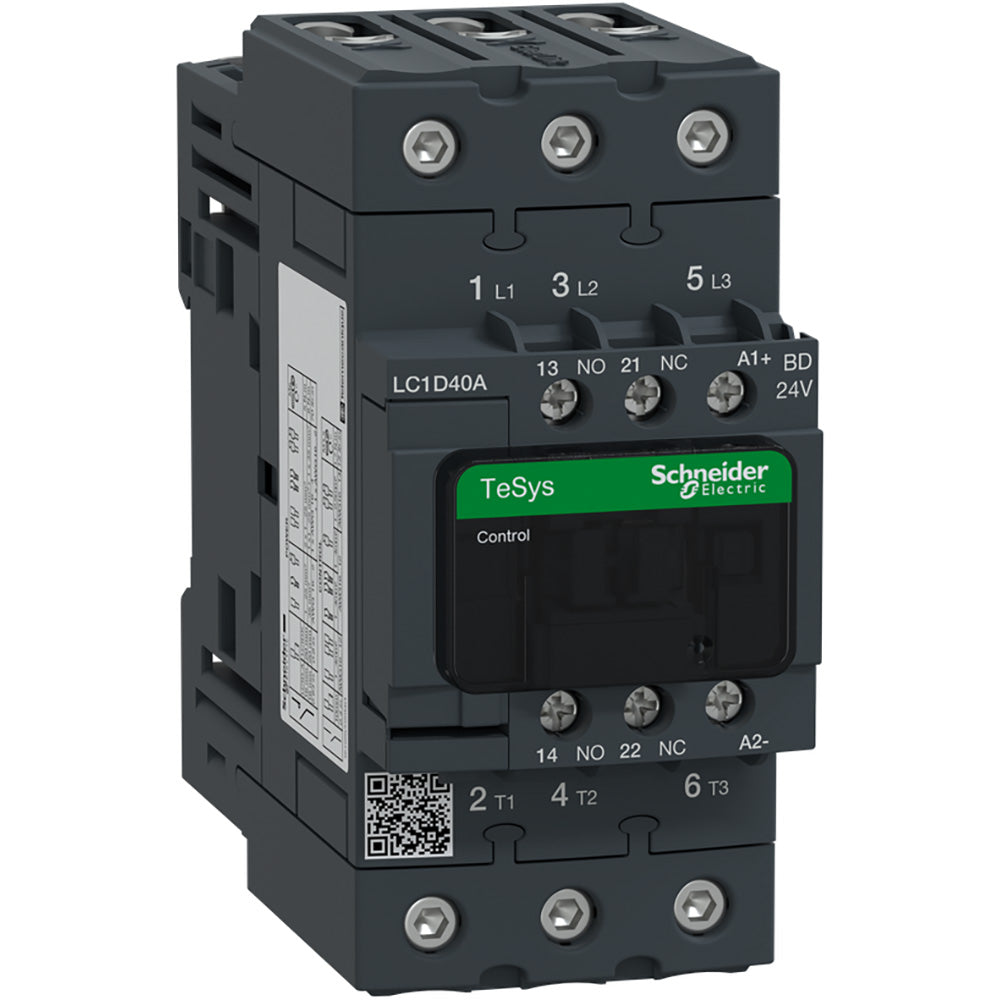

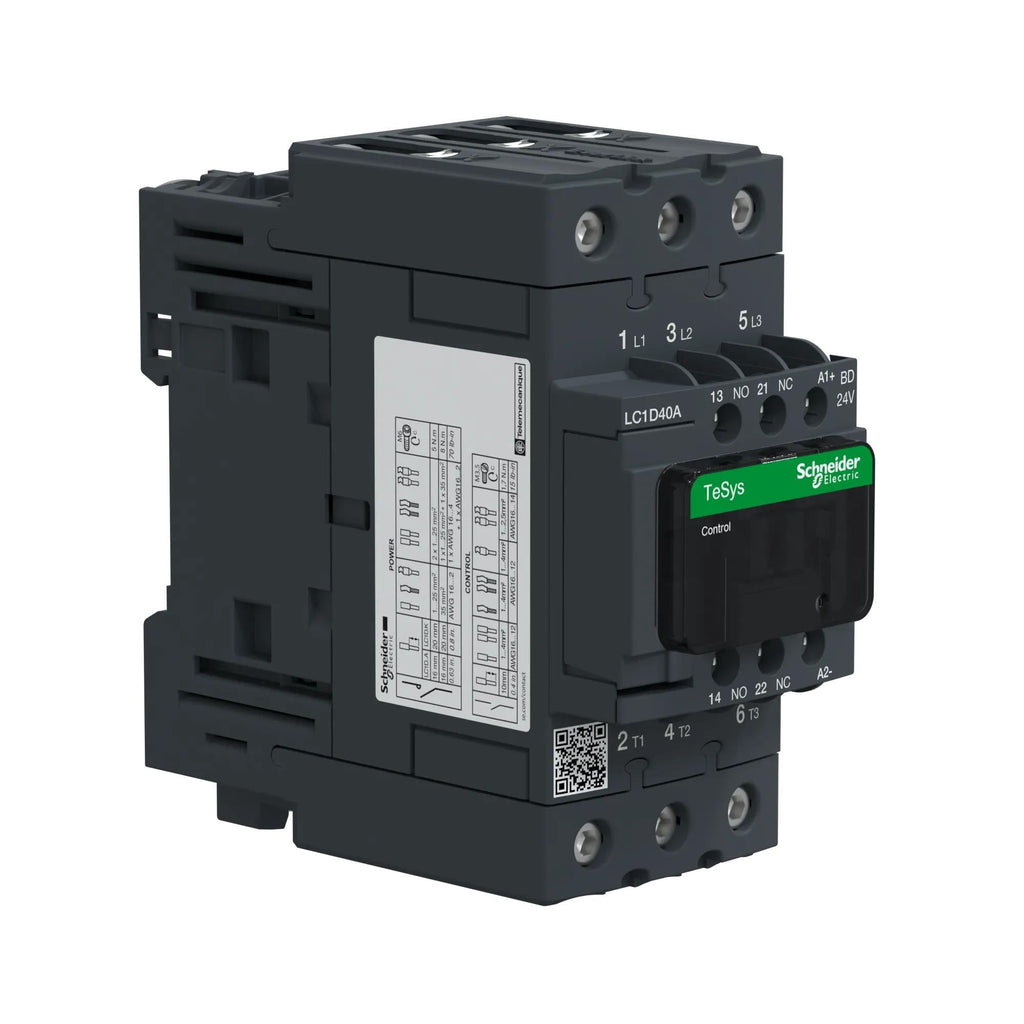

LC1D40ABD - Schneider Electric 40A 3-Pole IEC Motor Contactor 24V DC Coil TeSys Deca Series

LC1D40ABD

LC1D40ABD is a Schneider Electric 3-pole IEC motor contactor with a 40 ampere rating and 24V DC coil voltage, designed for reliable motor control applications.This TeSys Deca series contactor supports AC-3 utilization category with a maximum motor power of 18.5 kW at 400 V and 30 HP at 480 V. It features a non-reversing 3 NO contact configuration, screw clamp terminals, and is suitable for mounting on DIN rail or plate. The contactor complies with IEC 60947 standards and carries certifications including UL, CSA, CCC, and GOST. It offers a high interrupt rating of up to 100 kA SCCR and is designed for industrial and HVAC applications with enhanced durability and ease of installation.

• Amperage: 40 A
• Voltage: 24 V DC coil
• Poles: 3 (3 NO)
• Mounting Type: DIN rail or plate
• Interrupt Rating: Up to 100 kA SCCR
• Series/Frame: TeSys Deca (LC1D)
• Trip Unit: Non-reversing contactor
• Certifications: UL, CSA, CCC, GOST, IEC 60947
• Motor Power: 18.5 kW at 400 V AC-3
• Horsepower: 30 HP at 480 V
• Control Circuit Type: Screw clamp terminals
• Electrica(more...)


  Additional Information

  This TeSys D IEC Contactor includes a 24 VDC coil.




  Specifications

  • Part Number: LC1D40ABD
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : TeSys D
  • Type : LC1D
  • Voltage : 600
  • Amperage : 40
  • Phase : 3
  • Poles : 3
  • Horse Power : 5 hp at 230/240 V AC 50/60 Hz for 1 phase motors-10 hp at 230/240 V AC 50/60 Hz for 3 phases motors-30 hp at 575/600 V AC 50/60 Hz for 3 phases motors-10 hp at 200/208 V AC 50/60 Hz for 3 phases motors-3 hp at 115 V AC 50/60 Hz for 1 phase motors-30 hp at 460/480 V AC 50/60 Hz for 3 phases motors
  • Aux Contacts : 3 NO
  • Coil Voltage Maximum : 24
  • Full Load Amps : Full Load Amps-Inductive 40A Full Load Amps-Resistive 60A
  • Coil Voltage Minimum : 24



  Product Data

  • UPC : 785901929826
  • GTIN : 03389119408486
  • Country of Origin : France
  • Dimensions : 2.17 in x 2.17 in
  • Weight : 2.158
  • Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
