LC1D40AB7 - Schneider Electric 3 Pole 40A 600V AC Motor Contactor, 24V Coil, TeSys D Series

LC1D40AB7

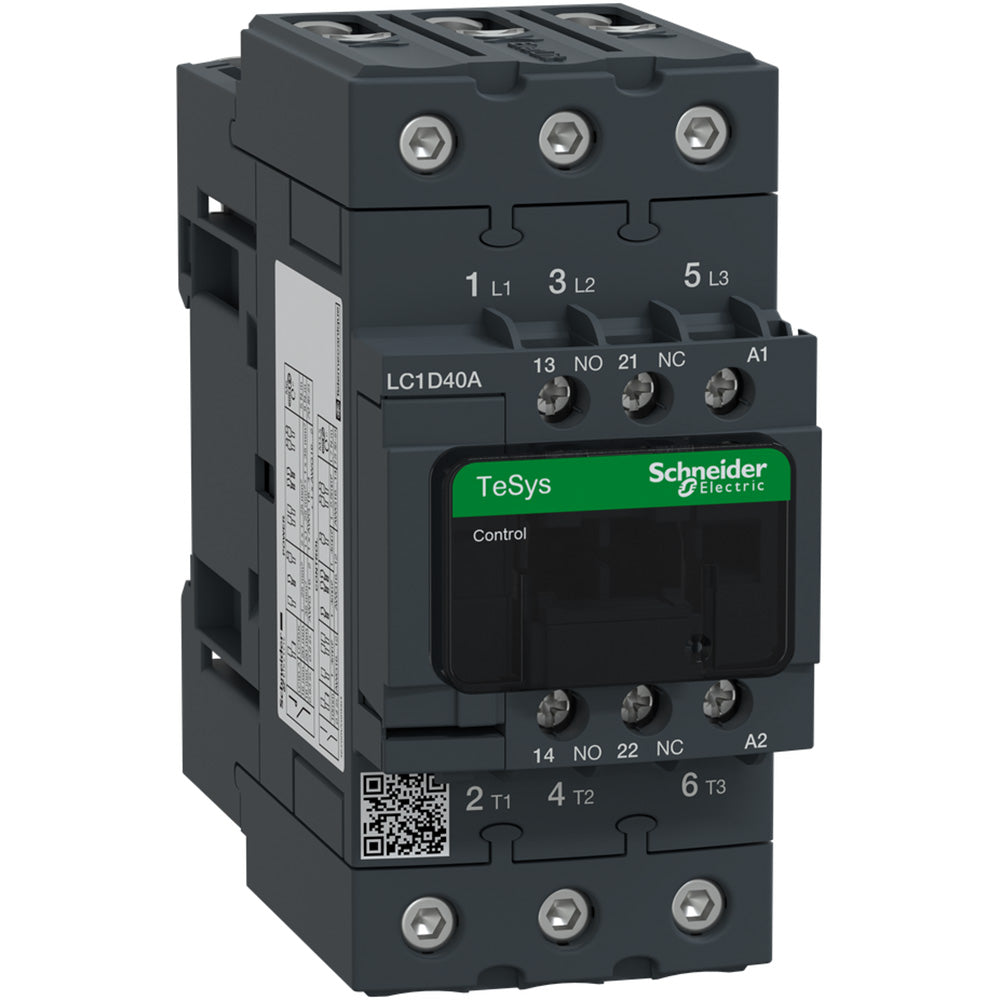

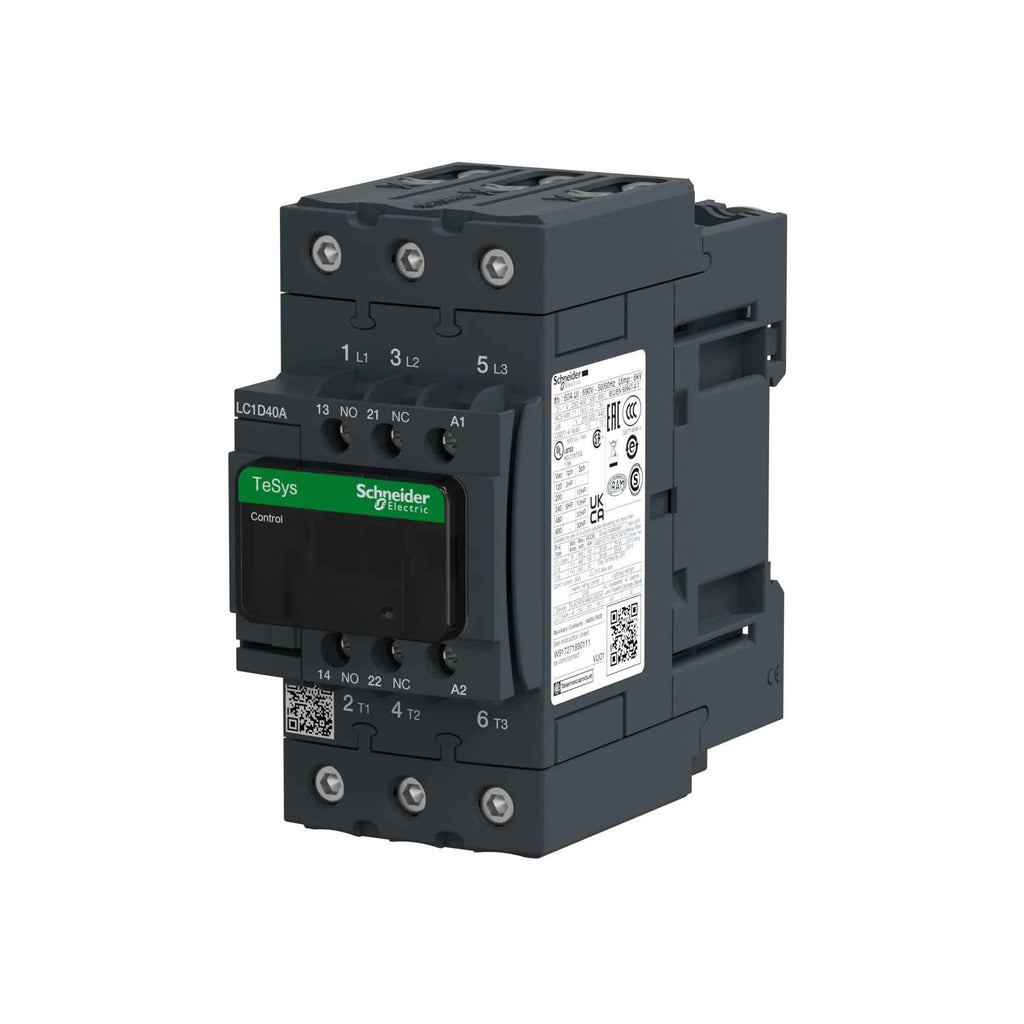

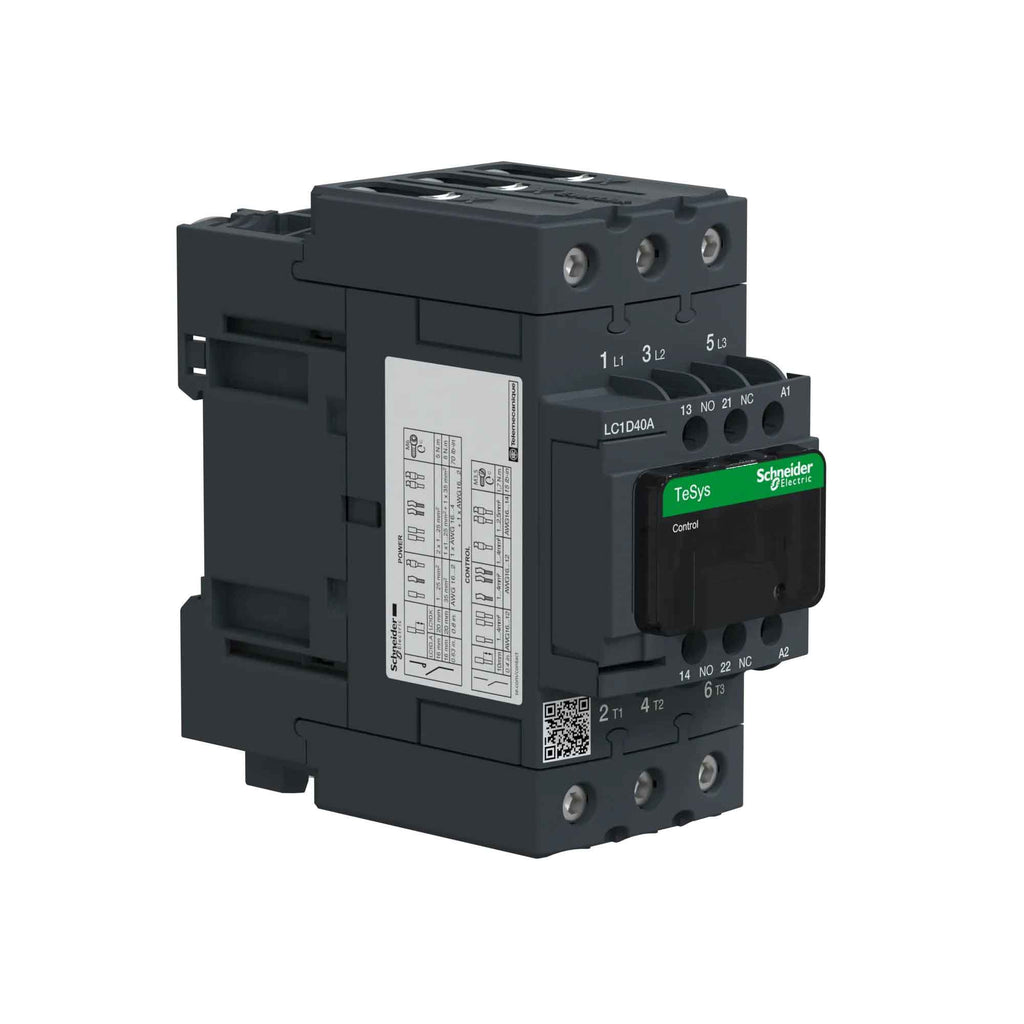

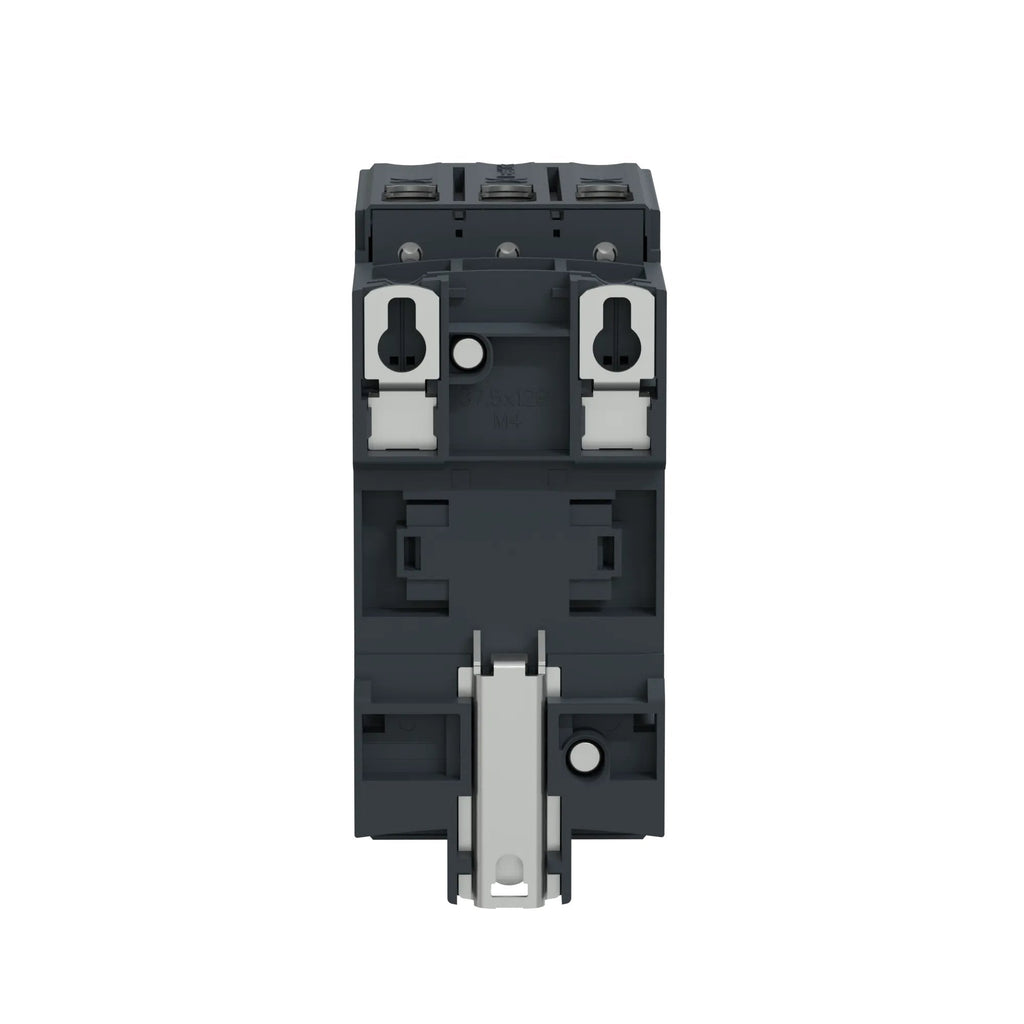

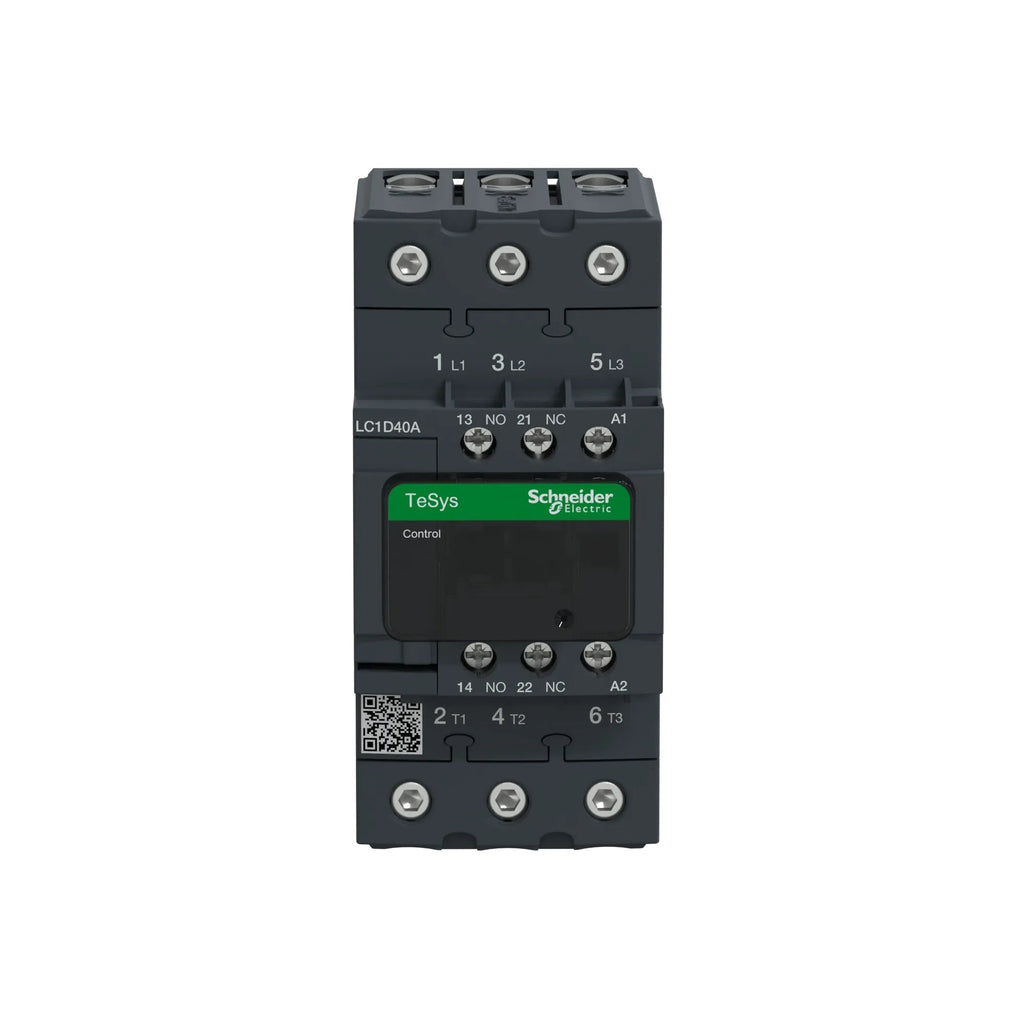

LC1D40AB7 is a Schneider Electric 3-pole motor contactor designed for reliable motor control applications.This contactor features a 40A rated operational current at up to 440V AC, suitable for 3-phase motor loads with a 3 NO (normally open) contact configuration. It includes a 24V AC coil operating at 50/60 Hz, supports AC-1, AC-3, and AC-4 utilization categories, and is part of the TeSys D series. The device is open type with screw clamp terminals and supports rail or surface mounting. It has a high interrupt rating with up to 100kA SCCR and complies with IEC standards for industrial and HVAC applications.

Key Specifications
• Amperage: 40A (AC-3), 60A (AC-1) at 440V AC
• Voltage: Up to 690V AC, 24V AC coil
• Poles: 3 poles, 3 NO contacts
• Mounting Type: Rail or surface mount
• Interrupt Rating: Up to 100kA SCCR
• Series/Frame: TeSys D, LC1D series
• Trip Unit: Non-reversing contactor
• Certifications: IEC60335-1 compliance, industrial and HVAC standards
• Coil Power Rating: 13/16 VA
• Operating Frequency: 50/60 Hz
• Terminal Type: Screw clamp
&lt(more...)


Additional Information

This TeSys D IEC Contactor includes a 24 VAC coil.




Specifications

• Part Number: LC1D40AB7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Family : TeSys D
• Type : LC1D
• Voltage : 600
• Amperage : 40
• Phase : 3
• Poles : 3
• Aux Contacts : 3 NO
• Coil Voltage Maximum : 24
• Coil Voltage Minimum : 24
• Frequency : 50/60 Hz



Product Data

• UPC : 3389119408325
• GTIN : 03389119408325
• Country of Origin : Indonesia
• Dimensions : 2.17 in x 2.17 in
• Weight : 2.05
• Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
