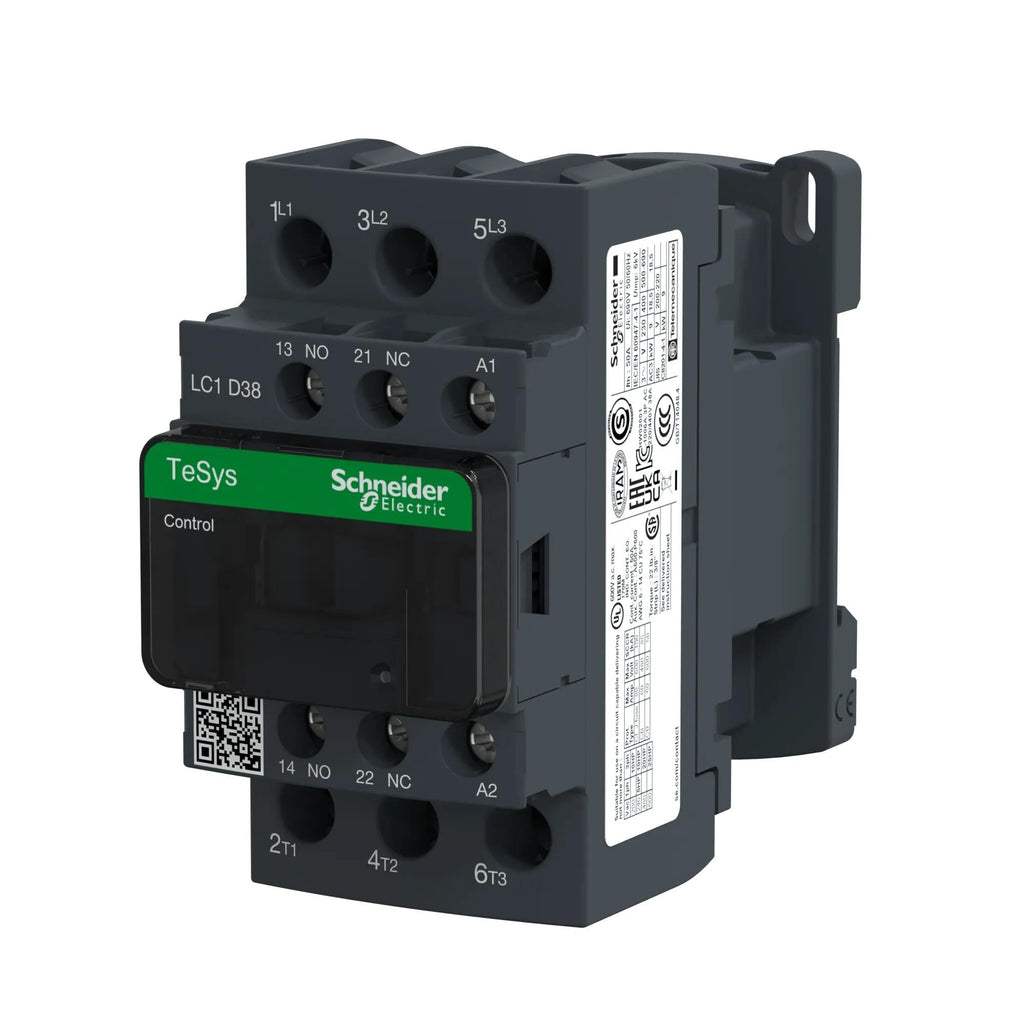

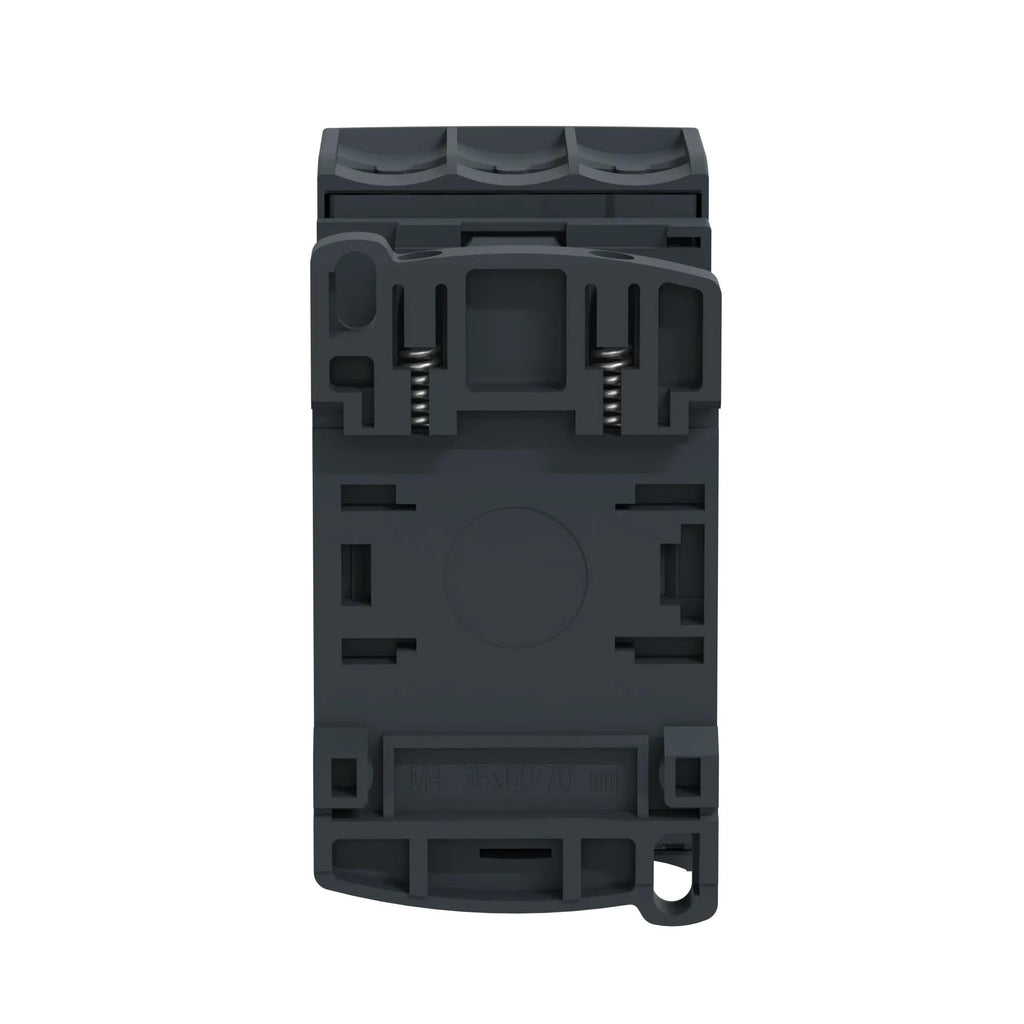

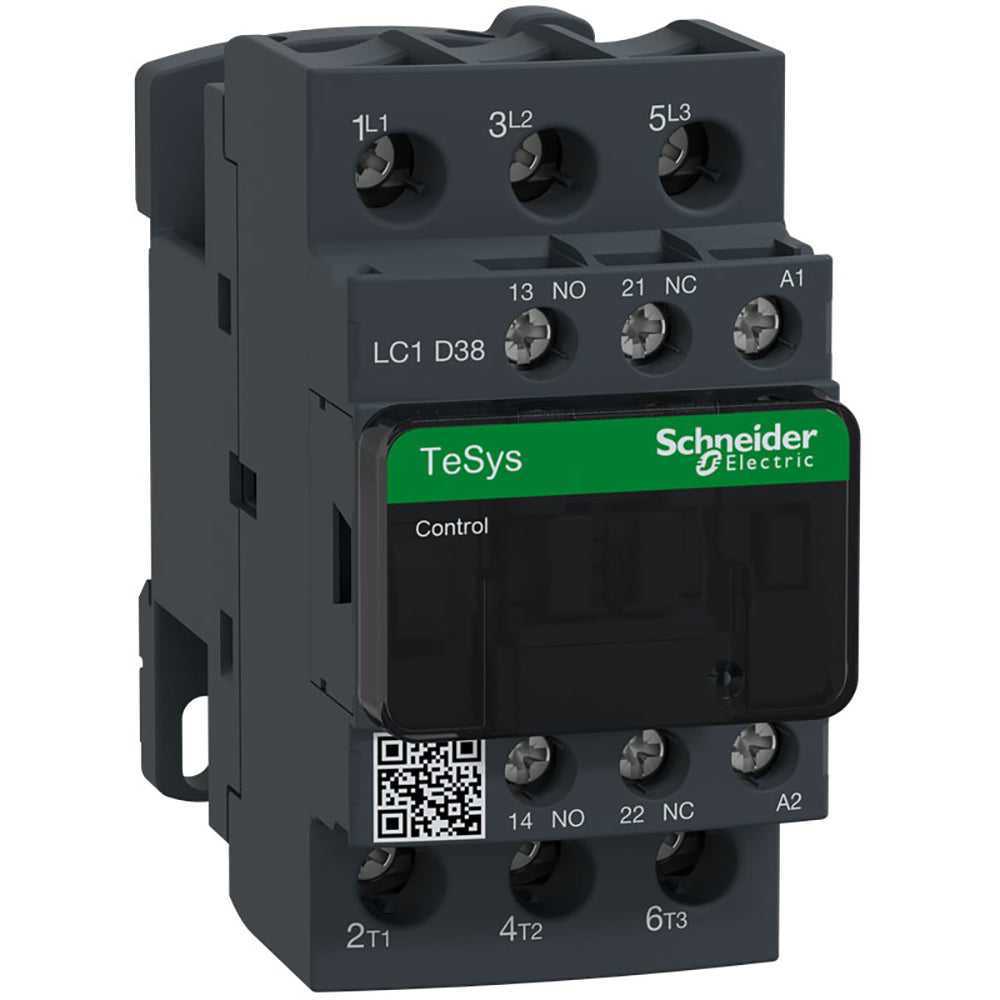

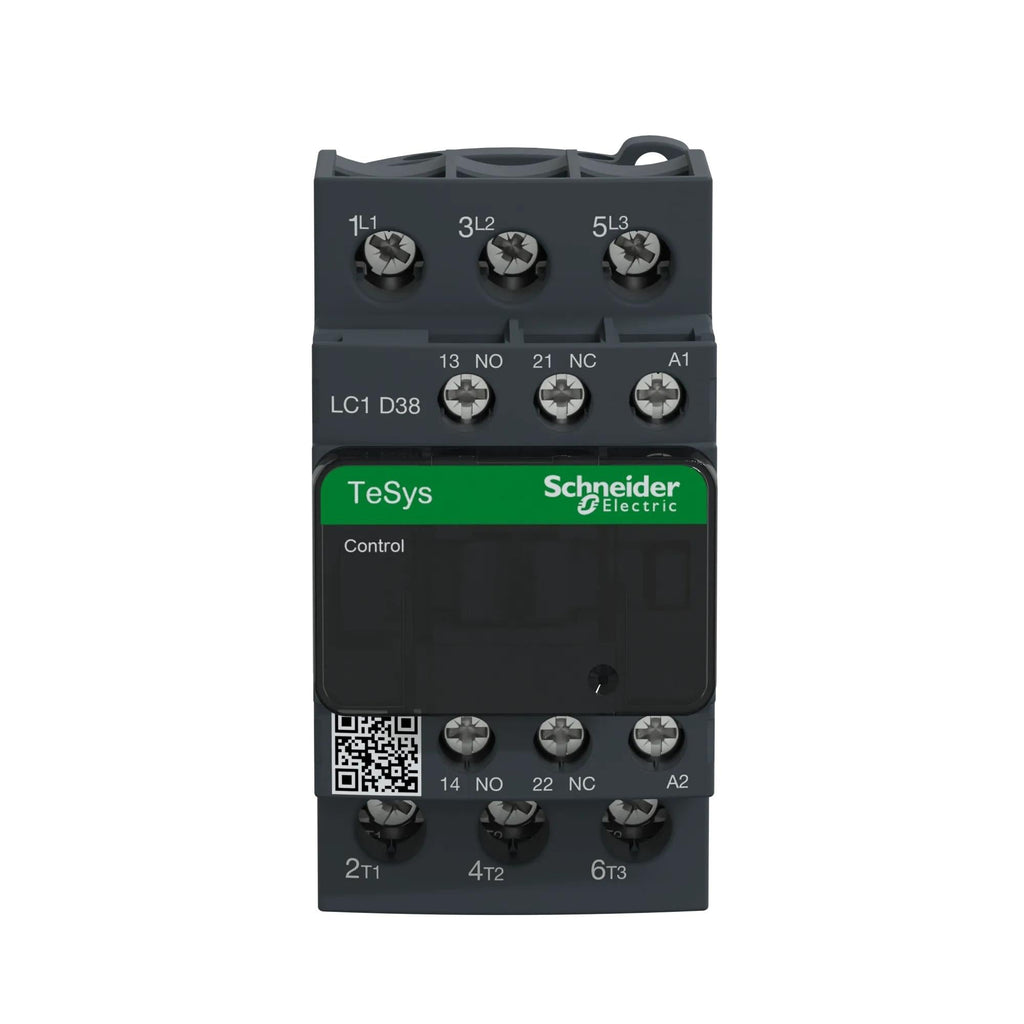

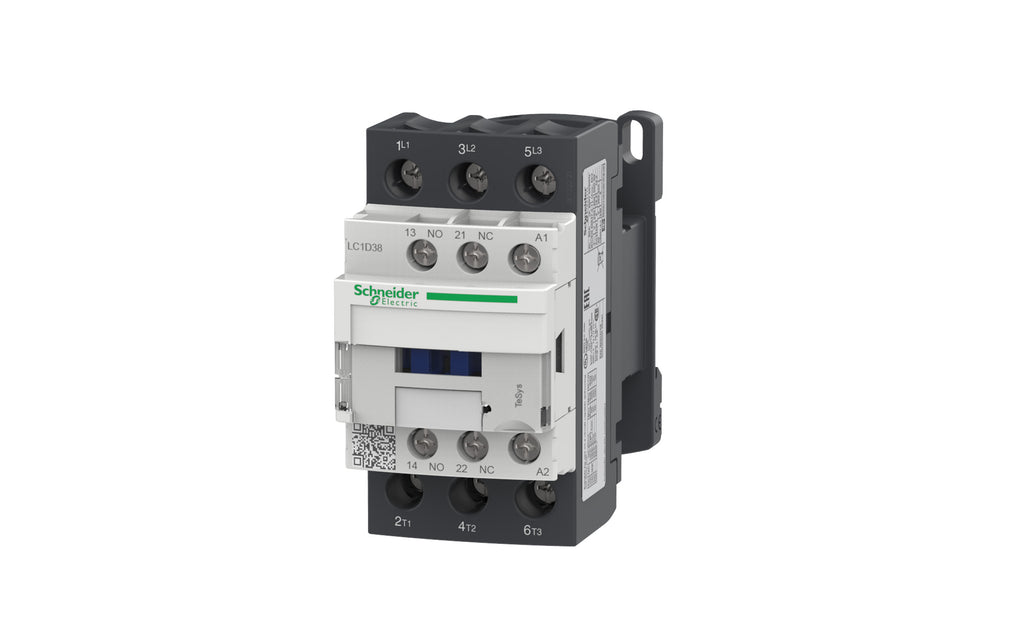

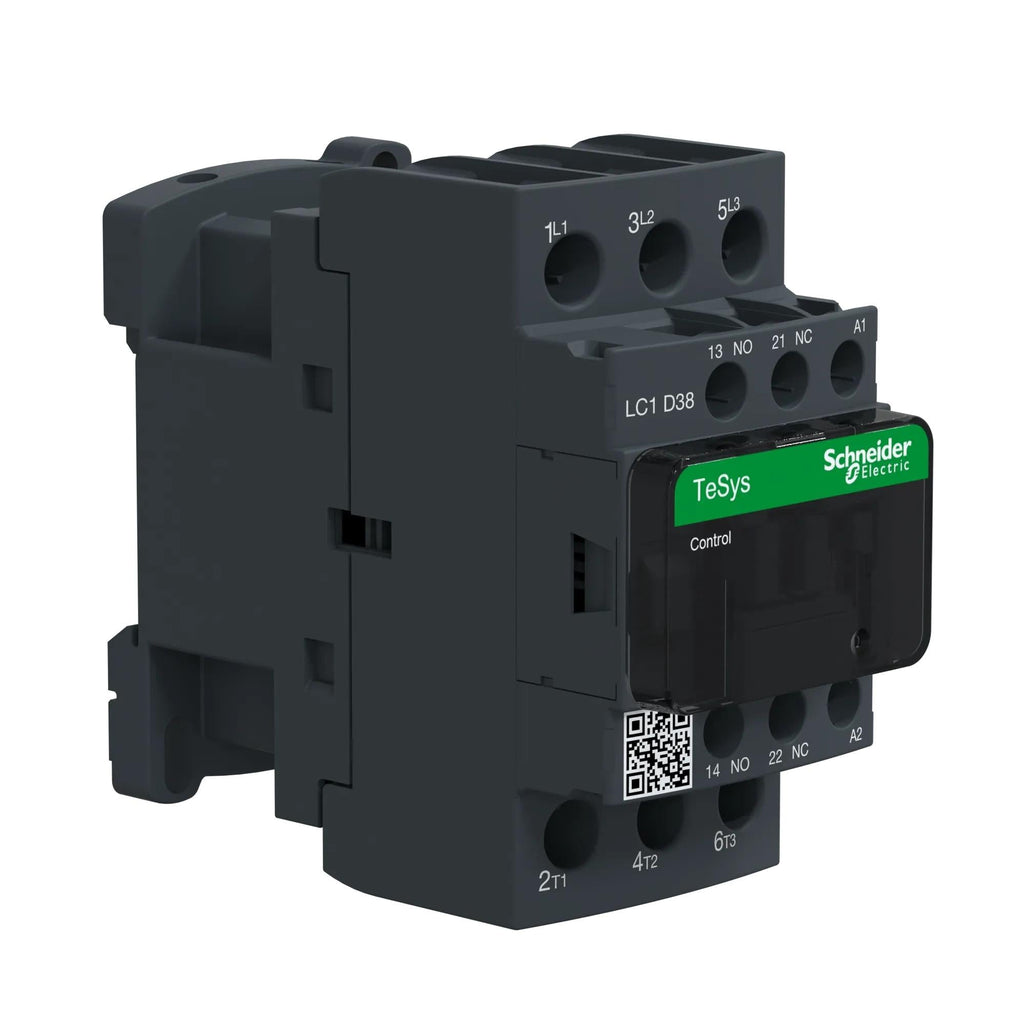

LC1D38U7 - Schneider Electric TeSys D Contactor 38 A 3-Pole 240 V AC Coil

LC1D38U7

LC1D38U7 is a Schneider Electric TeSys D series 3-pole contactor designed for robust industrial motor control and switching applications. This non-reversing contactor is rated at 38 A for AC-3 duty at up to 440 V AC and has a coil voltage of 240 V AC 50/60 Hz. It features three normally-open main contacts (3NO) plus built-in auxiliary contacts (1 NO + 1 NC), and is rated for operational voltages up to 690 V AC and 300 V DC. The device supports high short-circuit current ratings, has a compact width (~45 mm), and is mountable via screw-clamp terminals compatible with standard DIN-rail or panel mounting. The LC1D38U7 is suitable for motor loads up to approximately 20 HP at 480 V AC and is compliant with IEC 60947-4-1 / UL 508 standards.

• Manufacturer: Schneider Electric
• Series: TeSys D (LC1D range)
• Type: 3-pole Contactor (non-reversing)
• Main Contact Rating: 38 A AC-3 at ² 440 V AC
• Coil Voltage: 240 V AC, 50/60 Hz
• Main Contact Configuration: 3 NO (3 normally-open) (more...)


  Additional Information

  This TeSys D IEC Contactor includes a 240 VAC coil.




  Specifications

  • Part Number: LC1D38U7
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : TeSys D
  • Type : LC1D
  • Voltage : 600
  • Amperage : 56
  • Phase : 3
  • Poles : 3
  • Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
  • Aux Contacts : 3 NO
  • Coil Voltage Maximum : 240
  • Coil Voltage Minimum : 220
  • Frequency : 50/60 Hz



  Product Data

  • UPC : 38911035267
  • GTIN : 03389110352672
  • Country of Origin : Indonesia
  • Dimensions : 45 mm x 85 mm
  • Weight : 0.895 lb
  • Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
  • Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
