Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Contactor
Description

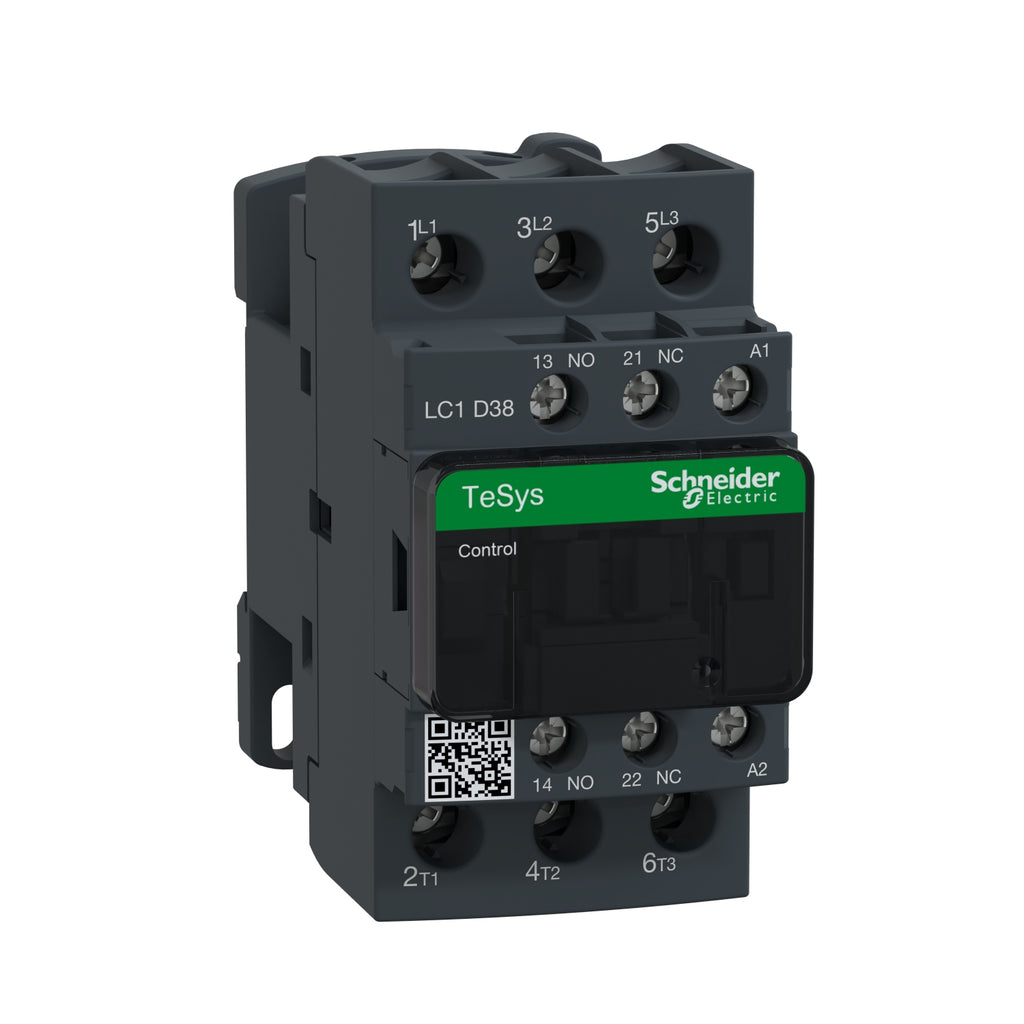

LC1D38Q7C
LC1D38Q7C is a Schneider Electric TeSys D IEC contactor rated for 38A at 690V insulation with 3-pole configuration and 380V AC 50/60Hz coil. This nonreversing motor control contactor delivers reliable performance for industrial motor applications up to 20 HP at 480VAC, featuring 3 normally open main contacts and 1 normally open plus 1 normally closed auxiliary contact composition. The contactor meets IEC 60947-1 and IEC 60947-4-1 standards with rated impulse withstand voltage of 6 kV and mechanical durability rated for 15 million operating cycles. Operating response time ranges from 4-19 ms opening and 12-22 ms closing at 3600 cycles per hour at 60 degrees Celsius.
- Amperage Rating: 38A
- Voltage: 690V insulation, 380V coil
- Poles: 3-pole
- Main Contacts: 3 NO (normally open)
- Auxiliary Contacts: 1 NO + 1 NC
- Coil Voltage: 380V AC 50/60Hz
- Series: TeSys D
- Standards: IEC 60947-1, IEC 60947-4-1, EN 60947-1, EN 60947-4-1
- Impulse Withstand Voltage: 6 kV
- Mechanical Durability: 15 million cycles
- Degree of Protection: IP 2X
- Country of Origin(more...)
Specifications
- Part Number: LC1D38Q7C
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Family : TeSys D
- Type : LC1D
- Voltage : 600
- Amperage : 54
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 380
- Coil Voltage Minimum : 380
Product Data
- Weight : 0.904
- Certification : CE, UKCA, CCC
