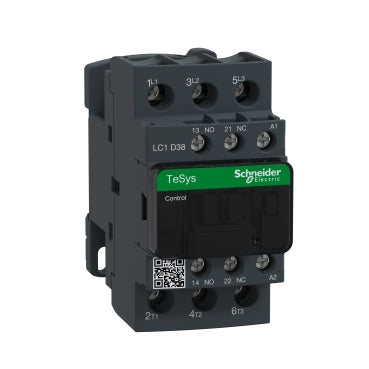

LC1D38FE7 - Schneider Electric TeSys D 3-Pole 38A 440V AC Motor Contactor 115V AC Coil

LC1D38FE7

LC1D38FE7 is a Schneider Electric TeSys D motor contactor designed for reliable motor control applications.LC1D38FE7 features a 3-pole configuration with 3 normally open contacts, rated for 38 amps and up to 440 volts AC under AC-3 utilization category. It includes a 115V AC coil operating at 50/60 Hz and screw clamp terminals for secure wiring. This contactor supports motor loads up to 18.5 kW at 400V and offers robust mechanical and electrical endurance. It is suitable for panel or DIN rail mounting and complies with international standards including IEC 60947-4-1. The device includes built-in auxiliary contacts (1NO+1NC) and is rated for operation in temperatures from -5¡C to +60¡C.

Key Specifications
• Manufacturer: Schneider Electric
• Series: TeSys D (LC1D)
• Poles: 3 (3 Normally Open)
• Current Rating: 38 A
• Voltage Rating: 440 V AC (AC-3), 690 V AC max contact voltage
• Coil Voltage: 115 V AC, 50/60 Hz
• Power Rating: 18.5 kW at 400 V
• Terminal Type: Screw clamp terminals
• Mounting: Panel or DIN rail mountable
• Auxiliary Contacts: 1NO + 1NC built(more...)


  Additional Information

  This TeSys D IEC Contactor includes a 115 VAC coil.




  Specifications

  • Part Number: LC1D38FE7
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : TeSys D
  • Type : LC1D
  • Voltage : 600
  • Amperage : 50
  • Phase : 3
  • Poles : 3
  • Aux Contacts : 3 NO
  • Coil Voltage Maximum : 120
  • Coil Voltage Minimum : 110
  • Frequency : 50/60 Hz



  Product Data

  • UPC : 38911035219
  • GTIN : 03389110352191
  • Country of Origin : Indonesia
  • Weight : 0.913
  • Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
