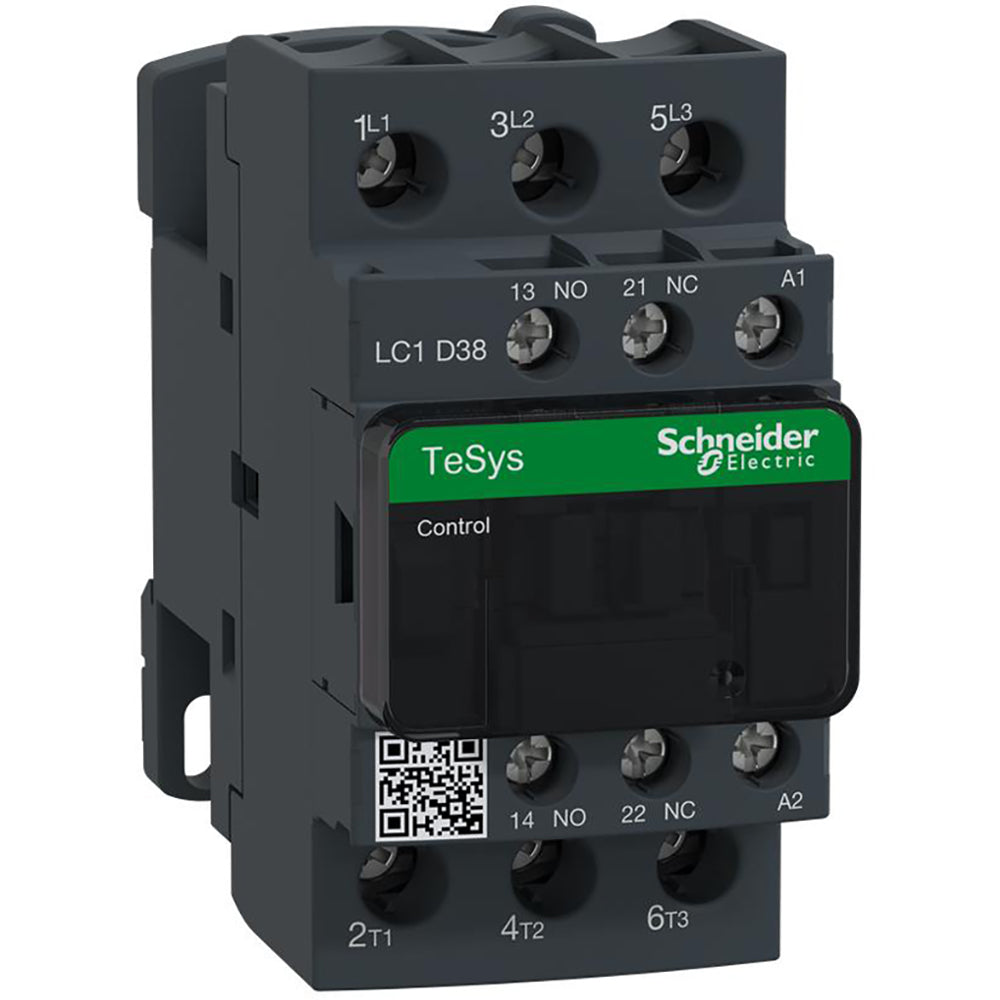

LC1D38F7 - Schneider Electric 38A 3-Pole Motor Contactor 110V AC Coil 480V AC Switching Voltage

LC1D38F7

LC1D38F7 is a Schneider Electric 3-pole motor contactor designed for motor control applications with a 38 ampere rating and 110V AC coil voltage.This contactor features a 3 normally open (3NO) pole configuration suitable for switching voltages up to 480 VAC and motor power ratings up to 18.5 kW at 400V. It is part of the TeSys Deca series, providing reliable performance with a 110V AC coil operating at 50/60 Hz. The device supports AC-3 utilization category and is compliant with IEC standards, making it ideal for industrial and HVAC applications. It includes features such as terminal finger protection, reversible coil connections, and positively-guided contacts for enhanced safety and durability.

• Amperage: 38 A
• Voltage: 110 V AC coil, 480 V AC switching voltage
• Poles: 3 poles (3 normally open)
• Motor Power: Up to 18.5 kW at 400 V
• Series/Frame: TeSys Deca
• Utilization Category: AC-3
• Frequency: 50/60 Hz coil operation
• Mounting Type: DIN Rail compatible
• Interrupt Rating: Up to 100 kA SCCR
• Certifications: IEC compliant, IEC60335-1 fire resistance
• Coil (more...)


  Additional Information

  This TeSys D IEC Contactor includes a 110 VAC coil.




  Specifications

  • Part Number: LC1D38F7
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : TeSys D
  • Type : LC1D
  • Voltage : 600
  • Amperage : 48
  • Phase : 3
  • Poles : 3
  • Aux Contacts : 3 NO
  • Coil Voltage Maximum : 120
  • Coil Voltage Minimum : 110
  • Frequency : 50/60 Hz



  Product Data

  • UPC : 38911035220
  • GTIN : 03389110352207
  • Country of Origin : France
  • Weight : 0.911
  • Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
