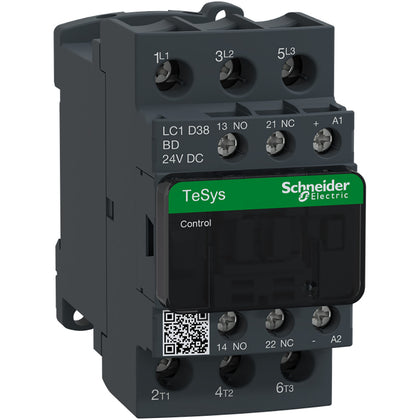

LC1D38BD - Schneider Electric TeSys D Contactor 3 Pole 38A 24V DC Coil Non-Reversing Motor Starter 600V AC/DC

LC1D38BD

This 3-pole contactor features 3 normally open (NO) contacts, a 24V DC coil, and is rated for 38A at up to 440V AC (AC-3) or 50A at up to 440V AC (AC-1). It is suitable for power circuits up to 690V AC (25Ð400 Hz) and 300V DC, with a motor power rating of 18.5 kW at 400V AC (AC-3). The LC1D38BD is engineered for industrial and HVAC applications, offering robust performance and easy installation with screw clamp terminals.

Key Specifications

• Amperage: 38A AC-3, 50A AC-1
• Voltage: Up to 690V AC, 300V DC
• Poles: 3 (3 NO)
• Mounting Type: Screw clamp terminals
• Interrupt Rating: Up to 100kA SCCR
• Series/Frame: TeSys D (LC1D)
• Trip Unit: Not applicable (contactor, no built-in trip unit)
• Certifications: IEC 60947, CSA, UL listed
• Coil Voltage: 24V DC
• Motor Power: 18.5 kW at 400V AC (AC-3)
• Utilization Categories: AC-1, AC-3, AC-3e, AC-4
• Environmental: Improved fire (more...)


  Additional Information

  This TeSys D IEC Contactor includes a 24 VDC coil.




  Specifications

  • Part Number: LC1D38BD
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : TeSys D
  • Type : LC1D
  • Voltage : 600
  • Amperage : 45
  • Phase : 3
  • Poles : 3
  • Horse Power : 10 hp at 230/240 V AC 50/60 Hz for 3 phases motors-10 hp at 200/208 V AC 50/60 Hz for 3 phases motors-5 hp at 240 V AC 50/60 Hz for 1 phase motors-20 hp at 480 V AC 50/60 Hz for 3 phases motors-25 hp at 600 V AC 50/60 Hz for 3 phases motors
  • Aux Contacts : 3 NO
  • Coil Voltage Maximum : 24
  • Coil Voltage Minimum : 24



  Product Data

  • UPC : 785901640271
  • GTIN : 03389110359671
  • Country of Origin : France
  • Dimensions : 1.77 in x 3.35 in
  • Weight : 1.301
  • Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
