LC1D38B7 - Schneider Electric 38A 3-Pole TeSys D Motor Contactor 24V AC Coil 600V AC Rated

LC1D38B7

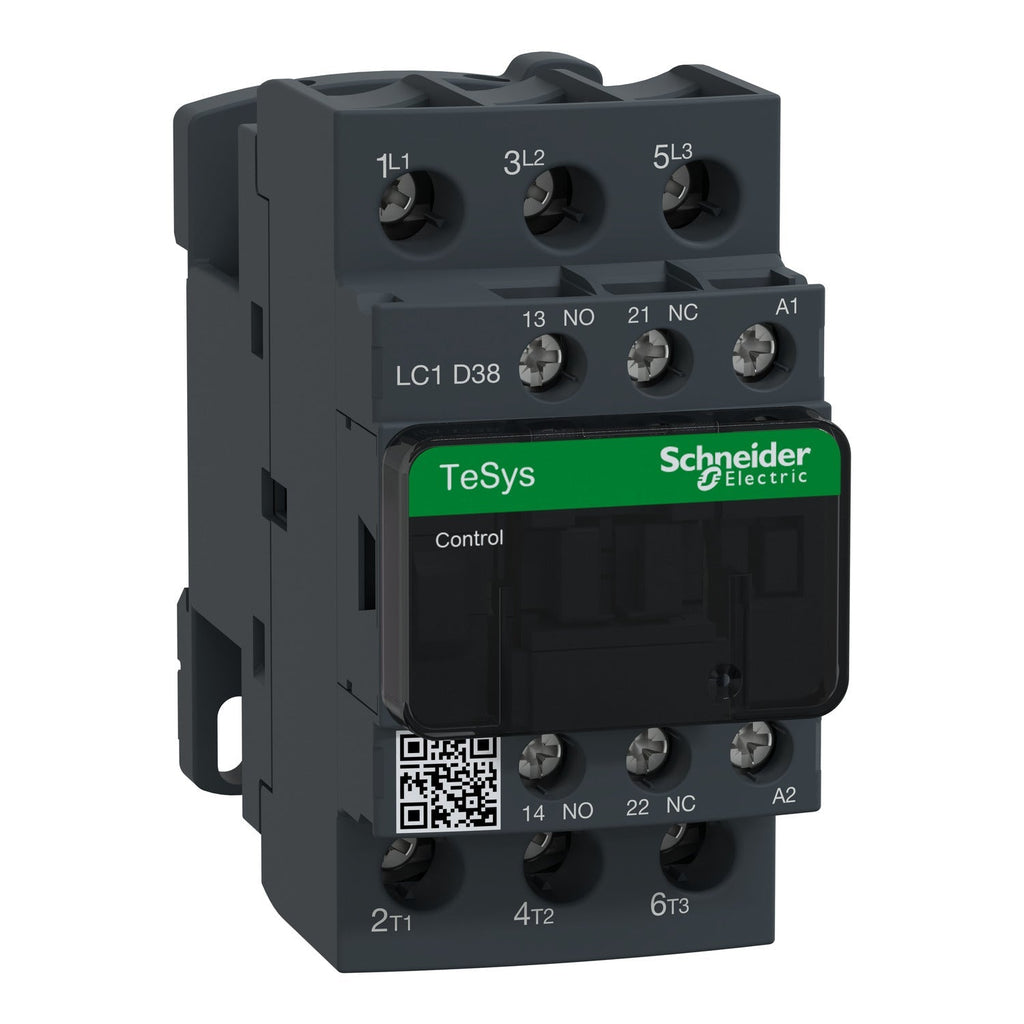

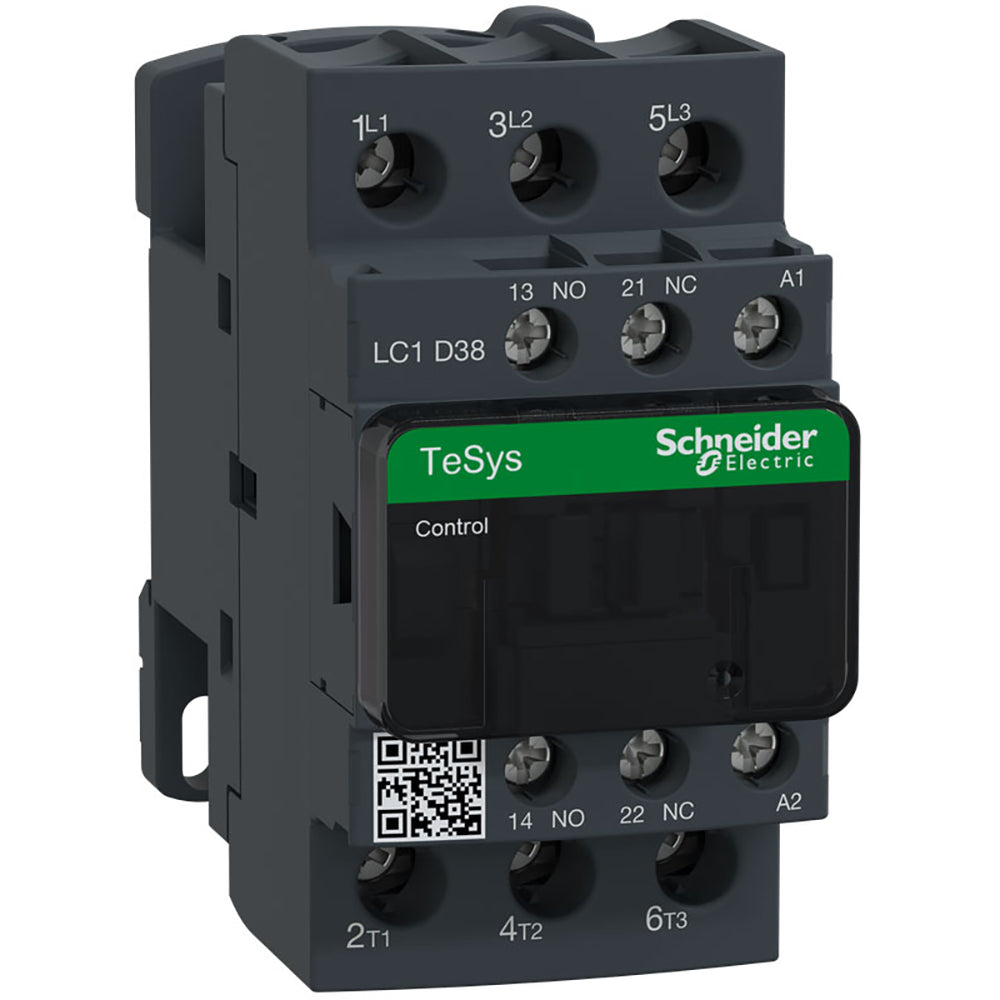

LC1D38B7 is a Schneider Electric TeSys D non-reversing motor contactor designed for industrial and HVAC applications.LC1D38B7 features a 38 amp rated operational current at up to 440 V AC (AC-3 utilization category) with a 3-pole configuration and a 24 V AC 50/60 Hz coil voltage. It supports motor loads up to 20 HP at 480 V AC and 25 HP at 600 V AC. The contactor is chassis and DIN rail mountable and includes 3 normally open auxiliary contacts. It complies with IEC 60947 standards and offers a rated impulse withstand voltage conforming to IEC 60947. The device is designed for high operating rates of up to 3600 cycles per hour at 60 ¡C and features multi-standard screw clamp terminals for easy installation.

Key Specifications
• Rated operational current: 38 A at <= 440 V AC (AC-3)
• Poles: 3 (3 normally open contacts)
• Coil voltage: 24 V AC, 50/60 Hz
• Rated operational voltage: up to 690 V AC
• Motor horsepower rating: 20 HP at 480 V AC, 25 HP at 600 V AC
• Mounting type: Chassis and DIN rail mountable
• Standards compliance: IEC 60947
• Operating rate: 3600 cycles/hour at 60 ¡C
(more...)


Additional Information

This TeSys D IEC Contactor includes a 24 VAC coil.




Specifications

• Part Number: LC1D38B7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Family : TeSys D
• Type : LC1D
• Voltage : 600
• Amperage : 43
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Aux Contacts : 3 NO
• Coil Voltage Maximum : 24
• Coil Voltage Minimum : 24
• Protection : Solid State
• Frequency : 50/60 Hz



Product Data

• UPC : 785901755470
• Country of Origin : Indonesia
• Dimensions : 45 mm x 85 mm
• Weight : 0.937
• Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
