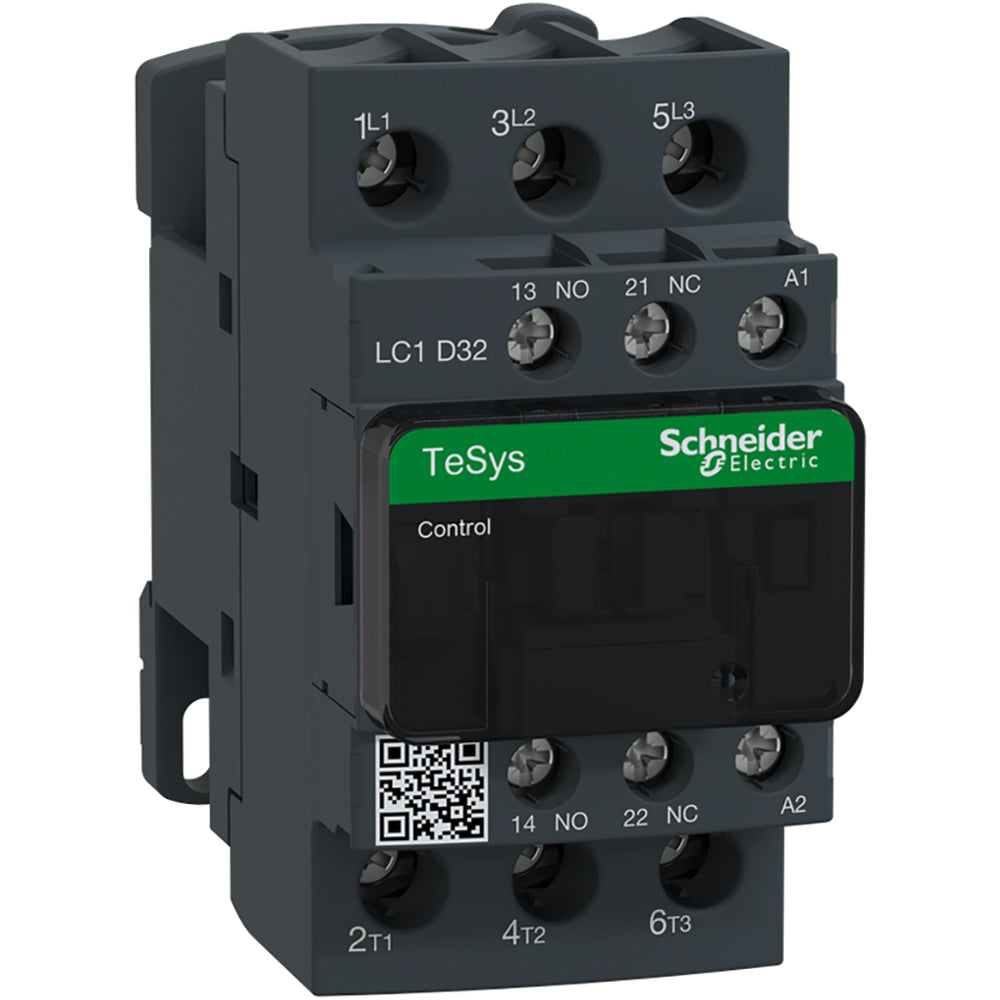

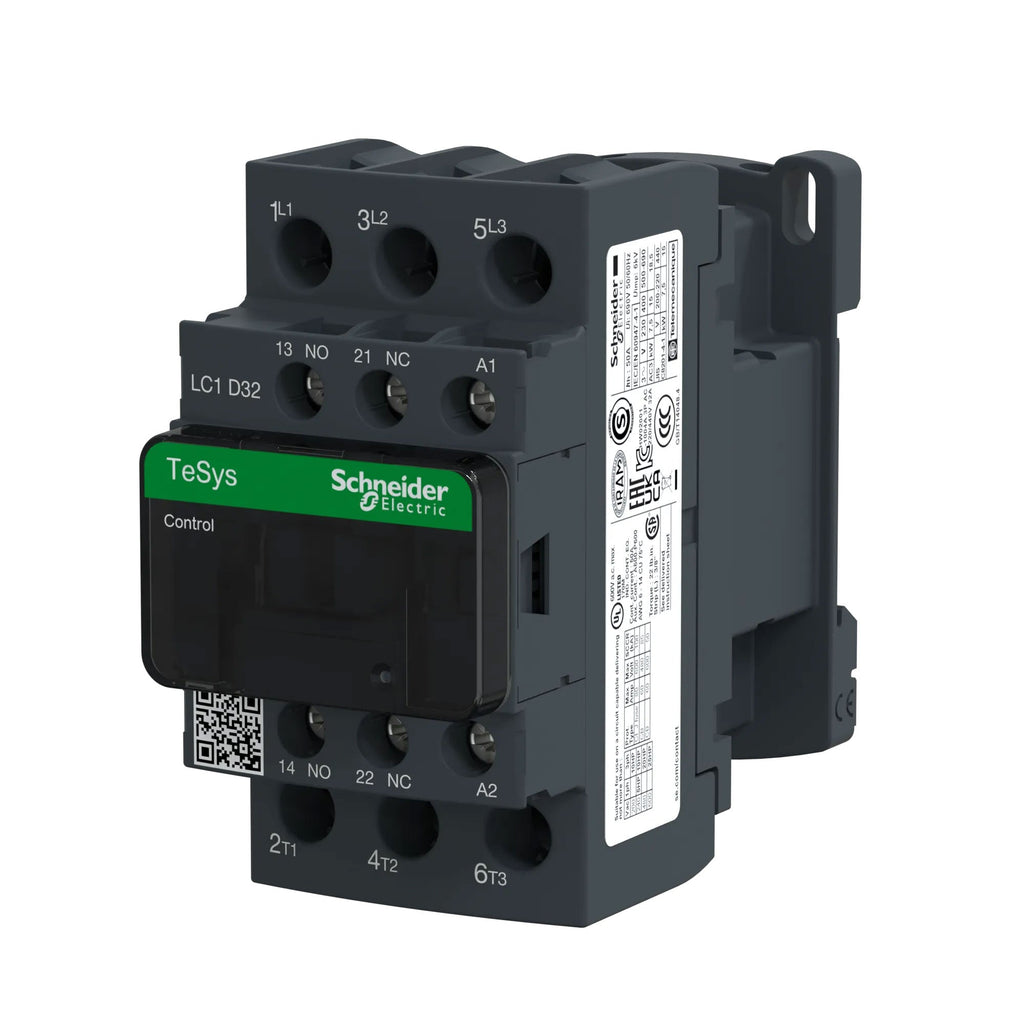

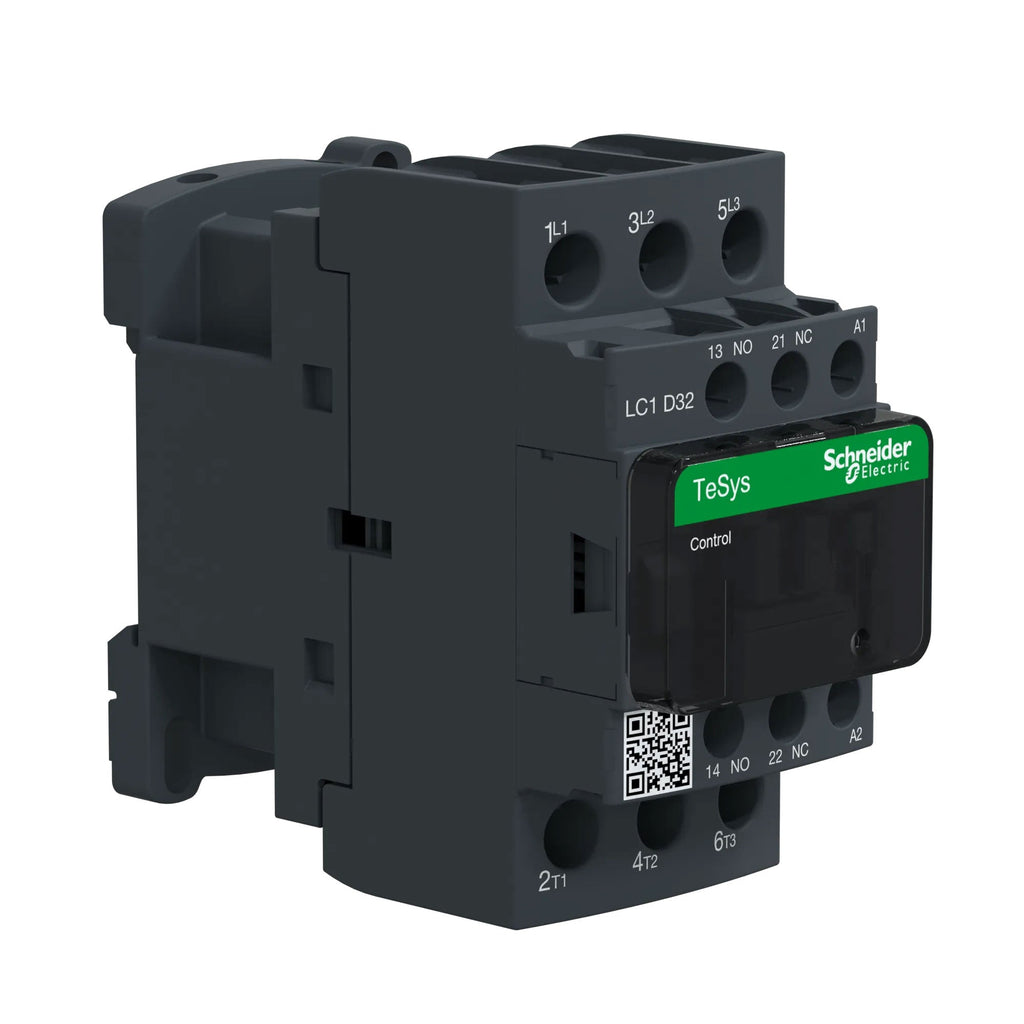

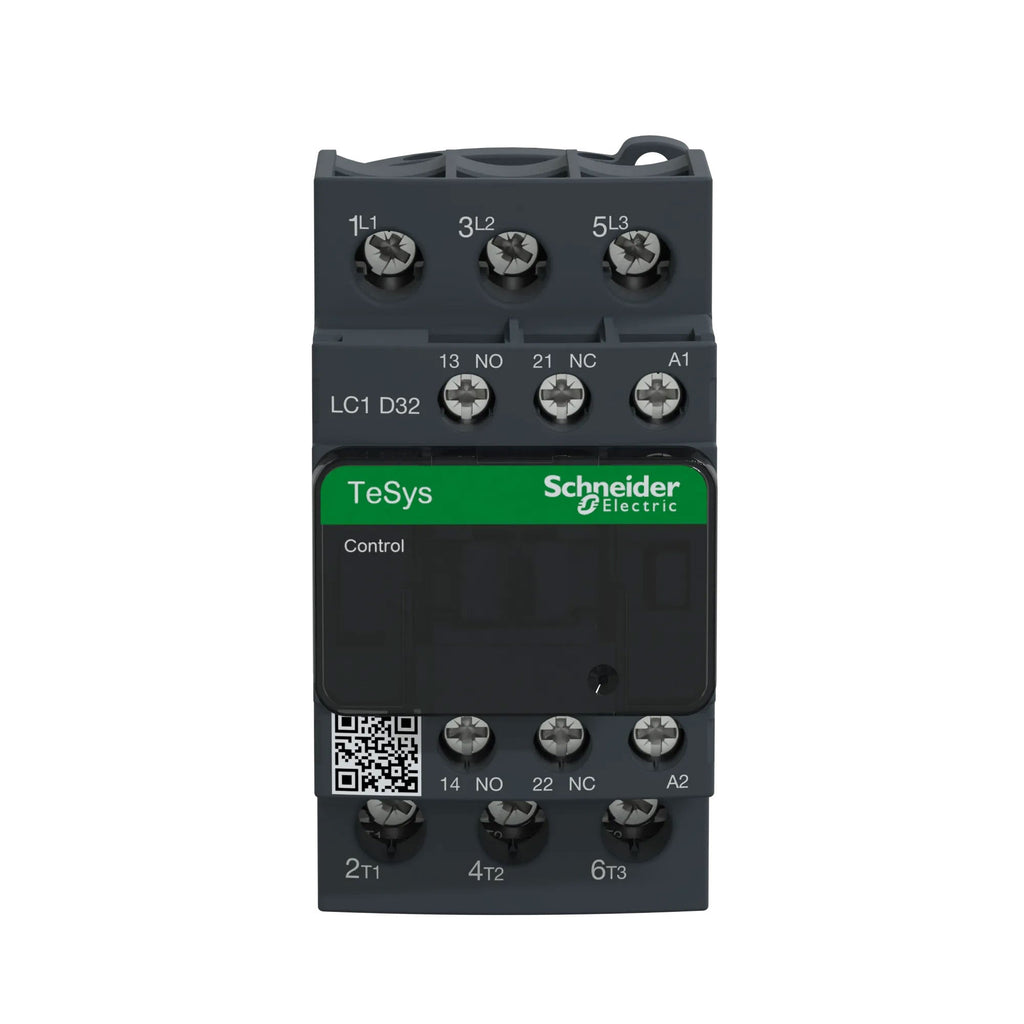

LC1D32P7 - Schneider Electric TeSys Deca 3P 32A 440V AC-3/3e Motor Contactor, 230V 50/60Hz Coil, Screw Clamp Terminals, Non-Reversing, 15kW@400V

LC1D32P7

This non-reversing contactor features a 230V AC 50/60Hz coil, screw clamp terminals for easy installation, and is designed for motor control up to 32A (AC-3/3e) and 440V. It is suitable for a wide range of motor power ratings, including 15kW at 400V, and offers robust mechanical and electrical durability for demanding environments.

Key Specifications
• Amperage: 32A (AC-3/3e), 50A (AC-1)
• Voltage: Up to 440V AC (AC-3/3e), 690V IEC 60947-4-1
• Poles: 3P (3 NO)
• Mounting Type: Screw clamp terminals (power and control circuits)
• Interrupt Rating: Not specified in available documentation
• Series/Frame: TeSys Deca
• Trip Unit: Not applicable (contactor, not circuit breaker)
• Certifications: IEC 60947-4-1, IEC60335-1 (improved fire resistance, dustproof auxiliaries)
• Control Circuit: 230V AC 50/60Hz coil
• Motor Power: 7.5kW at 220Ð230V, 15kW at 380Ð400V, 18.5kW at 500Ð690V (AC-3)
• Mechanical Durabili(more...)


  Additional Information

  This TeSys D IEC Contactor includes a 230 VAC coil.




  Specifications

  • Part Number: LC1D32P7
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : TeSys D
  • Type : LC1D
  • Voltage : 600
  • Amperage : 32
  • Phase : 3
  • Poles : 3
  • Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
  • Aux Contacts : 3 NO
  • Coil Voltage Maximum : 230
  • Coil Voltage Minimum : 230
  • Frequency : 50/60 Hz



  Product Data

  • UPC : 3389110351125
  • GTIN : 03389110351125
  • Country of Origin : Indonesia
  • Dimensions : 45 mm x 85 mm
  • Weight : 0.915
  • Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
  • Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
