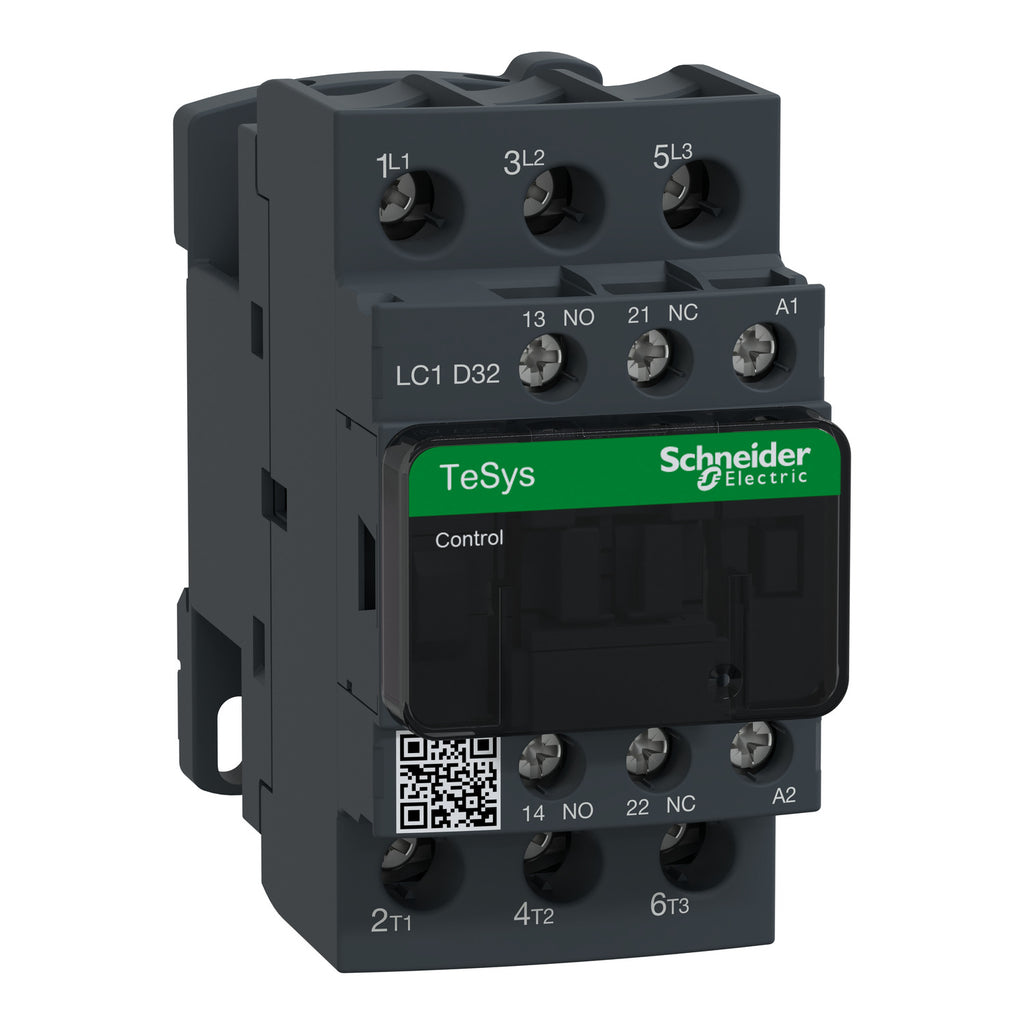

LC1D32M7 - Schneider Electric TeSys D 32A 3-Pole 220V AC Coil Motor Contactor

LC1D32M7

LC1D32M7 is a Schneider Electric TeSys D motor contactor designed for reliable motor control applications.This 3-pole contactor features a 32 amp rated operational current at up to 440 V AC (AC-3 utilization category) with a 220 V AC coil voltage. It supports motor power ratings up to 15 kW at 400 V AC and has a non-reversing design with 3 normally open (NO) contacts. The device is built for industrial use with screw clamp terminals and meets multiple certifications including IEC 60335-1 for fire resistance. It offers a high interrupt rating suitable for heavy-duty motor control and is part of the TeSys Deca series.

Key Specifications
• Rated operational current: 32 A (AC-3, <= 440 V AC)
• Coil voltage: 220 V AC, 50/60 Hz
• Poles: 3 (3 NO contacts)
• Rated operational voltage: up to 690 V AC
• Motor power rating: 15 kW at 400 V AC
• Mounting type: Screw clamp terminals
• Interrupt rating: Up to 100 kA SCCR
• Series/Frame: TeSys D / Deca
• Trip unit: Non-reversing contactor
• Certifications: IEC 60335-1, UL, CSA, CCC, EAC
• Operating frequency: 25 to 400 Hz(more...)


  Additional Information

  This TeSys D IEC Contactor includes a 220 VAC coil.




  Specifications

  • Part Number: LC1D32M7
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : TeSys D
  • Type : LC1D
  • Voltage : 600
  • Amperage : 32
  • Phase : 3
  • Poles : 3
  • Aux Contacts : 3 NO
  • Coil Voltage Maximum : 240
  • Coil Voltage Minimum : 220
  • Frequency : AC 50/60 Hz



  Product Data

  • UPC : 38911035108
  • GTIN : 03389110351088
  • Country of Origin : France
  • Dimensions : 1.77 in x 3.35 in
  • Weight : 0.891
  • Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
