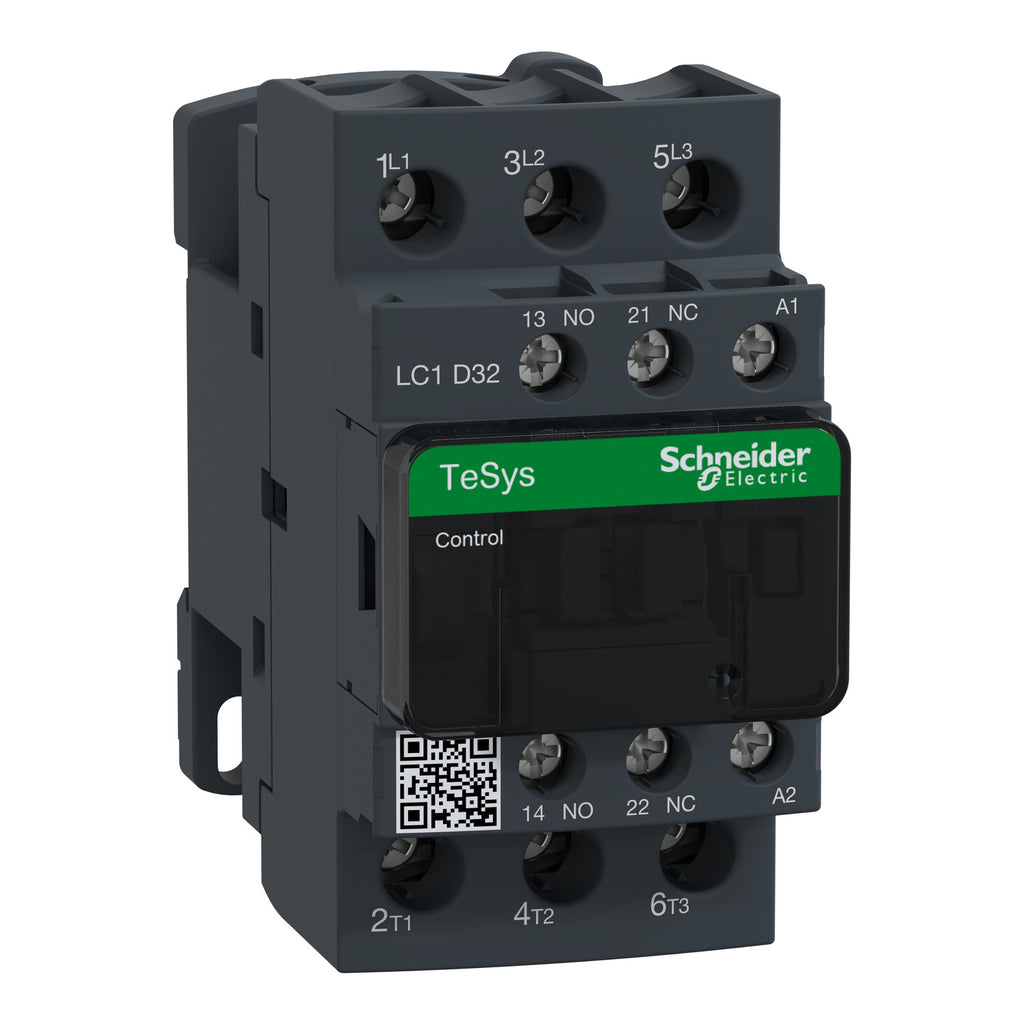

LC1D32G7 - Schneider Electric TeSys D 32A 120VAC 3-Pole IEC Contactor

LC1D32-G7

LC1D32G7 is a TeSys D nonreversing IEC contactor designed for motor control applications with 3 poles, 3 normally open power contacts, and 1 normally open plus 1 normally closed auxiliary contact. This 32A contactor operates at 120VAC 50/60Hz coil voltage and is rated for AC-3 duty up to 440V, with capability to handle 20 horsepower at 480VAC in 3-phase applications. The unit features screw clamp terminals for flexible or solid conductor connections and delivers 100kA short circuit current rating (SCCR) for reliable protection in industrial and HVAC motor control systems. Built to IEC standards with improved fire resistance per IEC60335-1 compliance and dustproof auxiliary contacts, the LC1D32G7 combines modern design with multi-standard screw compatibility for simplified installation. Mechanical durability reaches 15 million cycles at operating rates up to 3600 cycles per hour, ensuring long service life in demanding applications.

• Amperage: 32A AC-3 (50A AC-1)
• Coil Voltage: 120VAC 50/60Hz
• Poles: 3 (3NO power contacts)
• Auxiliary Contacts: 1NO + 1NC
• Series: TeSys D (TeSys Deca)
• Contactor Type: Nonreversing IEC
• Terminal Type:(more...)


  Specifications

  • Part Number: LC1D32-G7
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : TeSys D
  • Type : LC1D
  • Voltage : 600
  • Amperage : 32
  • Phase : 3
  • Poles : 3
  • Coil Voltage Maximum : 120
  • Coil Voltage Minimum : 120



  Product Data

  • UPC : 038911035081
  • GTIN : 03389110350814
  • Weight : 4
  • Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
