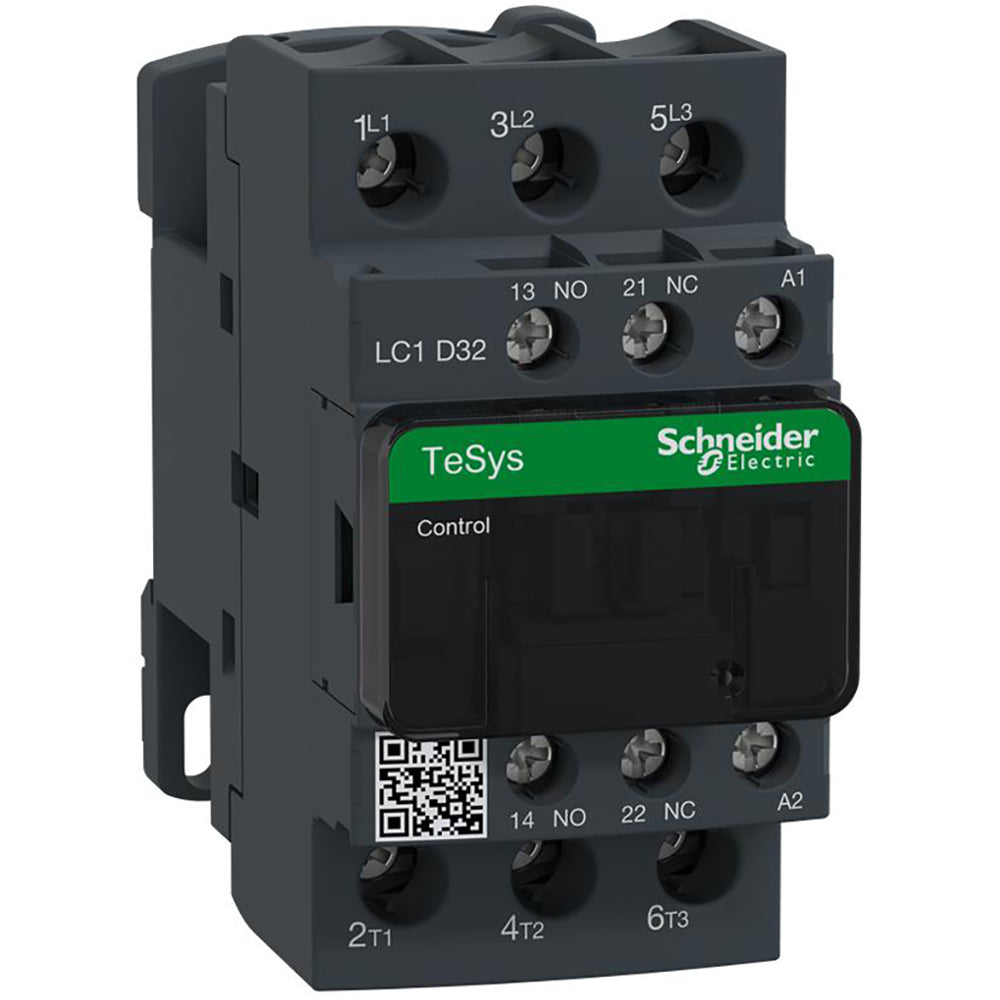

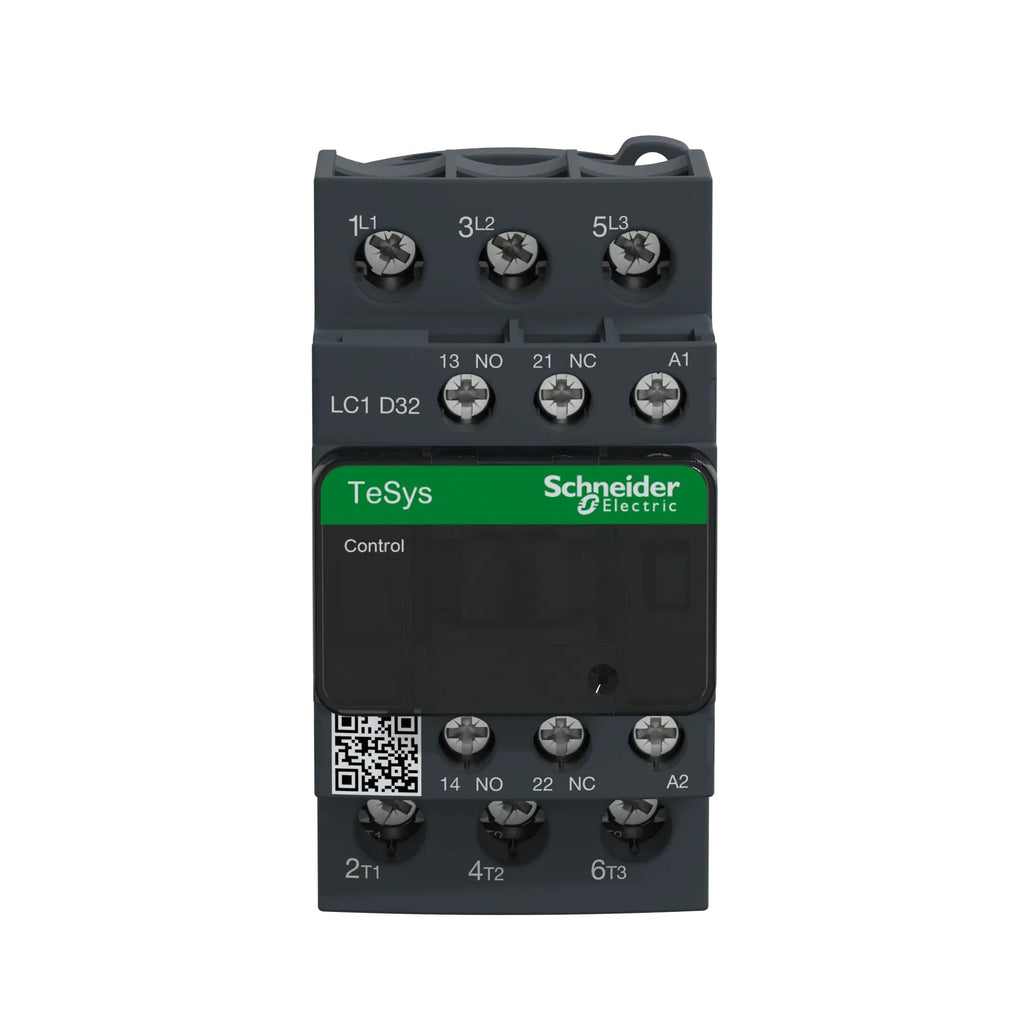

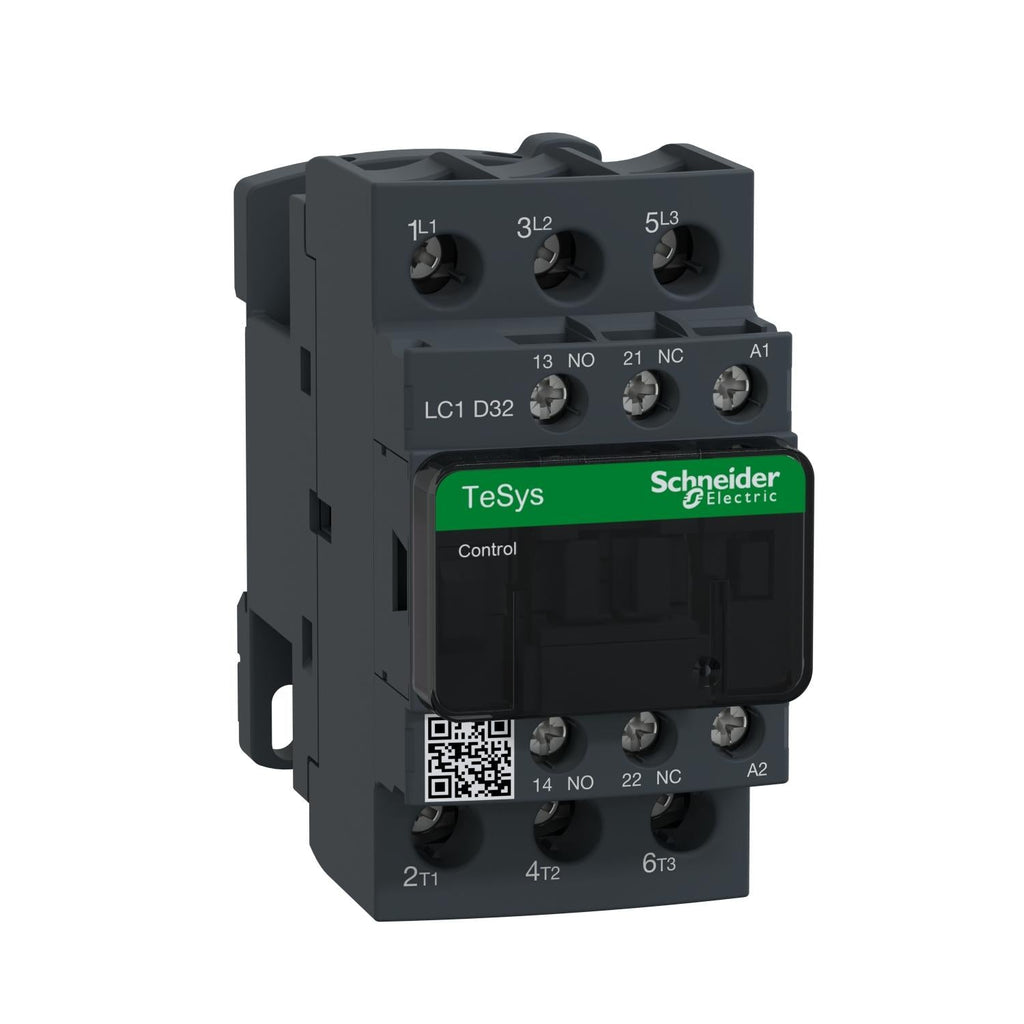

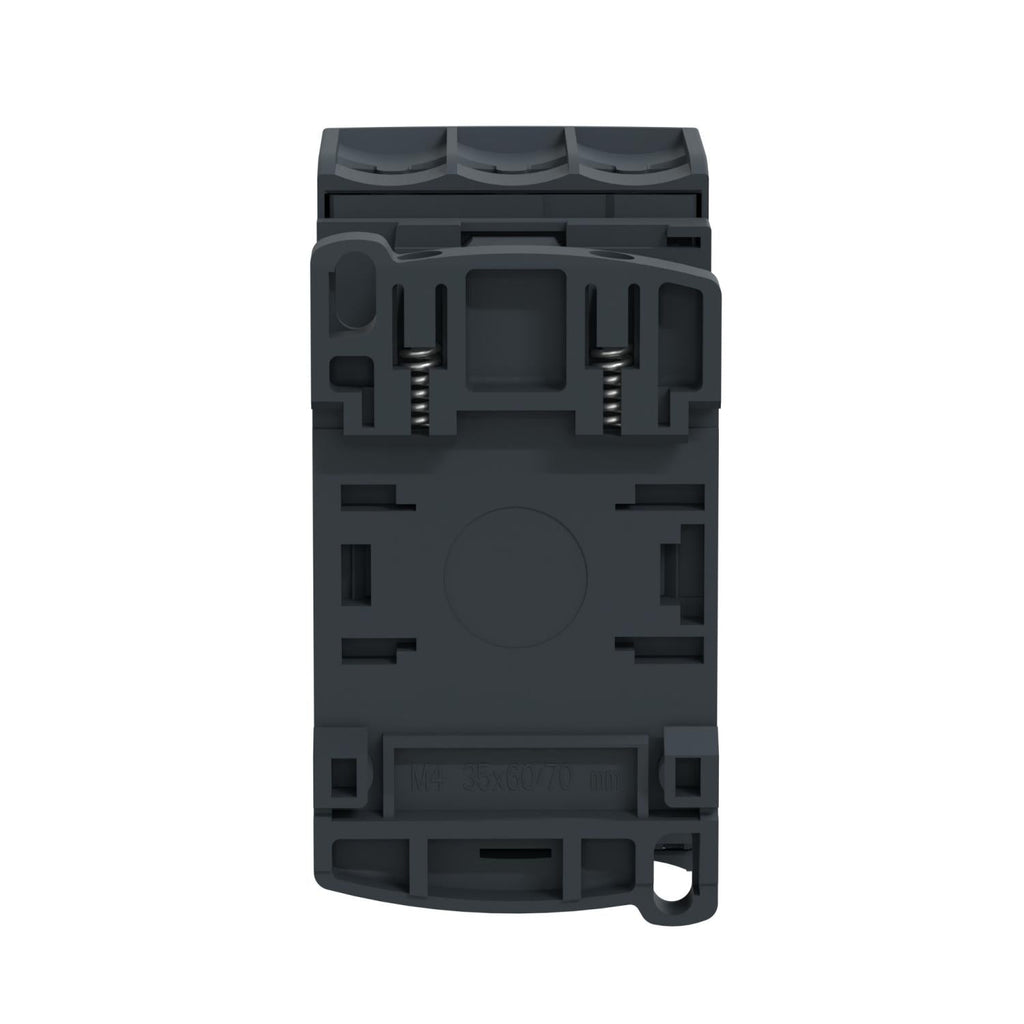

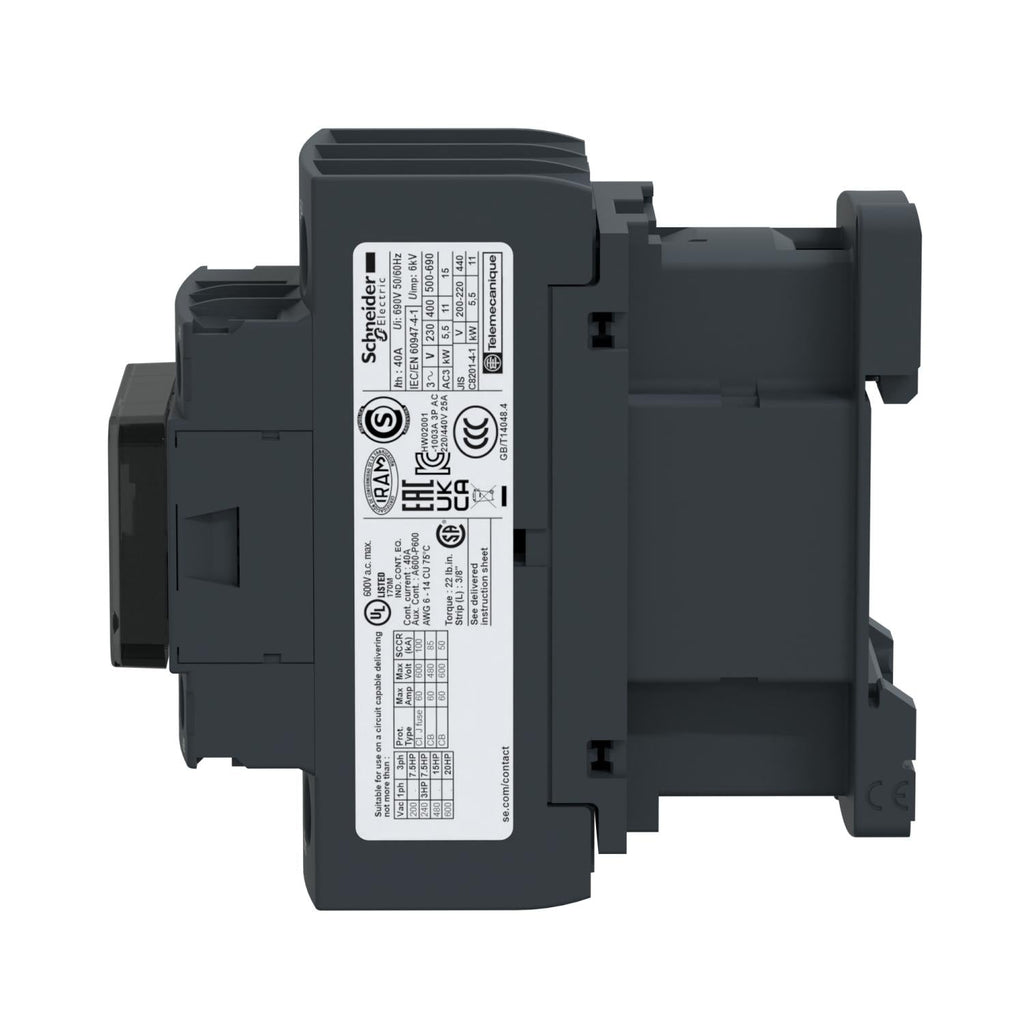

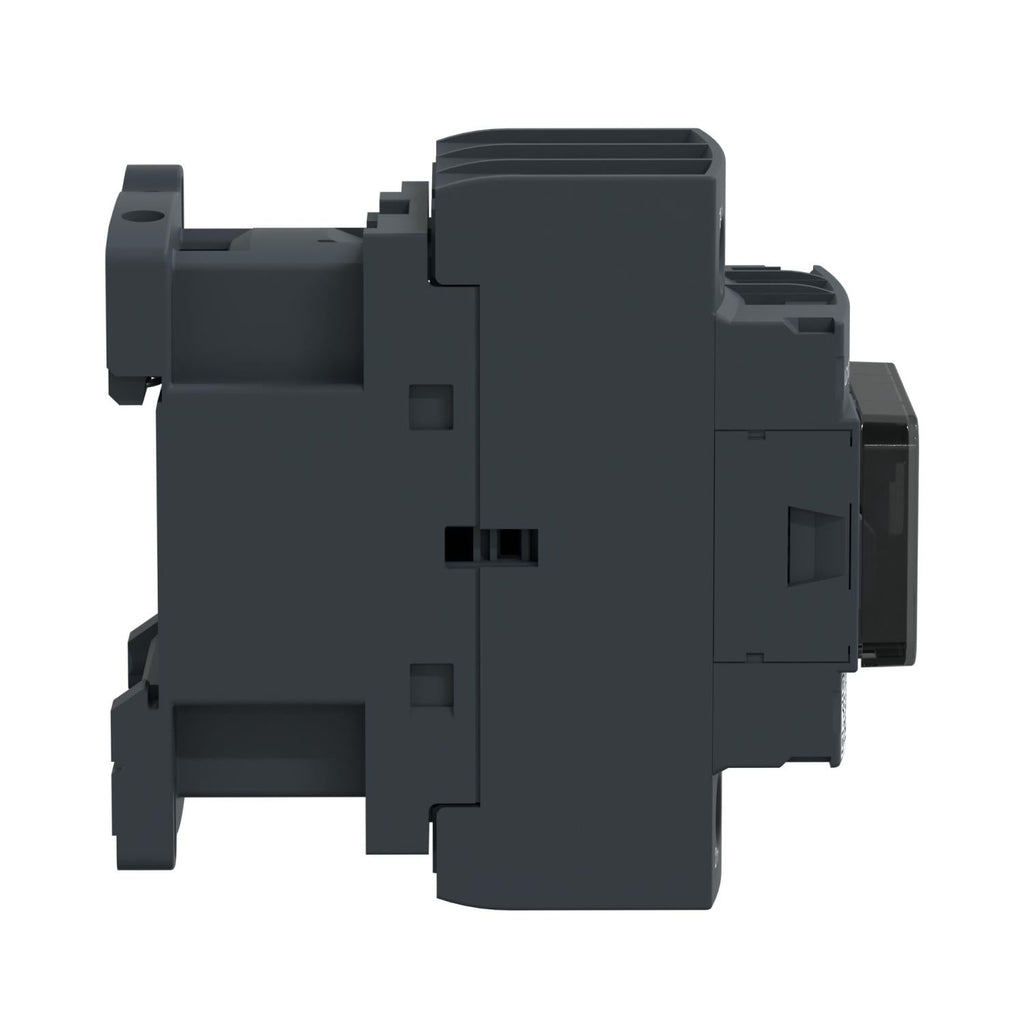

LC1D32F7 - Schneider Electric TeSys D 32A 3-Pole Motor Contactor 110V AC Coil 440V AC Max

LC1D32F7

LC1D32F7 is a Schneider Electric TeSys D motor contactor designed for reliable motor control applications with a 32 amp rating and 3 poles.This contactor features a 110V AC coil operating at 50/60 Hz, supports up to 440V AC utilization voltage, and includes screw clamp terminals for secure wiring. It is rated for AC-3 utilization category, suitable for motor loads, with a mechanical durability of 15 million cycles and an operating rate of 3600 cycles per hour at temperatures up to 60¡C. The device conforms to IEC 60947-1 and IEC 60947-4-1 standards and offers IP2X degree of protection.

Key Specifications
• Amperage: 32 A
• Voltage Rating: Up to 440 V AC
• Coil Voltage: 110 V AC 50/60 Hz
• Poles: 3 (3 Normally Open contacts)
• Mounting Type: Screw clamp terminals
• Utilization Category: AC-3 (motor control)
• Mechanical Durability: 15 million operating cycles
• Operating Rate: 3600 cycles/hour at ² 60¡C
• Standards: IEC 60947-1, IEC 60947-4-1, VDE 0660
• Degree of Protection: IP2X
• Horsepower Ratings: 2 HP at 115 V AC, 5 HP at 230/240 V AC, 10 HP at 200/208 V(more...)


  Additional Information

  This TeSys D IEC Contactor includes a 110 VAC coil.




  Specifications

  • Part Number: LC1D32F7
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : TeSys D
  • Type : LC1D
  • Voltage : 600
  • Amperage : 32
  • Phase : 3
  • Poles : 3
  • Horse Power : 2 hp at 115 V AC 50/60 Hz for 1 phase motors-5 hp at 230/240 V AC 50/60 Hz for 1 phase motors-10 hp at 200/208 V AC 50/60 Hz for 3 phases motors-10 hp at 230/240 V AC 50/60 Hz for 3 phases motors-20 hp at 460/480 V AC 50/60 Hz for 3 phases motors-25 hp at 575/600 V AC 50/60 Hz for 3 phases motors
  • Aux Contacts : 3 NO
  • Coil Voltage Maximum : 120
  • Coil Voltage Minimum : 110
  • Frequency : AC 50/60 Hz



  Product Data

  • UPC : 038911035019
  • GTIN : 03389110350197
  • Country of Origin : France
  • Dimensions : 1.77 in x 3.35 in
  • Weight : 0.917
  • Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
