Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Contactor
Description

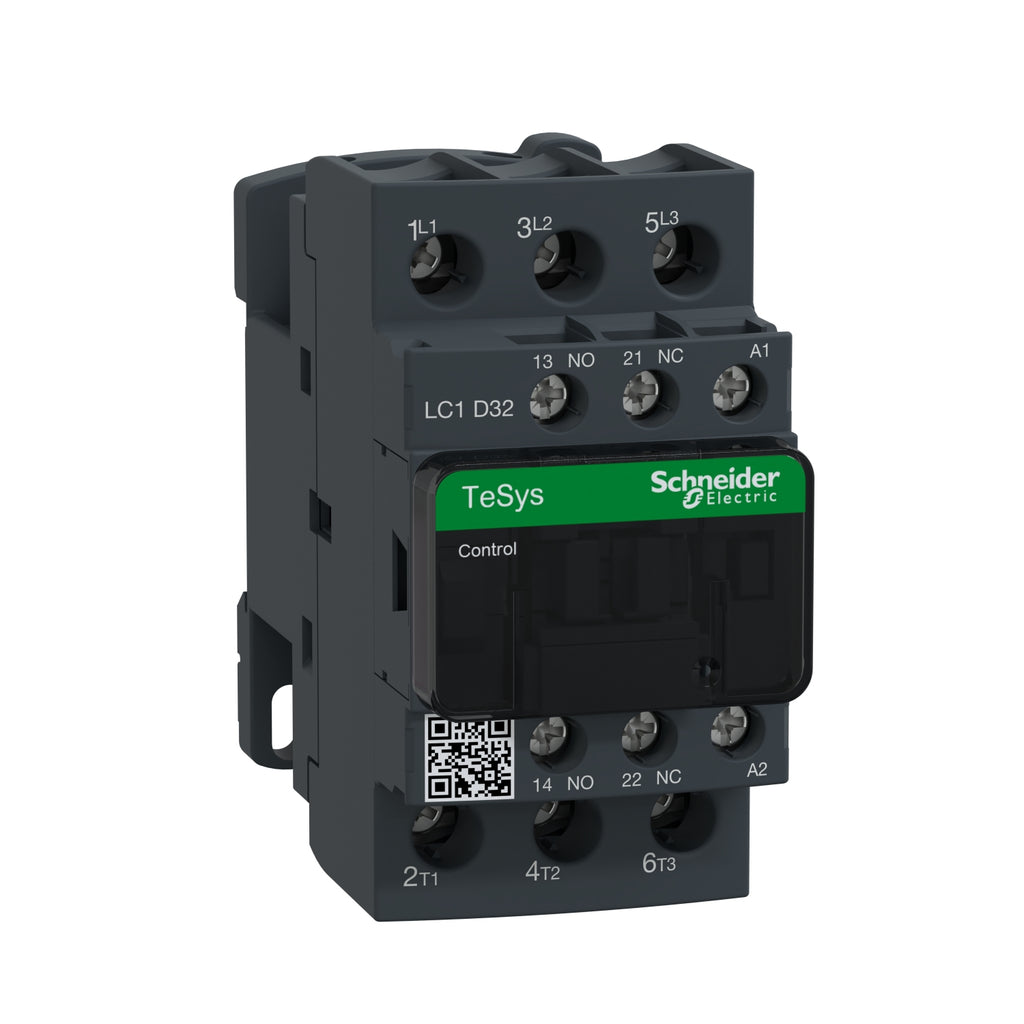

LC1D32E7C
LC1D32E7C is a Schneider Electric 3-pole motor contactor designed for industrial motor control applications with a 32 ampere rating and a 48V AC coil.
This TeSys Deca series contactor supports motor control up to 15 kW at 400V and provides reliable switching for motors, heating, and lighting circuits. It features a 3 normally open (3NO) contact configuration, screw clamp terminals, and is suitable for use with 50/60 Hz AC coil voltage. The device complies with IEC standards and offers a rated operational voltage of up to 690V with a rated operational current of 32A (AC-3). It includes one normally open and one normally closed auxiliary contact for control circuit flexibility and mounts easily on DIN rails.
- Amperage: 32A (AC-3)
- Number of Poles: 3
- Coil Voltage: 48V AC, 50/60Hz
- Rated Operational Voltage: Up to 690V
- Rated Power: 15 kW at 400V
- Auxiliary Contacts: 1 Normally Open (NO), 1 Normally Closed (NC)
- Mounting Type: DIN Rail
- Series/Frame: TeSys Deca
- Contact Configuration: 3 Normally Open (3NO)
- Terminals: Screw clamp
- Certificati(more...)
Specifications
- Part Number: LC1D32E7C
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Family : TeSys D
- Type : LC1D
- Voltage : 600
- Amperage : 32
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 48
- Coil Voltage Minimum : 48
Product Data
- Weight : 0.863
- Certification : CE, UKCA, CCC
