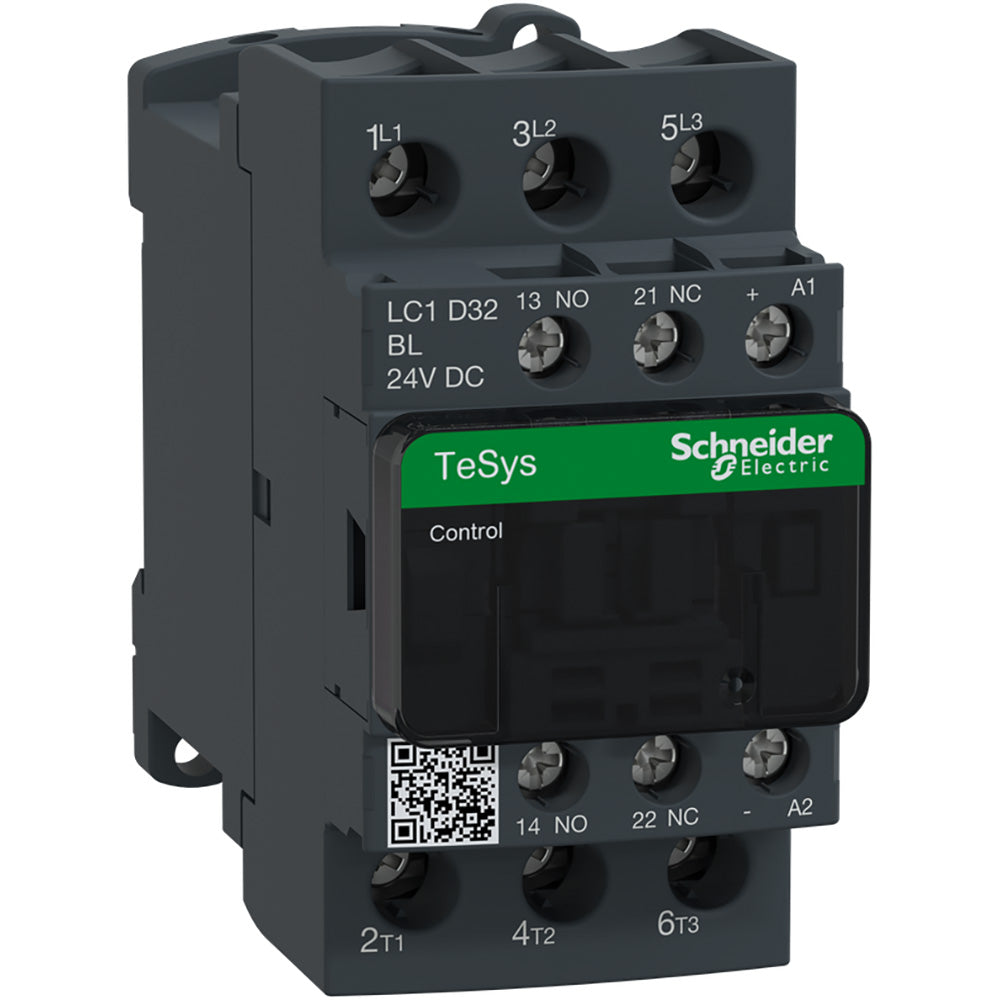

LC1D32BL - Schneider Electric TeSys D 3-Pole IEC Contactor, 32A, 690V, 24V DC Coil, Plate Rail Mount, AC-3, 15kW Motor Power, UL/CSA Certified

LC1D32BL

This contactor features a low-consumption 24V DC coil, 3 normally open (NO) power poles, and 1 NO + 1 NC auxiliary contact. It is engineered for easy integration into control systems, offering robust performance with improved fire resistance and dustproof auxiliaries. The LC1D32BL is compliant with major international standards and is suitable for a wide range of motor starter applications.

Key Specifications
• Amperage: 32A AC-3, 50A AC-1
• Voltage: Up to 690V AC, 300V DC
• Poles: 3 (3NO)
• Mounting Type: Plate rail
• Interrupt Rating: 550A at 440V (IEC 60947)
• Series/Frame: TeSys D (Deca)
• Trip Unit: Not applicable (contactor, not circuit breaker)
• Certifications: UL, CSA, EN/IEC 60947-4-1, EN/IEC 60947-5-1, CCC, GOST, DNV, RINA, BV, GL, LROS
• Control Voltage: 24V DC
• Motor Power: 15kW at 400V, 7.5kW at 230V
• Electrical Durability: 1.65 million cycles (AC-3)
• Protection: IP(more...)


  Additional Information

  This TeSys D IEC Contactor includes a 24 VDC coil.




  Specifications

  • Part Number: LC1D32BL
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : TeSys D
  • Type : LC1D
  • Voltage : 600
  • Amperage : 32
  • Phase : 3
  • Poles : 3
  • AIC rating : 35kA@480V
  • Connection : Feed-Thru
  • Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
  • Aux Contacts : 3 NO
  • Coil Voltage Maximum : 24
  • Coil Voltage Minimum : 24
  • Protection : Solid State



  Product Data

  • UPC : 785901549512
  • Country of Origin : France
  • Dimensions : 1.77 in x 3.35 in
  • Weight : 1.301
  • Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
