Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Contactor
Description
LC1D32BDC

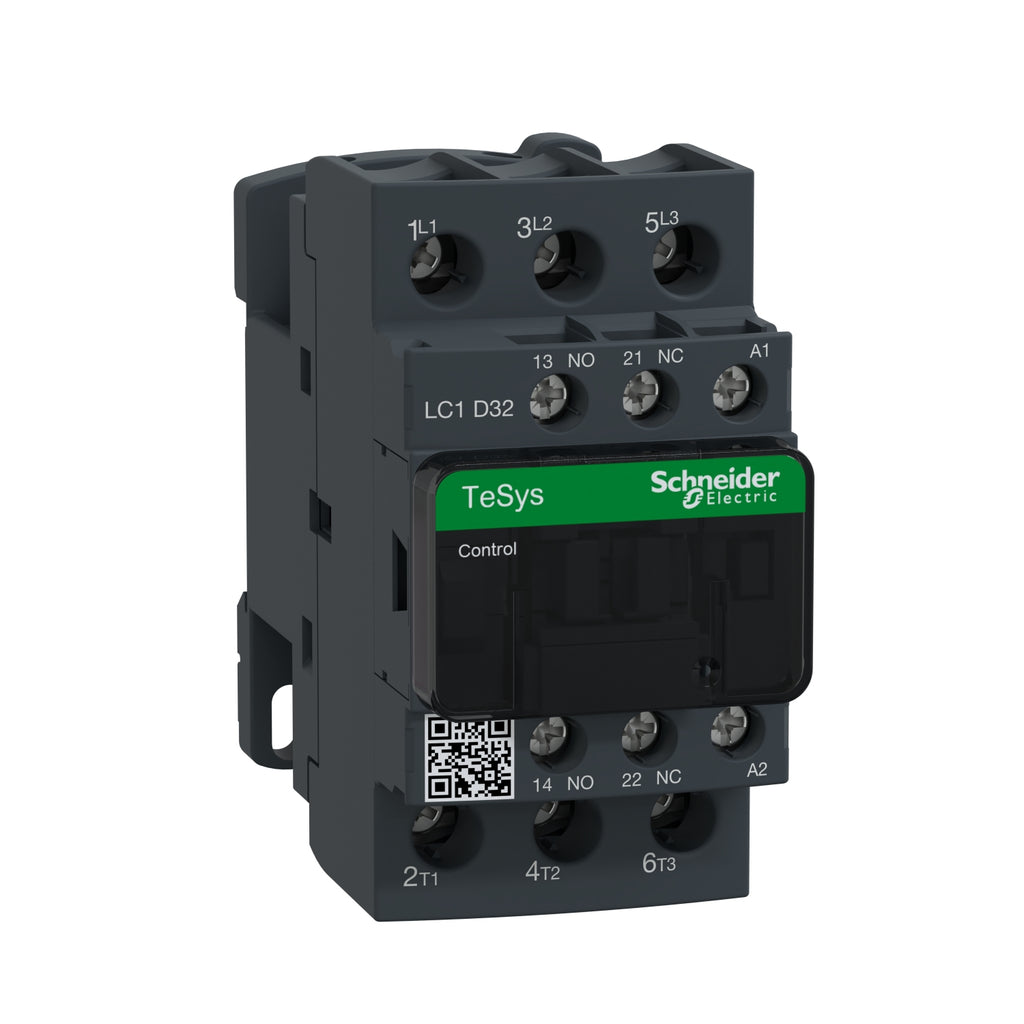

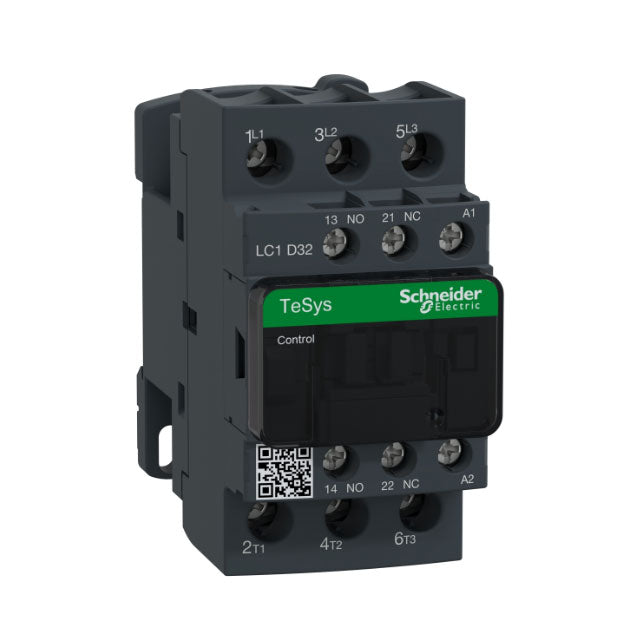

LC1D32BDC is a Schneider Electric TeSys D IEC contactor designed for motor control and resistive load applications. This 3-pole, nonreversing contactor delivers reliable performance in industrial and HVAC environments with a 32A AC-3 rating at 440V and up to 100 HP capacity at 480 VAC. The unit features a 24V DC coil with built-in bidirectional peak limiting diode suppressor technology for enhanced transient protection. Screw clamp terminals accommodate flexible or solid conductors, and the contactor mounts on standard 35mm DIN rail or via surface mounting. Auxiliary contacts (1 NO and 1 NC) are base-mounted for integrated control flexibility. Key Specifications
- Part Number: LC1D32BDC
- Amperage: 32A AC-3, 50A AC-1
- Voltage: 24V DC coil, 690V AC power circuit
- Poles: 3 poles, 3 NO contacts
- Horsepower: 20 HP at 480V AC, 100 HP at 480 VAC maximum
- Auxiliary Contacts: 1 NO and 1 NC
- Frequency: 50/60 Hz
- Mechanical Durability: 30 million cycles
- Operating Rate: 3600 cycles per hour
- Mounting: DIN rail or surface mount
- Terminal Type: Screw c(more...)
Specifications
- Part Number: LC1D32BDC
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Family : TeSys D
- Type : LC1D
- Voltage : 600
- Amperage : 32
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 24
- Coil Voltage Minimum : 24
Product Data
- Weight : 1.279
- Certification : CE, UKCA, CCC
