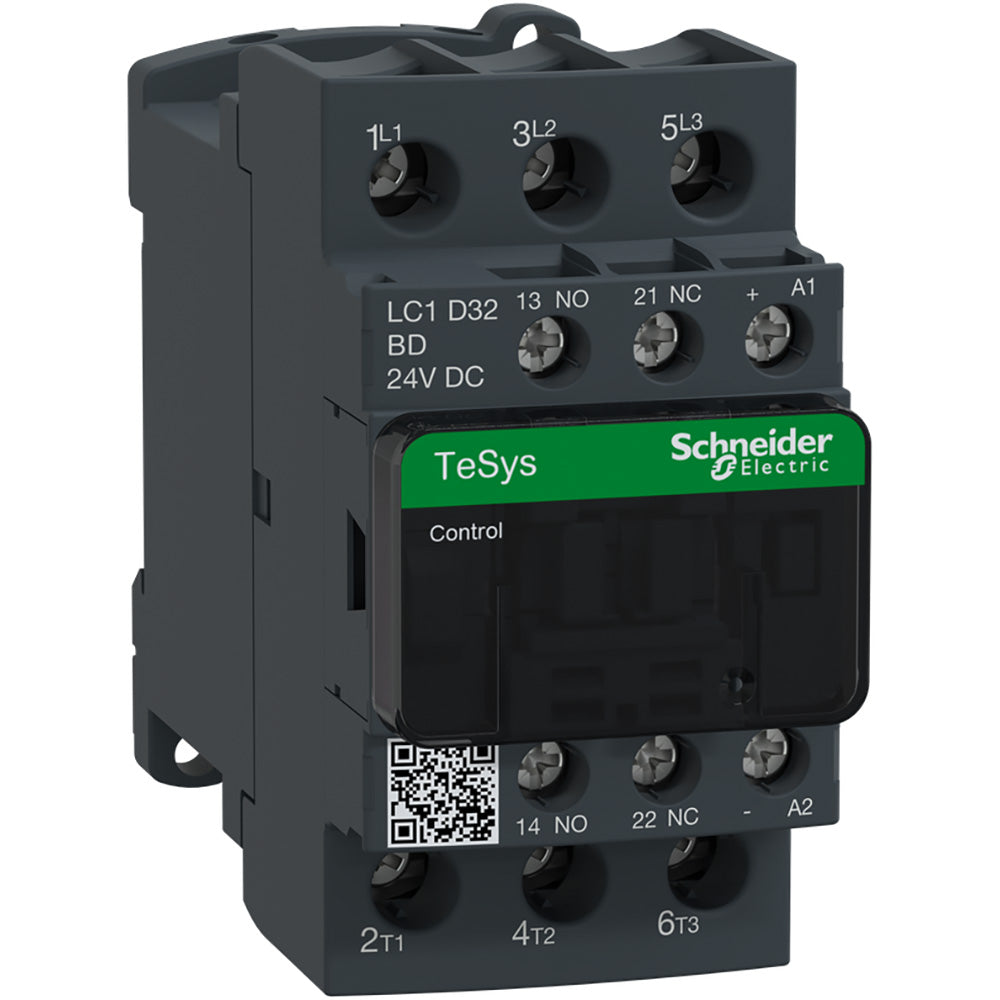

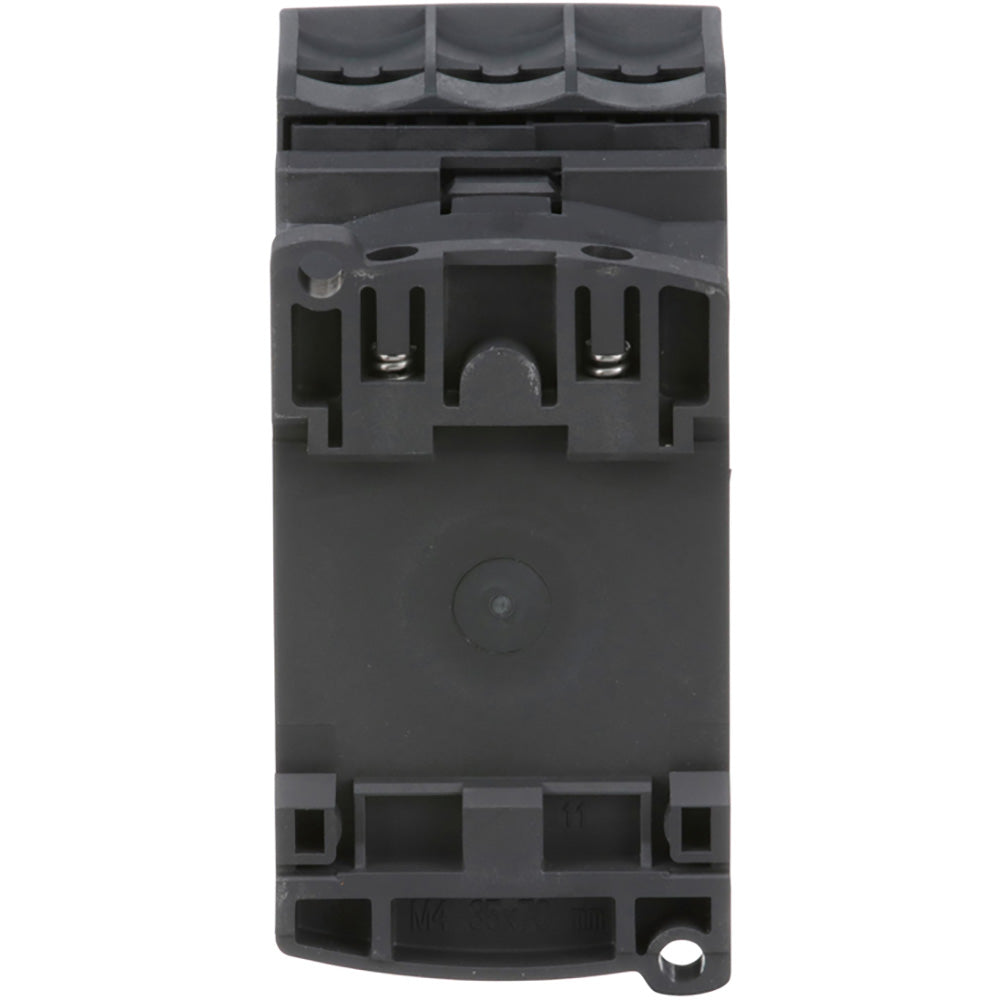

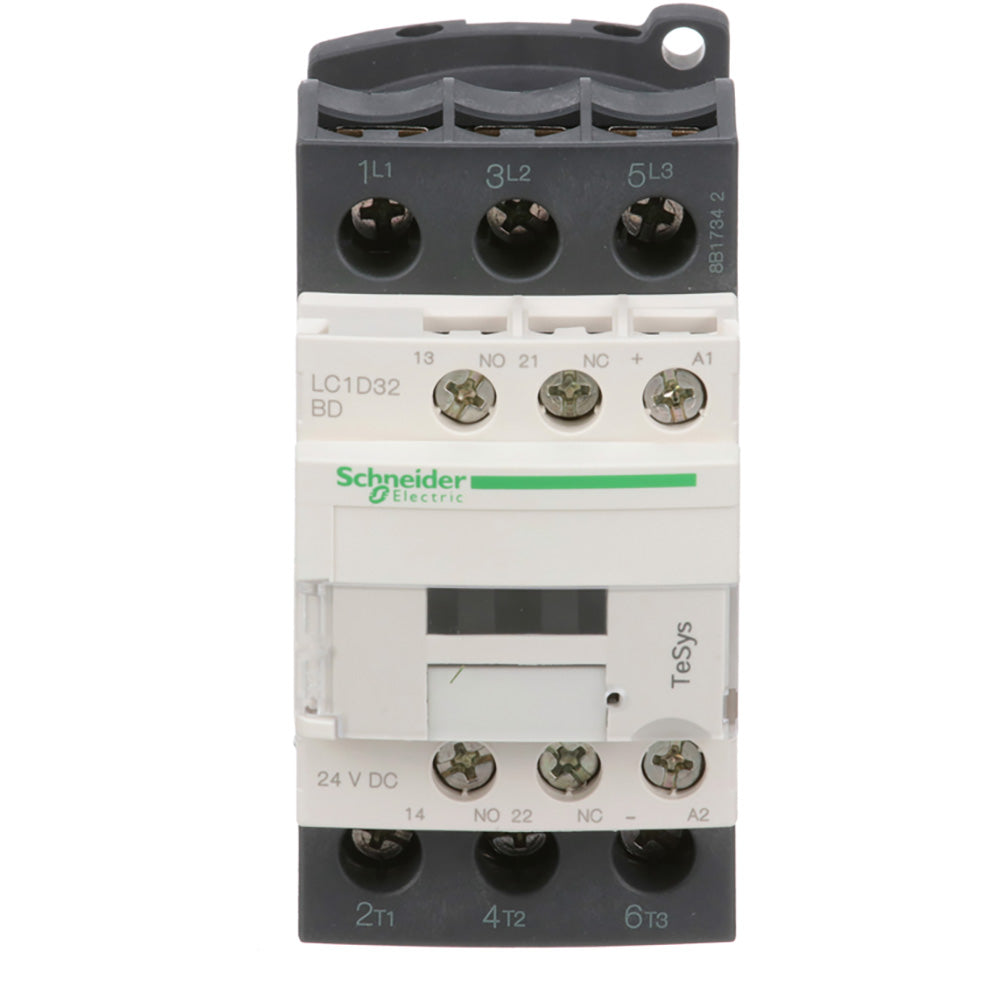

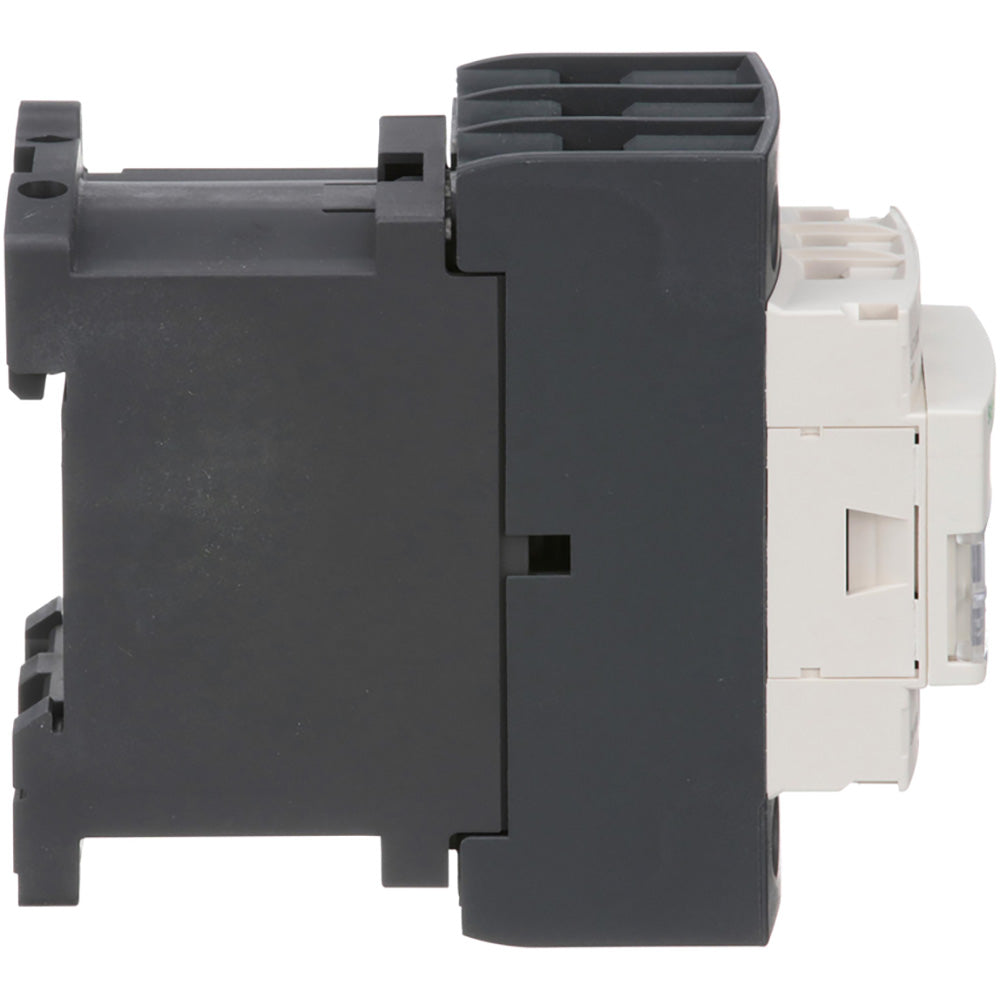

LC1D32BD - Schneider Electric TeSys Deca 32A 3P 24V DC Coil Motor Contactor 20HP 480VAC

LC1D32BD

LC1D32BD is a Schneider Electric TeSys Deca motor contactor designed for industrial motor control applications with a 32 ampere rating and 24 V DC coil voltage.This 3-pole (3 NO) contactor supports a rated operational current of 32 A at AC-3 utilization category, suitable for motors up to 20 HP at 480 VAC. It features screw clamp terminals, a mounting mode compatible with DIN rail or rail plate, and includes 1 normally open and 1 normally closed auxiliary contact. The contactor has a rated operational voltage up to 690 V AC, a rated impulse withstand voltage of 6 kV, and mechanical durability of up to 15 million operations. It complies with IEC 60947-4-1, UL 508, CSA, and other international standards.

Key Specifications
• Rated current: 32 A (AC-3)
• Poles: 3 (3 NO power contacts)
• Control coil voltage: 24 V DC
• Rated operational voltage: Up to 690 V AC
• Motor power rating: 20 HP at 480 VAC
• Mounting type: DIN rail / rail plate
• Auxiliary contacts: 1 NO + 1 NC
• Rated impulse voltage: 6 kV
• Mechanical durability: 15 million operations
• Standards: IEC 60947-4-1, UL 508,(more...)


  Specifications

  • Part Number: LC1D32BD
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : TeSys D
  • Type : LC1D
  • Voltage : 600
  • Amperage : 32
  • Phase : 3
  • Poles : 3
  • Coil Voltage Maximum : 24
  • Coil Voltage Minimum : 24



  Product Data

  • UPC : 38911035725
  • GTIN : 03389110357257
  • Country of Origin : Indonesia
  • Dimensions : 1.77 in x 3.36 in
  • Weight : 1.29
  • Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
