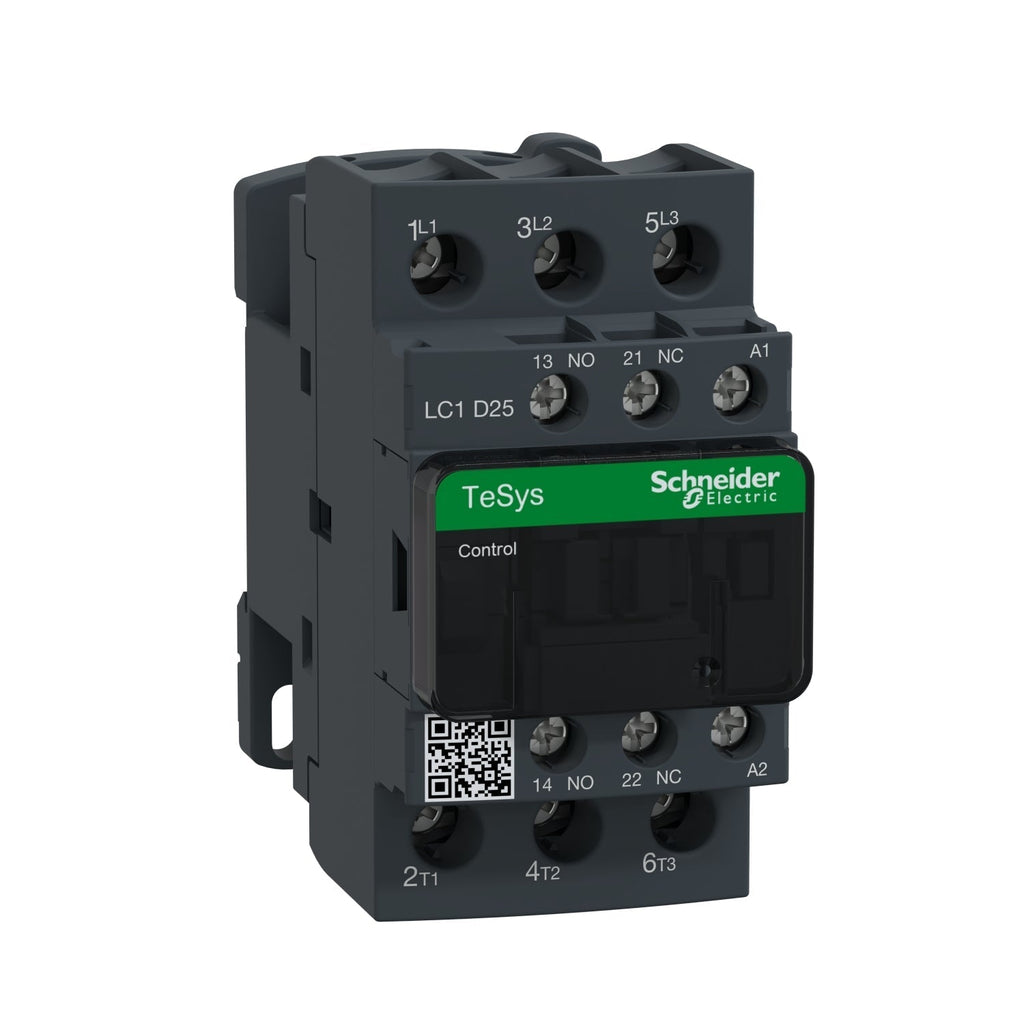

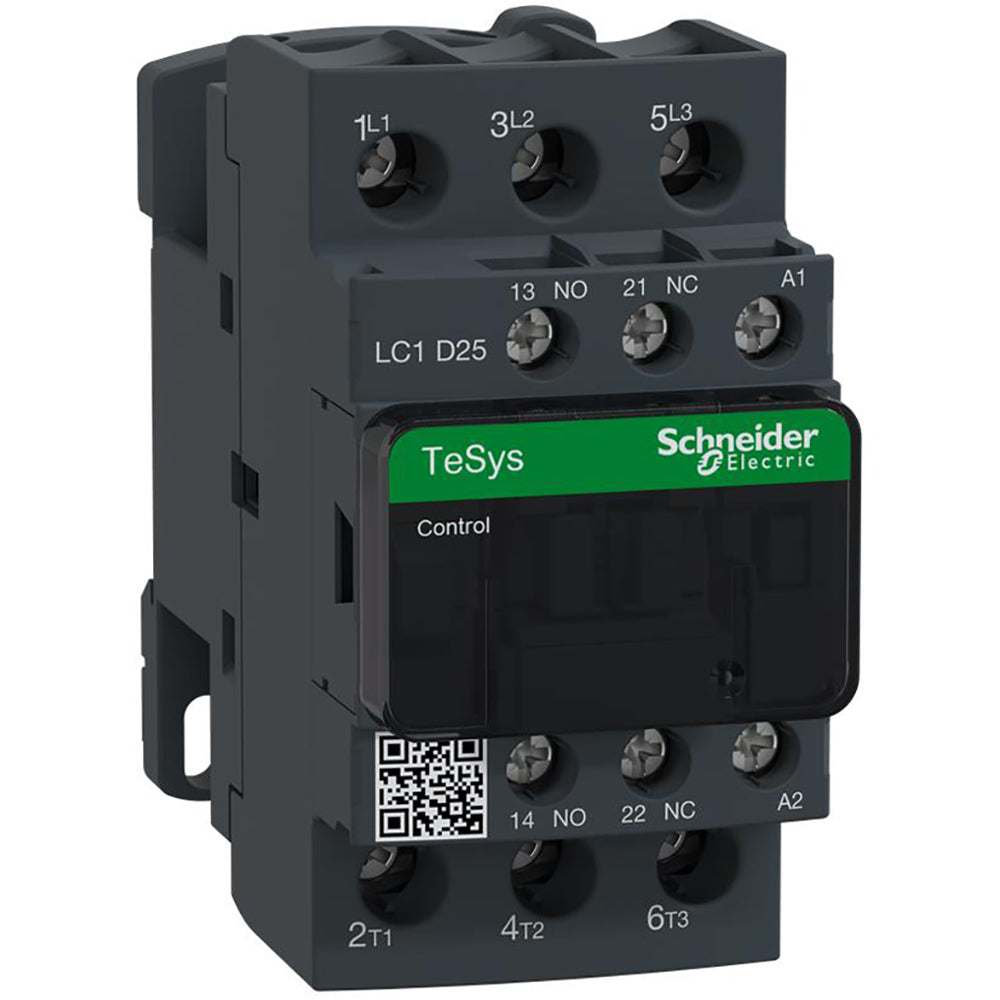

LC1D25U7 Square D TeSys D Contactor 3 pole 3 phase 690V 25A 240V coil

LC1D25U7

LC1D25U7 is a TeSys D contactor manufactured by Schneider Electric. It features a 3-pole, 25 A design rated for 600 V AC operation with a 120 V AC coil. The LC1D25U7 provides reliable control for electric motors and power circuits, suitable for commercial and industrial automation systems. Its compact size, snap-on auxiliary blocks, and long electrical life make it ideal for high-performance motor control.

• Manufacturer: Schneider Electric
• Series: TeSys D
• Type: 3-Pole Contactor
• Amperage Rating: 25 A
• Voltage Rating: 600 V AC
• Coil Voltage: 120 V AC (50/60 Hz)
• Poles: 3
• Mounting: DIN rail or panel mount
• Application: Motor control, HVAC, and power circuit switching
• Standards: UL, CSA, IEC, and CE certified

At Essential Parts

Additional Information

This TeSys D IEC Contactor includes a 240 VAC coil.

Specifications

• Part Number: LC1D25U7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Family : TeSys D
• Type : LC1D
• Voltage : 600
• Amperage : 25
• Phase : 3
• Poles : 3
• Horse Power : 3 hp at 230/240 V AC 50/60 Hz for 1 phase motors-2 hp at 115 V AC 50/60 Hz for 1 phase motors-7.5 hp at 230/240 V AC 50/60 Hz for 3 phases motors-15 hp at 460/480 V AC 50/60 Hz for 3 phases motors-20 hp at 575/600 V AC 50/60 Hz for 3 phases motors-7.5 hp at 200/208 V AC 50/60 Hz for 3 phases motors
• Aux Contacts : 3 NO
• Coil Voltage Maximum : 240
• Full Load Amps : Full Load Amps-Inductive 25A Full Load Amps-Resistive 40A
• Coil Voltage Minimum : 220
• Frequency : AC 50/60 Hz

Product Data

• UPC : 785901207177
• GTIN : 03389110350081
• Country of Origin : Indonesia
• Dimensions : 1.77 in x 3.36 in
• Weight : 0.913
• Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
