Description

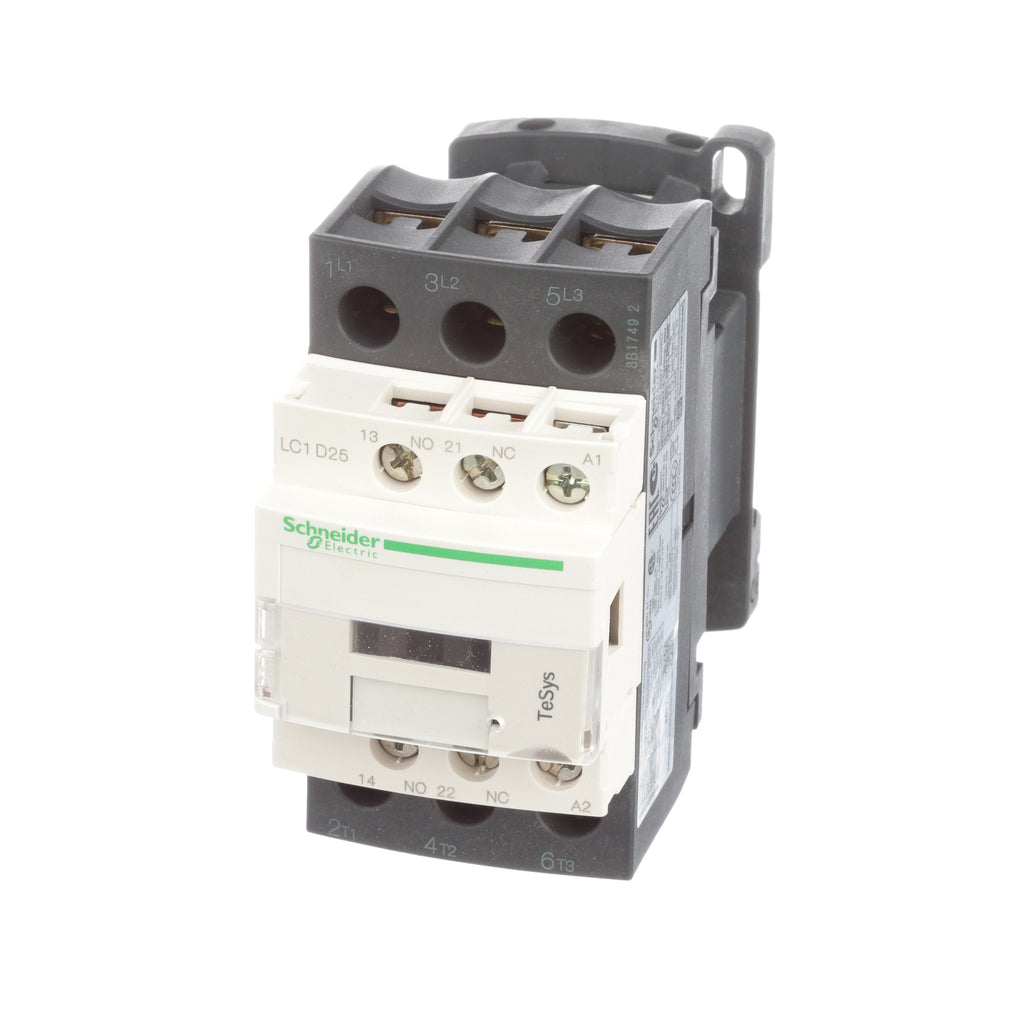

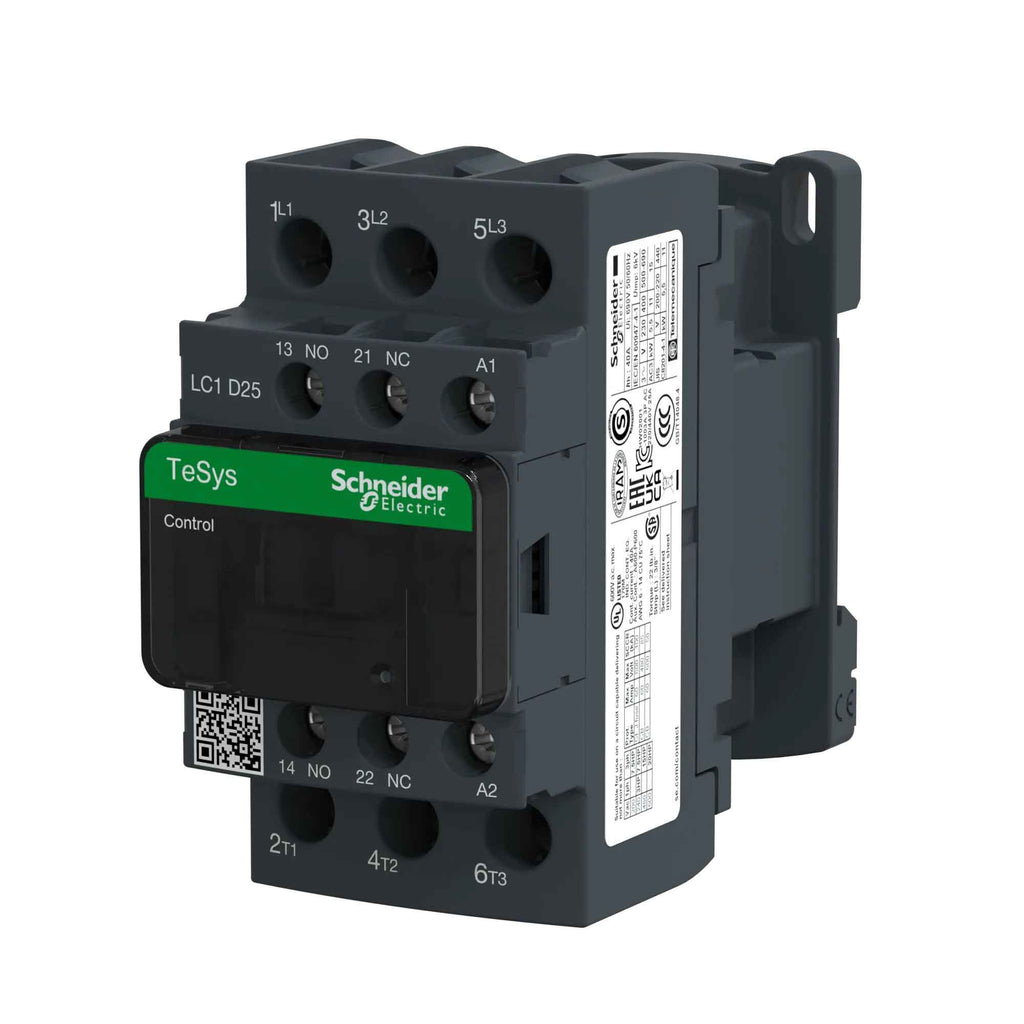

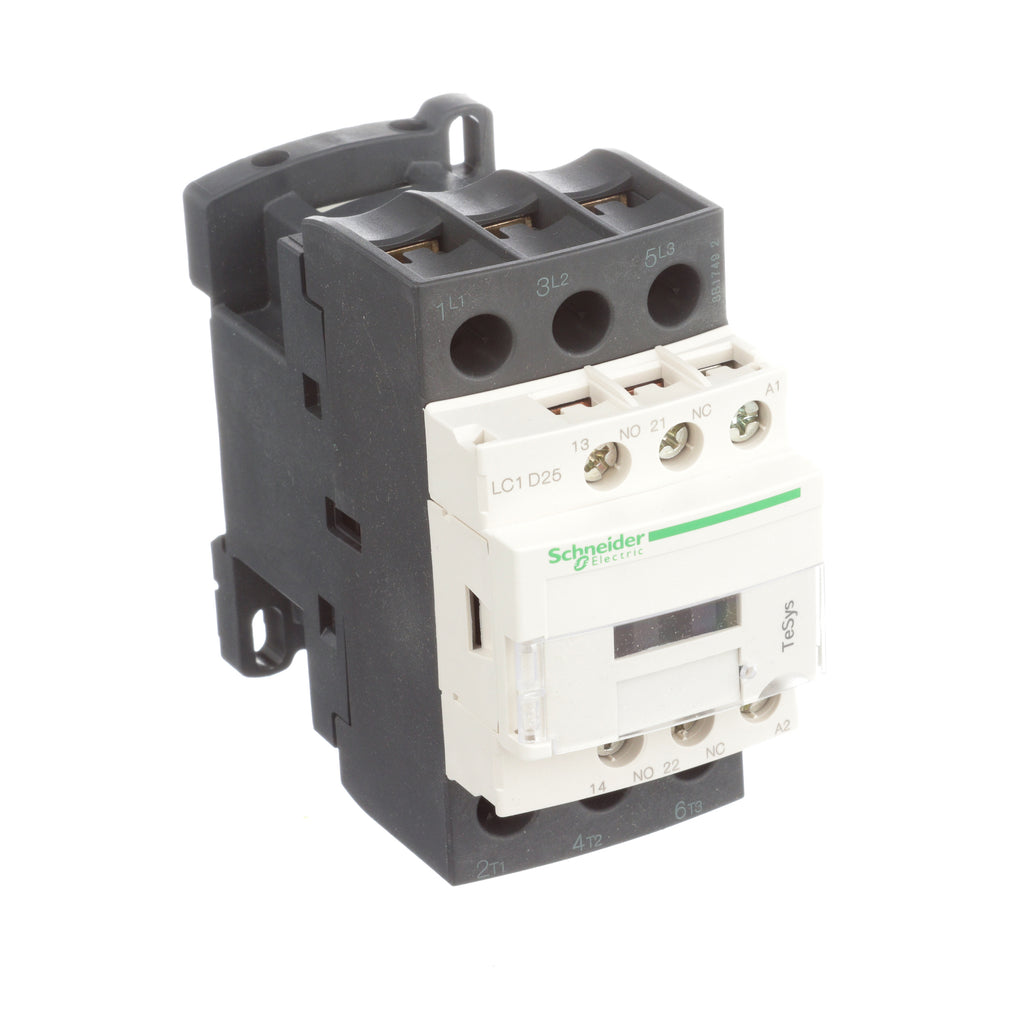

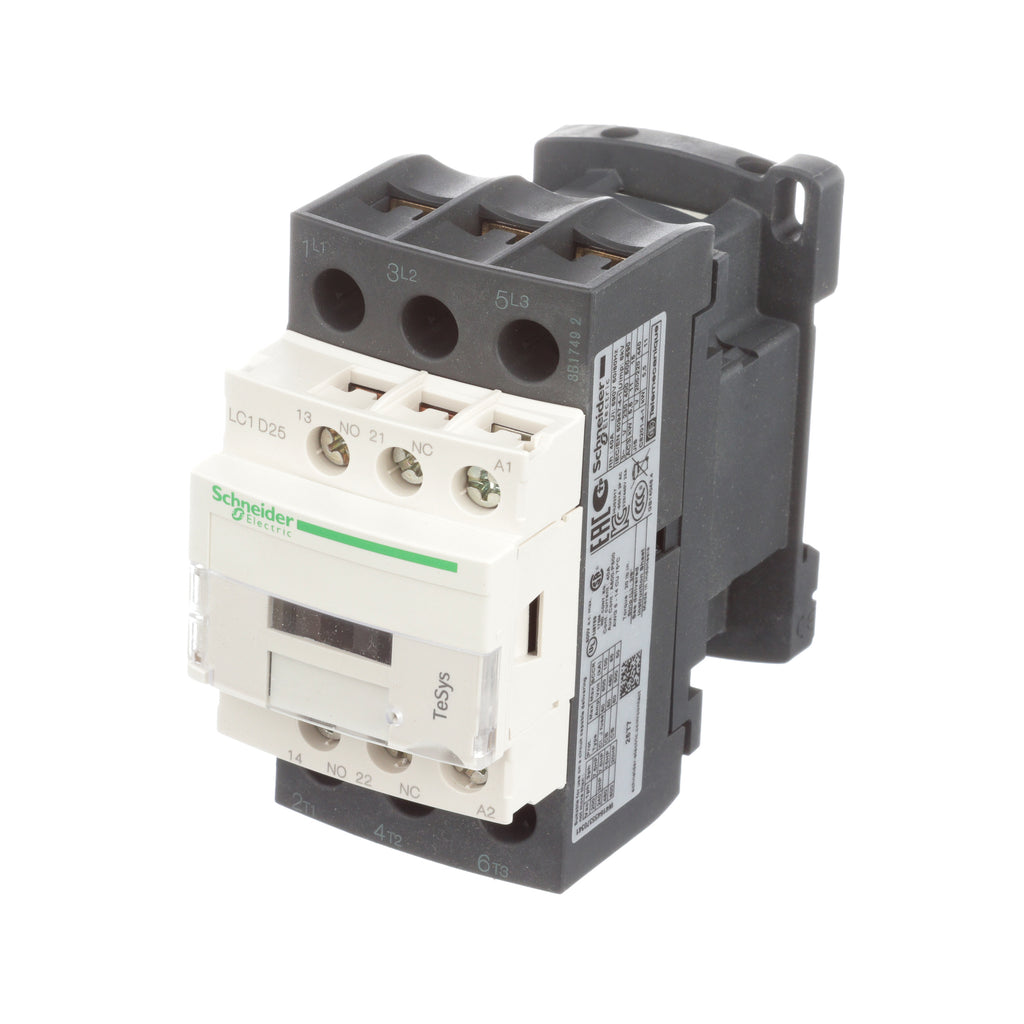

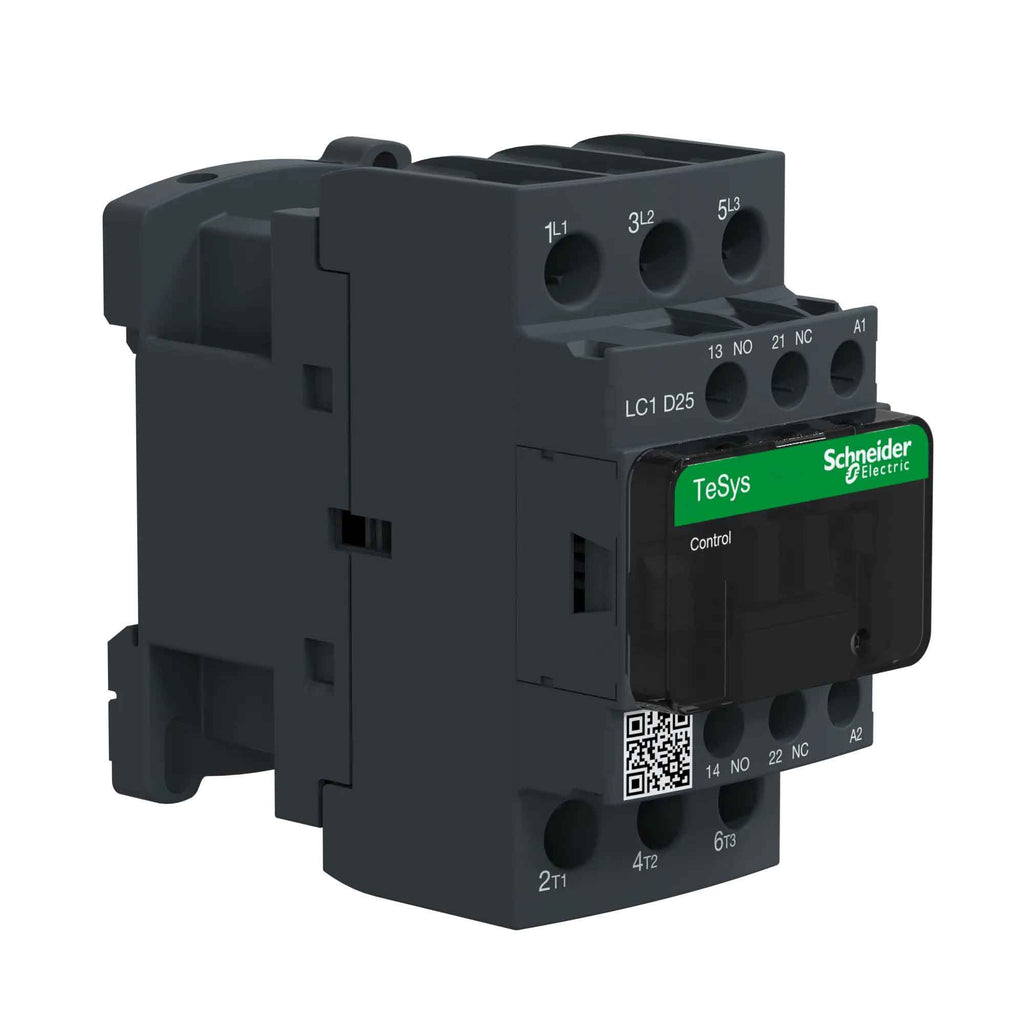

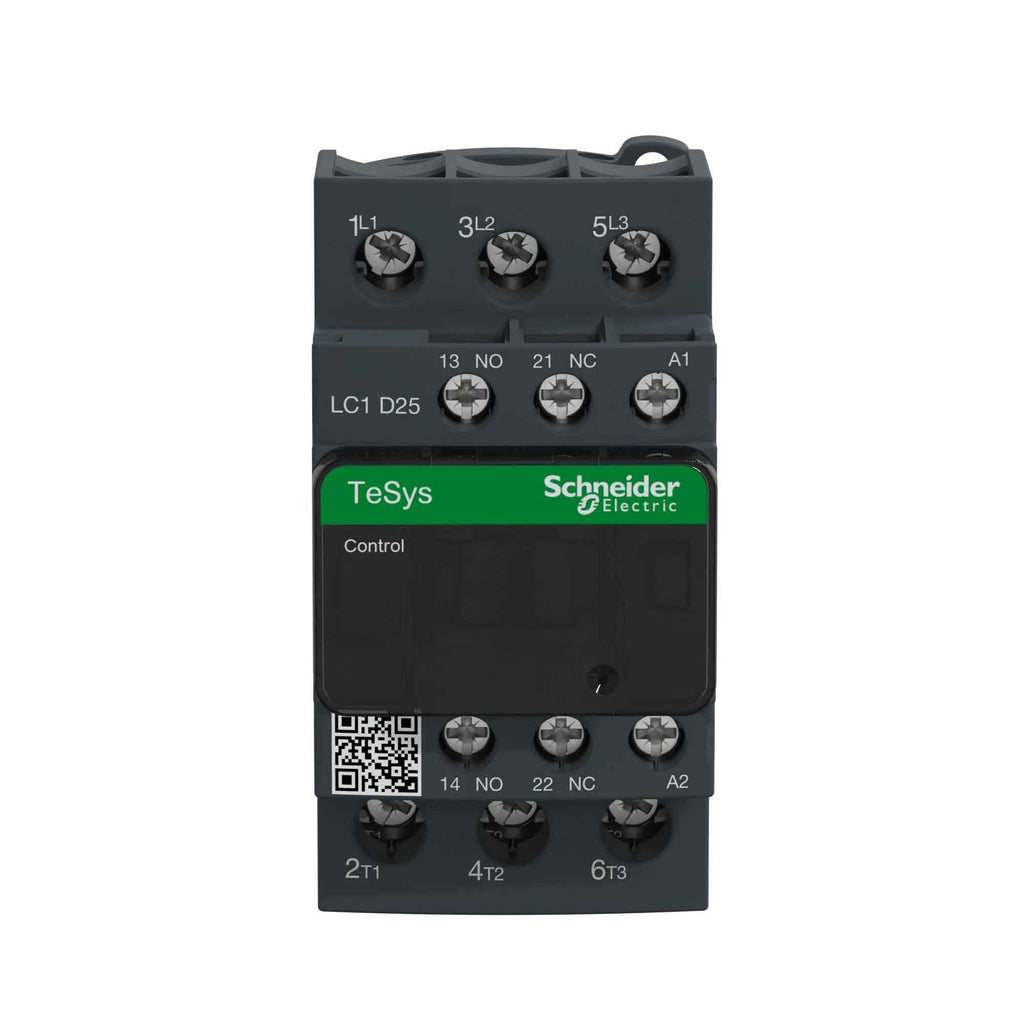

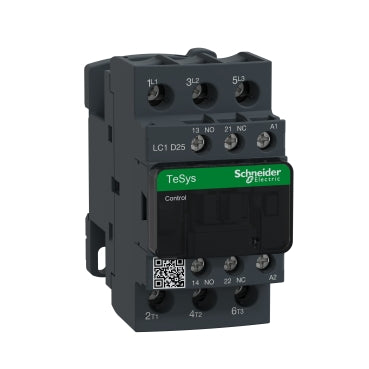

LC1D25T7

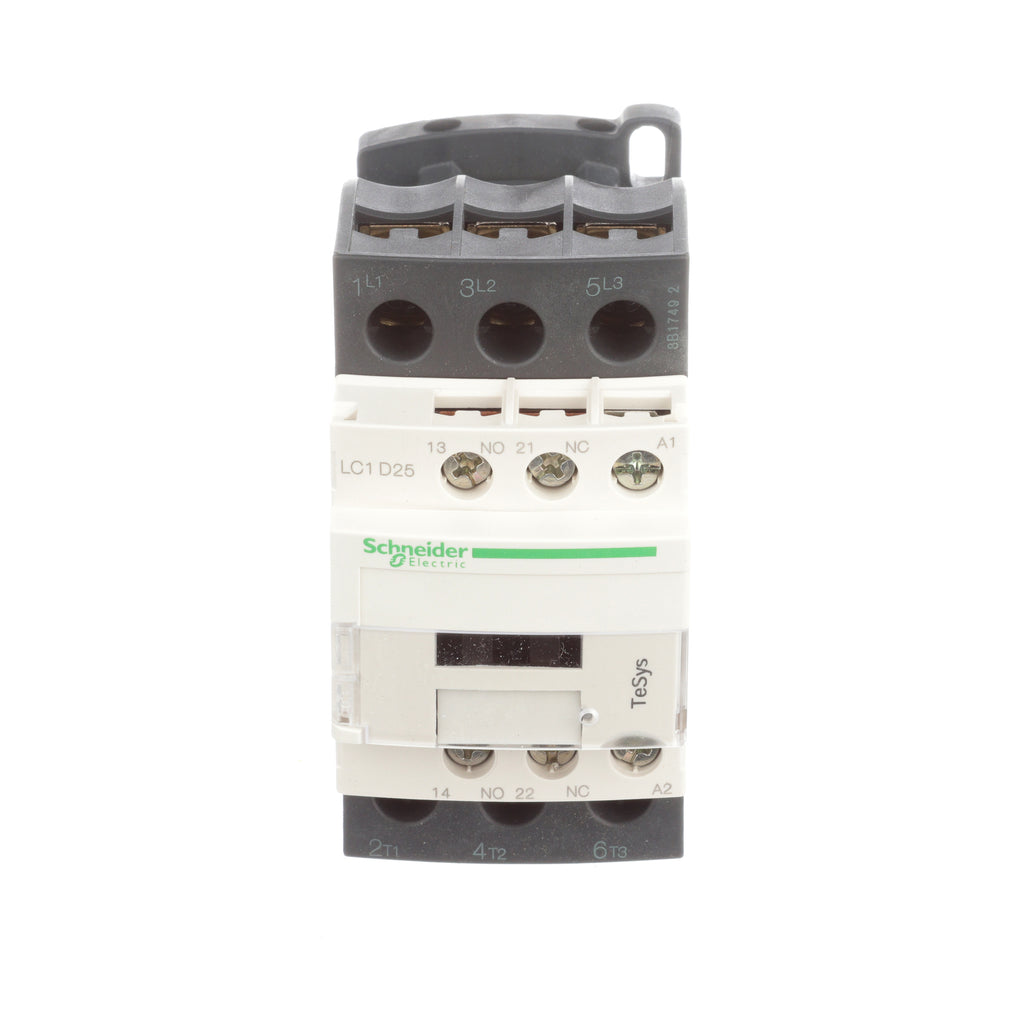

LC1D25T7 is a Square D TeSys D IEC contactor designed for reliable motor control and resistive load applications.
This non-reversing, 3-pole contactor features a 25A AC-3 rating (40A AC-1), supports up to 690V AC and 300V DC power circuits, and is equipped with a 480V AC 50/60Hz coil. It includes 1NO/1NC auxiliary contacts, screw terminal connections, and is suitable for rail or surface mounting. The LC1D25T7 is part of the TeSys D series, offers a short-circuit current rating (SCCR) up to 100kA, and is designed for industrial and HVAC environments.
-
Key Specifications
- Amperage: 25A AC-3, 40A AC-1
- Voltage: Up to 690V AC, 300V DC
- Poles: 3 (3 NO main contacts)

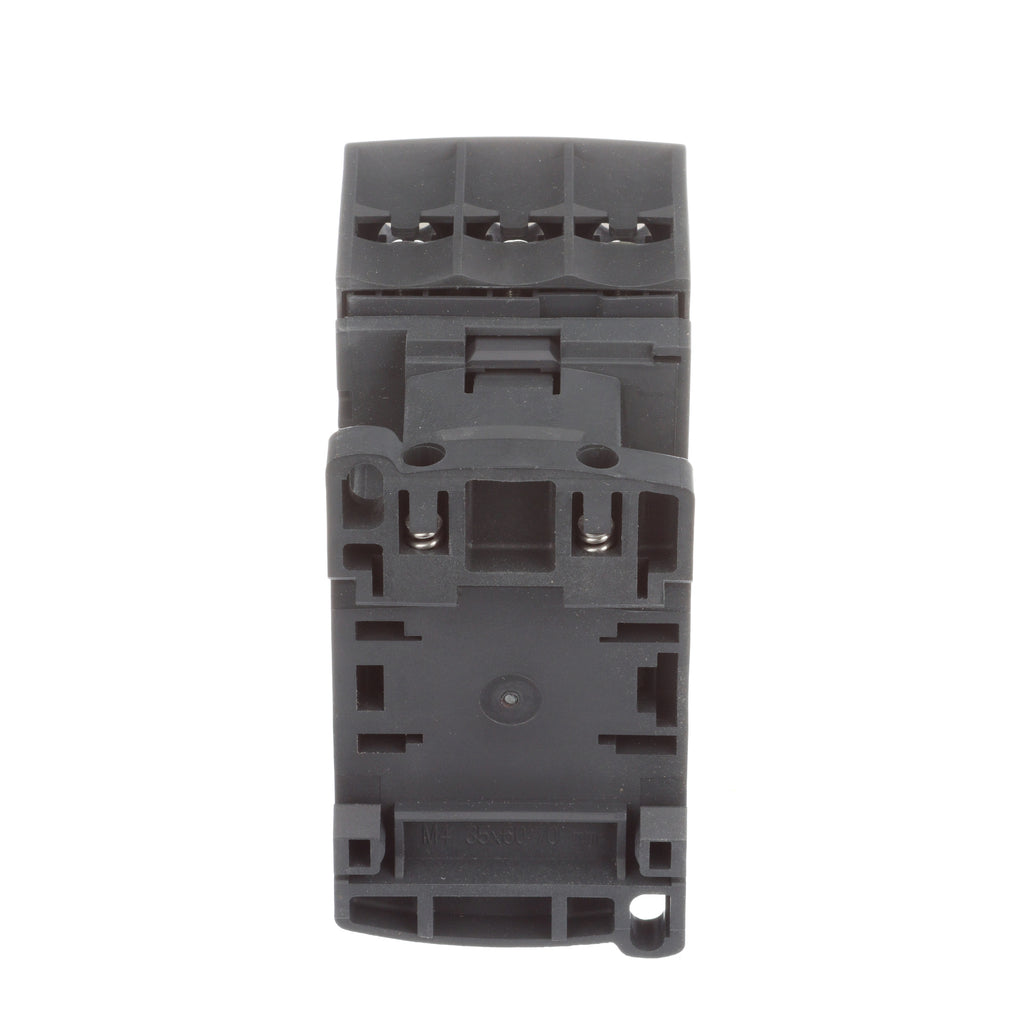

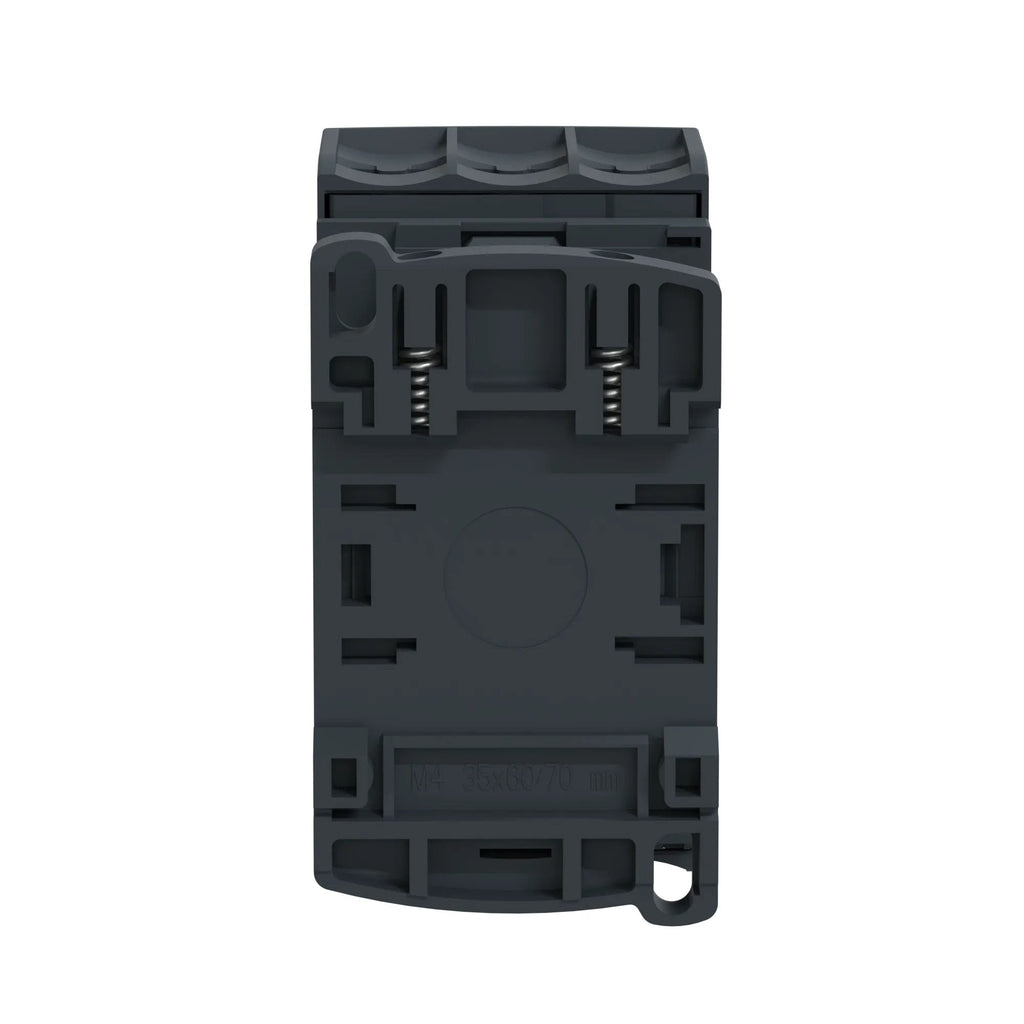

- Mounting Type: Rail or surface
- Interrupt Rating: Up to 100kA SCCR
- Series/Frame: TeSys D (LC1D)
- Trip Unit: Not applicable (contactor, not circuit breaker)
- Certifications: IEC standards, suitable for AC-3, AC-1, AC-4, AC-3e utilization categories
- Coil Voltage: 480V AC 50/60Hz
- Auxiliary Contacts: 1NO/1NC
- Connection: Screw terminals
- Enclosure(more...)
Additional Information
This TeSys D IEC Contactor includes a 480 VAC coil.
Specifications
- Part Number: LC1D25T7
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Family : TeSys D
- Type : LC1D
- Voltage : 600
- Amperage : 25
- Phase : 3
- Poles : 3
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- Horse Power : 3 hp at 230/240 V AC 50/60 Hz for 1 phase motors-2 hp at 115 V AC 50/60 Hz for 1 phase motors-7.5 hp at 230/240 V AC 50/60 Hz for 3 phases motors-15 hp at 460/480 V AC 50/60 Hz for 3 phases motors-20 hp at 575/600 V AC 50/60 Hz for 3 phases motors-7.5 hp at 200/208 V AC 50/60 Hz for 3 phases motors
- Aux Contacts : 3 NO
- Coil Voltage Maximum : 480
- Full Load Amps : Full Load Amps-Inductive 25A Full Load Amps-Resistive 40A
- Coil Voltage Minimum : 480
- Frequency : AC 50/60 Hz
Product Data
- UPC : 785901207146
- GTIN : 03389110349726
- Country of Origin : Indonesia
- Dimensions : 1.77 in x 3.36 in
- Weight : 0.917
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
