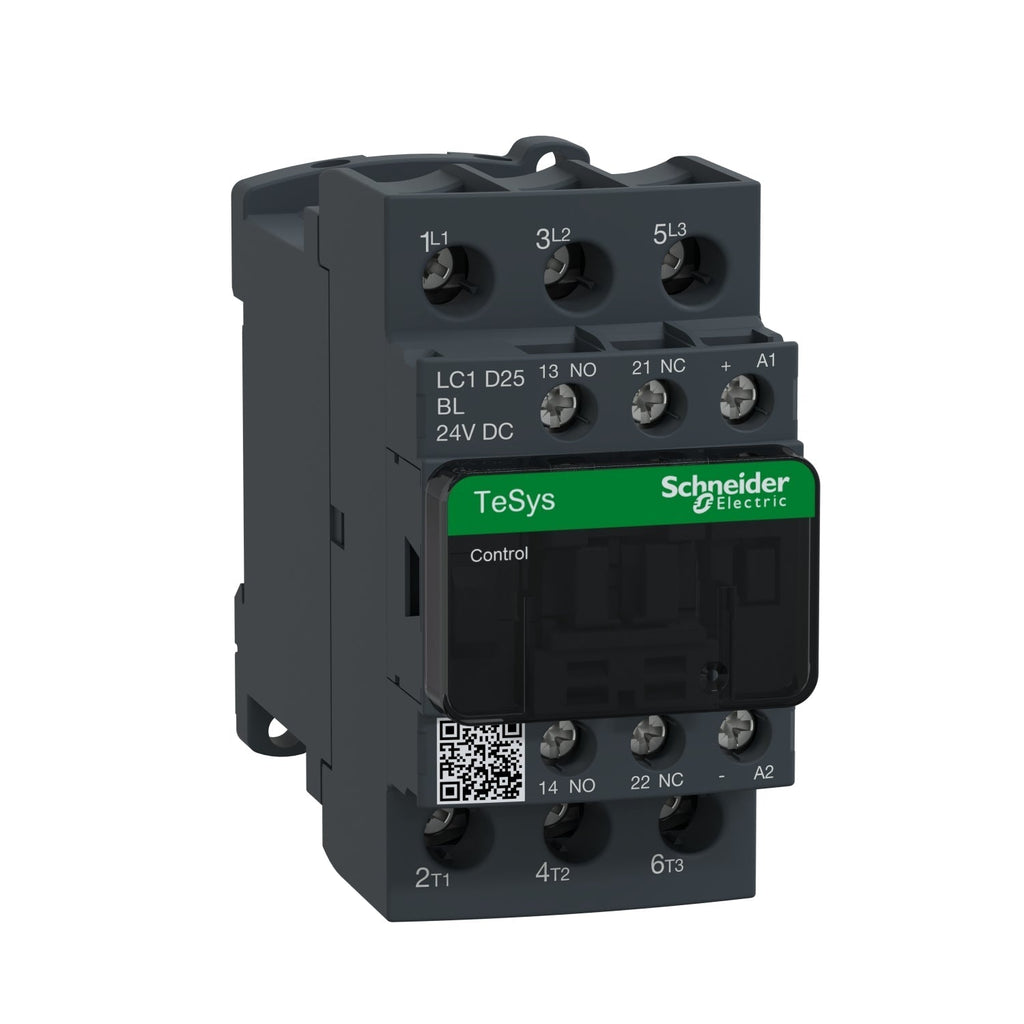

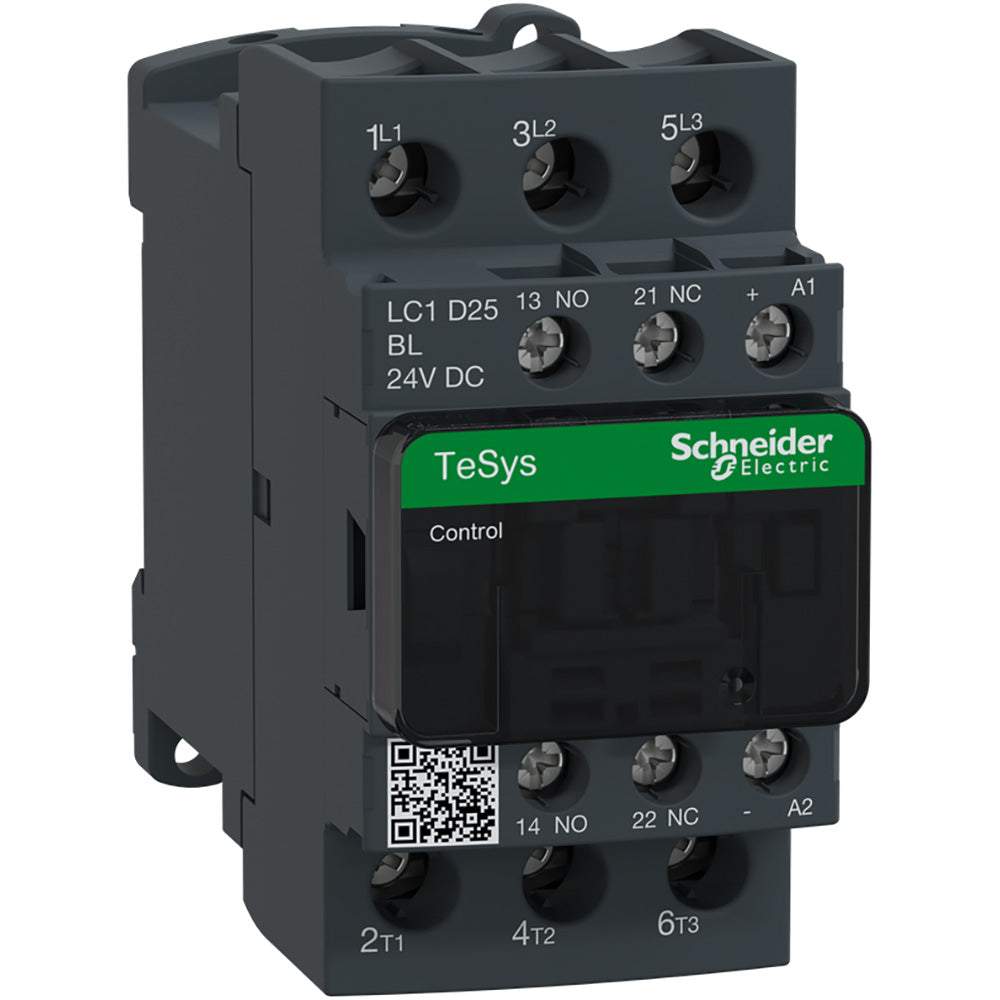

LC1D25BL - Schneider Electric TeSys Deca 3-Pole 25A 440V AC Motor Contactor with 24V DC Coil

LC1D25BL

LC1D25BL is a Schneider Electric TeSys Deca 3-pole motor contactor rated for 25A and up to 440V AC with a low consumption 24V DC coil.This contactor is designed for motor control applications with a rated operational current of 25A at AC-3 utilization category and supports voltages up to 690V AC and 300V DC. It features 3 normally open poles (3 NO), a low power dissipation coil, and is suitable for industrial and HVAC use. The device complies with multiple international standards including IEC 60947-4-1 and UL 508, and carries certifications such as CSA, UL, CCC, and Lloyds Register. It mounts on plate rails and includes a safety cover for enhanced protection.

Key Specifications
• Rated operational current: 25A (AC-3), 40A (AC-1)
• Rated operational voltage: up to 690V AC, 300V DC
• Poles: 3 poles, 3 normally open contacts (3 NO)
• Coil voltage: 24V DC low consumption
• Motor power rating: up to 15 kW at 500-690V AC (AC-3)
• Mounting type: Plate rail
• Interrupt rating: up to 100 kA SCCR
• Standards: IEC 60947-4-1, UL 508, CSA C22.2 No 14
• Certifications: UL, CSA, CCC, Lloyds Register, BV, GOS(more...)


  Additional Information

  This TeSys D IEC Contactor includes a 24 VDC coil.




  Specifications

  • Part Number: LC1D25BL
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : TeSys D
  • Type : LC1D
  • Voltage : 600
  • Amperage : 25
  • Phase : 3
  • Poles : 3
  • Aux Contacts : 3 NO
  • Coil Voltage Maximum : 24
  • Coil Voltage Minimum : 24



  Product Data

  • UPC : 785901549505
  • GTIN : 3389110361773
  • Country of Origin : Indonesia
  • Dimensions : 3.7 in x 3.7 in
  • Weight : 1.299
  • Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
