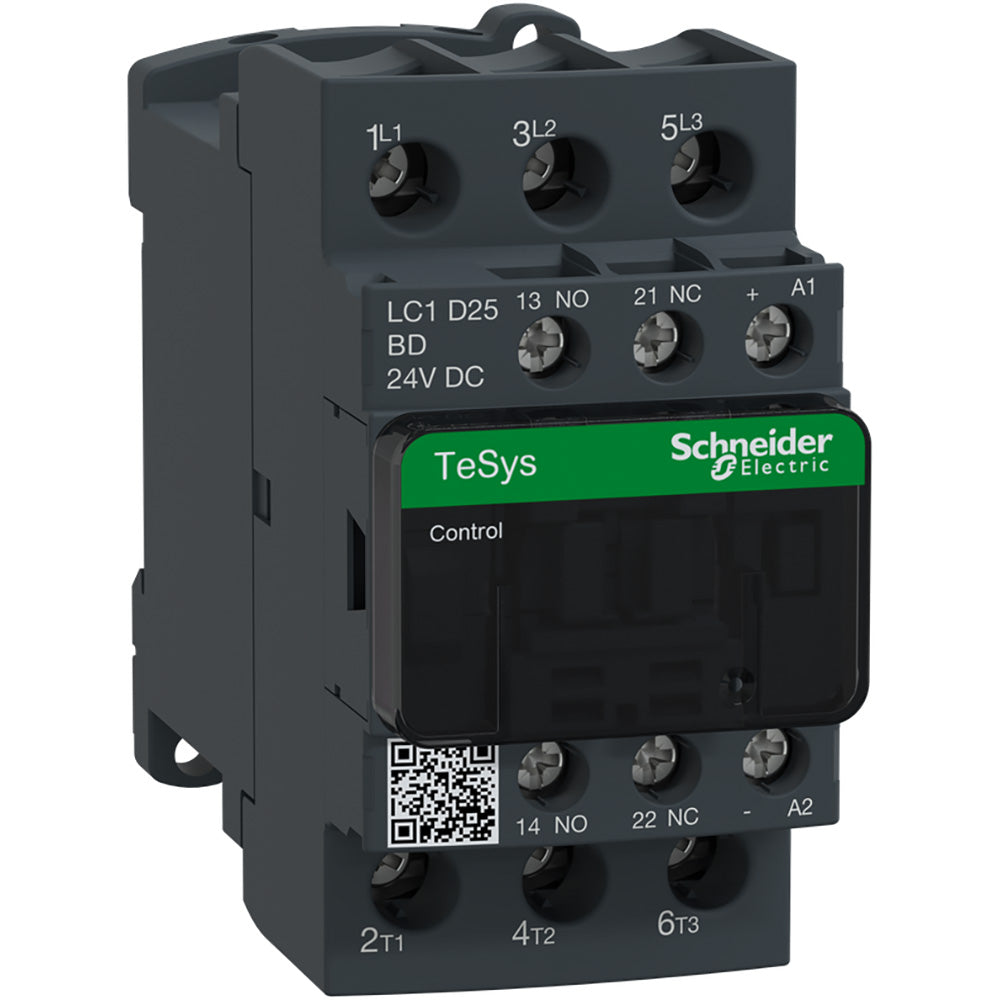

LC1D25BD - Schneider Electric 25A 3P 24VDC Coil TeSys D Contactor for Motor Control

LC1D25BD

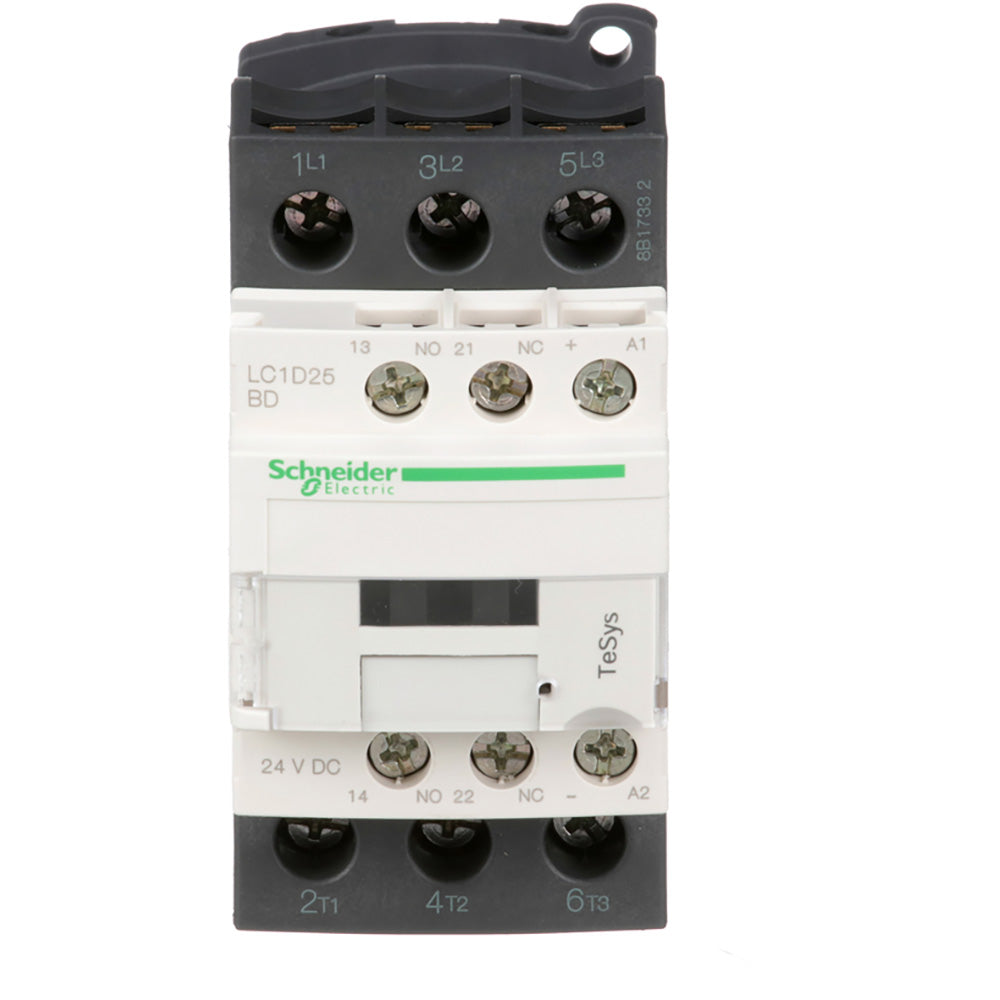

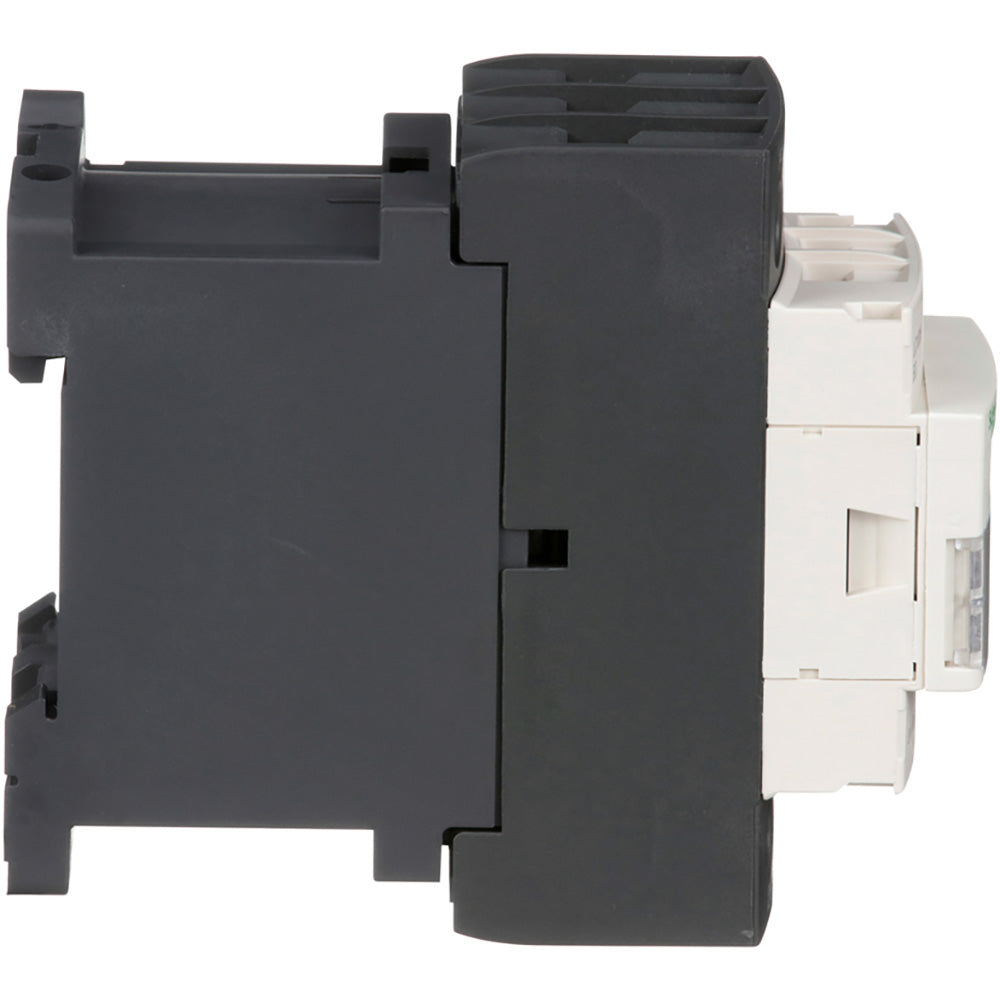

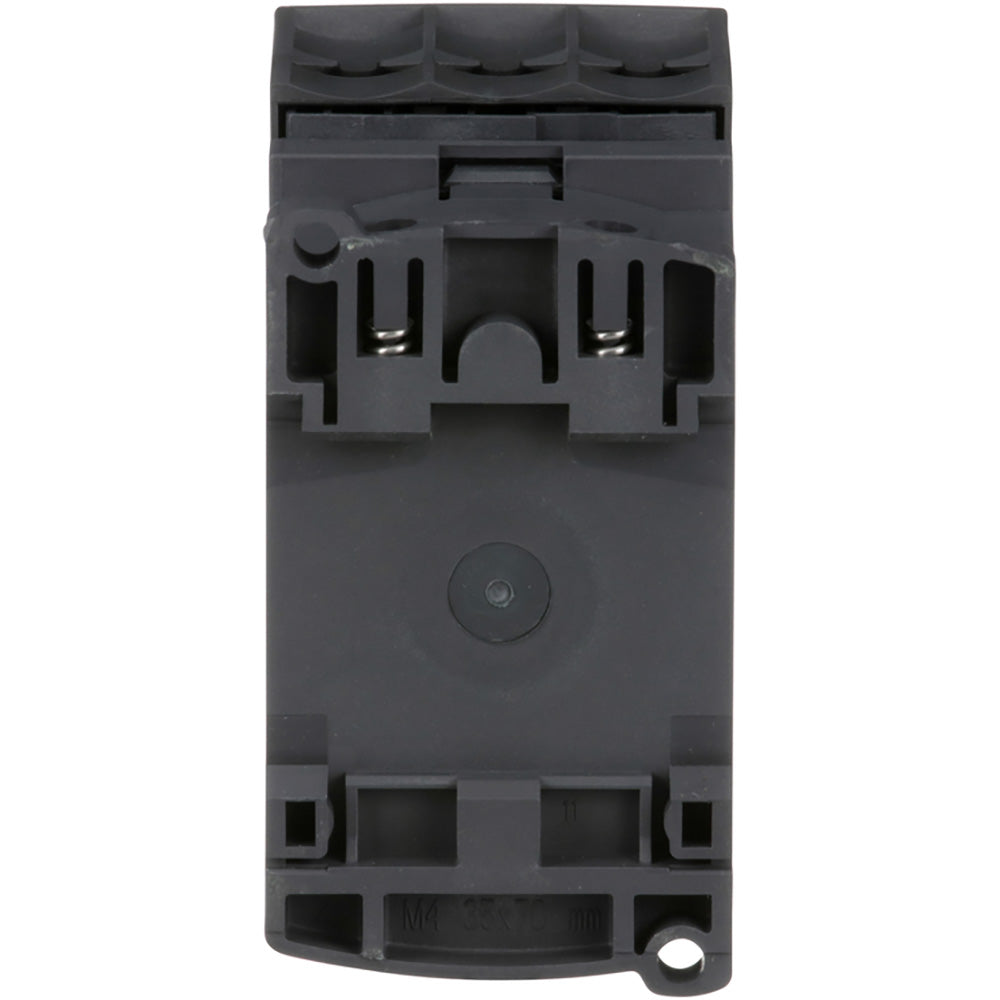

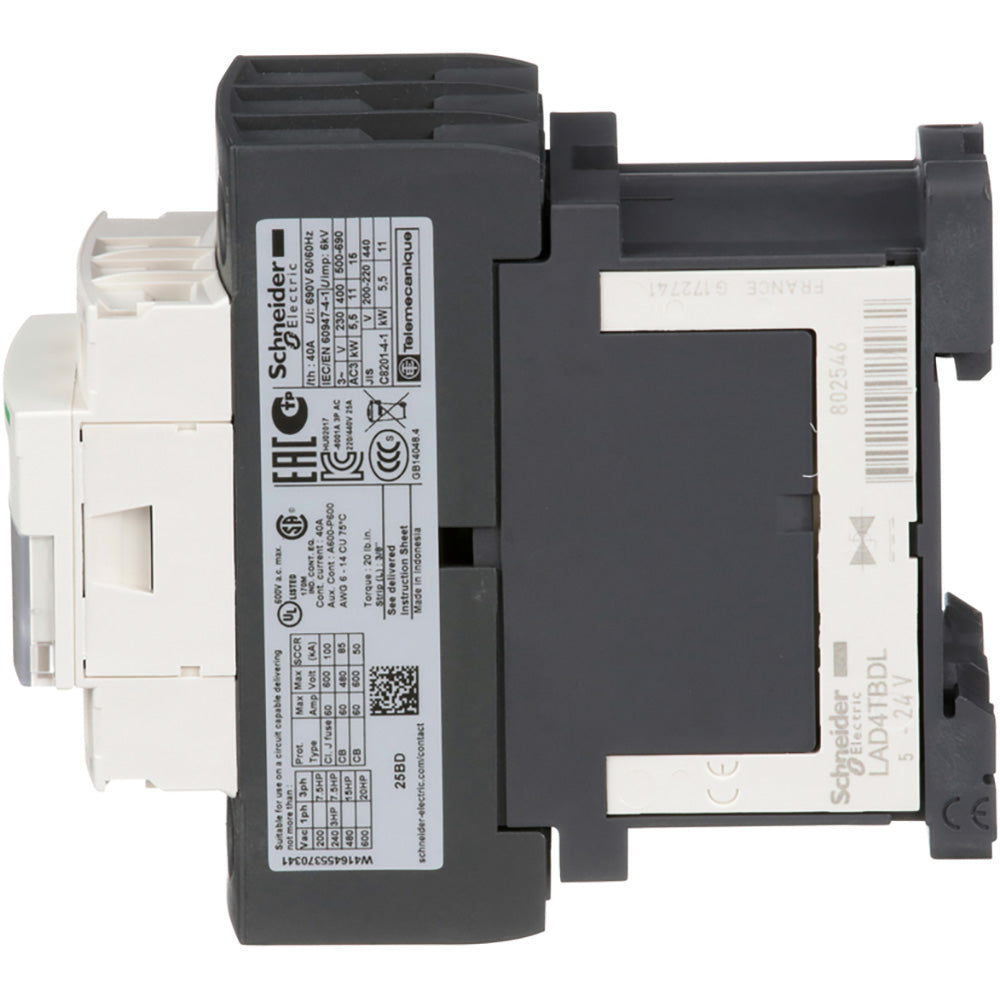

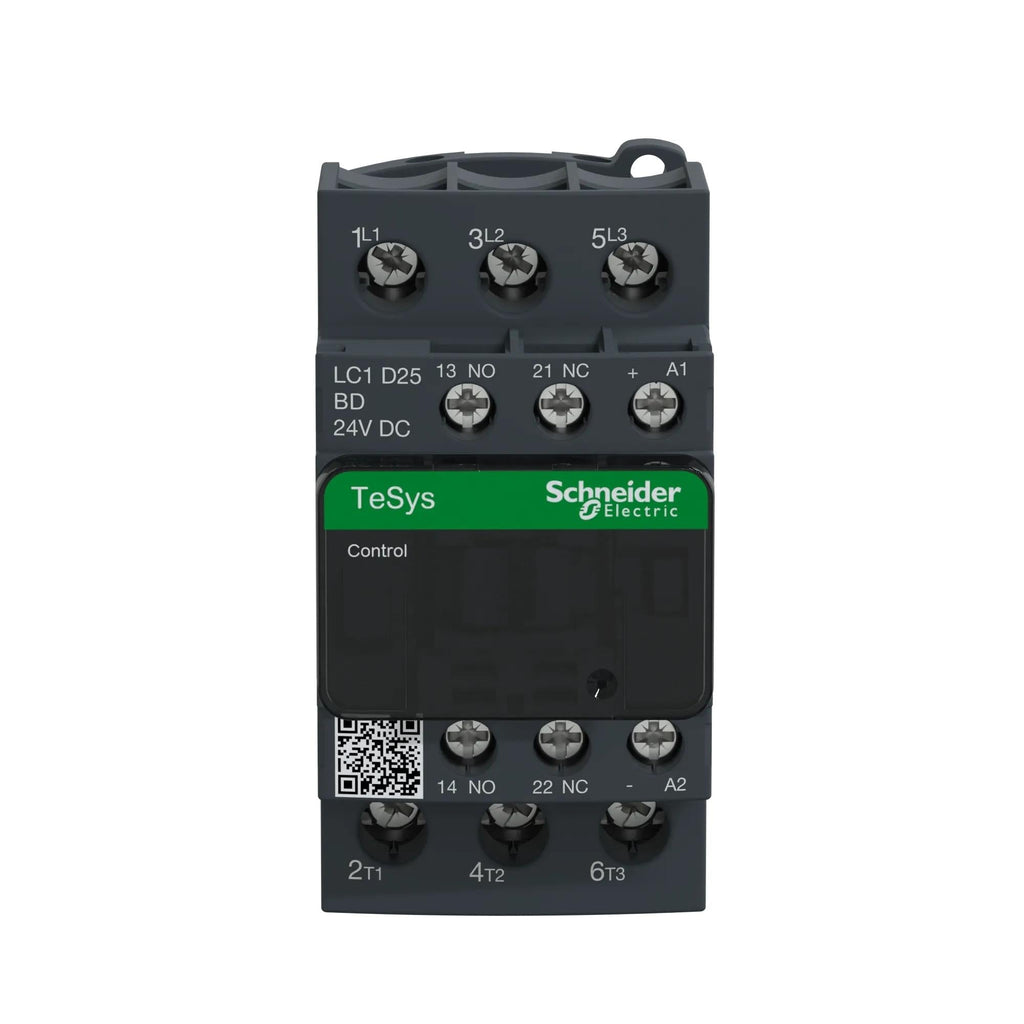

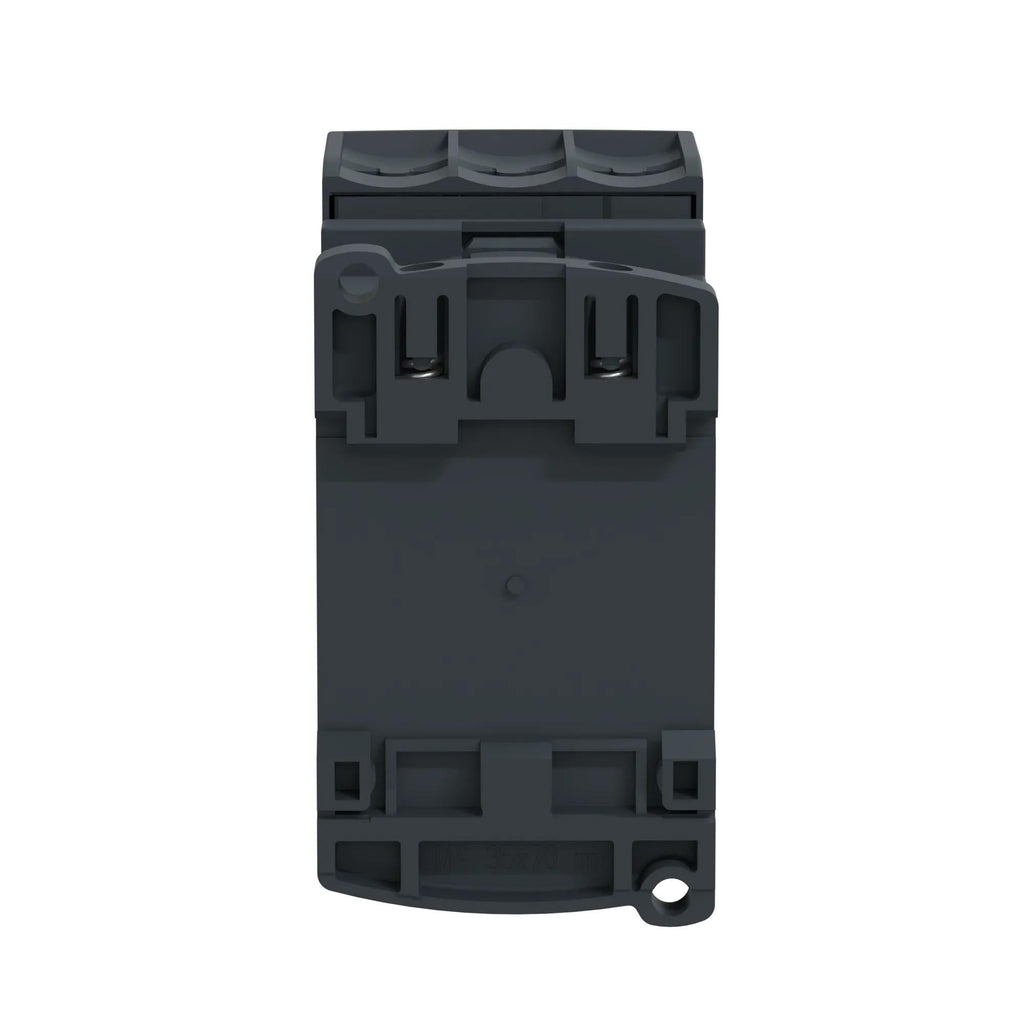

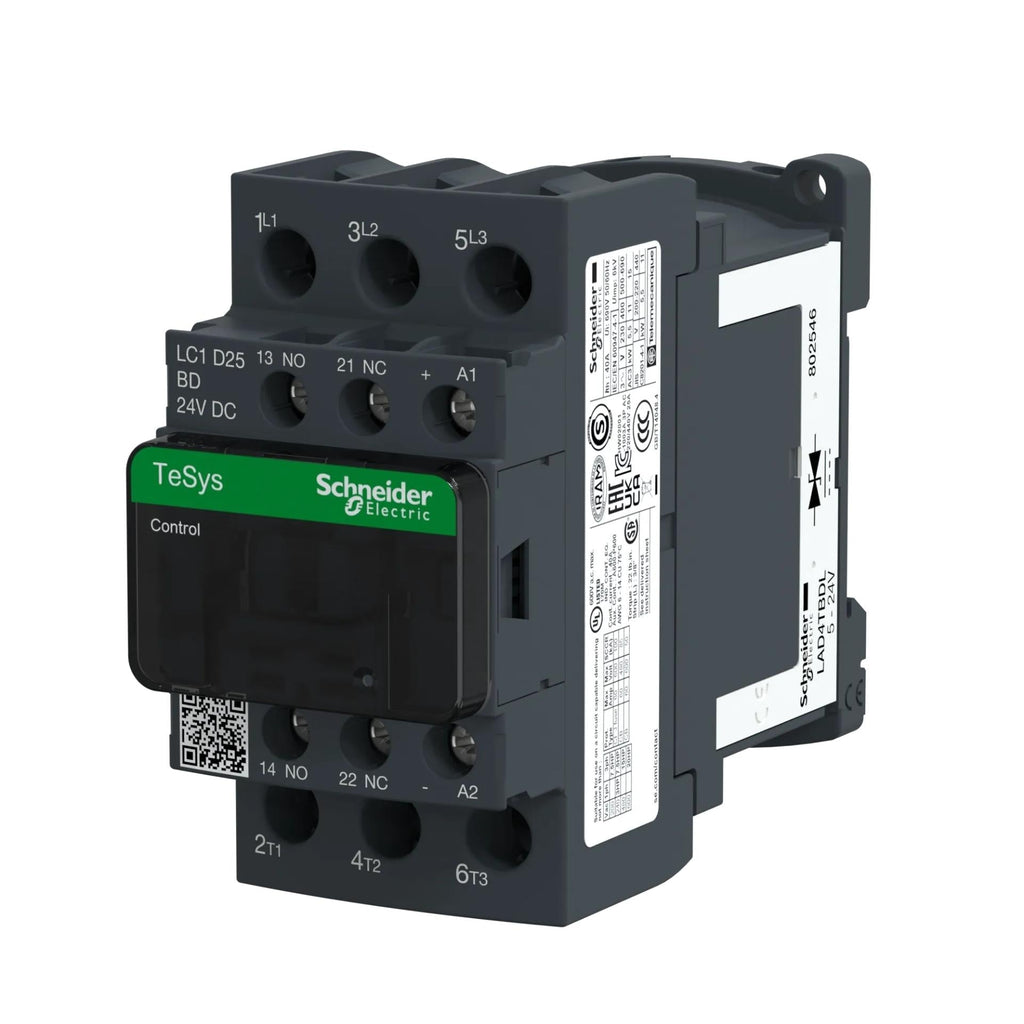

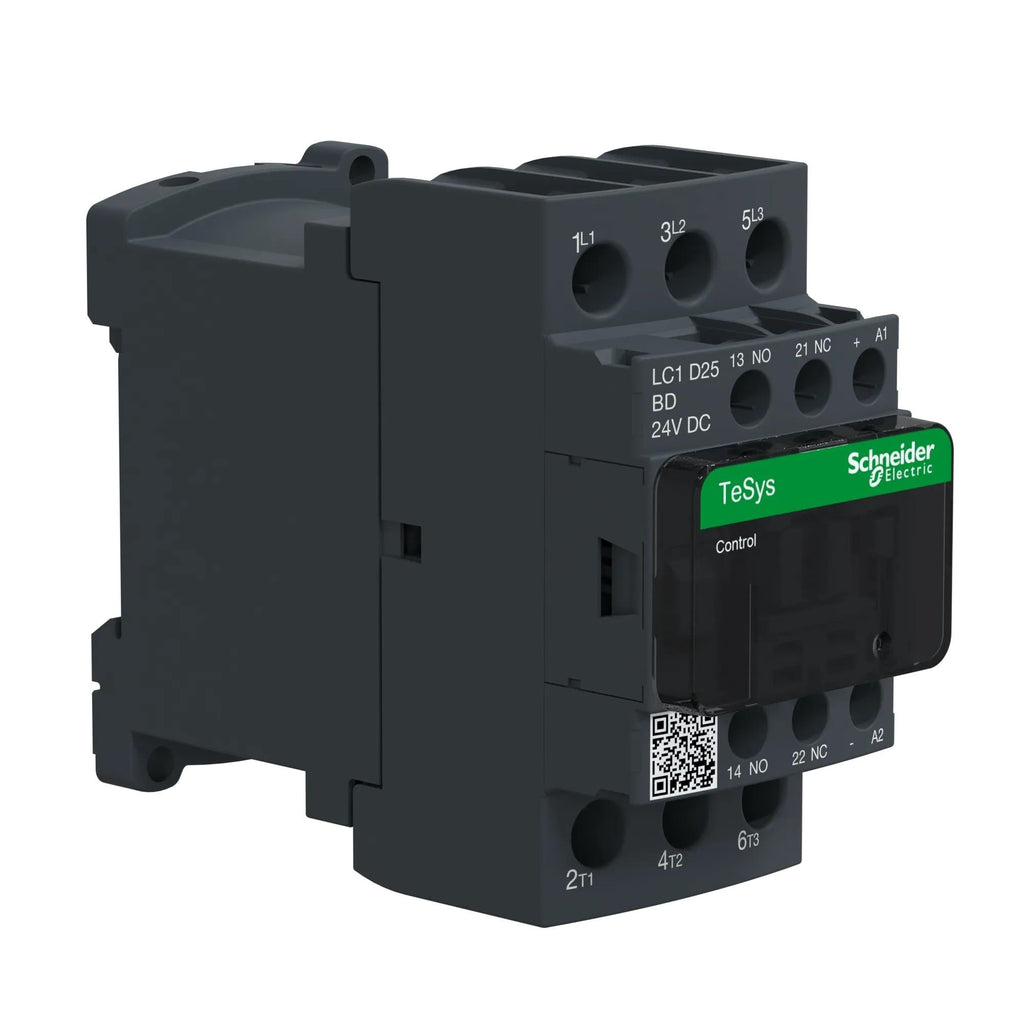

LC1D25BD is a 3-pole IEC contactor designed for reliable motor control and resistive load applications. It features a 24V DC coil, 3 NO contacts, and is rated for up to 25A at 440V AC-3. This TeSys D contactor is built for industrial environments and offers robust performance with a compact design. The LC1D25BD contactor is suitable for motor control up to 15HP at 480VAC and 11kW at 400VAC. It includes a built-in bidirectional peak limiting diode suppressor for coil protection and is designed for screw clamp terminal connections. The unit is certified to IEC 60947 standards and features a mechanical durability of 30 million cycles.

• Part Number: LC1D25BD
• Manufacturer: Schneider Electric
• Series: TeSys D
• Amperage: 25A
• Voltage: 440V AC-3, 24V DC coil
• Poles: 3P (3 NO)
• Mounting Type: Screw clamp terminals
• Interrupt Rating: Up to 100kA SCCR
• Application: Motor control, resistive load
• Utilization Category: AC-1, AC-3, AC-4
• Dimensions: 85mm x 45mm x 101mm
• Weight: 0.53 kg

At Essential Parts&(more...)

Additional Information

This TeSys D IEC Contactor includes a 24 VDC coil.

Specifications

• Part Number: LC1D25BD
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Family : TeSys D
• Type : LC1D
• Voltage : 600
• Amperage : 25
• Phase : 3
• Poles : 3
• Aux Contacts : 3 NO
• Coil Voltage Maximum : 24
• Coil Voltage Minimum : 24

Product Data

• UPC : 38911035599
• GTIN : 03389110355994
• Country of Origin : Indonesia
• Dimensions : 1.77 in x 3.36 in
• Weight : 1.292
• Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
