Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Contactor
Description

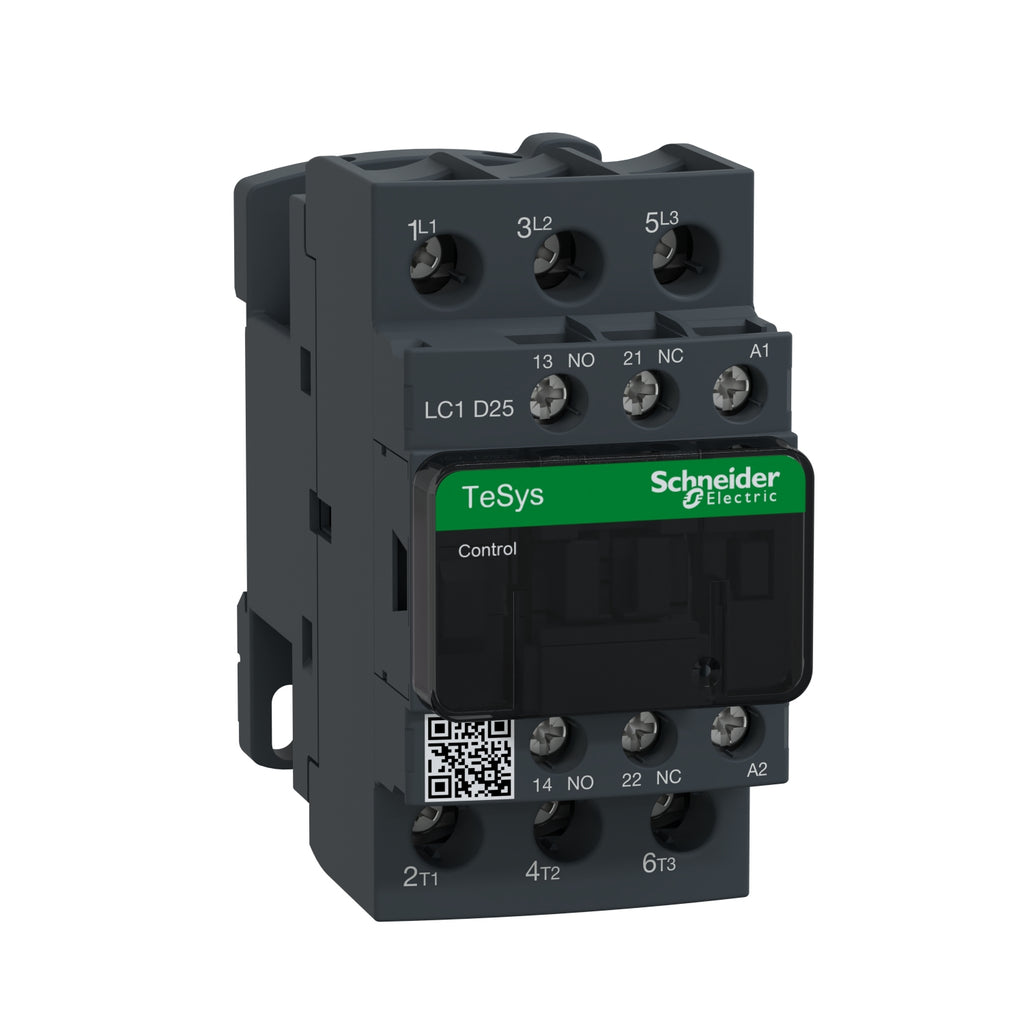

LC1D25B7C
LC1D25B7C is a 3-pole IEC contactor manufactured by Schneider Electric for direct motor control applications. This nonreversing contactor features 25 ampere rated current with a 24V AC 50/60Hz control coil and is designed for reliable switching in industrial motor control circuits. LC1D25B7C delivers motor control ratings up to 7.5 HP at 230/240V and 15 HP at 460/480V for 3-phase applications, with single-phase capability up to 3 HP at 230/240V and 2 HP at 115V. The contactor conforms to IEC 60946 standards and features three normally open (3NO) main contacts with screw terminal connections for secure installation. Built-in auxiliary contacts provide additional control flexibility for signaling and interlock circuits.
- Rated Current: 25 Amperes
- Coil Voltage: 24V AC 50/60Hz
- Pole Configuration: 3-Pole (3 Normally Open)
- Motor Power: 7.5 HP at 230/240V 3-Phase; 15 HP at 460/480V 3-Phase
- Maximum Voltage: 690V AC
- Contact Composition: 3 NO
- Mechanical Durability: 15 Million Cycles
- Operating Rate: 3600 cycles per hour at 60 degrees Celsius
- Insulation Resistance: Greater than (more...)
Specifications
- Part Number: LC1D25B7C
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Family : TeSys D
- Type : LC1D
- Voltage : 600
- Amperage : 25
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 24
- Coil Voltage Minimum : 24
Product Data
- Weight : 0.935
- Certification : CE, UKCA, CCC
