LC1D258G7 - Schneider Electric 40A 120V 4-Pole TeSys D Motor Contactor DIN Rail Mount

LC1D258G7

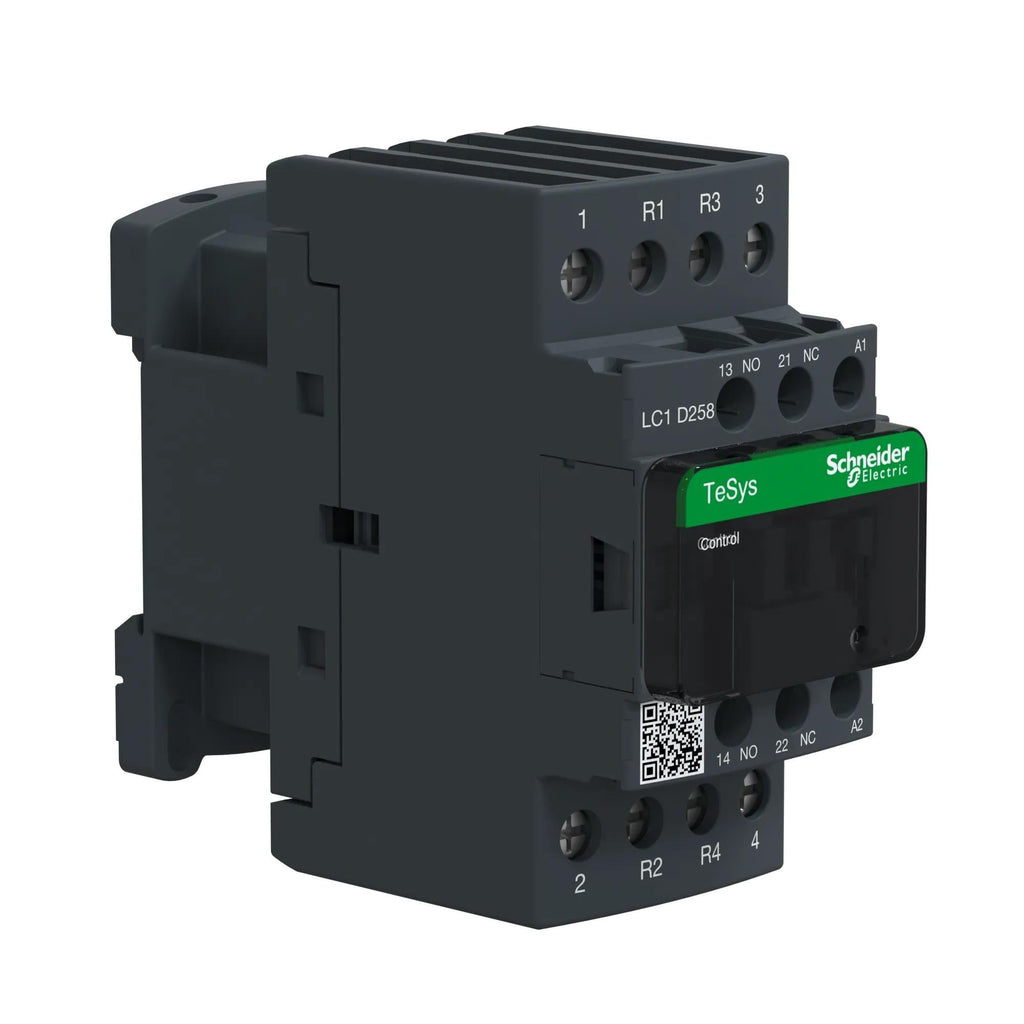

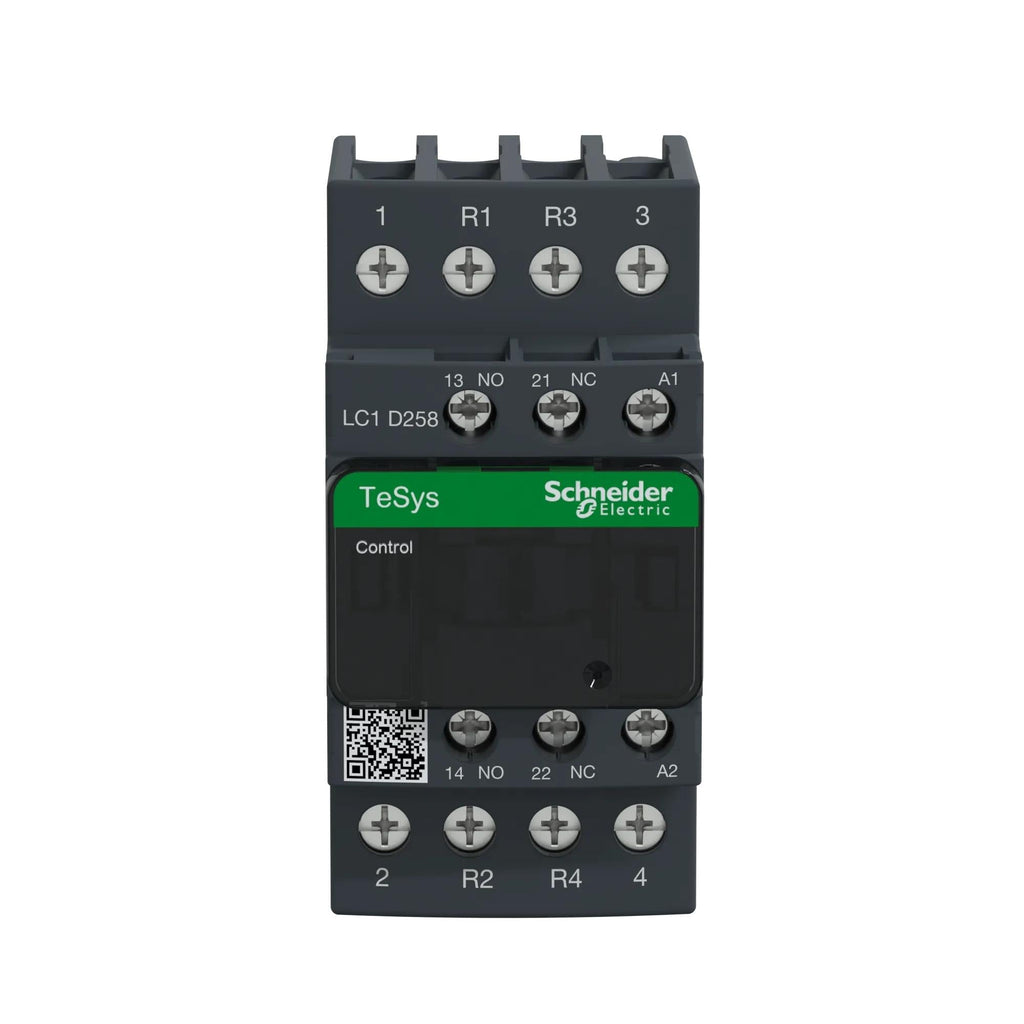

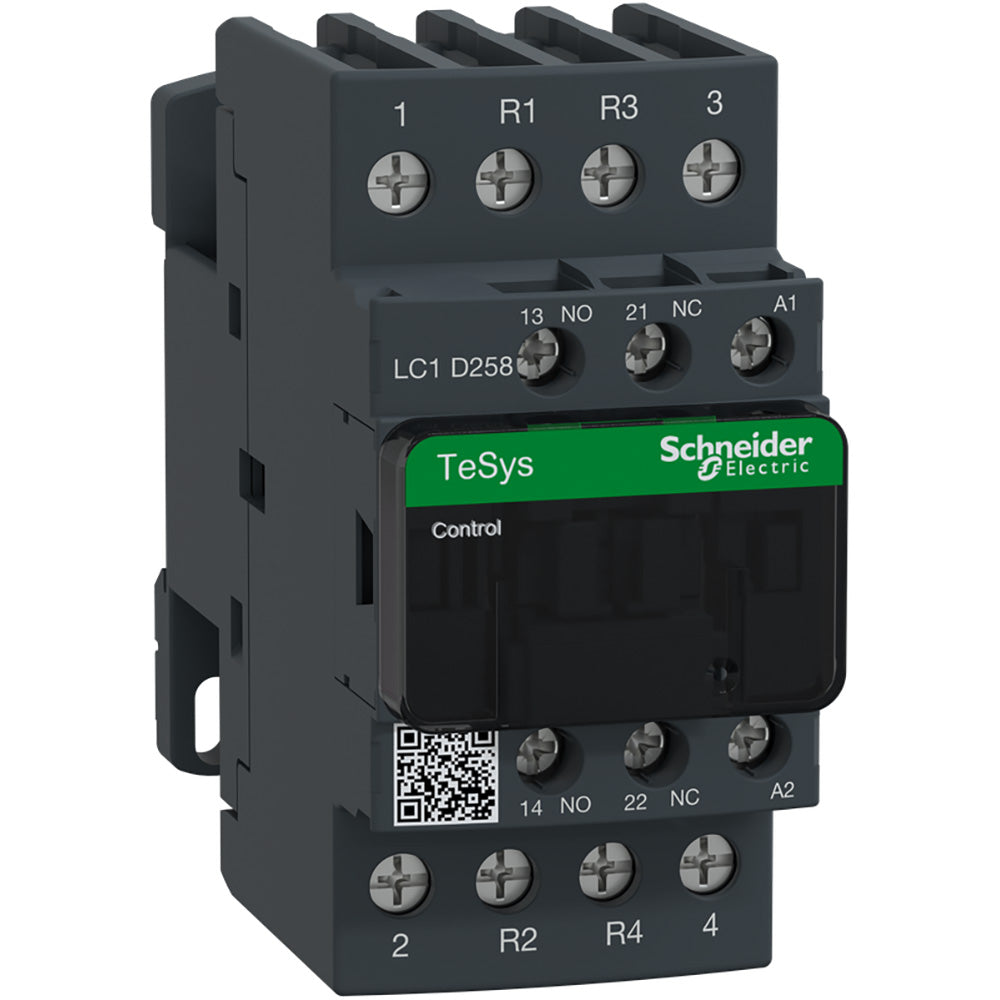

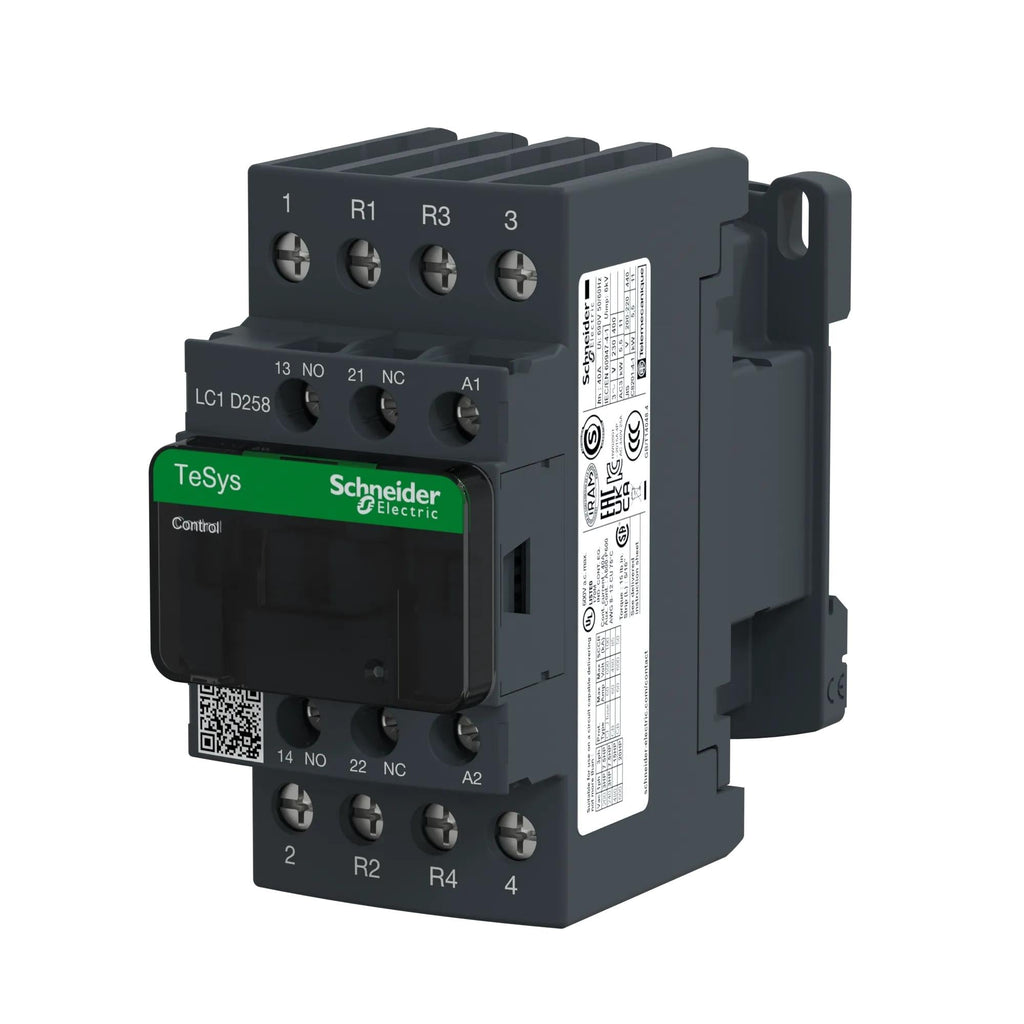

LC1D258G7 is a Schneider Electric 4-pole motor contactor designed for reliable motor control applications.This TeSys D series contactor features a 40 ampere rating with a 120V AC coil voltage and 4 poles (2 normally open and 2 normally closed). It is designed for DIN rail mounting and uses screw clamp terminals for secure electrical connections. The contactor is suitable for IEC motor control systems and provides robust performance with a control circuit voltage of 120VAC at 50/60 Hz.

Key Specifications
• Manufacturer: Schneider Electric
• Part Number: LC1D258G7
• Amperage: 40A
• Coil Voltage: 120V AC, 50/60 Hz
• Number of Poles: 4 (2 NO + 2 NC)

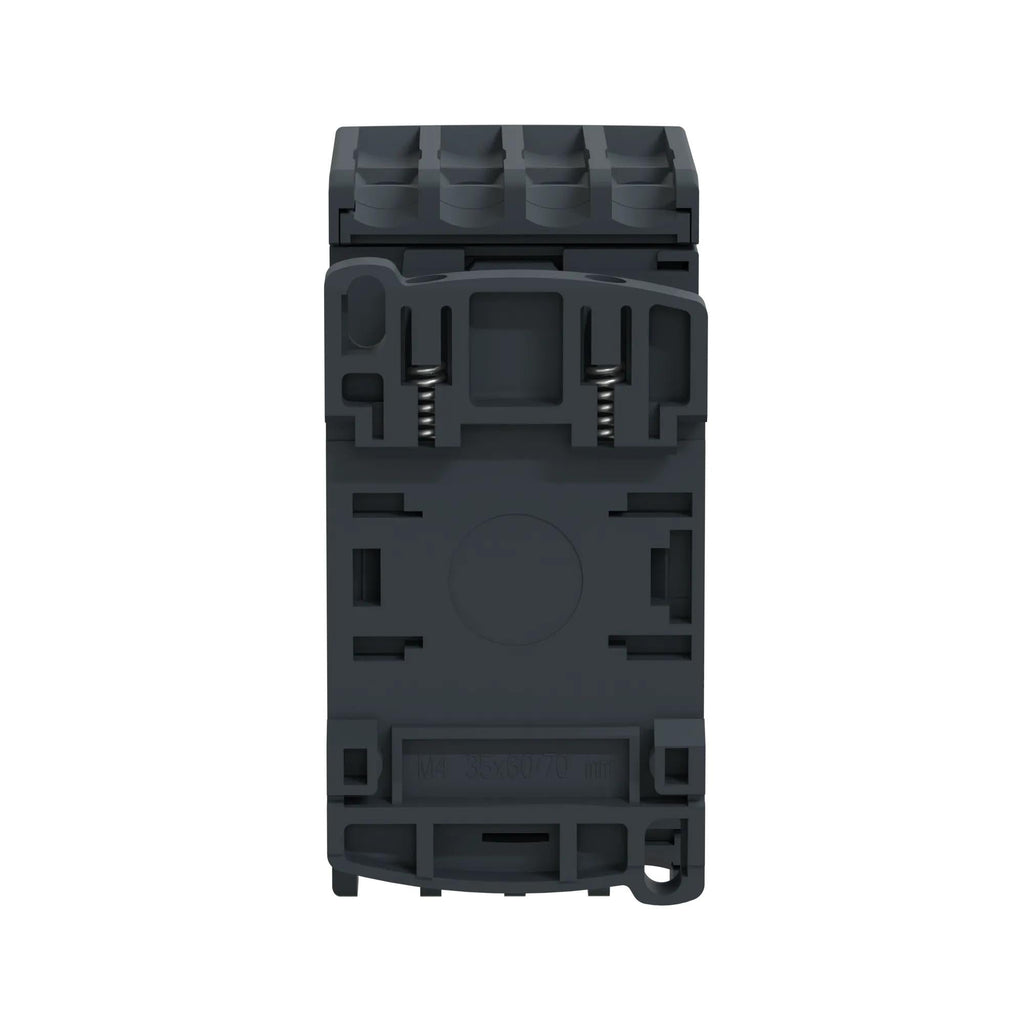

• Mounting Type: DIN Rail
• Terminal Type: Screw Clamp
• Series: TeSys D (LC1-D Series)
• Contactor Type: Non-Reversing
• Application: Motor Control
• Certifications: IEC Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This TeSys D IEC Contactor includes a 120 VAC coil.

Specifications

• Part Number: LC1D258G7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Family : TeSys D
• Type : LC1D
• Voltage : 600
• Amperage : 25
• Phase : 3
• Poles : 4
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Aux Contacts : 2 NO + 2 NC
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 110
• Protection : Thermal Magnetic
• Frequency : 50/60 Hz

Product Data

• UPC : 785901503149
• GTIN : 3389110467758
• Country of Origin : Indonesia
• Dimensions : 1.77 in (45 mm) x 3.58 in (91 mm)
• Weight : 1.028
• Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
