Product Info
- Manufacturer:Square D
- Sub-Category:Motor Control Part And Accessory
Description
LC1D18P7

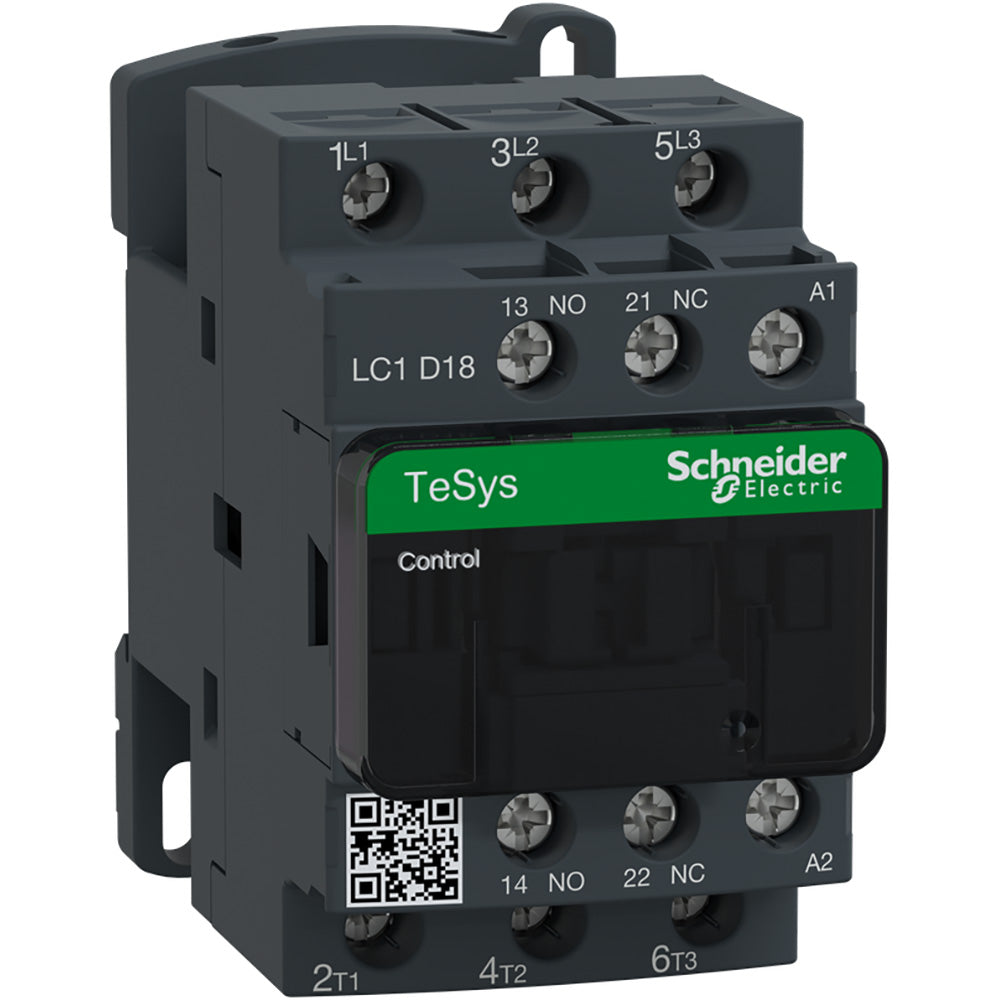

LC1D18P7 is a 3-pole contactor manufactured by Schneider Electric for the TeSys D series. It features a 230 V AC control coil and is rated for 18 A AC-3 utilization at 440 V AC. This compact and durable contactor is designed for direct-on-line (DOL) starting of motors up to 7.5 HP at 460 V or 5 HP at 230 V. The LC1D18P7 offers high electrical endurance, low power consumption, and compatibility with SchneiderÕs TeSys accessories such as overload relays and auxiliary contact blocks. It is ideal for motor control, lighting, and general-purpose switching in industrial and commercial systems.
- Part Number: LC1D18P7
- Manufacturer: Schneider Electric
- Series / Family: TeSys D
- Product Type: 3-Pole Contactor
- Rated Current: 18 A (AC-3 at 440 V)
- Coil Voltage: 230 V AC, 50/60 Hz
- Power Rating: 5 HP at 230 V, 7.5 HP at 460 V
-
Auxiliary Contacts:<(more...)
Additional Information
This TeSys D IEC Contactor includes a 230 VAC coil.
Specifications
- Part Number: LC1D18P7
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Family : TeSys D
- Type : LC1D
- Voltage : 600
- Amperage : 18
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LIG - Long-Time, Instantaneous and Ground Fault
- Horse Power : 1 hp at 115 V AC 50/60 Hz for 1 phase motors-3 hp at 230/240 V AC 50/60 Hz for 1 phase motors-5 hp at 200/208 V AC 50/60 Hz for 3 phases motors-5 hp at 230/240 V AC 50/60 Hz for 3 phases motors-10 hp at 460/480 V AC 50/60 Hz for 3 phases motors-15 hp at 575/600 V AC 50/60 Hz for 3 phases motors
- Aux Contacts : 3 NO
- Coil Voltage Maximum : 230
- Coil Voltage Minimum : 230
- Protection : Solid State
- Frequency : 50/60 Hz
Product Data
- UPC : 785901685999
- GTIN : 00389110349538
- Country of Origin : Indonesia
- Dimensions : 45 mm x 77 mm
- Weight : 0.756 lb
- Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
