LC1D18M7 - Square D 18A 600V 3 Pole IEC Contactor TeSys D Series with 220V Coil

LC1D18M7

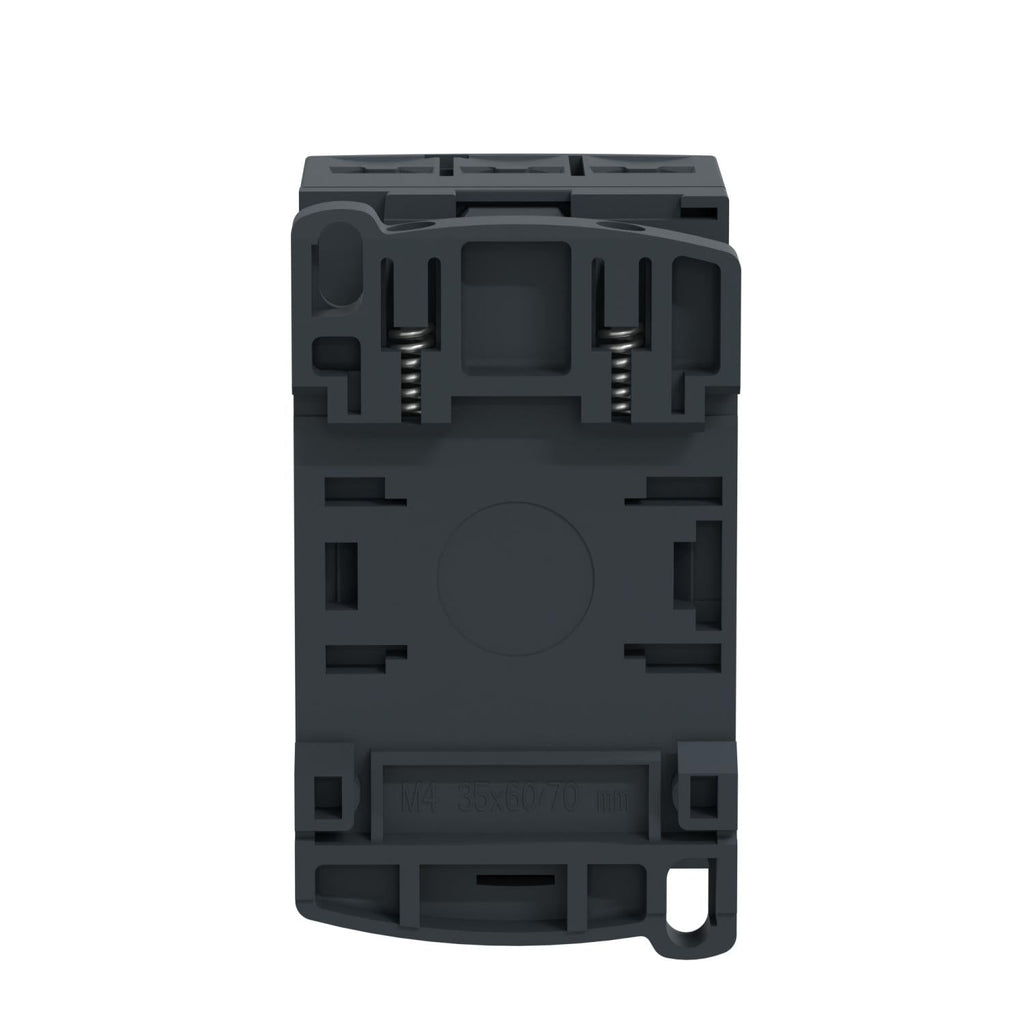

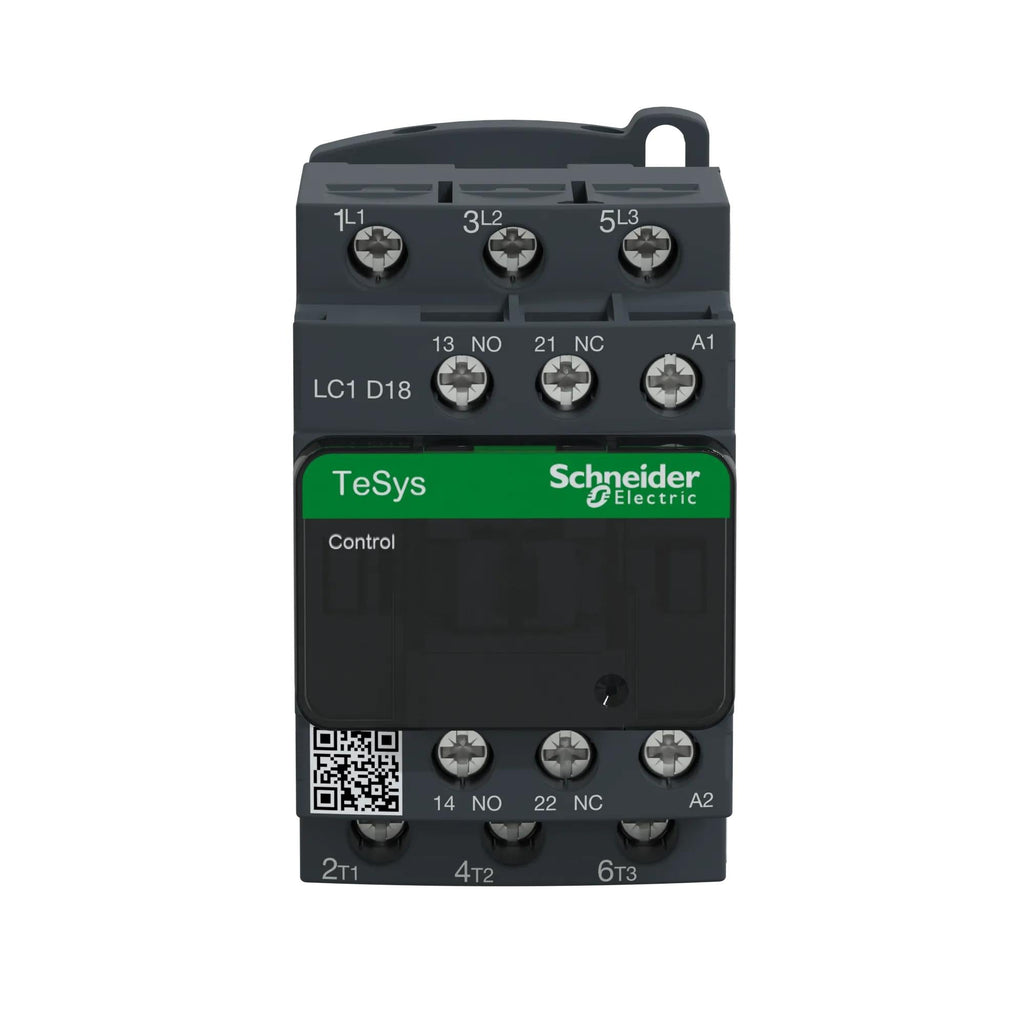

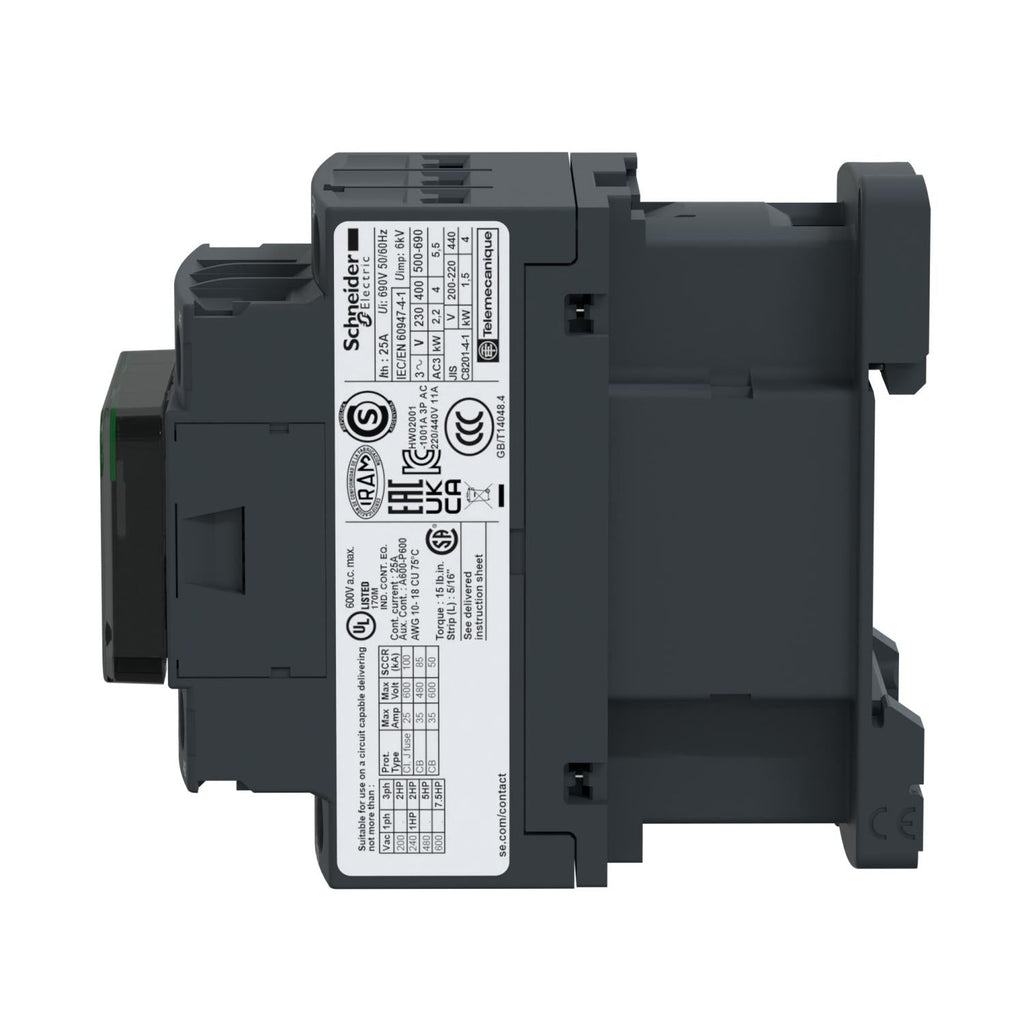

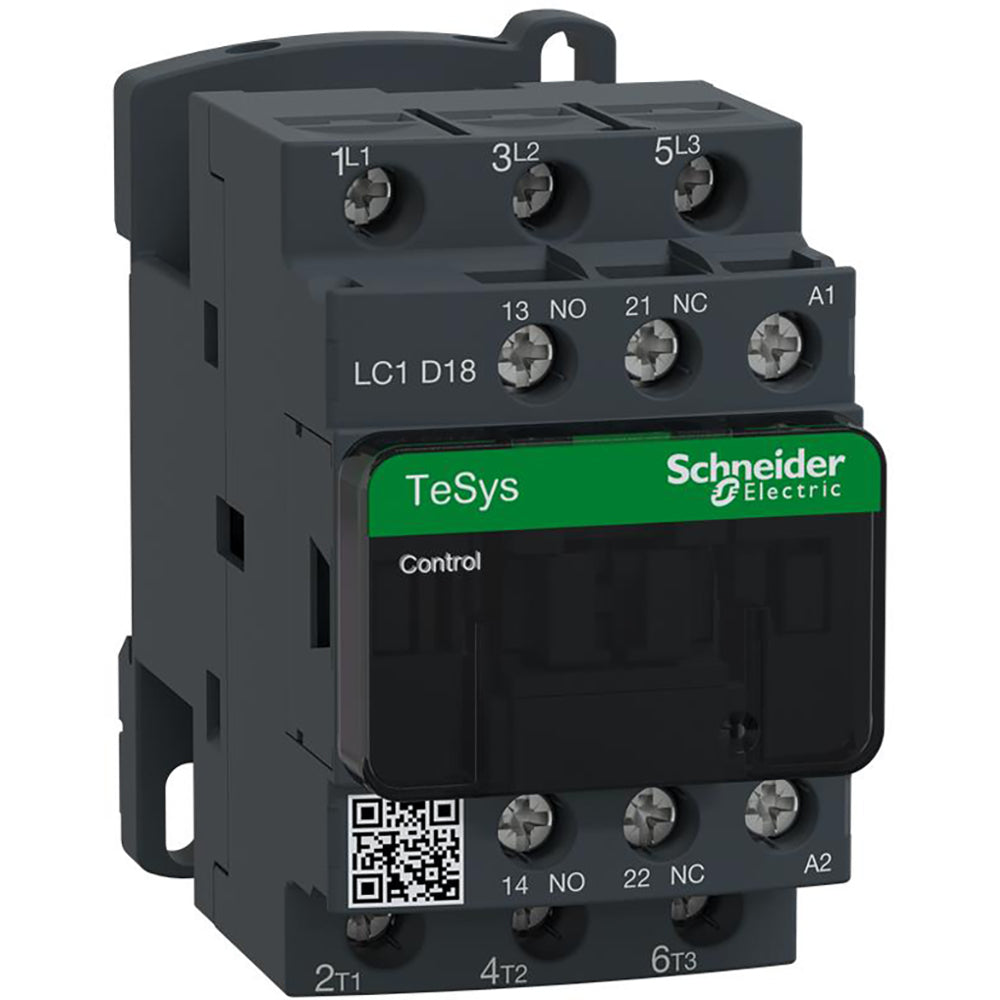

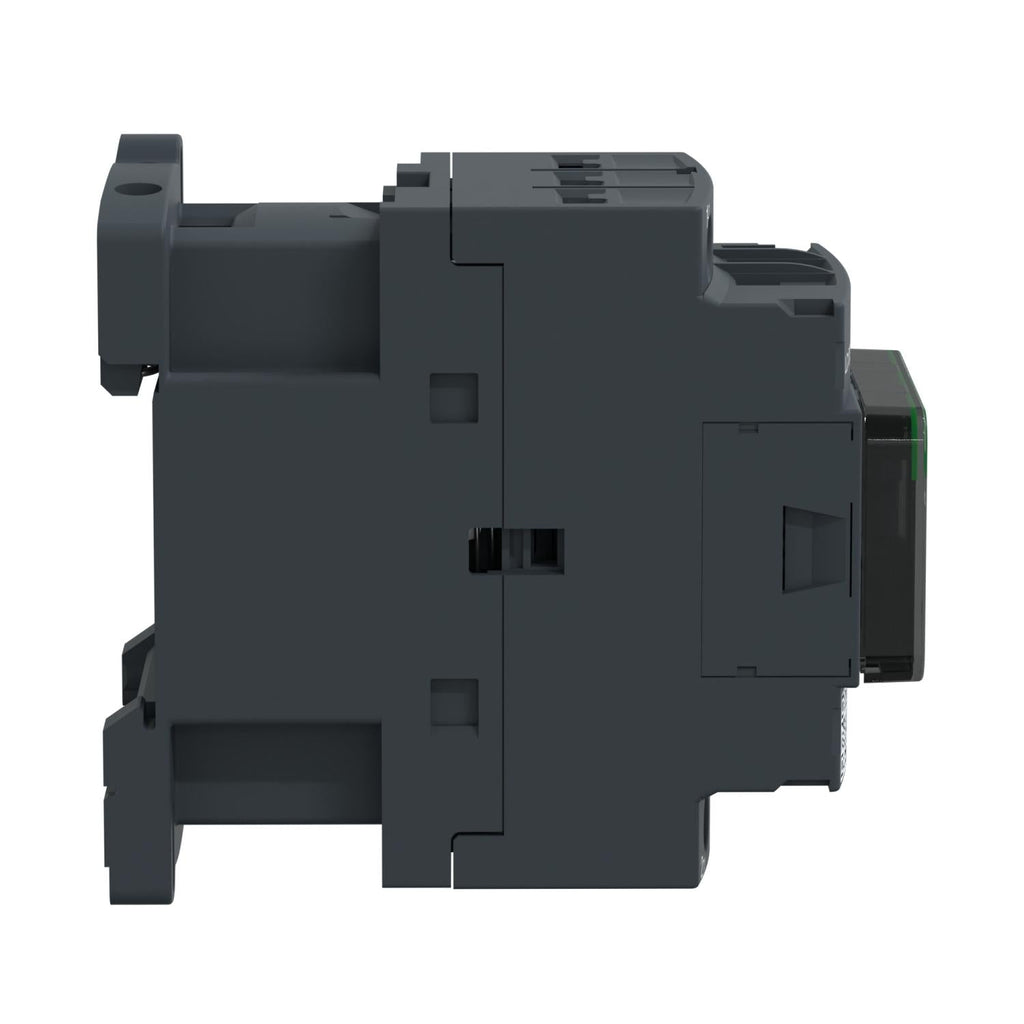

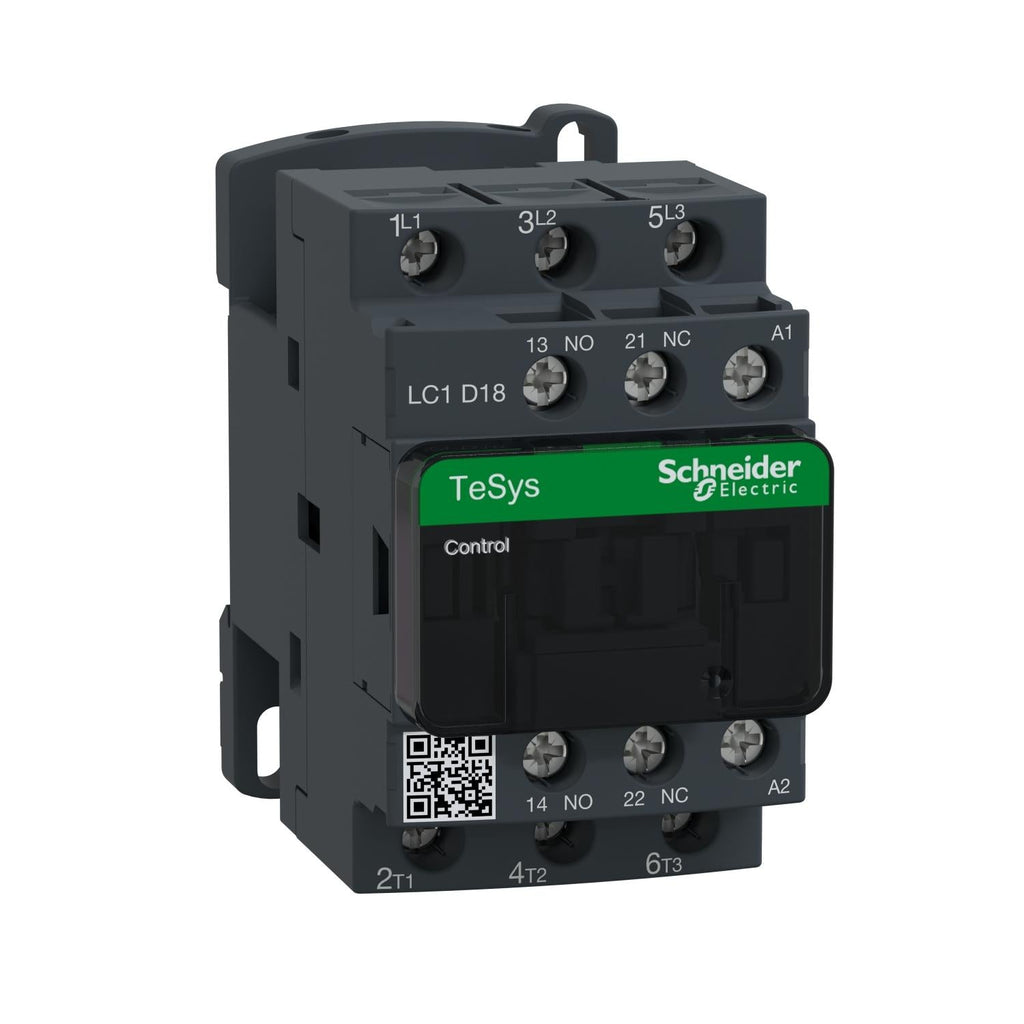

LC1D18M7 is a Square D TeSys D series IEC contactor designed for motor control applications with an 18 amp rating and 3 poles.This contactor supports up to 600 VAC voltage and features a 220 V AC 50/60 Hz coil. It is suitable for motor loads up to 10 HP at 480 VAC and 15 HP at 600 VAC three-phase. The device offers non-reversing operation with 3 normally open contacts and can be mounted on DIN rail or plate. It complies with UL 508, CSA C22.2 No 14, IEC 60947-4-1, and other international standards, and provides a short-circuit current rating (SCCR) up to 100 kA when used with appropriate fuses. The compact design includes multi-standard screws for easier installation.

Key Specifications
• Amperage: 18 A
• Voltage Rating: 600 VAC
• Poles: 3
• Coil Voltage: 220 V AC 50/60 Hz
• Horsepower Rating: 10 HP at 480 VAC, 15 HP at 600 VAC (3-phase)
• Mounting Type: DIN rail or plate mount
• Interrupt Rating (SCCR): Up to 100 kA with proper fusing
• Series/Frame: TeSys D
• Contact Configuration: 3 NO (normally open)
• Certifications: UL 508, CSA C22.2 No 14, IEC 60947-4-1, IEC 60947-5-1&l(more...)


  Additional Information

  This TeSys D IEC Contactor includes a 220 VAC coil.




  Specifications

  • Part Number: LC1D18M7
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : TeSys D
  • Type : LC1D
  • Voltage : 600
  • Amperage : 18
  • Phase : 3
  • Poles : 3
  • Horse Power : 1 hp at 115 V AC 50/60 Hz for 1 phase motors-3 hp at 230/240 V AC 50/60 Hz for 1 phase motors-5 hp at 200/208 V AC 50/60 Hz for 3 phases motors-5 hp at 230/240 V AC 50/60 Hz for 3 phases motors-10 hp at 460/480 V AC 50/60 Hz for 3 phases motors-15 hp at 575/600 V AC 50/60 Hz for 3 phases motors
  • Aux Contacts : 3 NO
  • Coil Voltage Maximum : 240
  • Full Load Amps : Full Load Amps-Inductive 18A Full Load Amps-Resistive 32A
  • Coil Voltage Minimum : 220
  • Mounting : Plate
  • Frequency : 50/60 Hz



  Product Data

  • UPC : 785901213284
  • GTIN : 03389110349504
  • Country of Origin : Indonesia
  • Dimensions : 1.77 in x 3.03 in
  • Weight : 0.805
  • Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
