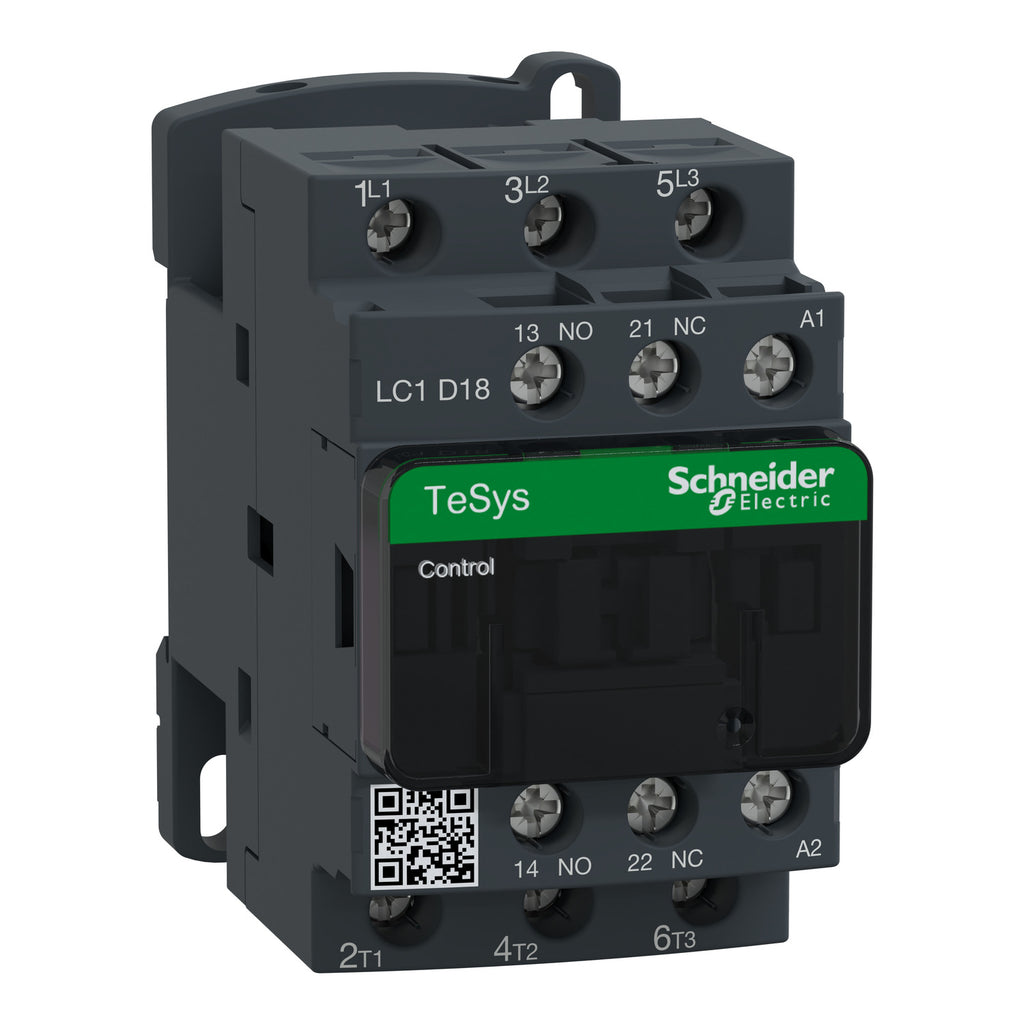

LC1D18G7 - Schneider Electric TeSys Deca 3-Pole 18A 690V AC-3 Motor Contactor

SKU: LC1D18-G7-New
Condition: New
Price:
$85.55
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

LC1D18-G7 Telemecanique TeSys D Contactor Questions pole 3 phase 600V 32A 120V coil - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
LC1D18-G7 Telemecanique TeSys D Contactor Questions pole 3 phase 600V 32A 120V coil - Essential Electric Supply

Description

LC1D18-G7


LC1D18G7 is a Schneider Electric TeSys Deca motor control contactor designed for industrial and HVAC applications requiring reliable three-phase motor switching and control. This IEC-rated contactor delivers 18 amperes at up to 690 volts AC and supports motor ratings from 5 HP at 230V to 10 HP at 460V, making it suitable for a wide range of motor control and resistive load applications across AC-1, AC-3, and AC-4 utilization categories. The contactor features a 3-pole, 3 NO (normally open) contact configuration with a 120V AC 50/60Hz coil and screw clamp terminals for secure installation. Built-in auxiliary contacts (1NO+1NC) provide integrated signaling and control circuit flexibility. The unit is rated for up to 100 kA SCCR and operates at altitudes up to 3000 meters without temperature derating.
  • Rated Current: 18 A at 440V AC AC-3
  • Voltage: 690V AC 25-400 Hz power circuit; 300V DC maximum
  • Poles: 3P with 3 NO contacts
  • Coil Voltage: 120V AC 50/60Hz
  • Motor Power: 5 HP at 230/240V AC; 10 HP at 460/480V AC
  • Utilization Categories: AC-1, AC-3, AC-4
  • Mechanical Durability: 15 million cycles
  • Operating Rate: 3600 (more...)

    Specifications

    • Part Number: LC1D18-G7
    • Manufacturer : Schneider Electric
    • Brand : Schneider Electric
    • Category : Motor Control
    • Item Subcategory : Contactor
    • Family : TeSys D
    • Type : LC1D
    • Voltage : 600
    • Amperage : 18
    • Phase : 3
    • Poles : 3
    • Horse Power : 1 hp at 115 V AC 50/60 Hz for 1 phase motors-3 hp at 230/240 V AC 50/60 Hz for 1 phase motors-5 hp at 200/208 V AC 50/60 Hz for 3 phases motors-5 hp at 230/240 V AC 50/60 Hz for 3 phases motors-10 hp at 460/480 V AC 50/60 Hz for 3 phases motors-15 hp at 575/600 V AC 50/60 Hz for 3 phases motors
    • Coil Voltage Maximum : 120
    • Coil Voltage Minimum : 120

    Product Data

    • UPC : 038911034947
    • GTIN : 03389110349474
    • Weight : 2 lb
    • Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
