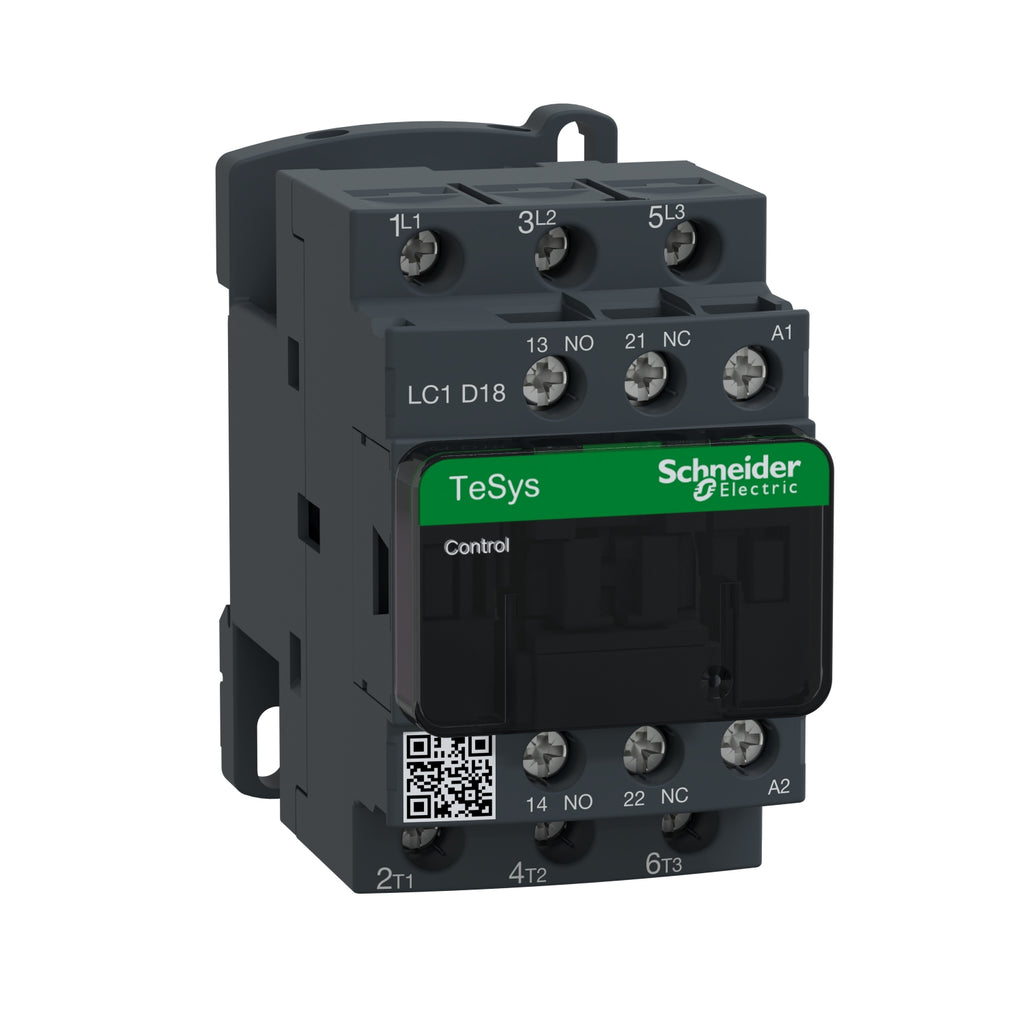

LC1D18F7C - Schneider Electric 18A 3-Pole TeSys Deca Motor Contactor 110V AC Coil

LC1D18F7C

LC1D18F7C is a Schneider Electric 3-pole motor contactor designed for industrial and HVAC applications with an 18 ampere rating and a 110V AC coil.

This TeSys Deca series contactor supports motor control up to 18A and voltages up to 690V AC, suitable for 3-phase motors. It features screw clamp terminals for easy installation and operation, complies with IEC standards, and offers multi-standard certifications including UL, CSA, and CCC. The contactor is rated for 5 HP at 230V, 10 HP at 460V, and 15 HP at 600V, with a non-reversing design and improved fire resistance.

• Amperage: 18A
• Poles: 3 (3NO)
• Coil Voltage: 110V AC, 50/60 Hz
• Voltage Rating: Up to 690V AC
• Horsepower Ratings: 5 HP at 230V, 10 HP at 460V, 15 HP at 600V
• Mounting Type: Screw clamp terminals
• Series/Frame: TeSys Deca
• Standards: IEC, UL, CSA, CCC certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LC1D18F7C
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Family : TeSys D
• Type : LC1D
• Voltage : 600
• Amperage : 18
• Phase : 3
• Poles : 3
• Horse Power : 1 hp at 115 V AC 50/60 Hz for 1 phase motors-3 hp at 230/240 V AC 50/60 Hz for 1 phase motors-5 hp at 200/208 V AC 50/60 Hz for 3 phases motors-5 hp at 230/240 V AC 50/60 Hz for 3 phases motors-10 hp at 460/480 V AC 50/60 Hz for 3 phases motors-15 hp at 575/600 V AC 50/60 Hz for 3 phases motors
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 110

Product Data

• Weight : 0.769
• Certification : CE, UKCA, CCC
