Product Info
- Manufacturer:Schneider Electric||Telemecanique
- Sub-Category:Contactor
Description
LC1D18F7

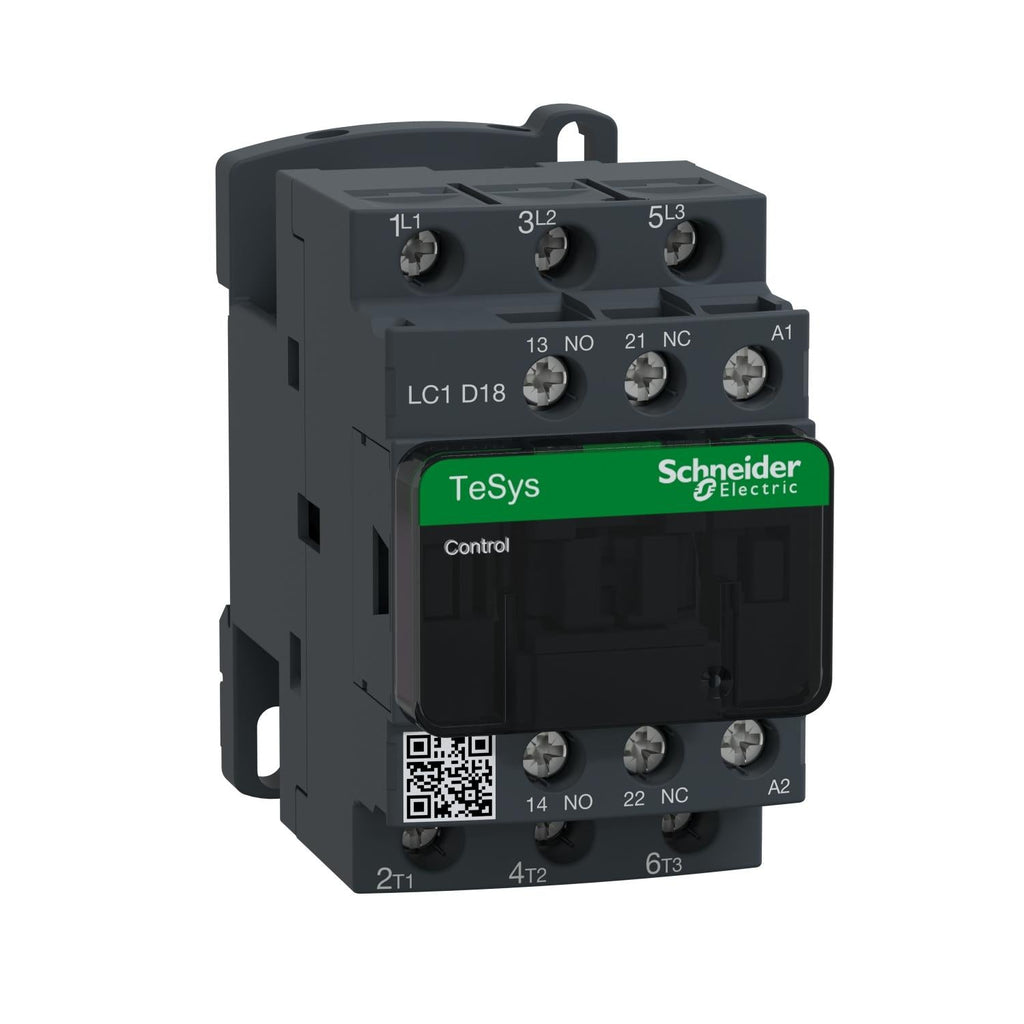

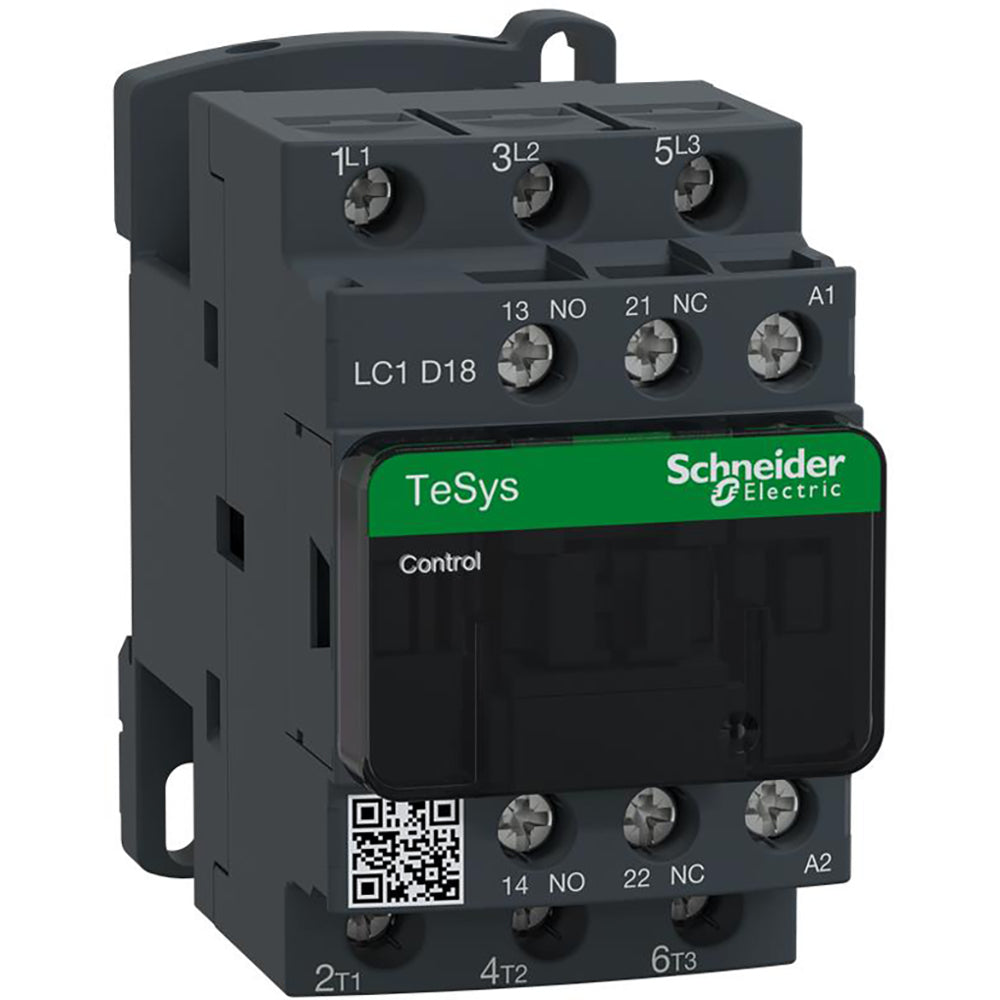

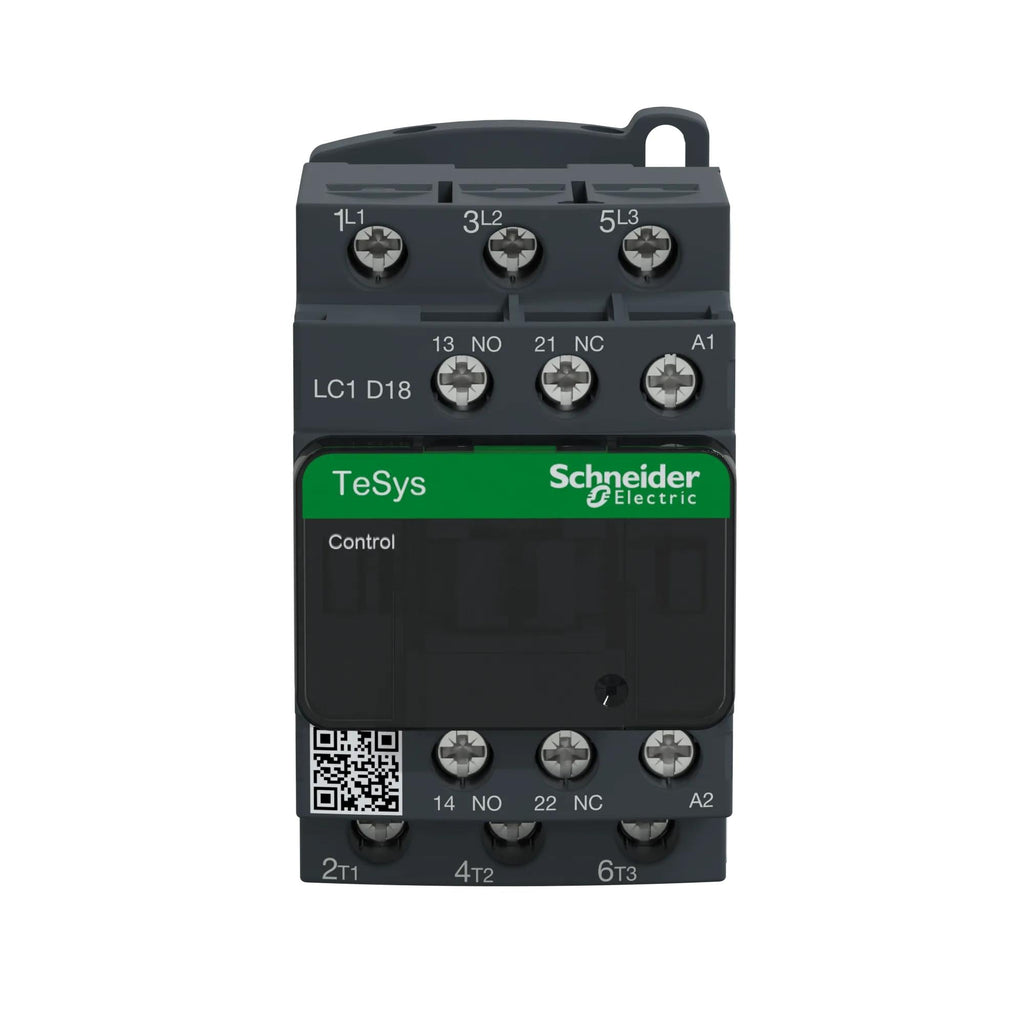

LC1D18F7 is a 3-pole IEC contactor from the Schneider Electric TeSys D series, designed for reliable control of motors and resistive loads. It features a 240 V AC 50/60 Hz control coil and a rated operational current of 18 A at 440 V AC (AC-3 duty). This compact contactor includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact and supports DIN-rail or panel mounting. It is ideal for use in motor starters, lighting control, and general-purpose switching applications.
- Part Number: LC1D18F7
- Manufacturer: Schneider Electric
- Series / Family: TeSys D
- Poles: 3-pole (3 NO)
- Rated Current: 18 A (AC-3, 440 V AC)
- Coil Voltage: 240 V AC, 50/60 Hz
- Horsepower Rating: 10 HP at 460/480 V
- Auxiliary Contacts: 1 NO + 1 NC
- Mounting Style: DIN-rail or panel mount
- Operational Voltage: Up to 690 V AC
-
Certific(more...)
Additional Information
This TeSys D IEC Contactor includes a 110 VAC coil.
Specifications
- Part Number: LC1D18F7
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Family : TeSys D
- Type : LC1D
- Voltage : 600
- Amperage : 18
- Phase : 3
- Poles : 3
- Horse Power : 1 hp at 115 V AC 50/60 Hz for 1 phase motors-3 hp at 230/240 V AC 50/60 Hz for 1 phase motors-5 hp at 200/208 V AC 50/60 Hz for 3 phases motors-5 hp at 230/240 V AC 50/60 Hz for 3 phases motors-10 hp at 460/480 V AC 50/60 Hz for 3 phases motors-15 hp at 575/600 V AC 50/60 Hz for 3 phases motors
- Aux Contacts : 3 NO
- Coil Voltage Maximum : 120
- Coil Voltage Minimum : 110
- Frequency : 50/60 Hz
Product Data
- UPC : 038911034945
- GTIN : 03389110349450
- Country of Origin : Indonesia
- Dimensions : 1.77 in (45 mm) x 3.03 in (77 mm)
- Weight : 0.763
- Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
