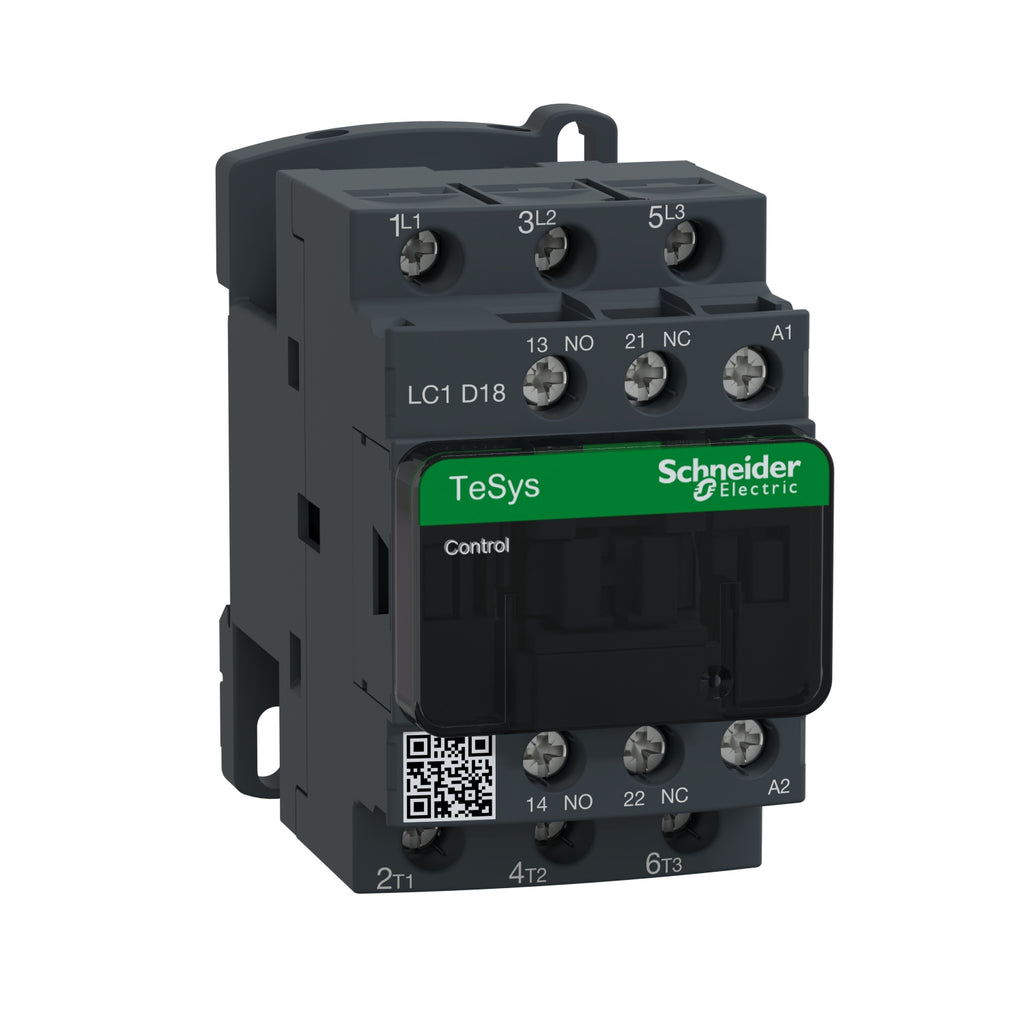

LC1D18E7C - Schneider Electric 18A 3-Pole TeSys Deca AC Contactor 48V Coil

LC1D18E7C

LC1D18E7C is a Schneider Electric 3-pole AC contactor from the TeSys Deca series with an 18 ampere rating and 48V AC coil voltage.

This contactor is designed for motor control applications and supports up to 10 HP at 480 VAC. It features a compact 45mm width and can be mounted on DIN-rail or fixed with screws. The device is suitable for use in AC-1, AC-3, AC-3e, and AC-4 utilization categories, with a coil frequency of 50/60 Hz. It includes 3 main contacts (3NO) and auxiliary contacts rated 1NO+1NC.

• Amperage: 18 A
• Poles: 3-pole (3NO)
• Coil Voltage: 48 V AC
• Series: TeSys Deca
• Mounting Type: DIN-rail or screw fixing
• Frequency: 50/60 Hz
• Horsepower Ratings: 10 HP at 480 VAC, 5 HP at 200-240 VAC, 15 HP at 600 VAC
• Auxiliary Contacts: 1NO + 1NC
• Utilization Categories: AC-1, AC-3, AC-3e, AC-4

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LC1D18E7C
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Family : TeSys D
• Type : LC1D
• Voltage : 600
• Amperage : 18
• Phase : 3
• Poles : 3
• Horse Power : 1 hp at 115 V AC 50/60 Hz for 1 phase motors-3 hp at 230/240 V AC 50/60 Hz for 1 phase motors-5 hp at 200/208 V AC 50/60 Hz for 3 phases motors-5 hp at 230/240 V AC 50/60 Hz for 3 phases motors-10 hp at 460/480 V AC 50/60 Hz for 3 phases motors-15 hp at 575/600 V AC 50/60 Hz for 3 phases motors
• Coil Voltage Maximum : 48
• Coil Voltage Minimum : 48

Product Data

• Weight : 0.772
• Certification : CE, UKCA, CCC
