LC1D18CC7C - Schneider Electric TeSys D 18A 36V 3-Pole AC Contactor

LC1D18CC7C

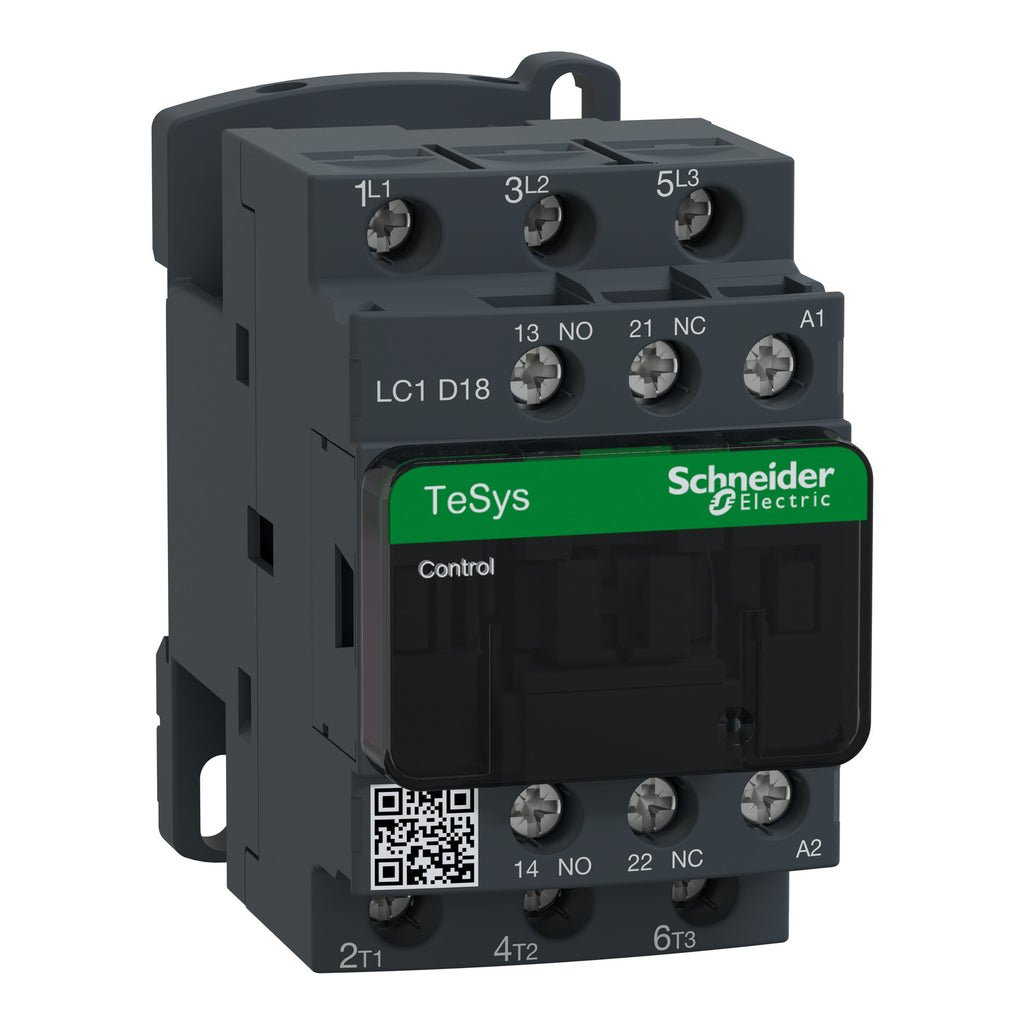

LC1D18CC7C is a Schneider Electric TeSys D series three-pole AC contactor rated for 18A AC-3 motor control applications up to 7.5kW at 400V. This IEC-compliant contactor features a 36V AC 50/60Hz coil and is designed for reliable motor switching and control in industrial automation systems. The unit includes 1 normally open and 1 normally closed built-in auxiliary contact for enhanced control flexibility and integrates screw clamp terminals for secure connections. With a compact DIN rail-compatible design, the LC1D18CC7C delivers consistent performance across demanding motor control applications with mechanical durability rated for millions of operations.

• Amperage Rating: 18A AC-3
• Coil Voltage: 36V AC 50/60Hz
• Poles: 3 poles (3NO)
• Motor Control Capacity: 7.5kW at 400V
• Maximum Voltage: 440V AC
• Auxiliary Contacts: 1NO + 1NC built-in
• Terminal Type: Screw clamp
• Mounting: DIN rail compatible
• Series: TeSys D
• Coil Power: 7VA at 60Hz, 7VA at 50Hz
• Closing Time: 12-22ms
• Opening Time: 4-19ms

At Essential Par(more...)

Specifications

• Part Number: LC1D18CC7C
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Family : TeSys D
• Type : LC1D
• Voltage : 600
• Amperage : 18
• Phase : 3
• Poles : 3
• Horse Power : 1 hp at 115 V AC 50/60 Hz for 1 phase motors-3 hp at 230/240 V AC 50/60 Hz for 1 phase motors-5 hp at 200/208 V AC 50/60 Hz for 3 phases motors-5 hp at 230/240 V AC 50/60 Hz for 3 phases motors-10 hp at 460/480 V AC 50/60 Hz for 3 phases motors-15 hp at 575/600 V AC 50/60 Hz for 3 phases motors
• Coil Voltage Maximum : 36
• Coil Voltage Minimum : 36

Product Data

• Weight : 0.752
• Certification : CE, UKCA, CCC
