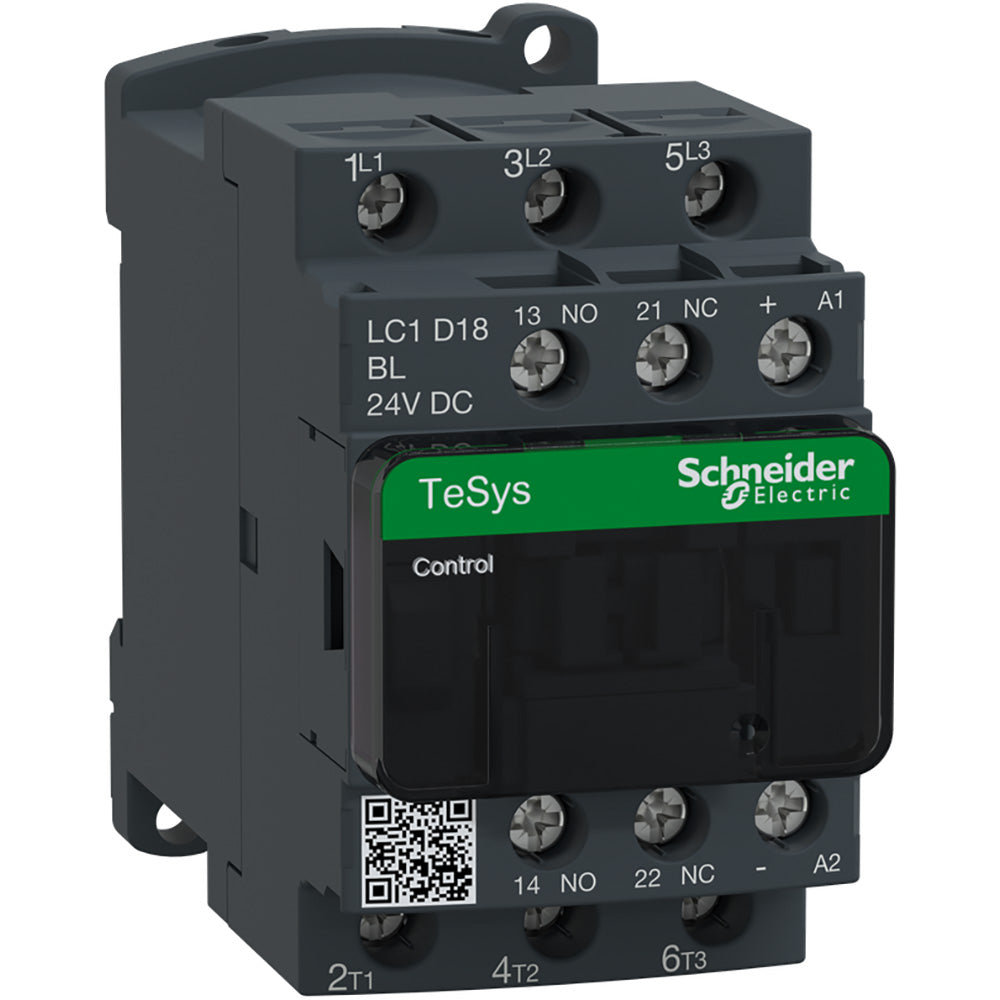

LC1D18BL - Schneider Electric TeSys D IEC Contactor 18A 3 Pole 24V DC Coil 10HP 440V AC-3

LC1D18BL

LC1D18BL is a Schneider Electric TeSys D IEC contactor designed for motor control applications with an 18 amp rating and 3 poles.This contactor supports motor control up to 10 HP at 480 VAC and 7.5 kW at 400 V AC (AC-3), with a low consumption 24 V DC coil. It features a 3NO contact configuration, screw clamp terminals, and mounting options for plate or rail. The device complies with IEC 60947-4-1, UL 508, CSA C22.2 No 14, and other international certifications, offering a high interrupt rating up to 100 kA SCCR and robust electrical durability.

Key Specifications
• Amperage: 18 A
• Voltage Rating: Up to 690 V AC (IEC), 600 V UL/CSA
• Poles: 3 (3NO)
• Coil Voltage: 24 V DC low consumption
• Motor Power: 10 HP at 480 VAC (AC-3)
• Mounting Type: Plate or Rail
• Interrupt Rating: Up to 100 kA SCCR
• Contact Type: Non-reversing
• Terminal Type: Screw Clamp
• Standards: IEC 60947-4-1, UL 508, CSA C22.2 No 14
• Certifications: UL, CSA, BV, GOST, CCC, DNV, Lloyds Register, RINA
At Essential Parts, we offer fast shippi(more...)


Additional Information

This TeSys D IEC Contactor includes a 24 VDC coil.




Specifications

• Part Number: LC1D18BL
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Family : TeSys D
• Type : LC1D
• Voltage : 600
• Amperage : 18
• Phase : 3
• Poles : 3
• Horse Power : 1 hp at 115 V AC 50/60 Hz for 1 phase motors-3 hp at 230/240 V AC 50/60 Hz for 1 phase motors-5 hp at 200/208 V AC 50/60 Hz for 3 phases motors-5 hp at 230/240 V AC 50/60 Hz for 3 phases motors-10 hp at 460/480 V AC 50/60 Hz for 3 phases motors-15 hp at 575/600 V AC 50/60 Hz for 3 phases motors
• Aux Contacts : 3 NO
• Coil Voltage Maximum : 24
• Coil Voltage Minimum : 24



Product Data

• UPC : 38911036171
• GTIN : 03389110361711
• Country of Origin : Indonesia
• Dimensions : 1.77 in x 3.03 in
• Weight : 1.168
• Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
