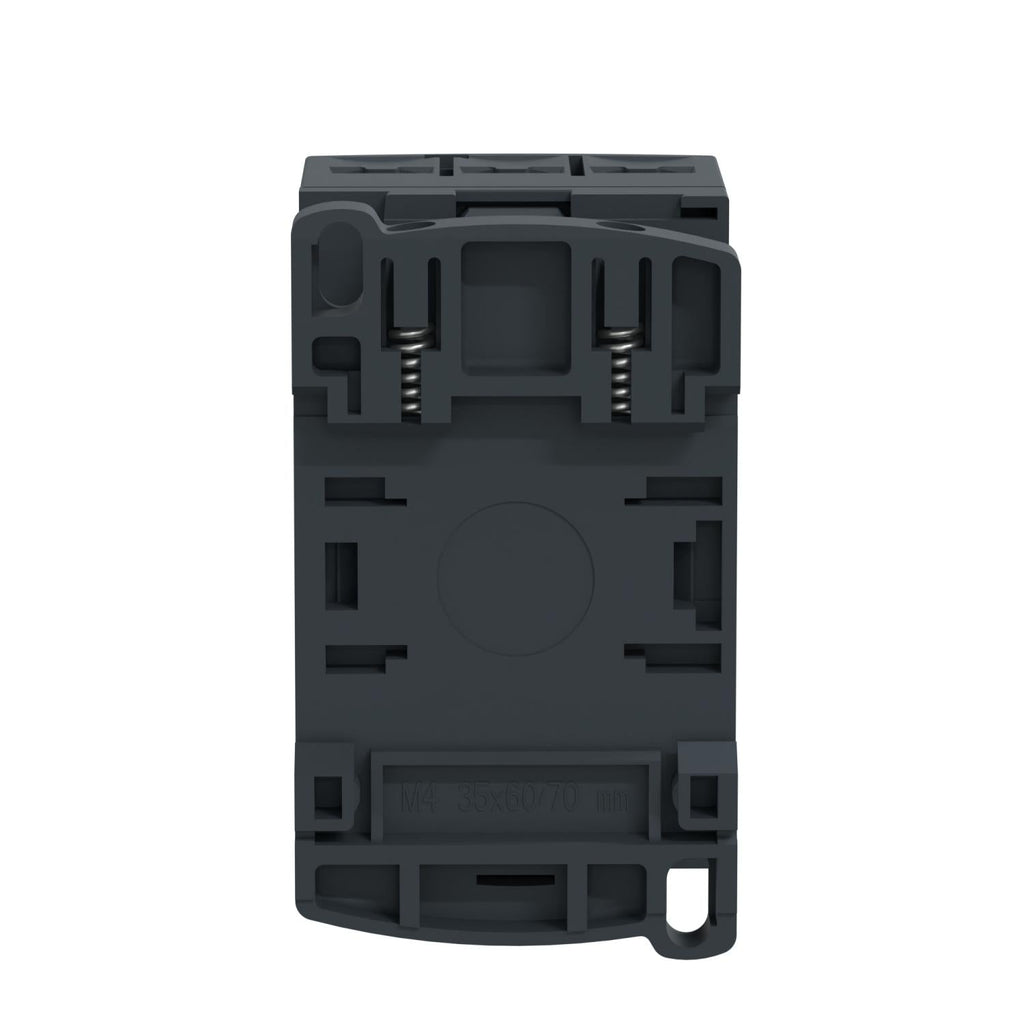

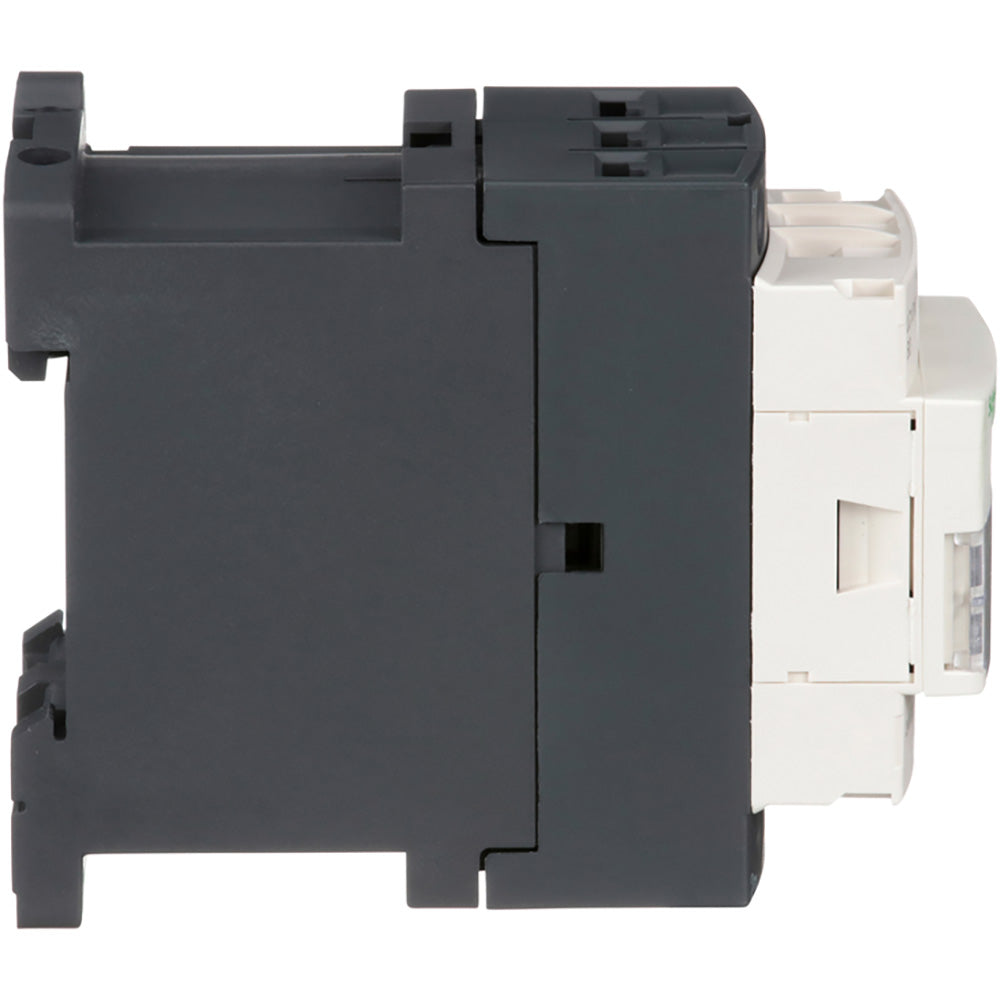

LC1D18BD - Schneider Electric TeSys Deca 18A 3-Pole Motor Contactor 24V DC Coil 10HP 440V AC3

LC1D18BD

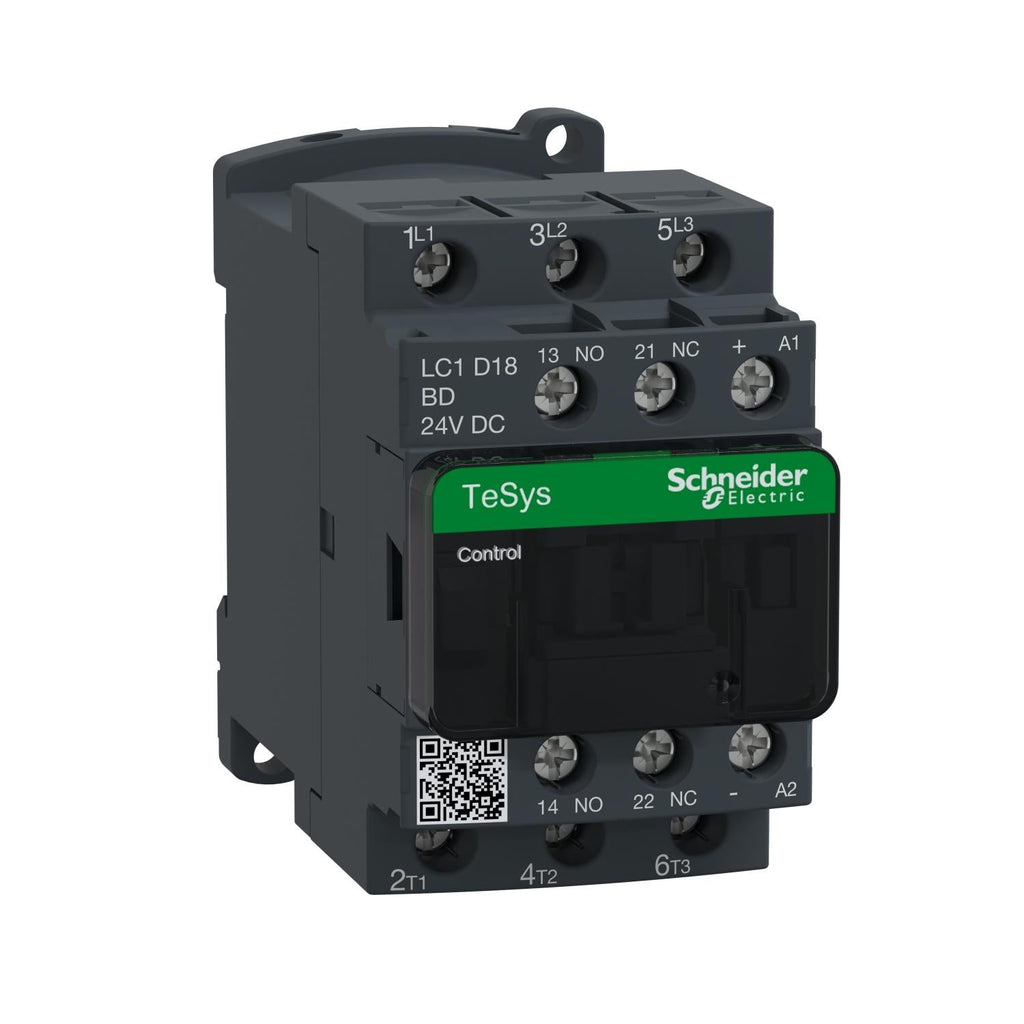

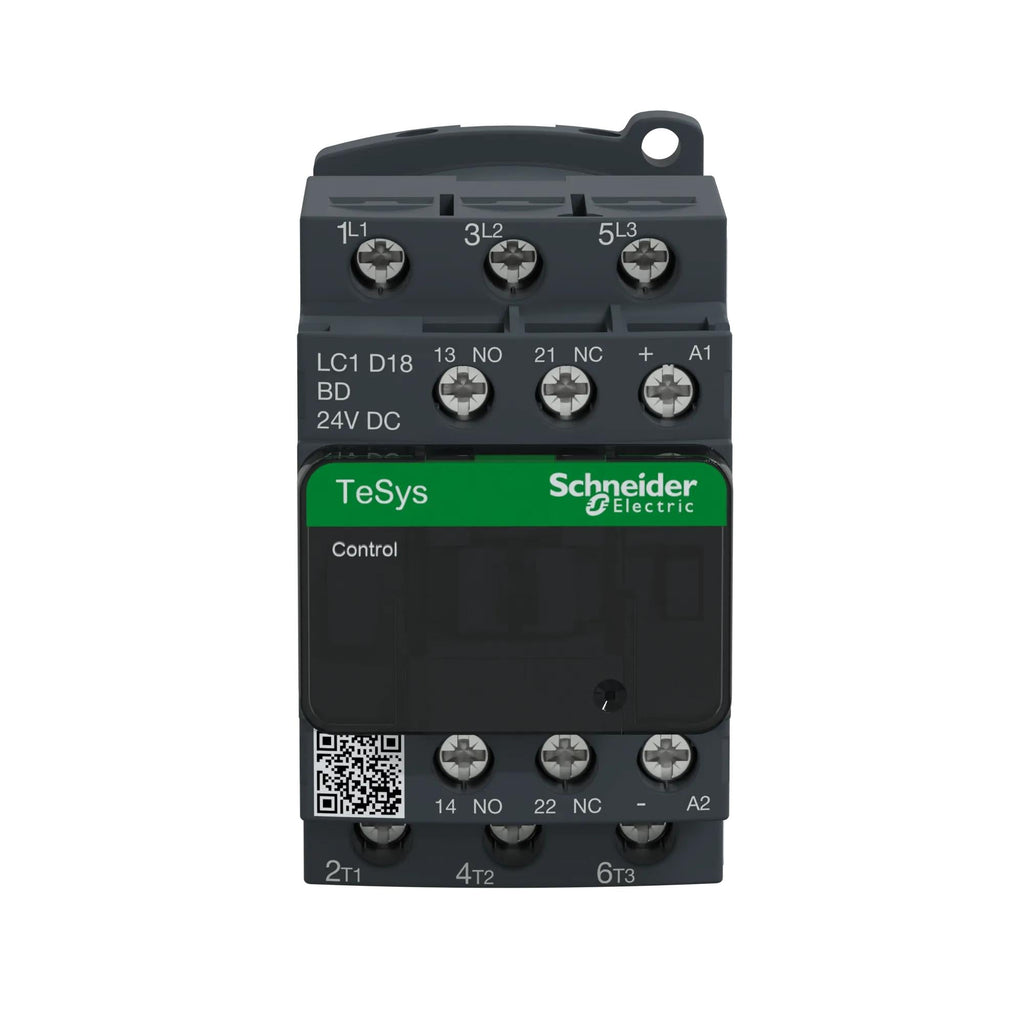

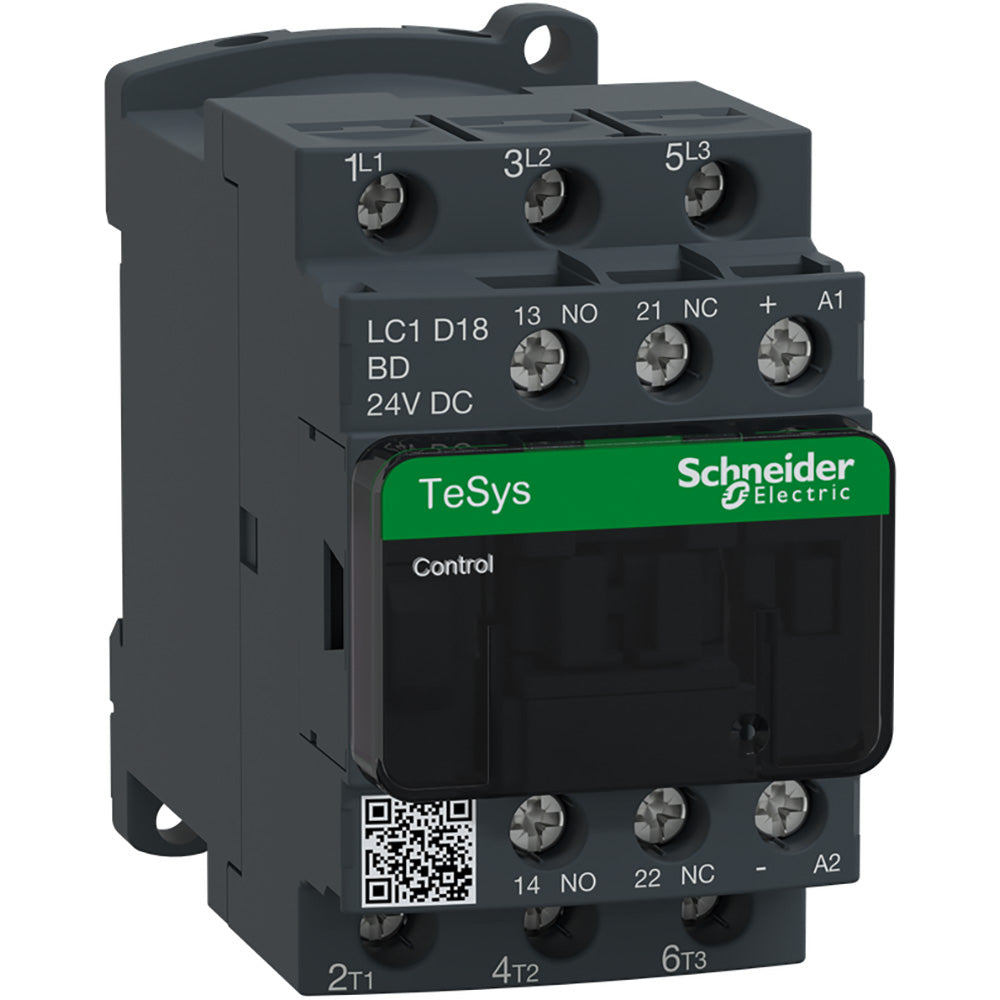

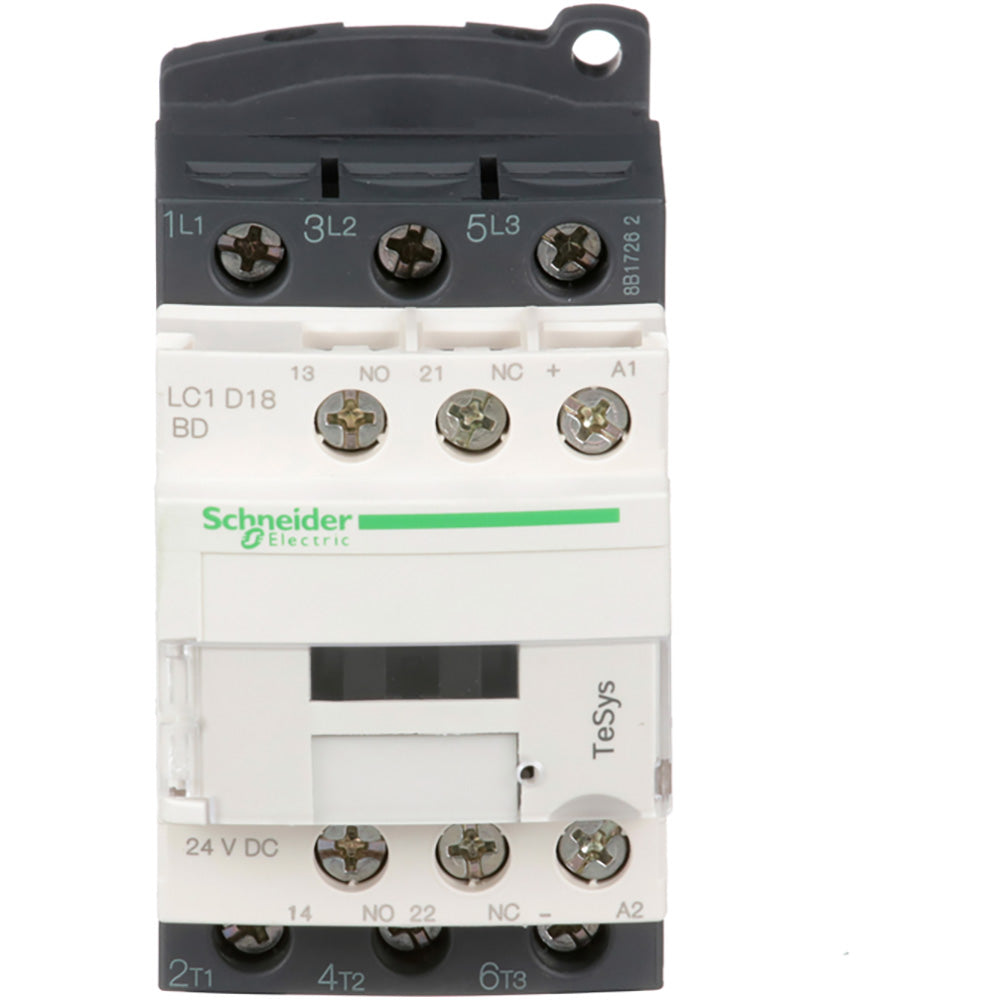

LC1D18BD is a Schneider Electric TeSys Deca motor contactor designed for industrial motor control applications.LC1D18BD features a 3-pole configuration with a 24V DC coil, rated for 18A inductive current and 32A resistive current. It supports motor loads up to 10 HP at 480 VAC and complies with IEC 60947-4-1 standards. The contactor offers screw clamp terminals for easy installation and improved fire resistance certified to IEC 60335-1.

• Amperage: 18A inductive, 32A resistive
• Voltage: Up to 690V AC, 300V DC
• Poles: 3-pole (3NO)
• Coil Voltage: 24V DC

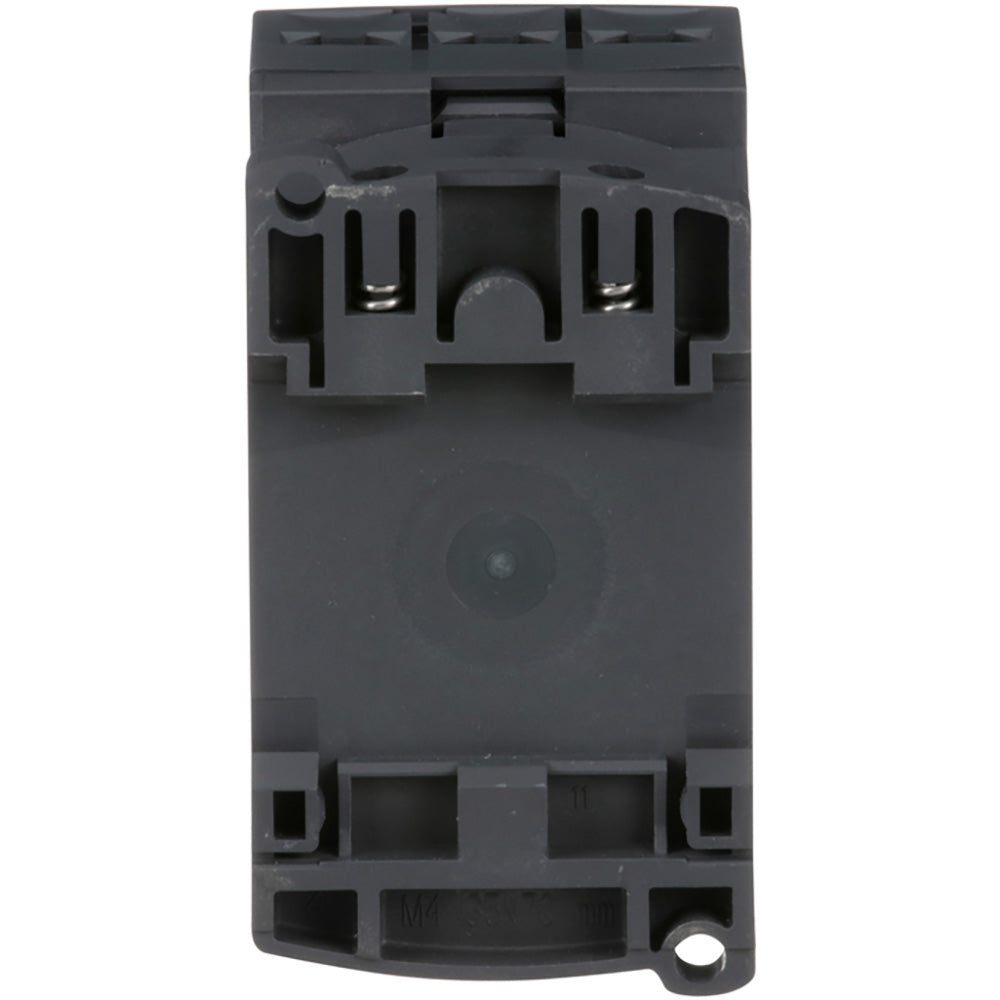

• Mounting: DIN rail compatible
• Interrupt Rating: Up to 100kA SCCR
• Frame/Series: TeSys Deca
• Trip Unit: Non-reversing contactor
• Certifications: IEC 60947-4-1, IEC 60335-1 fire resistance
• Horsepower Rating: 10 HP at 480 VAC
• Terminals: Screw clamp

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LC1D18BD
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Family : TeSys D
• Type : LC1D
• Voltage : 600
• Amperage : 18
• Phase : 3
• Poles : 3
• Horse Power : 1 hp at 115 V AC 50/60 Hz for 1 phase motors-3 hp at 230/240 V AC 50/60 Hz for 1 phase motors-5 hp at 200/208 V AC 50/60 Hz for 3 phases motors-5 hp at 230/240 V AC 50/60 Hz for 3 phases motors-10 hp at 460/480 V AC 50/60 Hz for 3 phases motors-15 hp at 575/600 V AC 50/60 Hz for 3 phases motors
• Coil Voltage Maximum : 24
• Coil Voltage Minimum : 24

Product Data

• UPC : 785901207276
• GTIN : 3389110354775
• Country of Origin : Indonesia
• Dimensions : 1.77 in x 3.03 in
• Weight : 1.152
• Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
