Description

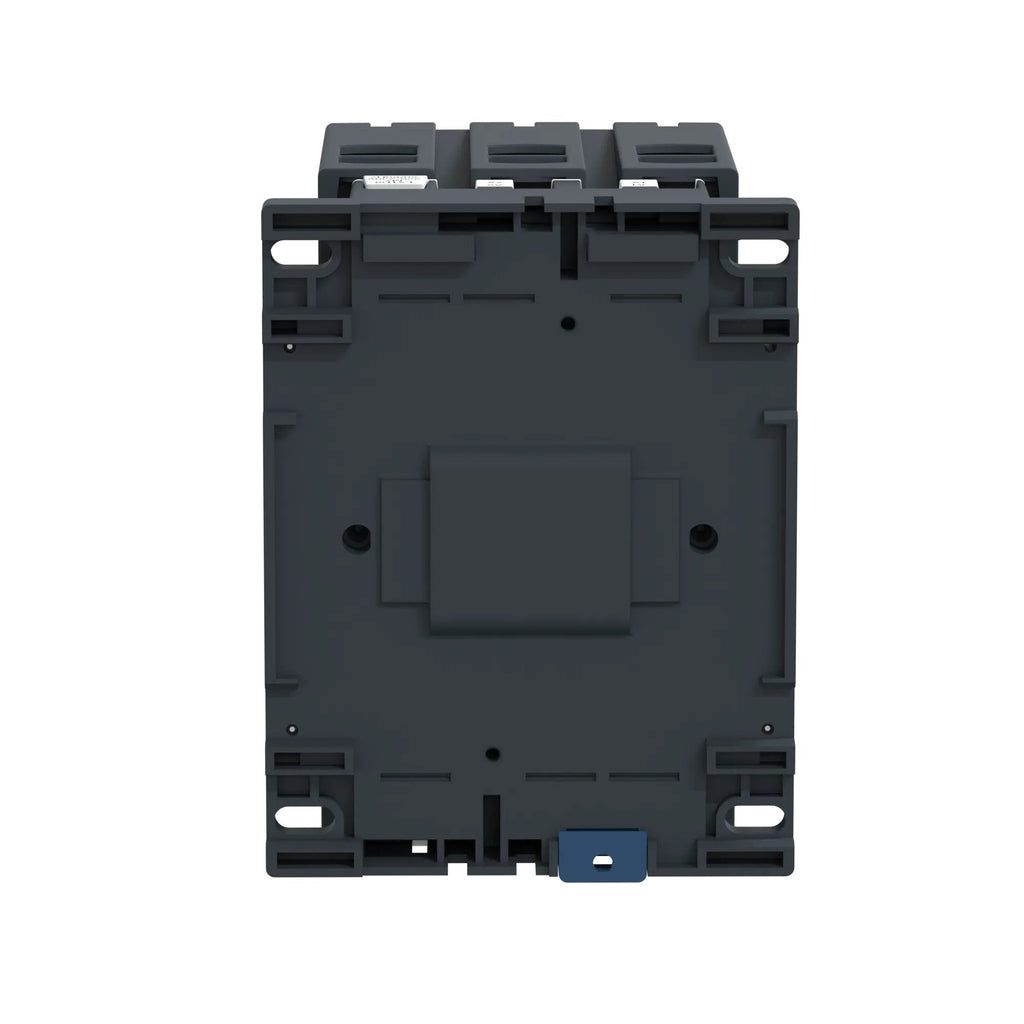

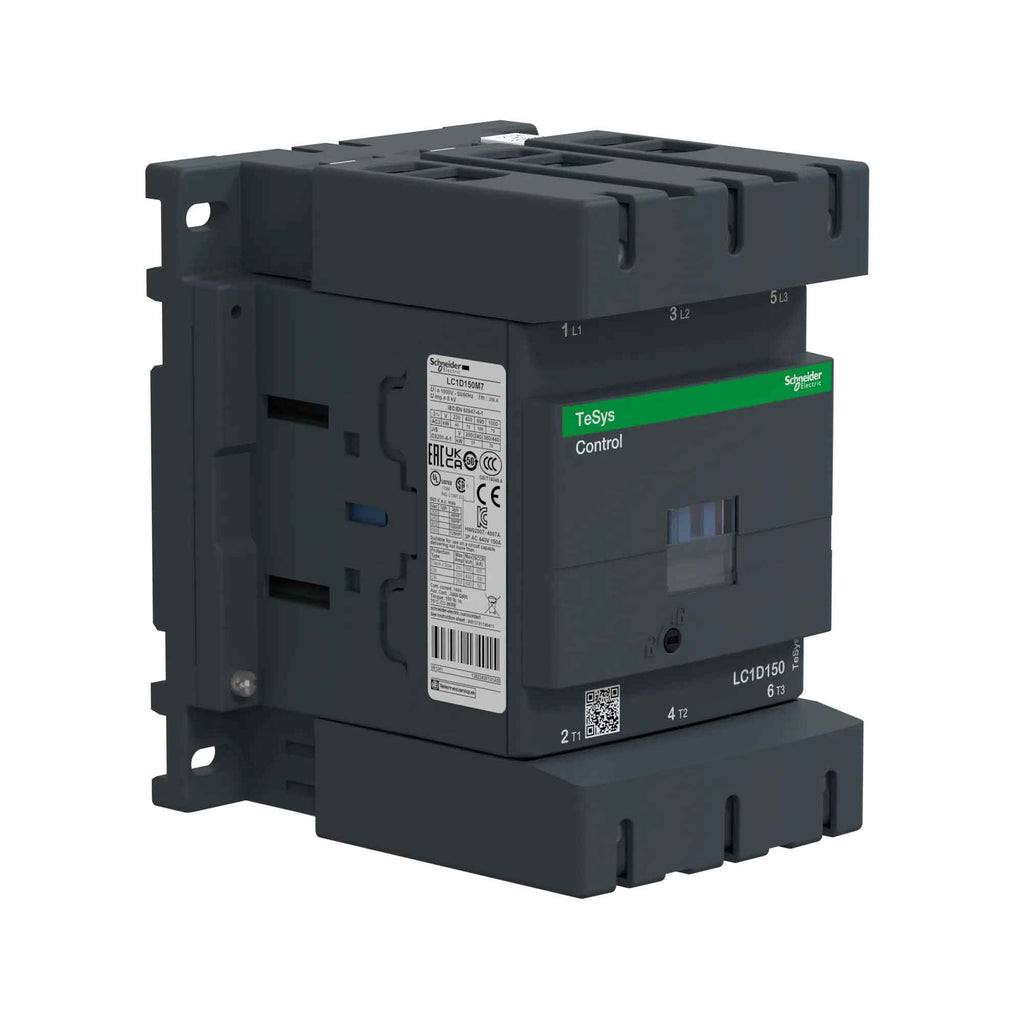

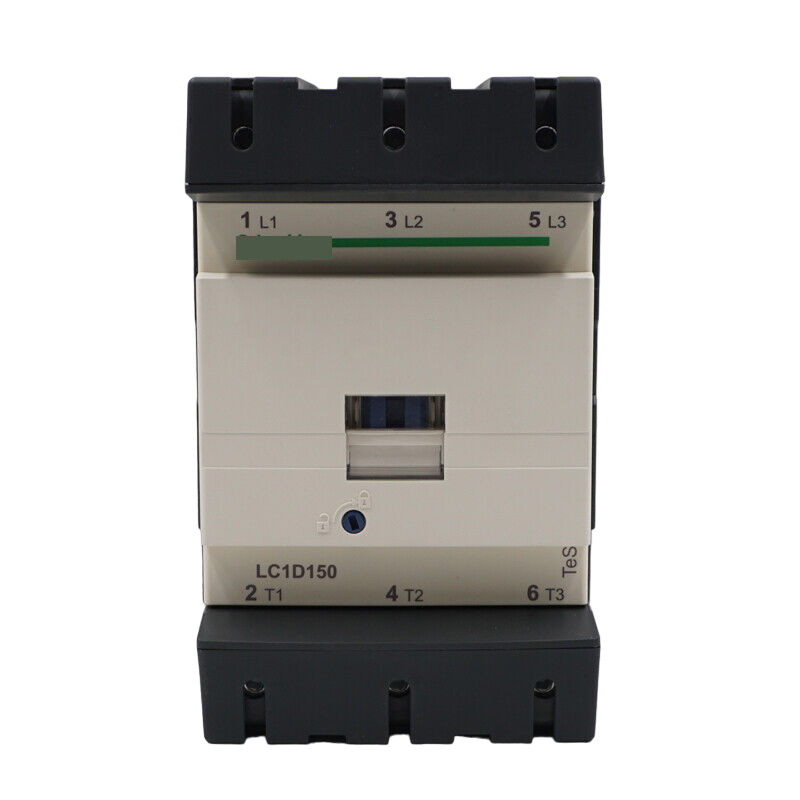

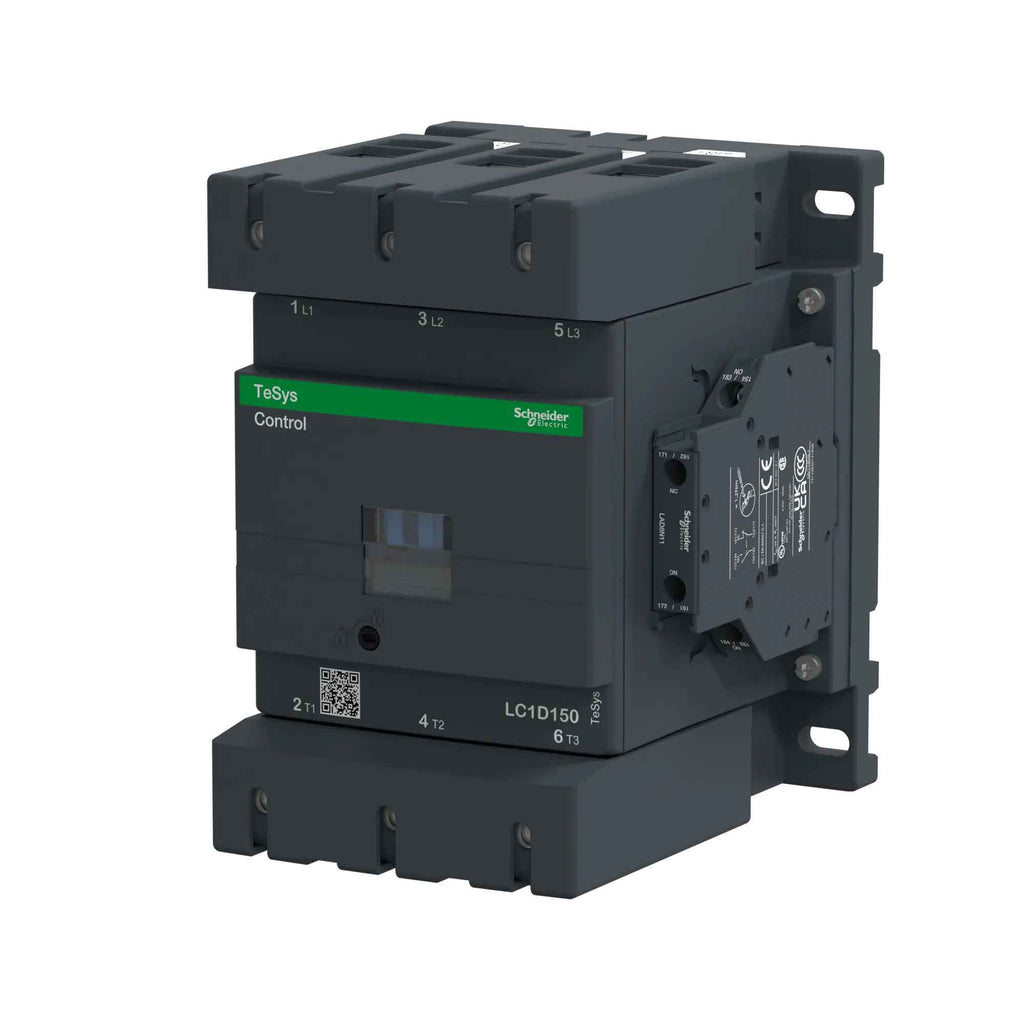

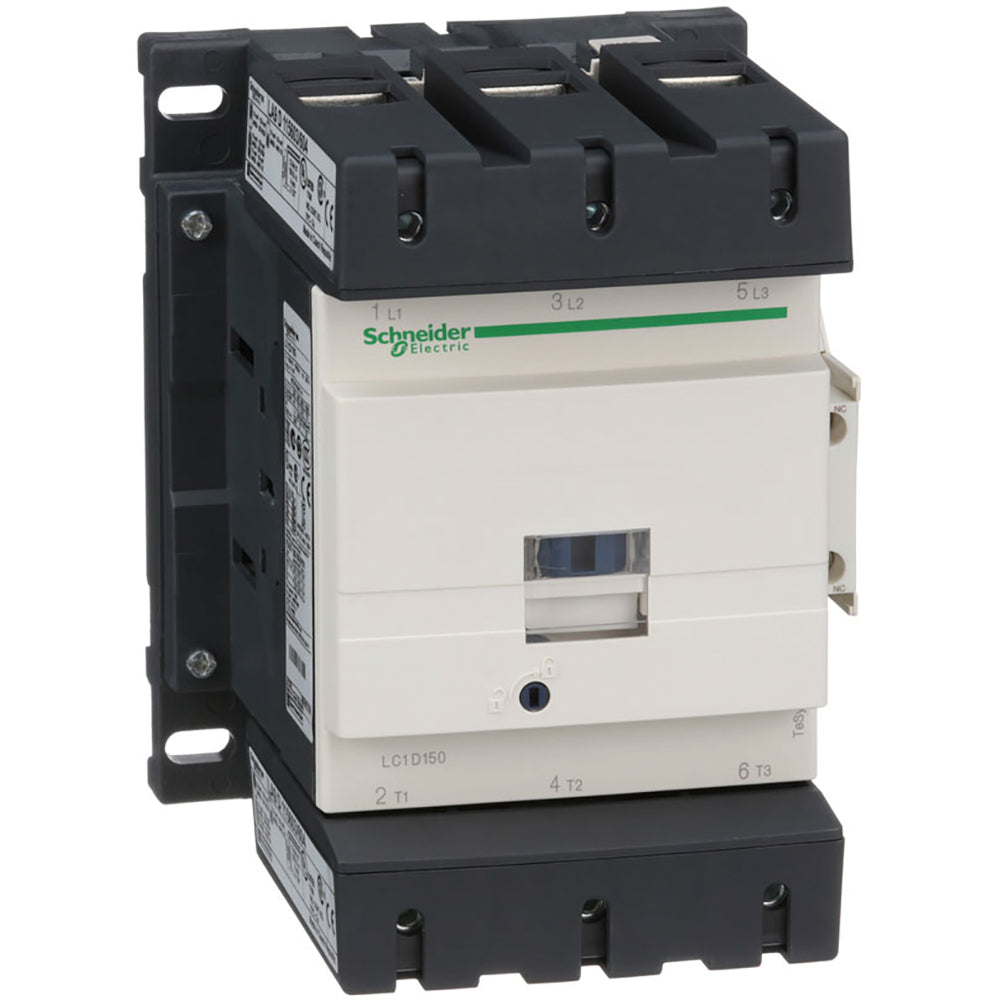

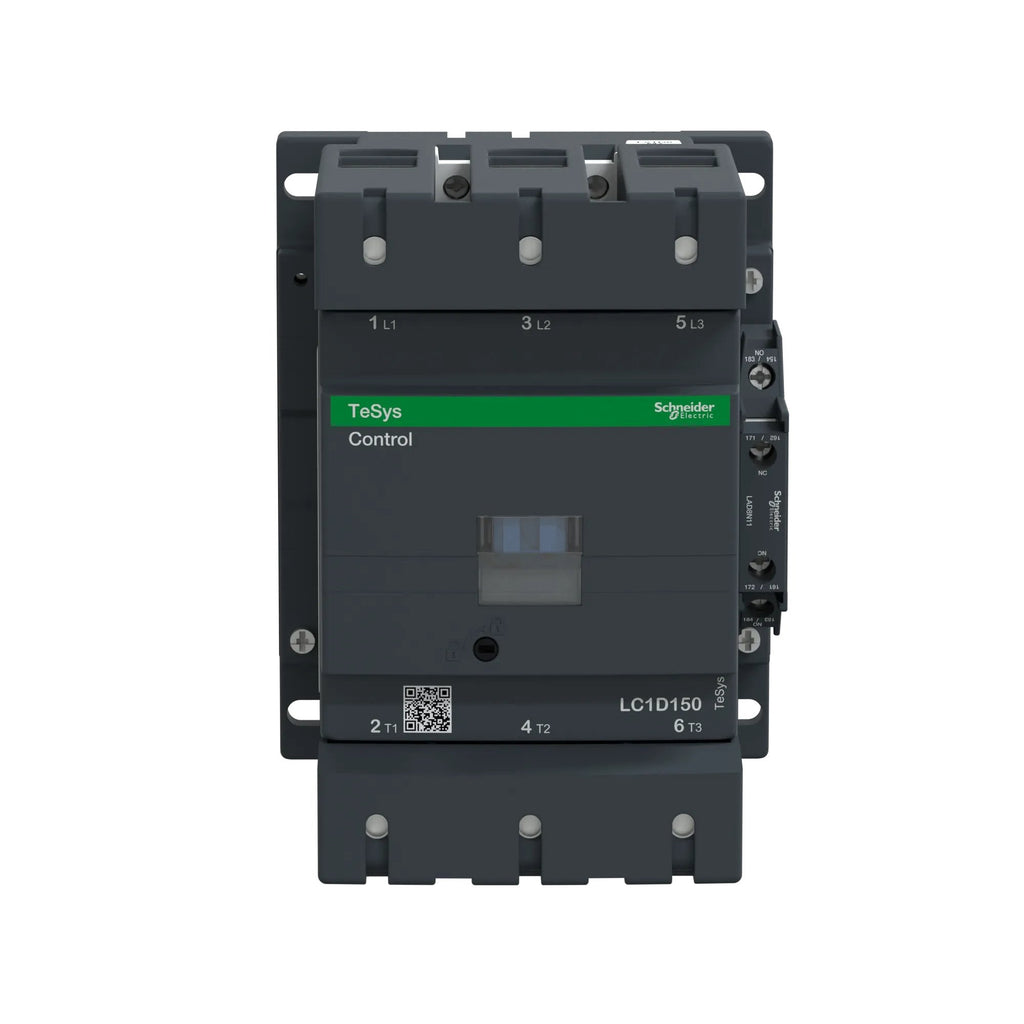

LC1D150T7
LC1D150T7 is a Schneider Electric TeSys Deca nonreversing IEC contactor designed for three-phase motor control applications up to 150 amperes at 480V AC. This 3-pole, 3 NO (normally open) contact configuration provides reliable switching for inductive motor loads and resistive applications with ratings up to 200 amps. The contactor features screw clamp terminals for secure power and control circuit connections, supporting cable sizes from 1 to 2.5 mm2 on the control side. Operating at 50/60 Hz with a coil power consumption of 3 to 4.5 watts, the LC1D150T7 delivers fast switching performance with closing times of 20 to 35 milliseconds and opening times of 40 to 75 milliseconds. The unit is rated for up to 1200 cycles per hour at 60 degrees Celsius and supports motor power ratings of 40 kW at 220V, 40 hp at 200/208V AC, 50 hp at 230/240V AC, and 100 hp at 460/480V AC for three-phase motors. With an interrupt rating up to 100 kA SCCR, this contactor meets IEC 60335-1 standards and is engineered for demanding industrial applications requiring multi-standard compatibility and ease of installation.
- Amperage: 150A
- Voltage: 480V AC
- Poles: 3P (3 NO)
- Contact Configuration: 3 Normally Open<(more...)
Additional Information
This TeSys D IEC Contactor includes a 480 VAC coil.
Specifications
- Part Number: LC1D150T7
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Family : TeSys D
- Type : LC1D
- Voltage : 600
- Amperage : 150
- Phase : 3
- Poles : 3
- Horse Power : 40 hp at 200/208 V AC 50/60 Hz for 3 phases motors-50 hp at 230/240 V AC 50/60 Hz for 3 phases motors-100 hp at 460/480 V AC 50/60 Hz for 3 phases motors-125 hp at 575/600 V AC 50/60 Hz for 3 phases motors
- Aux Contacts : 3 NO
- Coil Voltage Maximum : 480
- Full Load Amps : Full Load Amps-Inductive 150A Full Load Amps-Resistive 200A
- Coil Voltage Minimum : 480
- Mounting : Rail
- Frequency : 50/60 Hz
Product Data
- UPC : 038911047928
- GTIN : 03389110479287
- Country of Origin : Czechia
- Dimensions : 4.33 in x 4.33 in
- Weight : 5.379
- Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
