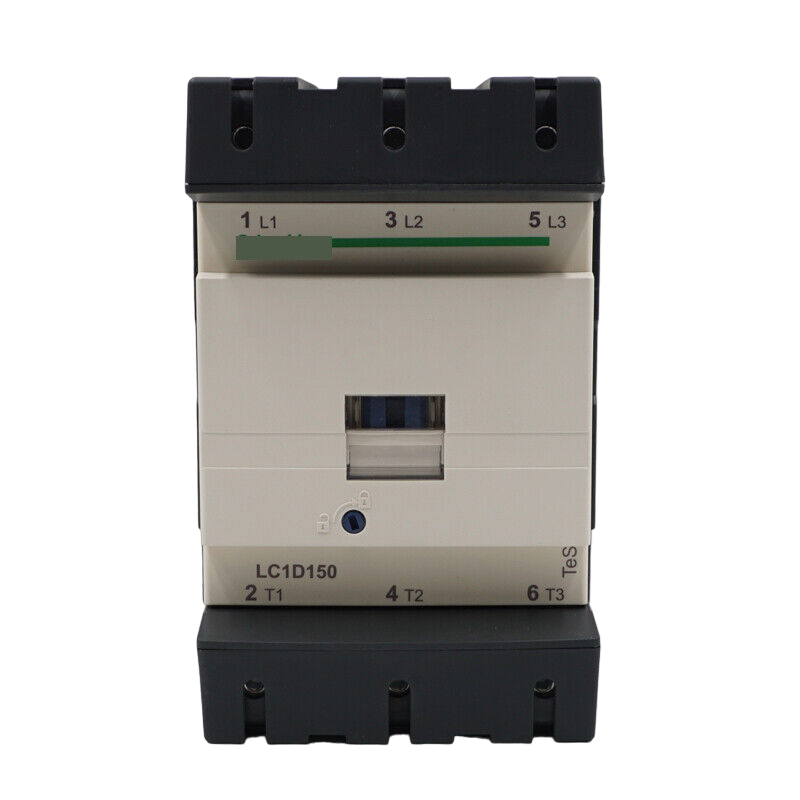

LC1D150-G7 - Schneider Electric 150A 3-Pole TeSys D Motor Contactor 120V AC Coil 100HP at 480V AC

LC1D150-G7

This contactor features a 150 amp rated operational current with 3 normally open (3 NO) power poles and 1 normally open plus 1 normally closed auxiliary contacts. It supports motor loads up to 100 HP at 480V AC and is suitable for AC-1, AC-3, AC-4 utilization categories. The device operates at control circuit voltage of 120V AC 50/60 Hz and conforms to IEC 60947 standards with a rated operational voltage up to 1000V AC and 300V DC. It offers high mechanical durability with 8 million mechanical cycles and an operating rate of 1200 cycles per hour at 60¡C. The contactor uses screw clamp terminals for secure connections and includes built-in bidirectional peak limiting diode suppressor technology for coil protection.

• Rated operational current: 150 A
• Poles: 3-pole (3 NO power contacts)
• Auxiliary contacts: 1 NO + 1 NC
• Control circuit voltage: 120 V AC 50/60 Hz
• Motor power rating: 100 HP at 480 V AC
• Rated operational voltage: ²1000 V AC, ²300 V DC
• Utilization categories: A(more...)


  Specifications

  • Part Number: LC1D150-G7
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : TeSys D
  • Type : LC1D
  • Voltage : 600
  • Amperage : 150
  • Phase : 3
  • Poles : 3
  • Coil Voltage Maximum : 120
  • Coil Voltage Minimum : 120



  Product Data

  • UPC : 038911035599
  • GTIN : 00389110355997
  • Weight : 6.5
  • Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
