LC1D12W7 - Schneider Electric 12A 3-Pole TeSys Deca Motor Contactor 277V AC Coil

SKU: LC1D12W7-ReCert
Condition: Re-Certified
Price:
$86.85
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

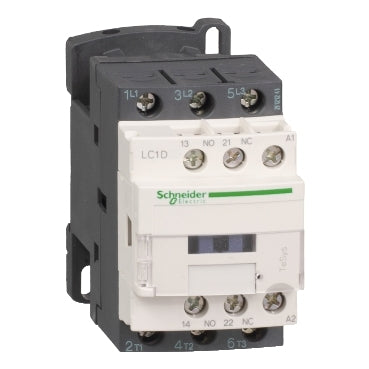

LC1D12W7 - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
LC1D12W7 - Essential Electric Supply

Description

LC1D12W7


LC1D12W7 is a Schneider Electric 3-pole motor contactor from the TeSys Deca series with a 277V AC coil voltage and 12 ampere current rating.LC1D12W7 features three normally open (3NO) contacts designed for motor control applications up to 7.5 HP at 460V AC. It supports AC-3 duty and is suitable for industrial and HVAC use. The contactor has screw clamp terminals and is rated for operation up to 440V AC with a coil power consumption of 2 to 3 watts at 50/60 Hz. It is designed for reliable switching with a mechanical endurance of 3600 cycles per hour at 60¡C.
  • Rated Current: 12A
  • Coil Voltage: 277V AC 50/60 Hz
  • Contact Configuration: 3 Normally Open (3NO)
  • Motor Power Rating: 7.5 HP at 460V AC
  • Number of Poles: 3
  • Mounting Type: Panel or DIN Rail compatible
  • Series: TeSys Deca
  • Operating Frequency: 50/60 Hz
  • Mechanical Endurance: 3600 cycles/hour at 60¡C
  • Contact Type: Screw clamp terminals
  • Standards: IEC 60947 compliant
At Essential Parts, we offer fast shipping, lowest p(more...)

Specifications

  • Part Number: LC1D12W7
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : TeSys D
  • Type : LC1D
  • Voltage : 600
  • Amperage : 12
  • Phase : 3
  • Poles : 3
  • AIC rating : 18kA@480V
  • Connection : Bolt-On
  • Functions : I - Instantaneous
  • Coil Voltage Maximum : 277
  • Coil Voltage Minimum : 277
  • Protection : Magnetic Only

Product Data

  • GTIN : 03389110290189
  • Dimensions : Depth 3.39 in (86 mm) Width 1.77 in (45 mm) Height 3.03 in (77 mm)
  • Weight : 0.781
  • Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
