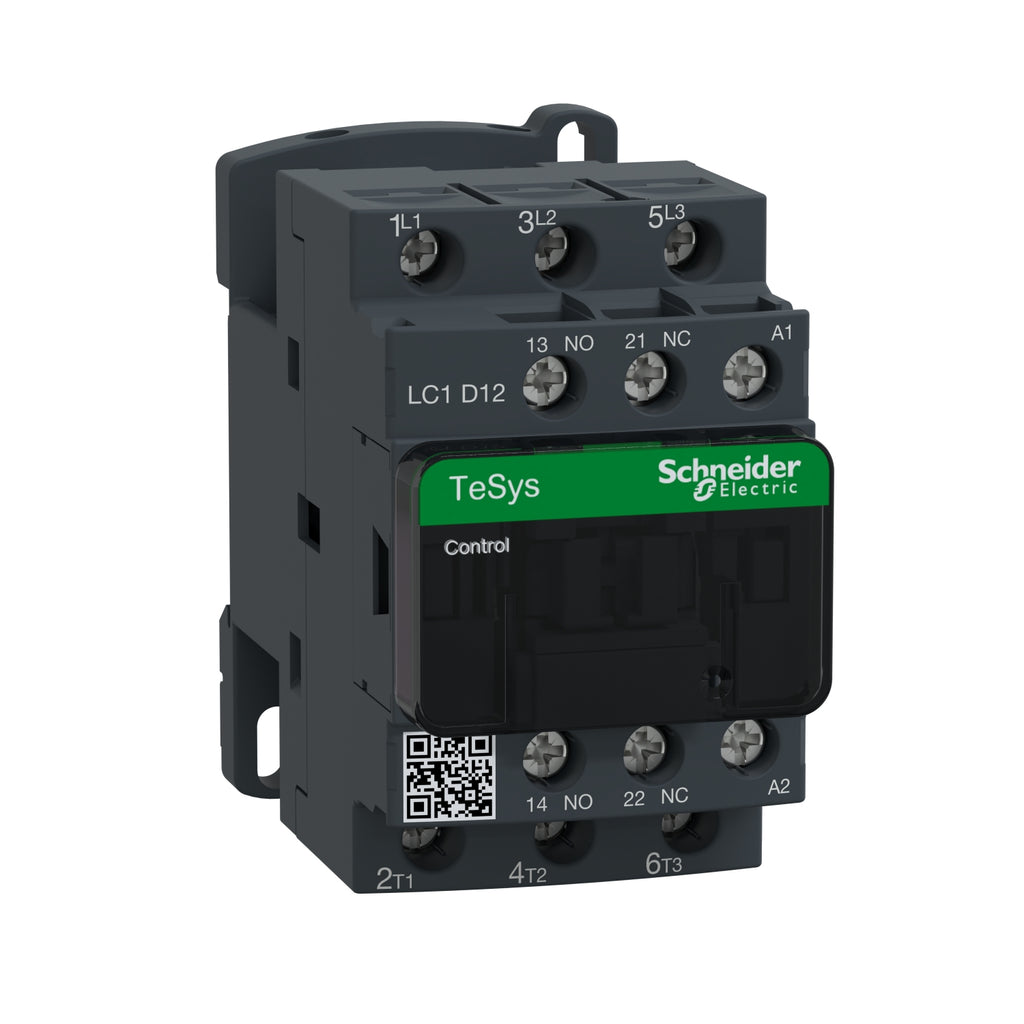

LC1D12Q7C - Schneider Electric 3-Pole 12A 440V AC-3 TeSys D Motor Contactor with 380V Coil

LC1D12Q7C

LC1D12Q7C is a Schneider Electric TeSys D series 3-pole motor contactor rated for 12 amps and up to 440V AC-3 duty with a 380V AC coil.LC1D12Q7C provides reliable motor control for applications up to 7.5 HP at 460V and 3 HP at 230V. It features 3 normally open (NO) contacts, screw terminal connections, and supports DIN rail or panel mounting. This contactor is IEC, UL, and CSA certified, designed for industrial motor control with enhanced fire resistance and environmental certifications.

• Rated Current: 12A AC-3
• Voltage Rating: Up to 440V AC-3
• Coil Voltage: 380V AC
• Number of Poles: 3
• Auxiliary Contacts: 1 NO + 1 NC
• Mounting: DIN Rail or Panel
• Series: TeSys D
• Certifications: IEC 60947, UL, CSA, RoHS
• Motor Power: 3 HP @ 230V / 7.5 HP @ 460V
• Connection Type: Screw Terminals

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LC1D12Q7C
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Family : TeSys D
• Type : LC1D
• Voltage : 600
• Amperage : 12
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 380
• Coil Voltage Minimum : 380

Product Data

• Weight : 0.772
• Certification : CE, UKCA, CCC
