LC1D12P7C - Schneider Electric 12A 3-Pole TeSys D Motor Contactor 230V Coil 3HP 230V / 7.5HP 460V

LC1D12P7C

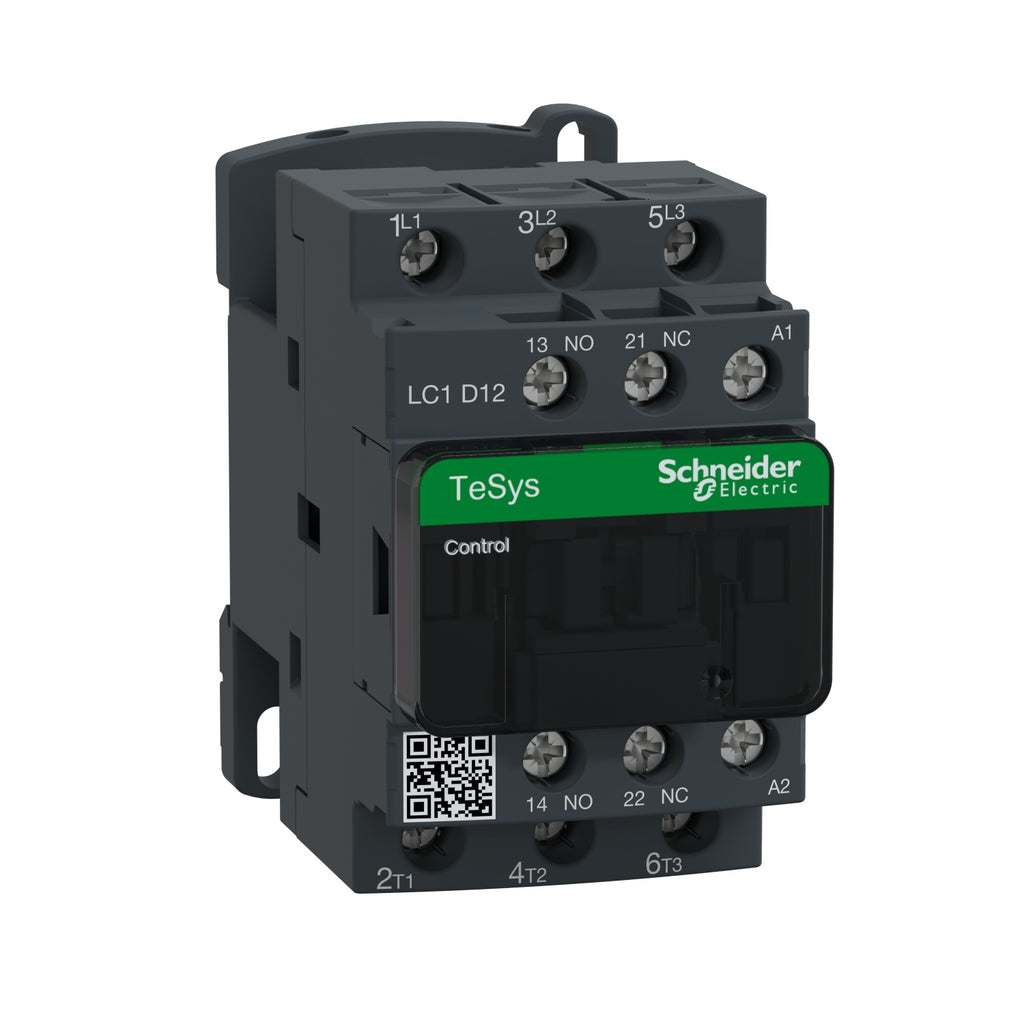

LC1D12P7C is a Schneider Electric TeSys D series 3-pole motor contactor designed for reliable motor control applications.This contactor is rated for 12A AC-3 duty and supports motor loads up to 3 HP at 230V and 7.5 HP at 460V. It features a 230V AC coil and includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact. The device is suitable for DIN rail or panel mounting and complies with IEC 60947 standards. It offers a rated impulse withstand voltage of 6 kV and an operating rate of up to 3600 cycles per hour at 60¡C.

Key Specifications
• Rated Current: 12A AC-3
• Motor Power: 3 HP @ 230V / 7.5 HP @ 460V
• Poles: 3 (3 Normally Open contacts)
• Coil Voltage: 230V AC 50/60 Hz
• Auxiliary Contacts: 1 NO + 1 NC
• Mounting Type: DIN Rail / Panel Mount
• Rated Impulse Withstand Voltage: 6 kV (IEC 60947)
• Operating Rate: 3600 cycles/hour at 60¡C
• Standards: IEC 60947, UL, CSA
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product eve(more...)


Specifications

• Part Number: LC1D12P7C
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Family : TeSys D
• Type : LC1D
• Voltage : 600
• Amperage : 12
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 230
• Coil Voltage Minimum : 230



Product Data

• Weight : 0.772
• Certification : CE, UKCA, CCC
