LC1D12P7 - Square D TeSys D 12A 3-Pole Contactor 230V AC Coil Motor Control

LC1D12P7

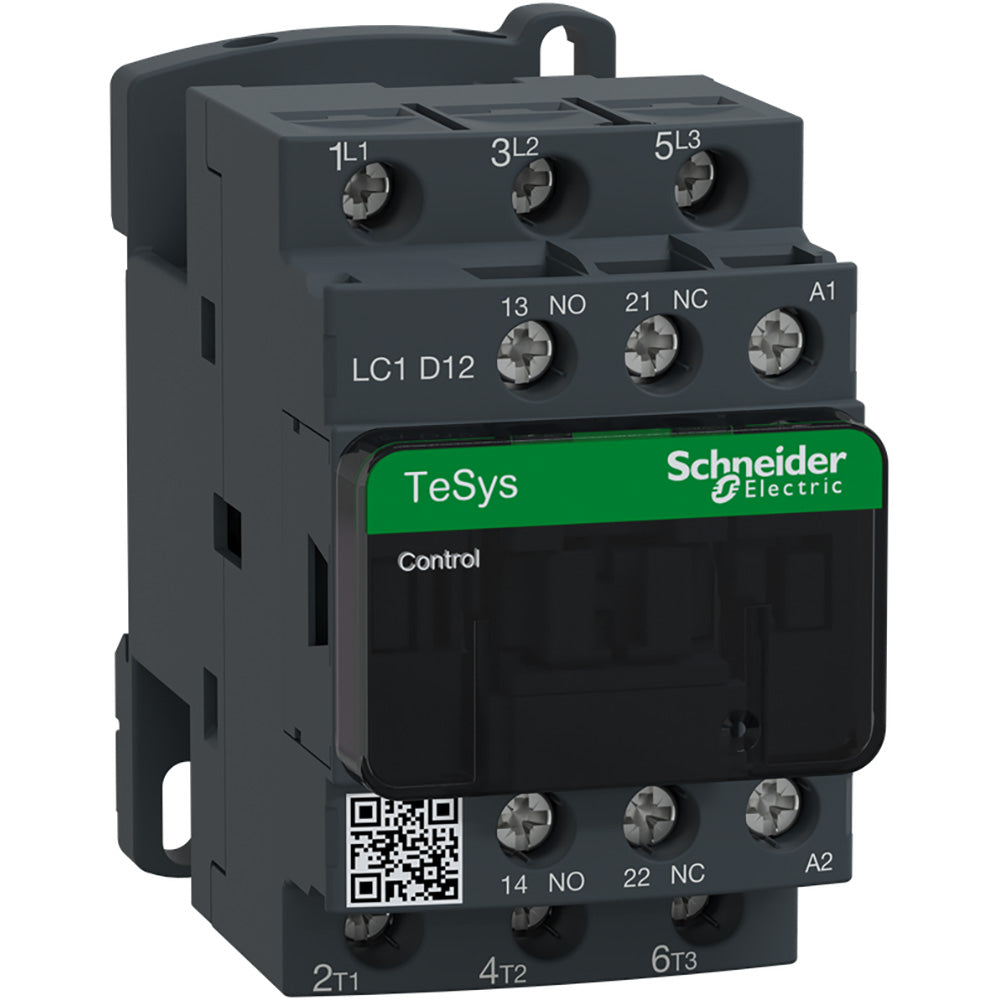

LC1D12P7 is a Square D TeSys D 3-pole contactor with a 12 amp rating and a 230 V AC coil designed for motor control applications.This non-reversing contactor supports AC-3 utilization category with a rated operational voltage up to 690 V AC and a rated current of 12 A at 440 V AC. It features 3 normally open (3 NO) poles, suitable for controlling motors up to 7.5 kW at 480 V AC. The compact design allows DIN-rail or screw mounting, meeting IEC standards including IEC60335-1 for fire resistance and dustproof auxiliaries.

Key Specifications
• Amperage: 12 A (AC-3, 440 V)
• Voltage: Up to 690 V AC power circuit, 230 V AC coil
• Poles: 3 poles, 3 normally open (3 NO)

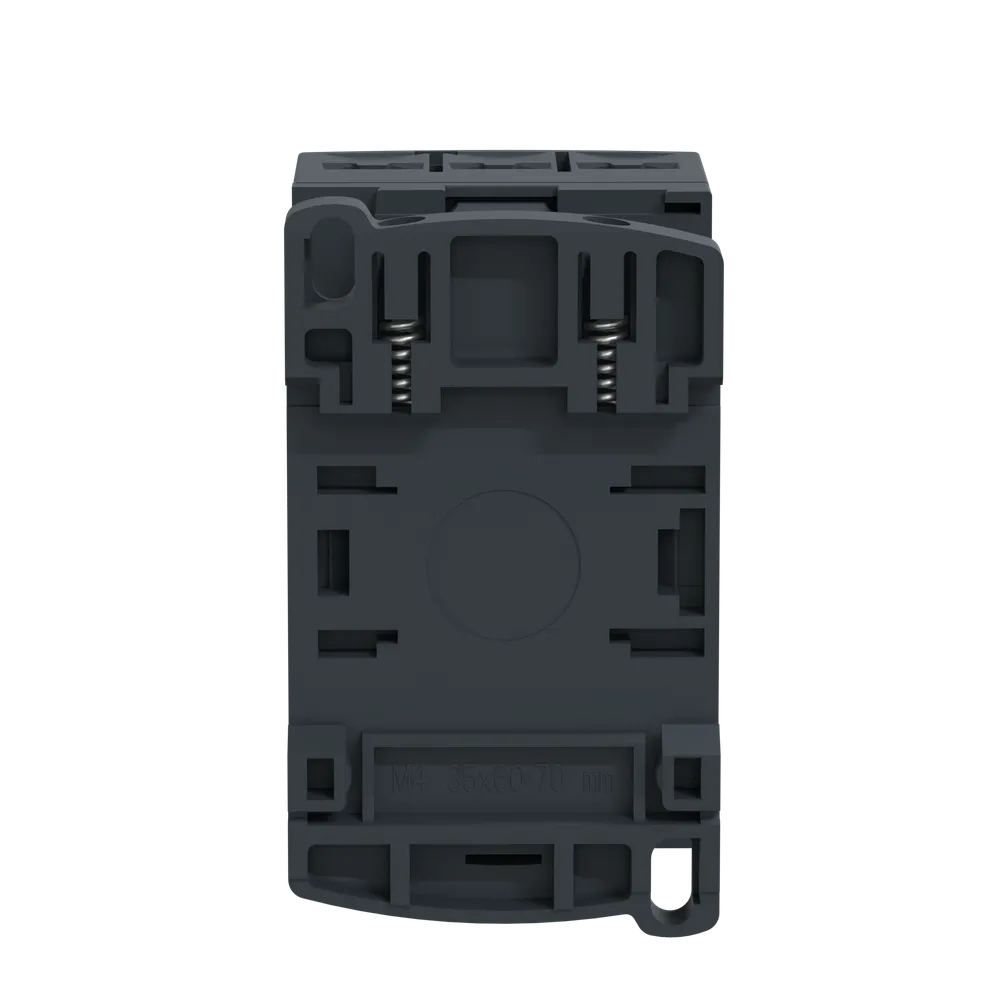

• Mounting Type: DIN-rail or screw fixing
• Interrupt Rating: Suitable for use with 15 kA SCCR breaker GV2ME16
• Series/Frame: TeSys D
• Trip Unit: Non-reversing contactor
• Motor Power: Up to 7.5 kW at 480 V AC (AC-3)
• Utilization Categories: AC-1, AC-3, AC-4, AC-3e
• Certifications: IEC60335-1 compliant
At Essential Parts, we offer fast shipping, l(more...)


Additional Information

This TeSys D IEC Contactor includes a 230 VAC coil.




Specifications

• Part Number: LC1D12P7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Family : TeSys D
• Type : LC1D
• Voltage : 600
• Amperage : 12
• Phase : 3
• Poles : 3
• Aux Contacts : 3 NO
• Coil Voltage Maximum : 230
• Coil Voltage Minimum : 230
• Frequency : 50/60 Hz



Product Data

• UPC : 785901549741
• GTIN : 3389110349306
• Country of Origin : Indonesia
• Dimensions : 45 mm x 77 mm
• Weight : 0.754
• Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
