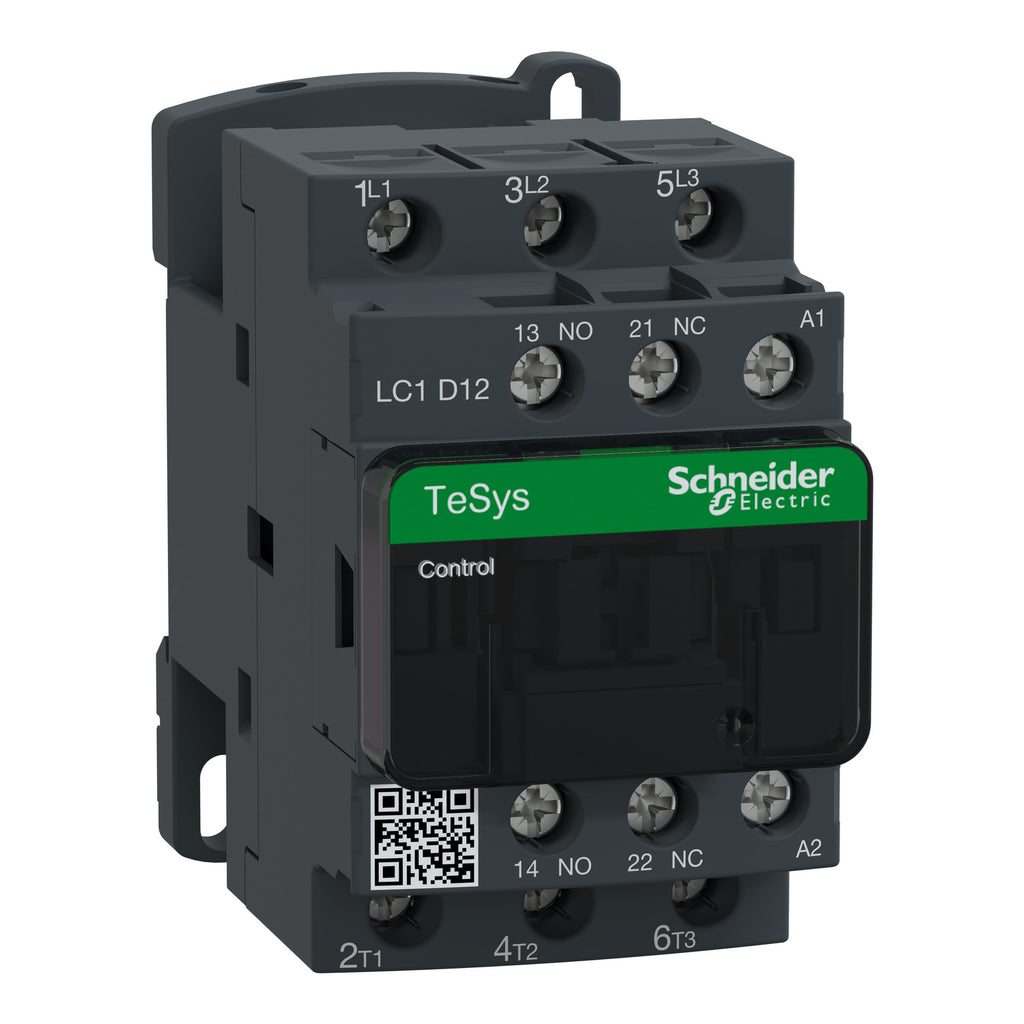

LC1D12G7 - Schneider Electric TeSys Deca 3-Pole 12A 120V Contactor

LC1D12-G7

LC1D12G7 is a 3-pole nonreversing IEC contactor from Schneider Electric designed for motor control applications. This TeSys Deca contactor features 3 NO (normally open) contacts and is rated for 12A at 440V AC-3, with a 120V AC 50/60Hz control circuit coil and screw clamp terminals for secure installation.Key Specifications

• Rated Current: 12A at 440V AC-3
• Motor Power: 7.5 HP at 460/480V, 3 HP at 230/240V, 10 HP at 575/600V
• Contact Configuration: 3 NO + 1 NC auxiliary
• Control Coil: 120V AC 50/60Hz
• Power Circuit Voltage: Up to 690V AC 25-400Hz
• Operating Rate: 3600 cycles/hour at 60¡C
• Impulse Withstand Voltage: 6kV per IEC 60947
• Terminal Type: Screw clamp with multi-standard screws
• Compliance: IEC 60335-1 fire resistance, UL/CSA rated
• Operating Time: 4-19ms opening, 12-22ms closing

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LC1D12-G7
• Manufacturer : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Family : TeSys D
• Type : LC1D
• Voltage : 600
• Amperage : 12
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 120

Product Data

• UPC : 038911034924
• GTIN : 03389110349245
• Weight : 2
• Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
