Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Contactor
Description
LC1D12CC7C

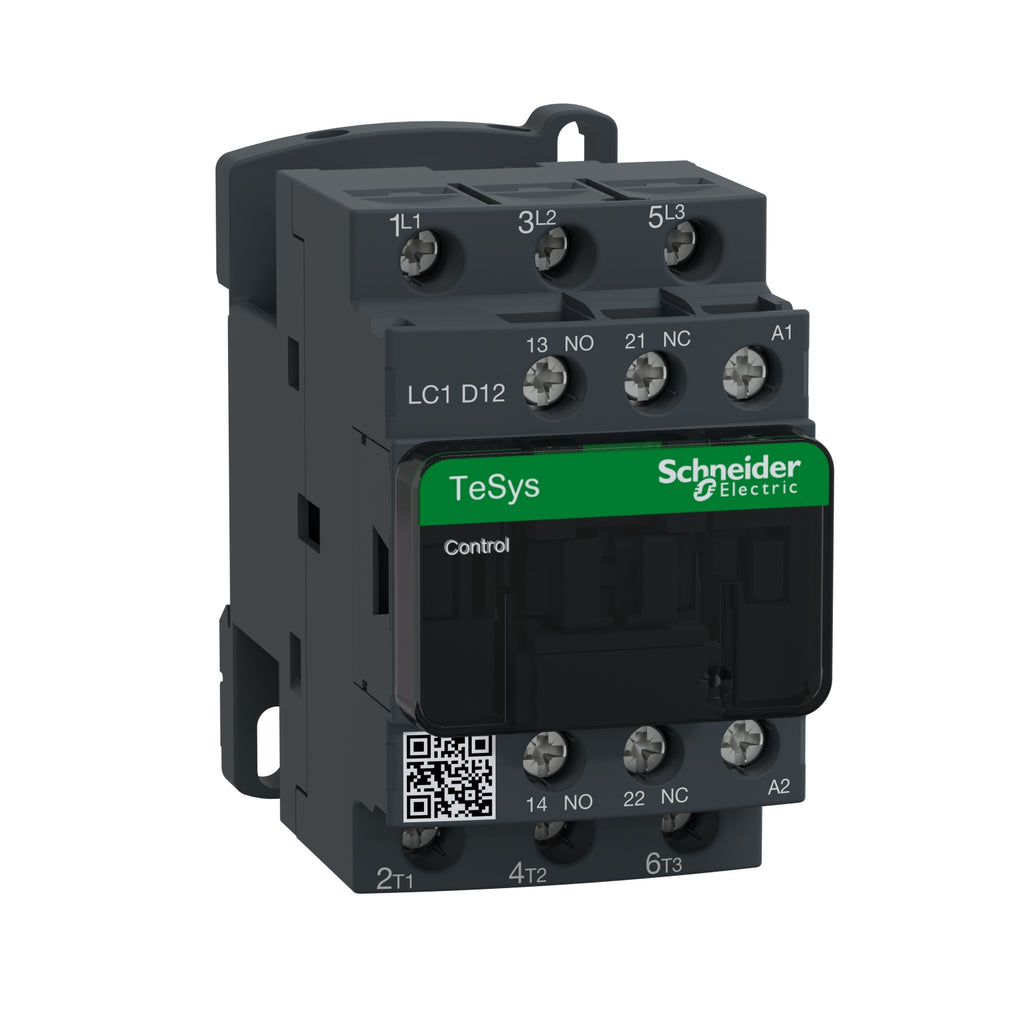

LC1D12CC7C is a Schneider Electric TeSys D series 3-pole motor contactor rated for 12 amps with a 36V AC coil operating at 50/60 Hz.LC1D12CC7C provides reliable motor control for applications up to 5.5 kW at 400V AC-3 duty. It features 3 normally open poles and includes 1 normally open plus 1 normally closed auxiliary contact. The contactor supports DIN rail or panel mounting and complies with IEC, UL, and CSA certifications.
- Rated Current: 12A AC-3
- Motor Power: 5.5 kW at 400V
- Poles: 3 (3 Normally Open)
- Auxiliary Contacts: 1 NO + 1 NC
- Coil Voltage: 36V AC, 50/60 Hz
- Mounting: DIN Rail or Panel
- Series: TeSys D
- Certifications: IEC, UL, CSA
Specifications
- Part Number: LC1D12CC7C
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Family : TeSys D
- Type : LC1D
- Voltage : 600
- Amperage : 12
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 36
- Coil Voltage Minimum : 36
Product Data
- Weight : 0.752
- Certification : CE, UKCA, CCC
