Description

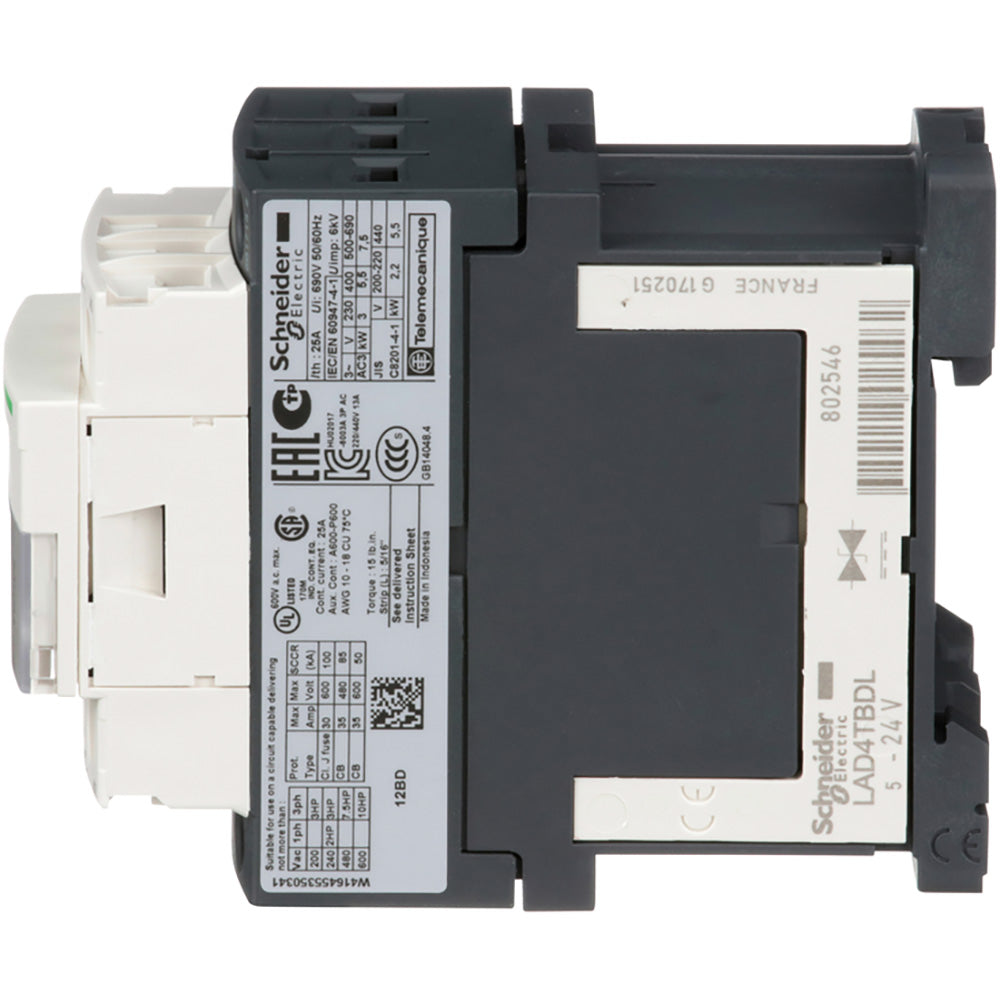

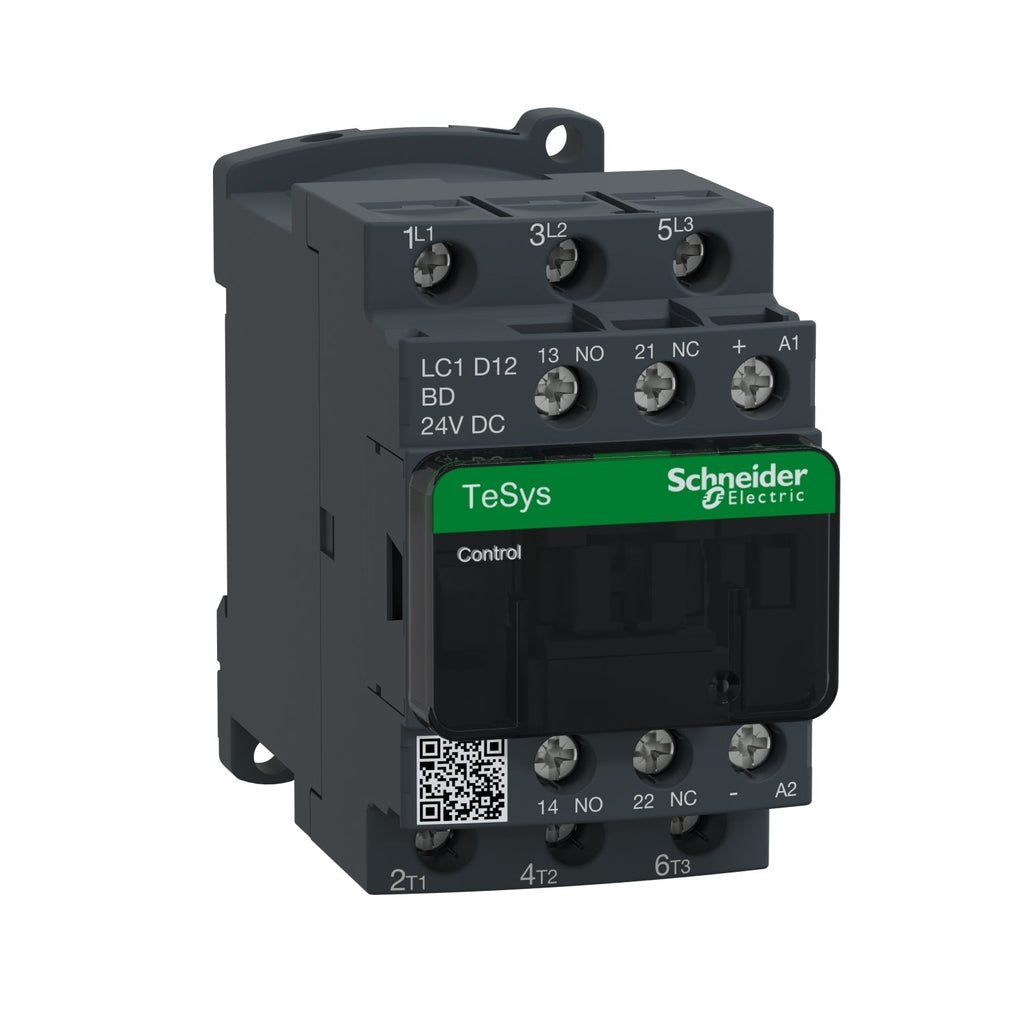

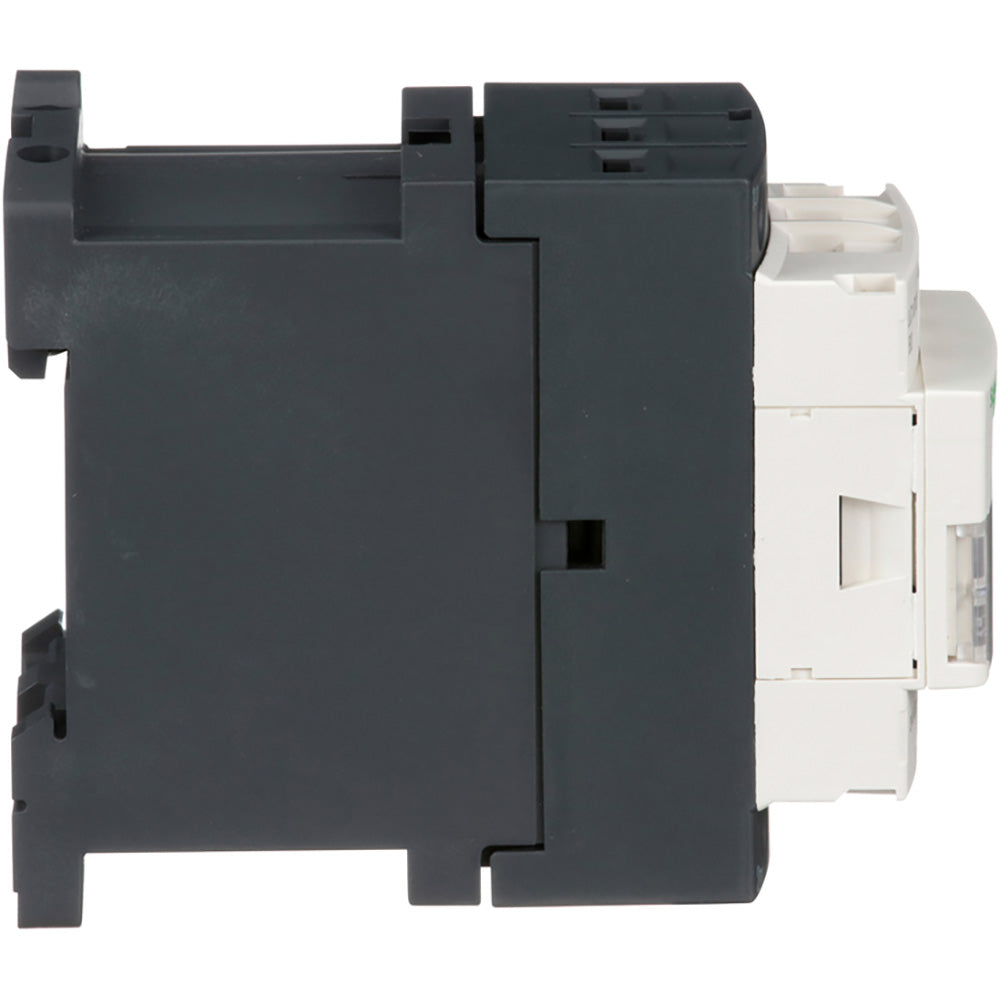

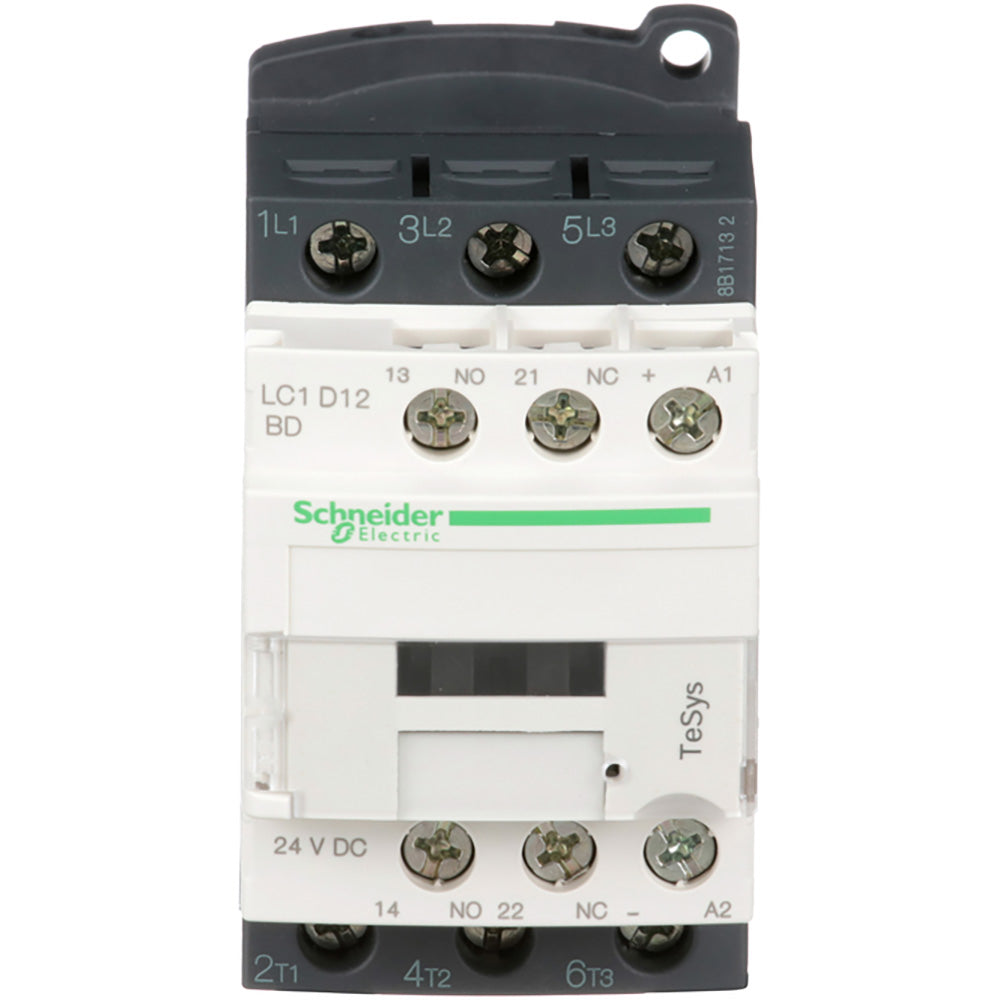

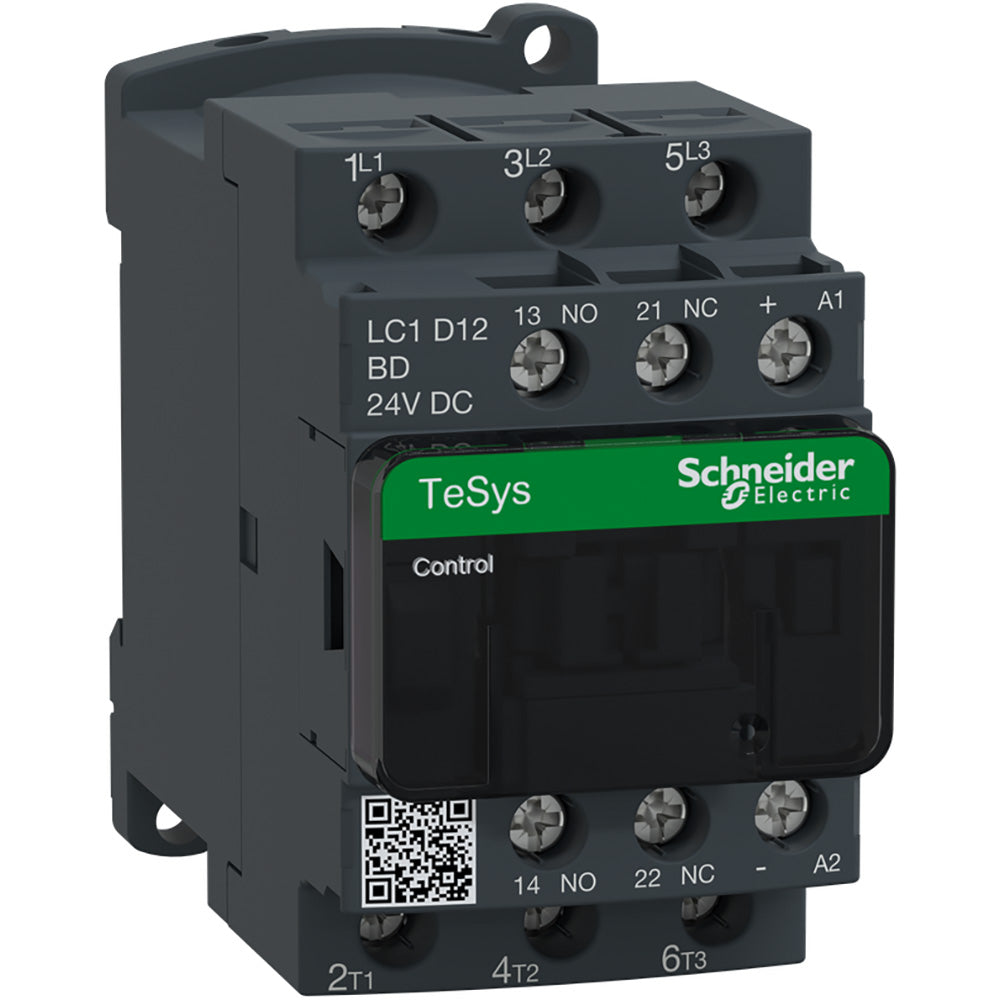

LC1D12BD
LC1D12BD is a Square D TeSys D 3-pole motor contactor rated for 12 amps and up to 690V AC with a 24V DC coil.This contactor is designed for industrial motor control applications with 3 normally open poles (3 NO) and auxiliary contacts (1 NO + 1 NC). It supports AC-1, AC-3, and AC-4 utilization categories, suitable for resistive and motor loads. The device features screw clamp terminals for secure wiring and can be mounted on DIN rail or panel. It complies with multiple certifications including UL, CSA, BV, DNV, and others, and offers a high interrupt rating with a 7.5 kW motor power rating at 480V AC.
- Key Specifications
- Manufacturer: Square D
- Series: TeSys D
- Amperage: 12 A
- Voltage Rating: Up to 690 V AC / 300 V DC
- Poles: 3 (3 NO)
- Coil Voltage: 24 V DC

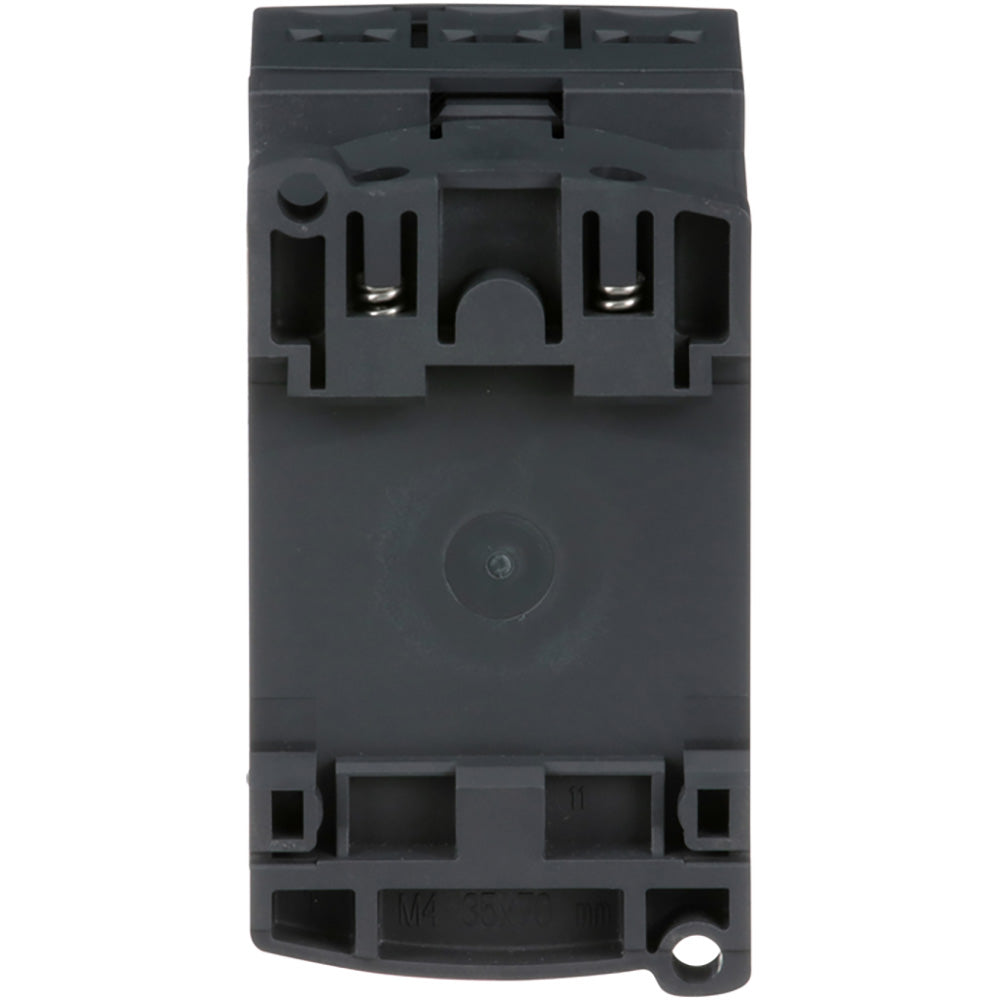

- Mounting Type: DIN rail or panel mount
- Terminal Connection: Screw clamp
- Utilization Categories: AC-1, AC-3, AC-4
- Motor Power: 7.5 kW at 480 V AC
- Certifications: UL, CSA, BV, DNV, RINA, GL, GOST, LROS, CCC
- Operating Temperature: -40 to 60 ¡C (derating above 60 ¡C)
- Part Number: LC1D12BD
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Family : TeSys D
- Type : LC1D
- Voltage : 600
- Amperage : 12
- Phase : 3
- Poles : 3
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- Horse Power : 0.5 hp at 115 V AC 50/60 Hz for 1 phase motors-2 hp at 230/240 V AC 50/60 Hz for 1 phase motors-3 hp at 200/208 V AC 50/60 Hz for 3 phases motors-3 hp at 230/240 V AC 50/60 Hz for 3 phases motors-7.5 hp at 460/480 V AC 50/60 Hz for 3 phases motors-10 hp at 575/600 V AC 50/60 Hz for 3 phases motors
- Aux Contacts : 1NO/1NC
- Coil Voltage Maximum : 24
- Full Load Amps : Full Load Amps-Inductive 12A Full Load Amps-Resistive 25A
- Coil Voltage Minimum : 24
- UPC : 038911035371
- GTIN : 03389110353716
- Country of Origin : Indonesia
- Dimensions : 1.77 in x 3.03 in
- Weight : 1.147
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
